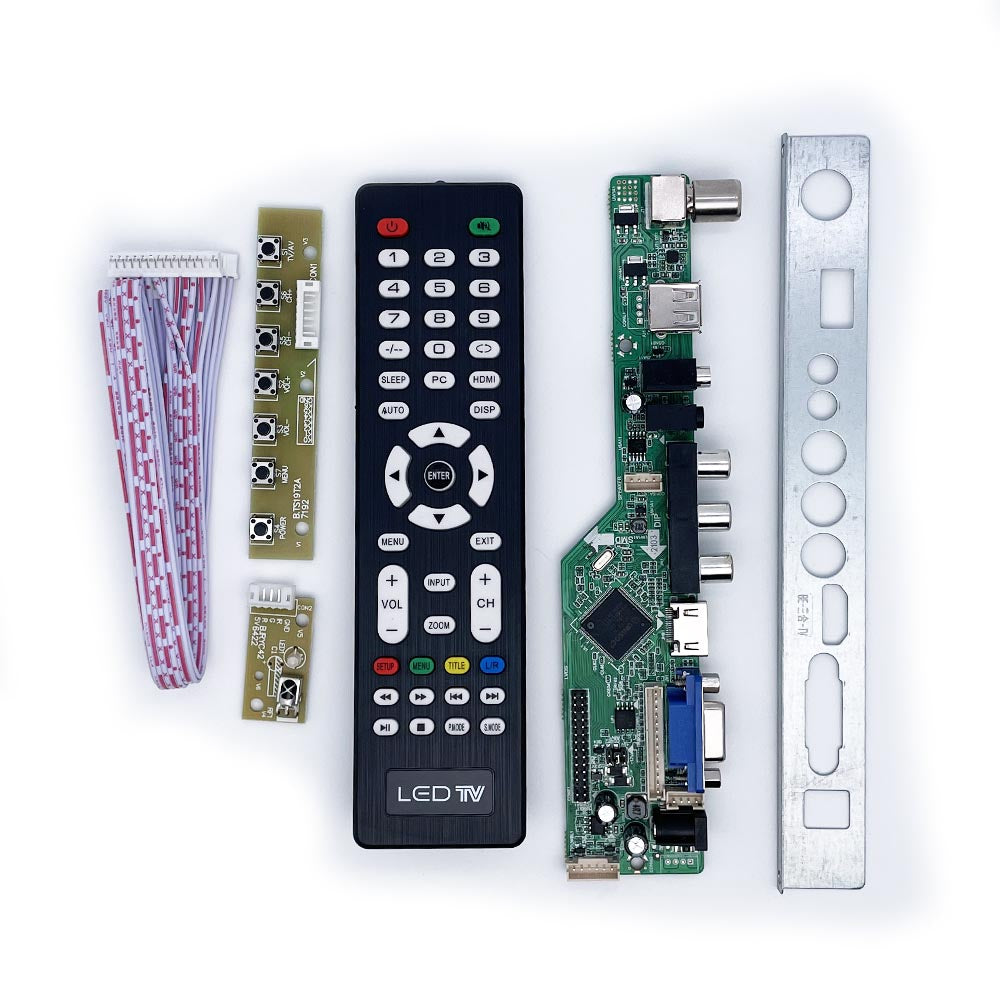

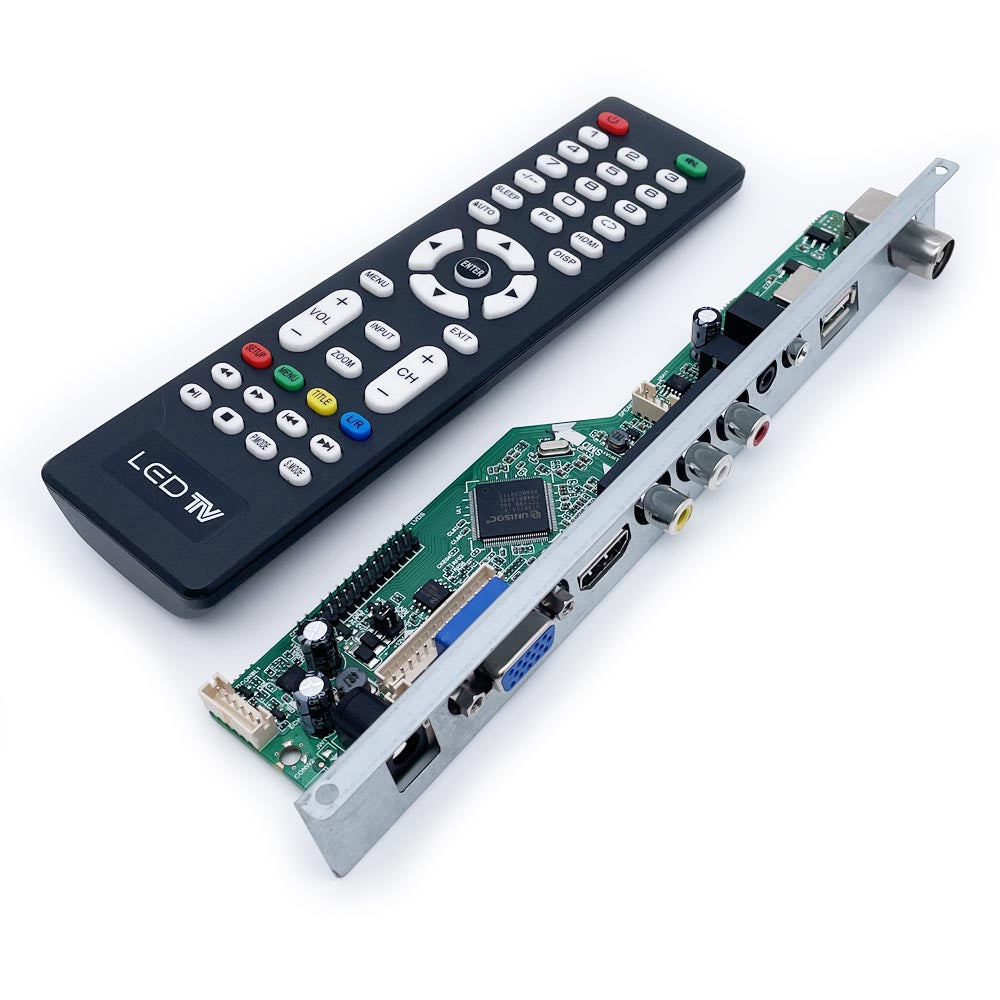

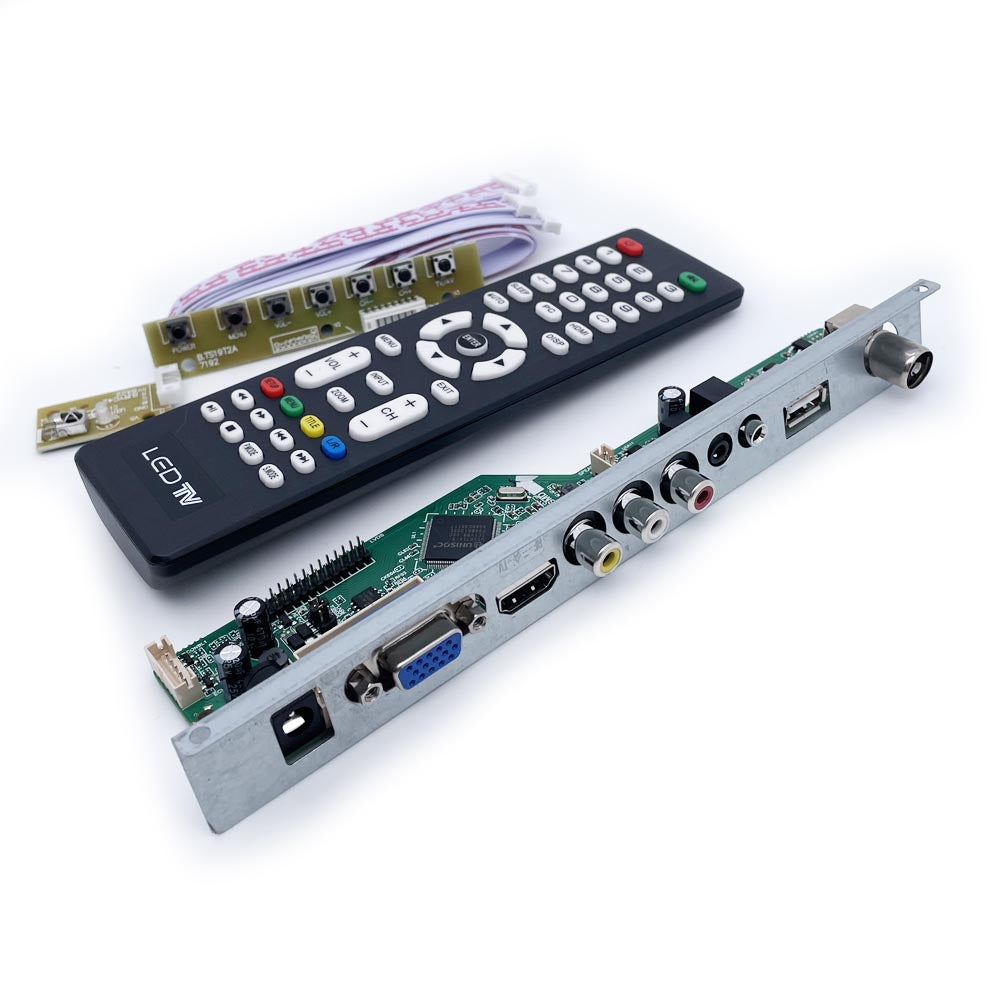

Package list:

LCD driver board*1

remote control *1

7 keyboard *1

baffle*1

TV Format: Analog Signal

Input Interface: PC / HDMI / TV / AV / USB multimedia playing

Power Adapter: DC 12V 3-5A

Screen interface: LVDS 1ch 6/8-bit ,2ch 6/8-bit

Screen voltage: 3.3V / 5V / 12V (Jump cap)

Resolution: Support high screen resolution 1920 * 1080, 8.9-42 inch LVDS screen (support most of the panels,but not all)

Not only USB interface can be used to upgrade programs, but also can use to play video/music/photo, basically formats are supported. You can also set a boot display pictures or LOGO and Mirror Enable.

Program update method:

 1. Prepare a USB flash drive and download the program we provide

select the required firmware from the file (select firmware according your screen resolution)and copy 6710.BK to the USB flash drive.

2.set the voltage on board(it is according your screen input voltage :3.3v/5v/12v)

3.plug flash drive to the board, and plug 7 key board,then plug power adapter,power

on. then you can see the light on key board will be flashing. it is

mean the board is installing program. (at this moment , don't let power off!)

4.after few minutes, the led will be stop flashing, mean finished. then

power off, Pull out the USB , then plug lvds cable and inverter. power

on . On screen "no signal" , done.

Note:

voltage should be set correctly(3.3v/5v/12v);

The power requirement of 12V4A;

don't let power off when installing program;

The screen line not to reverse and dislocation;

select

lvds cable and inverter should according your panel specs.if you can't

select, pls offer panel number to us, we will help you.

Configuration & General Precautions

 1.Protect the board from static electricity to avoid damage to the IC.

 2.Keep the board away from conductor when it is working.

 3.Don’t press, distort or disassemble the board.

 4.Clean the board with soft dry cloth when it’s dirty.

 5.Don’t switch on the power supply before panel is correctly connected.

 6.The brightness of panel is influenced greatly by temperature, you should measure it after power on 10~30 minutes.

 7.Keep the board surface clean. Check the appearance of the board if there has any defective parts, such as damaged,

 weighty nick, etc.
