Features:

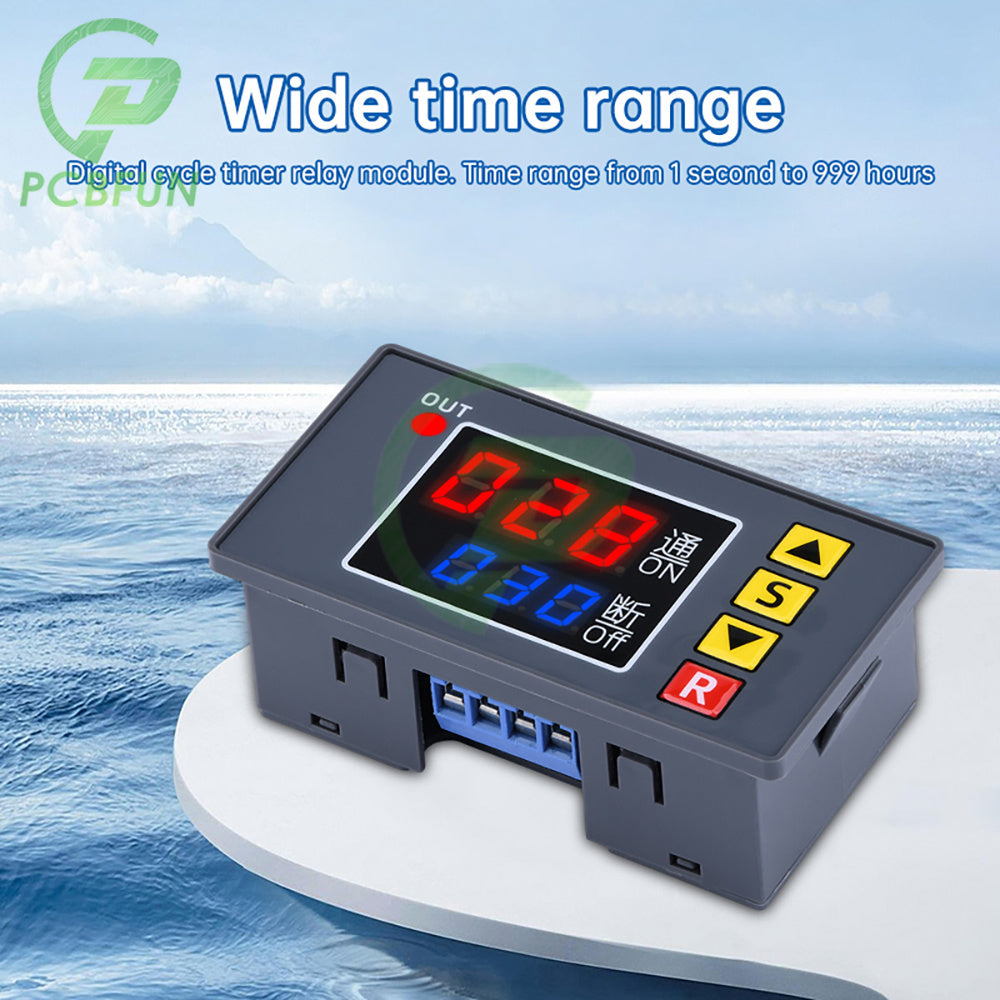

1.Wide time range: Digital cycle timer relay module, with a time range from 1 second to 999 hours

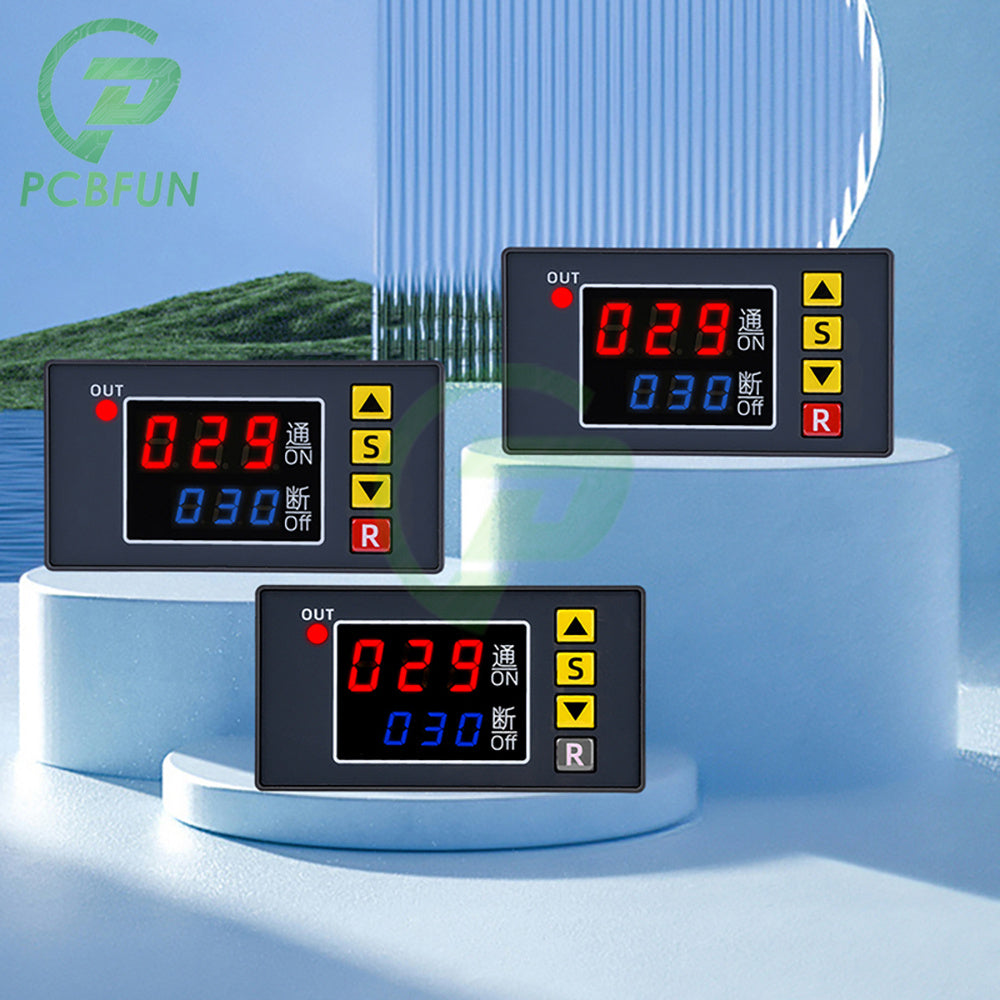

2.Dual led display screen: Red and blue dual led display module and touch buttons, easy to set delay time and working mode
3.Supports multiple working modes, including timed, cyclic, and periodic working modes, to meet most of your needs
4.Direct output, input=output
5.Installation size: 77*39.3mm, embedded installation, suitable for various application scenarios
Parameters:

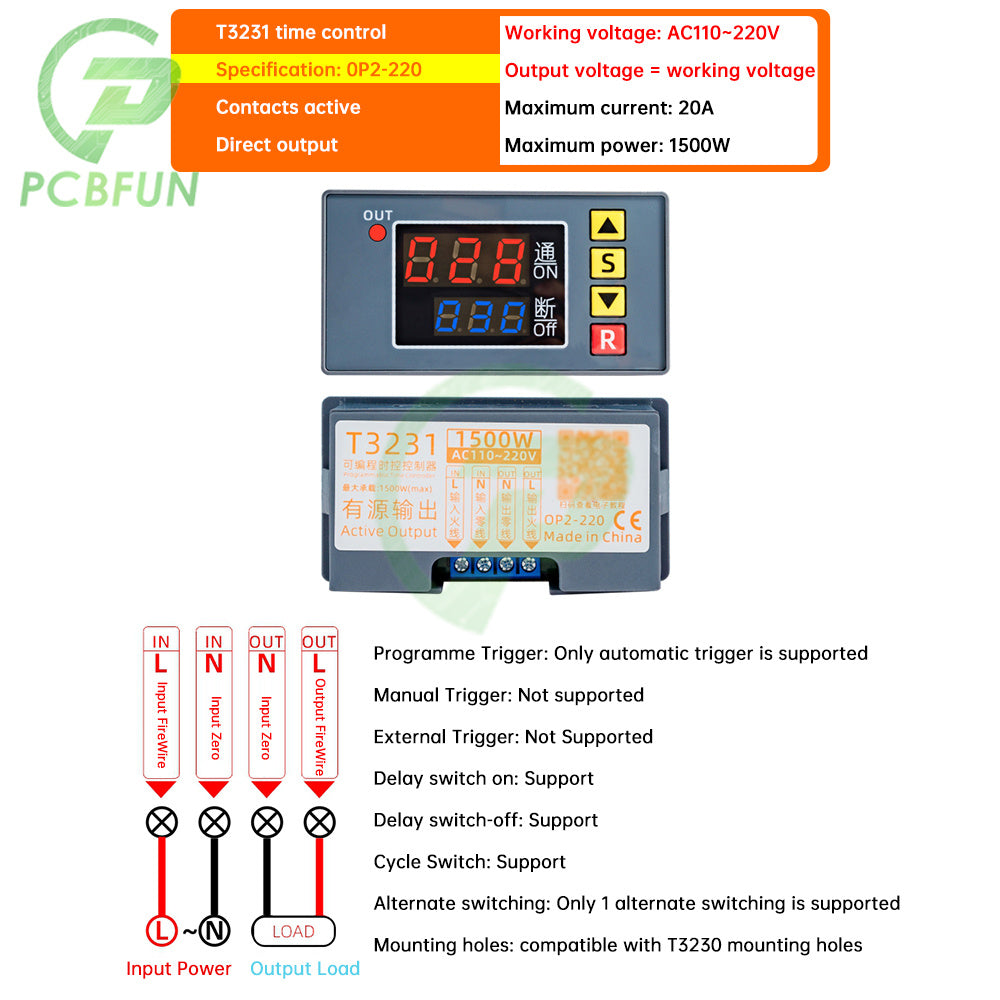

Product name: t3231 controller

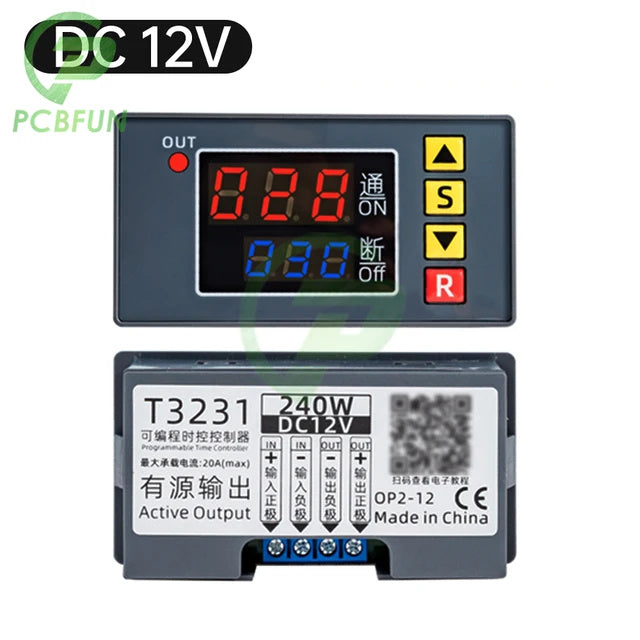

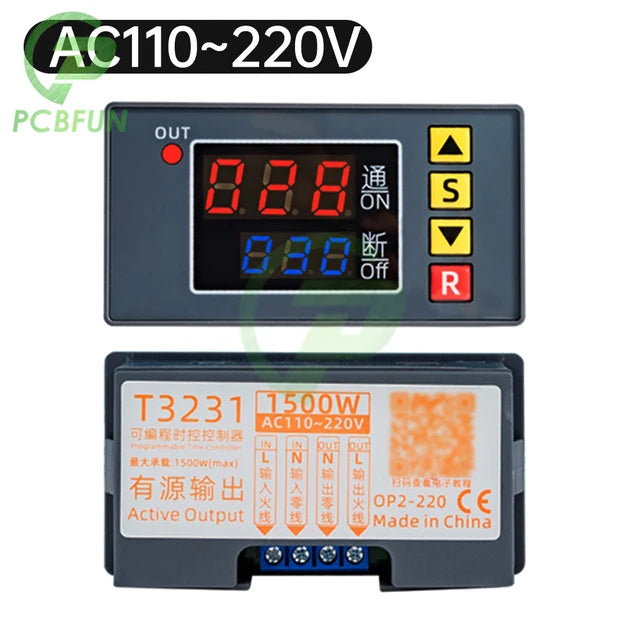

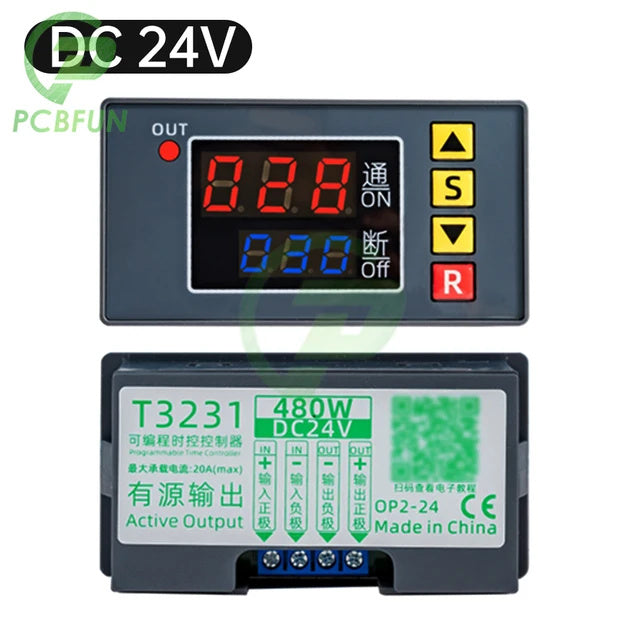

Working voltage: dc12v/240w dc24v/480w ac110-2220v/1500w (optional)

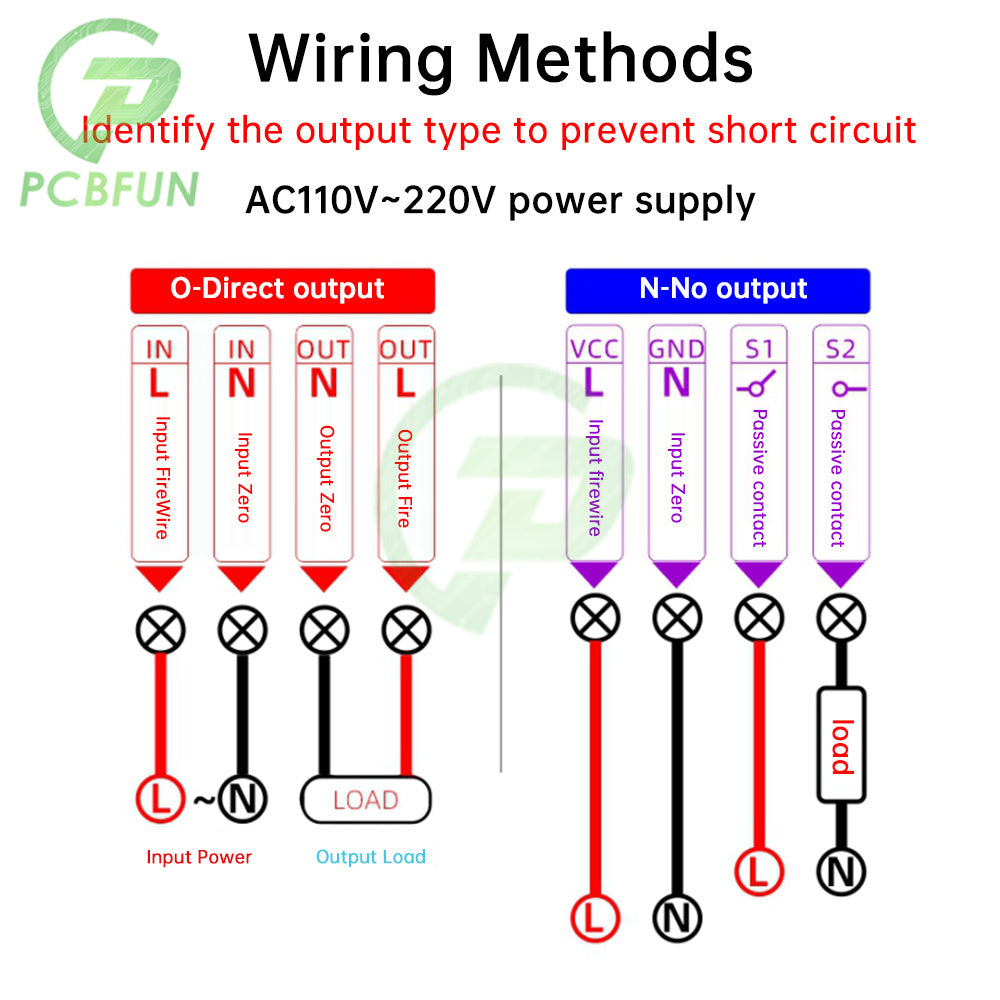

Output type: active output, live output, output voltage=working voltage
Relay type: 1-channel normally open relay
Timing unit: seconds/minutes/hours
Timing range: 1~999, minimum measurement unit: 1 second
Single delay on/off: support
Infinite loop on/off: support
Switching priority adjustment: supported
Automatic trigger: supports
Power off saving: supports power off saving settings
Reset and restart: supported
Unit synchronization: synchronization, only 3 combinations of timing units available
Manual trigger: not supported
External trigger: not supported
Set lock: not supported

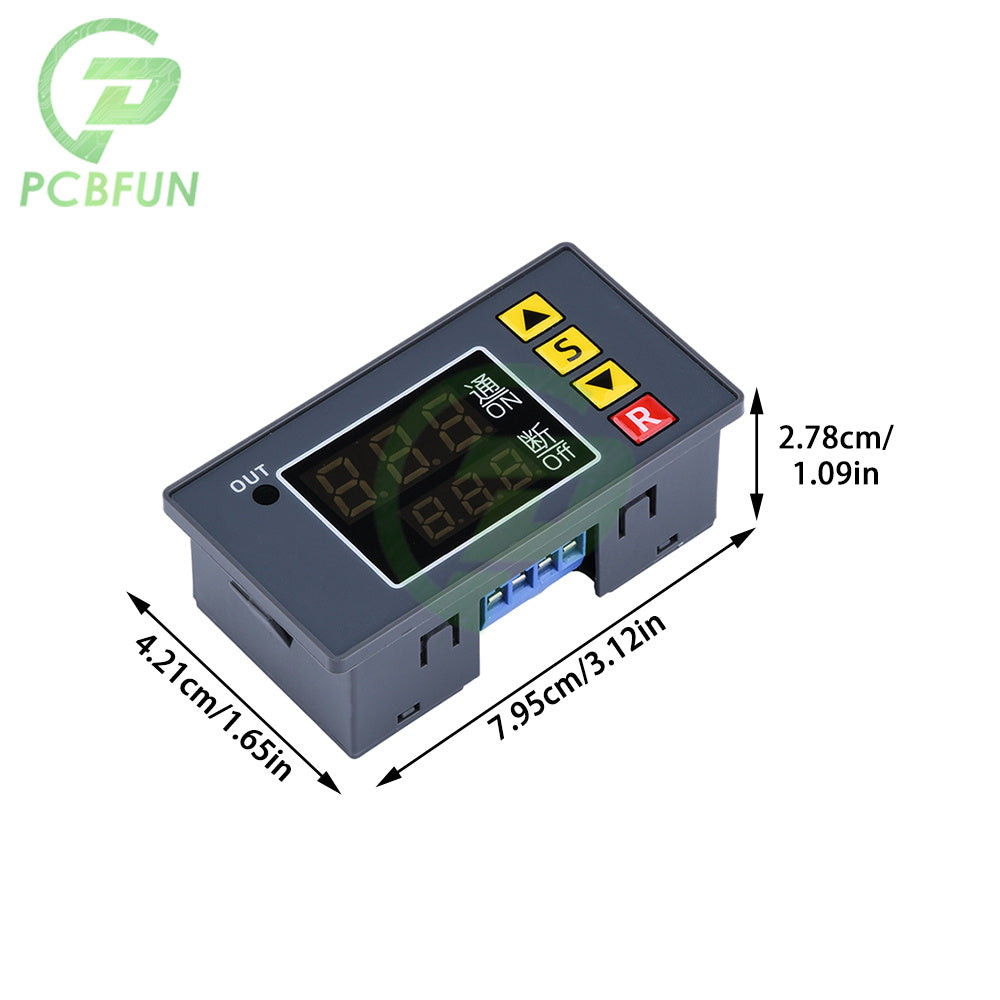

Product size: 79.5*42.1*27.8mm
Installation opening: 77 *39.3mm
Package include:
Delay relay*1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
