AC DC Volt Current Resistance Capacitance Frequency Tester UNI-T UT61E LCD Display Digital Multimeter
SPECIFICATIONS:
Basic Functions
Range
Best Accuracy
DC Voltage
220mV/2.2V22V220V/1000V
(0.1%+2)
AC Voltage
220mV/2.2V/22V/220V/750V
(0.8%+10)
AC Current
220mA/2200mA/22mA/220mA/2.2A/10A
(0.8%+10)
DC Current
220mA/2200mA/22mA/220mA/2.2A/10A
(0.5%+10)
Resistance
220W/2.2KW/22kW/220kW/2.2MW/22MW/220MW
(0.5%+10)
Capacitance
22nF/220nF/2.2mF/22mF/220mF/2.2mF/22mF/220mF
(3.0%+5)
Frequency
10Hz-220MHz
(0.01%+5)
Frequency Response
0
45Hz~10kHz
Duty Cycle
0.1%~99.9%
Sleep Mode
Around 15 Minutes
Analogue
Bar Graph
46
RS232
Input Protection
Input Impedance for DC Voltage Measurement
Around 10MW
Low Battery Display
≤7.5V
Max Display
22000
GENERAL CHARACTERISTICS
Power
9V Battery (6F22) (not include in the package)
LCD Size
65 x 43mm
Product Colour
Red and Grey
Product Net Weight
370g
Product Size
180 x 87 x 47mm

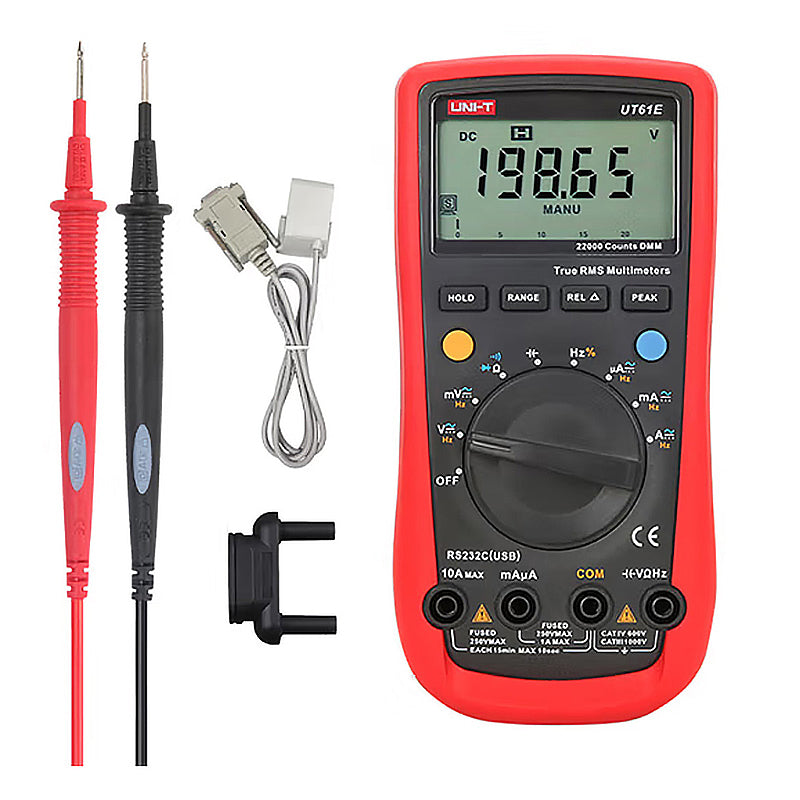

Package list:
1 * UNI-T UT61E Modern Digital Multimeters
2 * Test Lead
1 * Muli-Purpose Socket
1 * RS-232 Interface Cable
1 * PC Software CD
1 * English Manual
