UHF 600-937MHz frequency range
Digital wireless audio transmission
48KHz audio sampling mode
Pre-set 16*2 selectable frequencies
Digital ID code, completely solve the frequency interference
LED indicator for power,AF. RF signal,Channel
IR sync downloading the frequency from receiver
Up to 60 meters line-of-sight range
Ideal for concerts, schools, clubs and church applications
Optional hand-held microphone, pocket transmitter, lavalier and headset available
SPECIFICATION:
Comprehensive Performance
Carrier Frequency: UHF600-937MHz
Demodulation Mode: pi/4 DQPSK
Sampling Rate: 48KHz
Latency: 3mS
Dynamic Range: >96dB
Total Harmonic Distortion：<0.2%
Frequency Response: 30Hz-18KHz±2dB

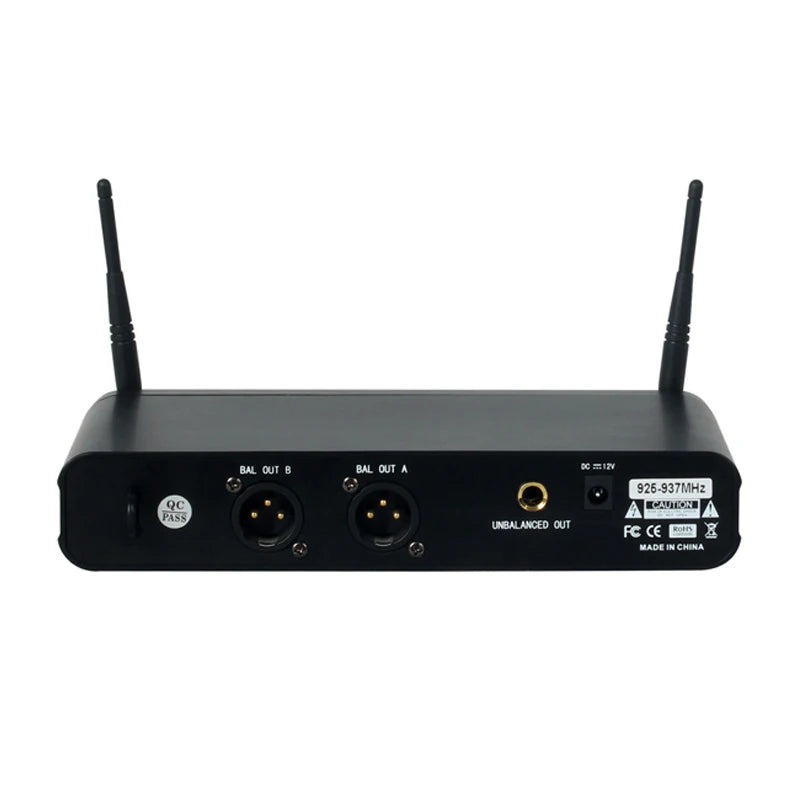

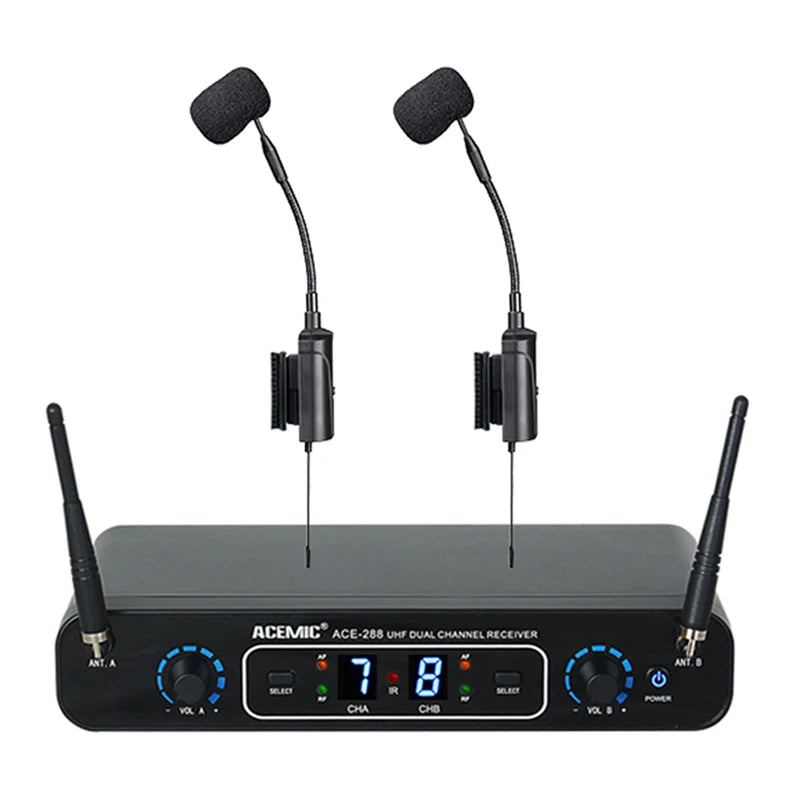

Receiver:
Power Supply: DC12V/1A
Signal/Noise Ratio: >96dB
Receiving Sensitivity: -94dBm
Audio Output Level: Unbalance 400mV, Balanced 400mV
DImensions: 205*115*37mm

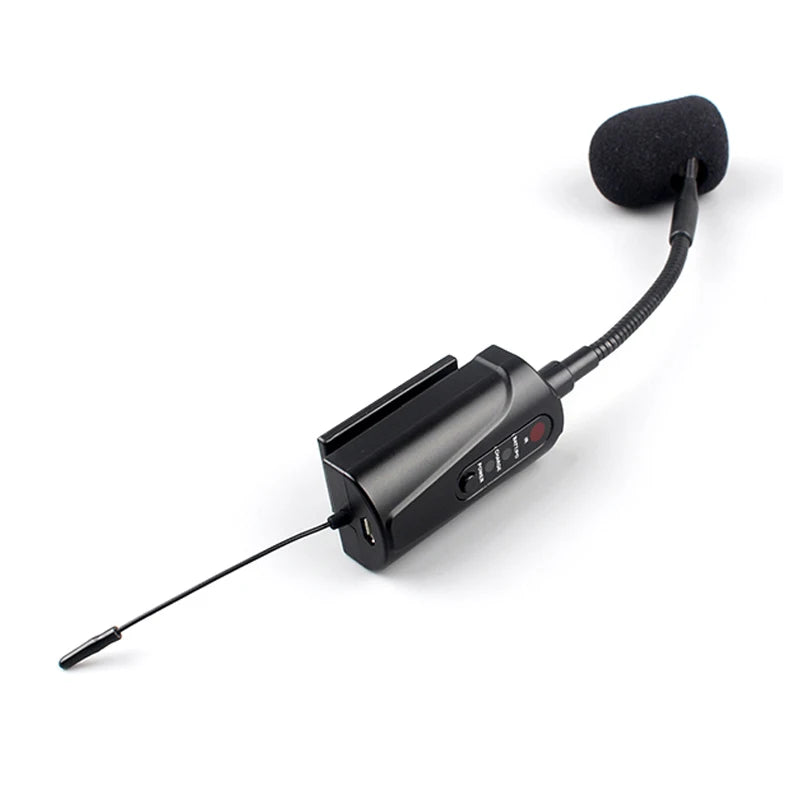

Transmitter
Frequency range:660-690MHz (region dependent)
Modulation mode: pi/4 DQPSK
Transmitter power: 10mW
Sensitivity: -47 db±2dB
Frequency change: IR synch
Microphone type: Condenser
Microphone dimension: Φ14*5.0mm
Power supply: 3.7V lithium battery
Power consumption:>6 hours continuously using
Dimension: 125*40*20mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
