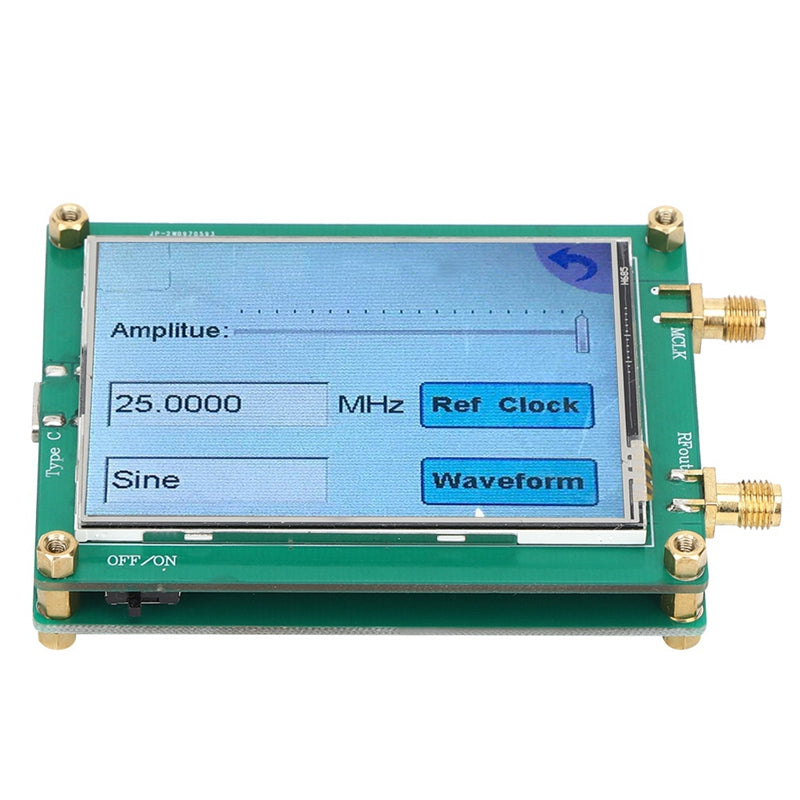

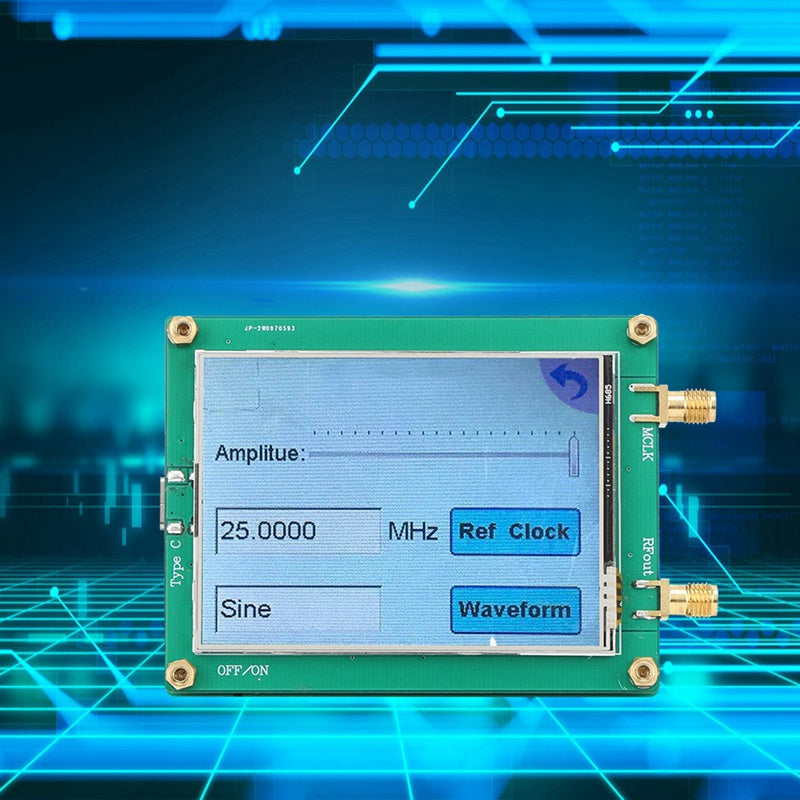

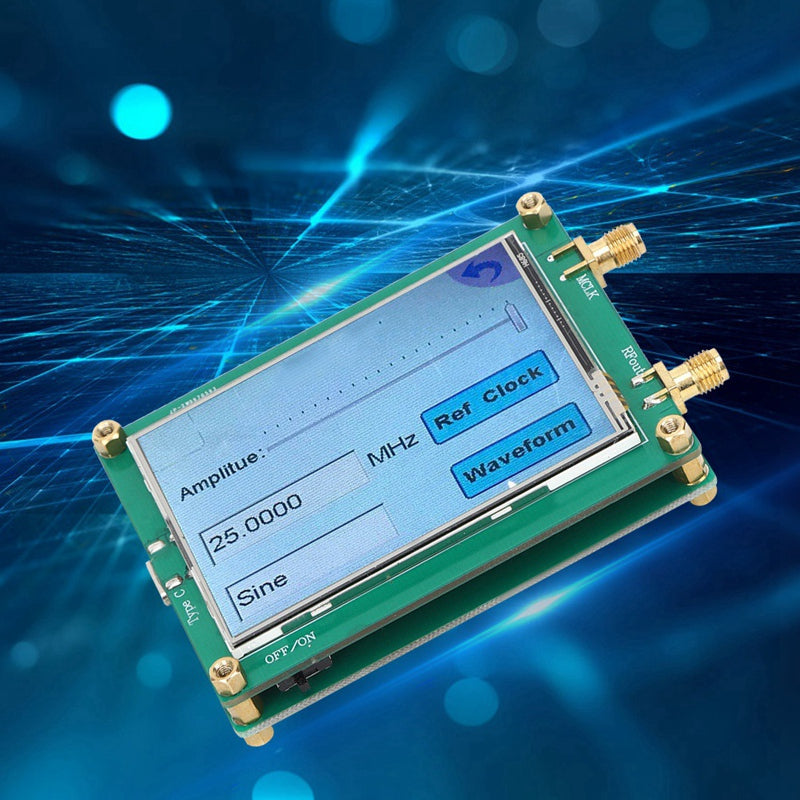

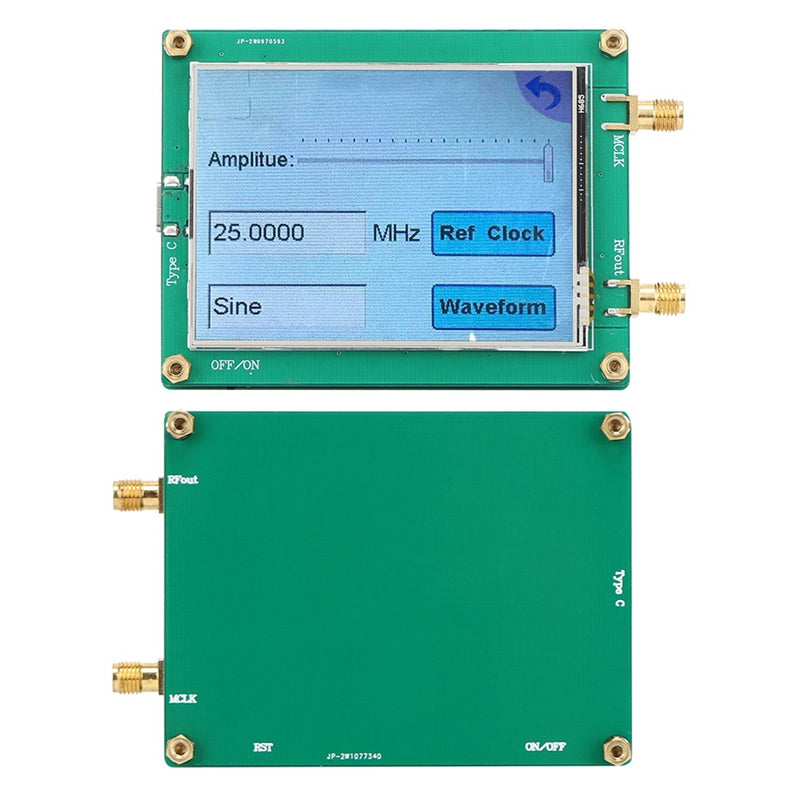

Feature: 1. Adjustable signal generator can make frequency stimulation or waveform generation, which is practical.
2. Also, this DDS generator can measure liquid and , and it is easy to use in life.
3. As for sensor applications, the generator can be suitable for proximity, motion and defect detection,Line loss / attenuation, testing and equipment, scan / clock generator, time domain reflectometry (TDR) applications.
4. Function signal generator enables to communicate with PC through TYPE C interface to provide host computer software.
5. When it comes to the output waveform, this generator can set for sine , and .
Specification:
Color: Green
Material: metal + plastic
Item Type: DDS Generator
Module Features:
1. Power Supply Voltage: Type c interface power supply 5V 0.09A
2. Onboard 25MHZ Active Crystal Oscillator: Stepping accuracy is 0.1HZ, external input clock can be connected through three-way-equipment.
3. Point Frequency and Frequency Work: Achieved for full touch screen operation
4. Output Waveform: Sine , and can be set.
5. Output Amplitude: Sine and are about 0.6Vpp (can be amplified by external amplifier), the high end of the frequency drops slightly; is about 3Vpp
6. Output Impedance: 200R. It is recommended to add a buffer amplifier when loading
7. Output Frequency: Sine about DC-3MHz; and about DC-1MHz
8. Output and External Clock Interface: SMA female (outer screw inner hole)
9. The Man-Machine Interface with Three Interfaces: Main display, setting interface, and keyboard interface. Full touch control
10. Can communicate with PC through TYPE C interface to provide host computer software
Package Contents:
1 x Generator
1 x USB Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
