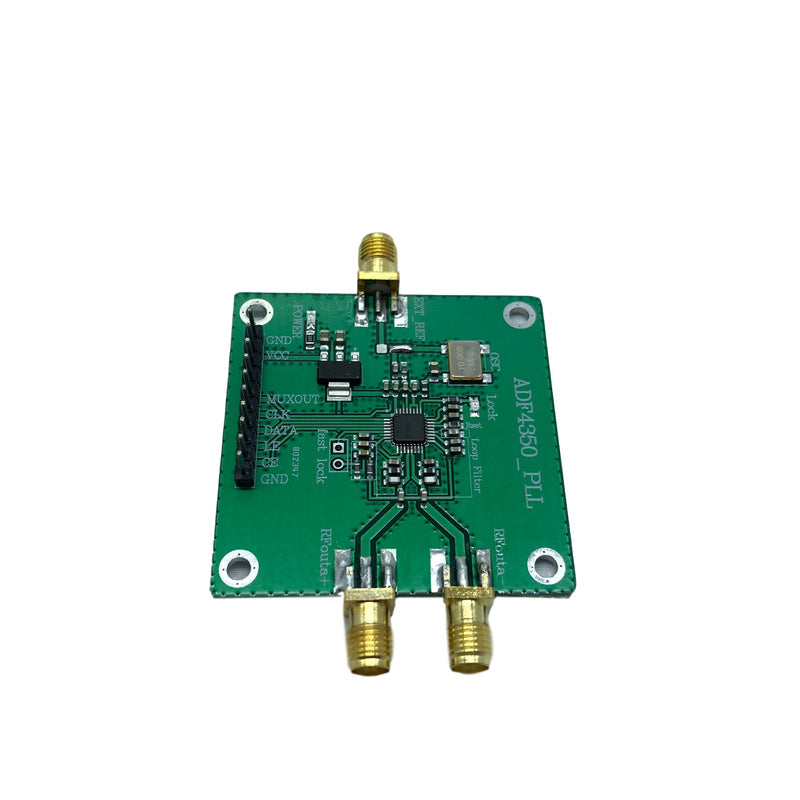

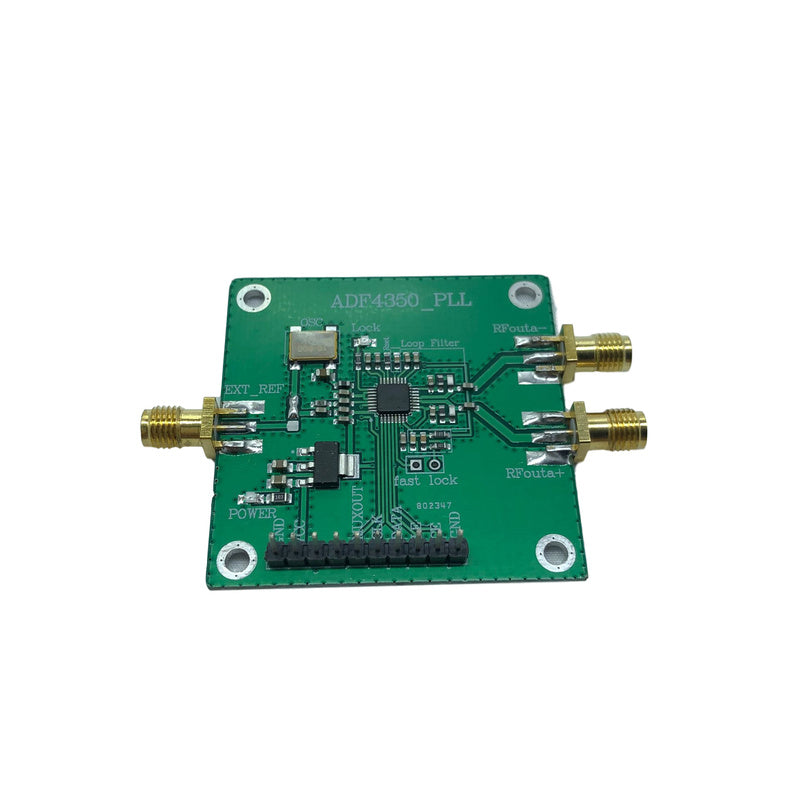

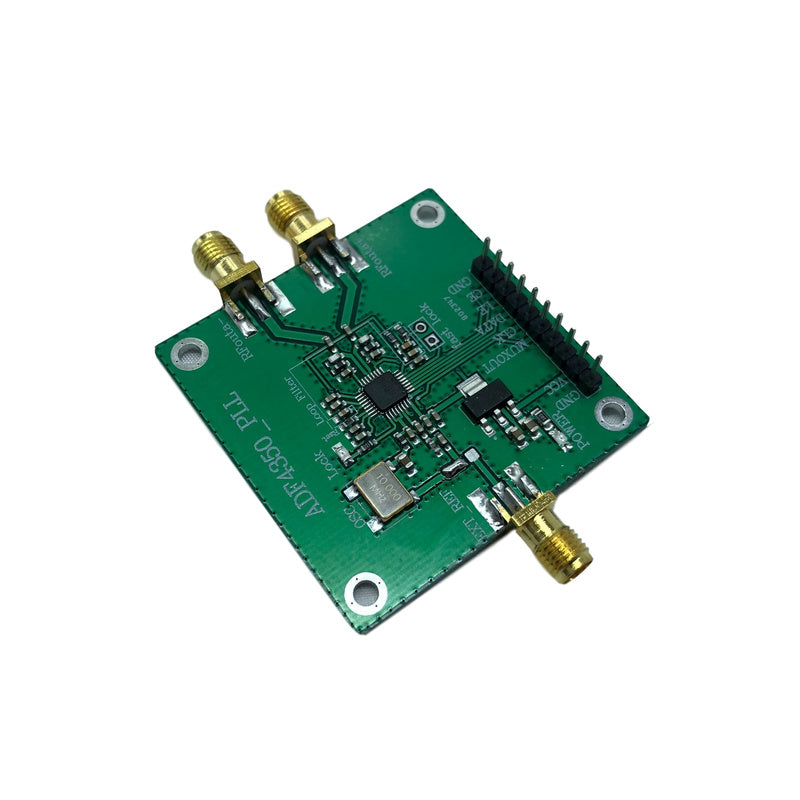

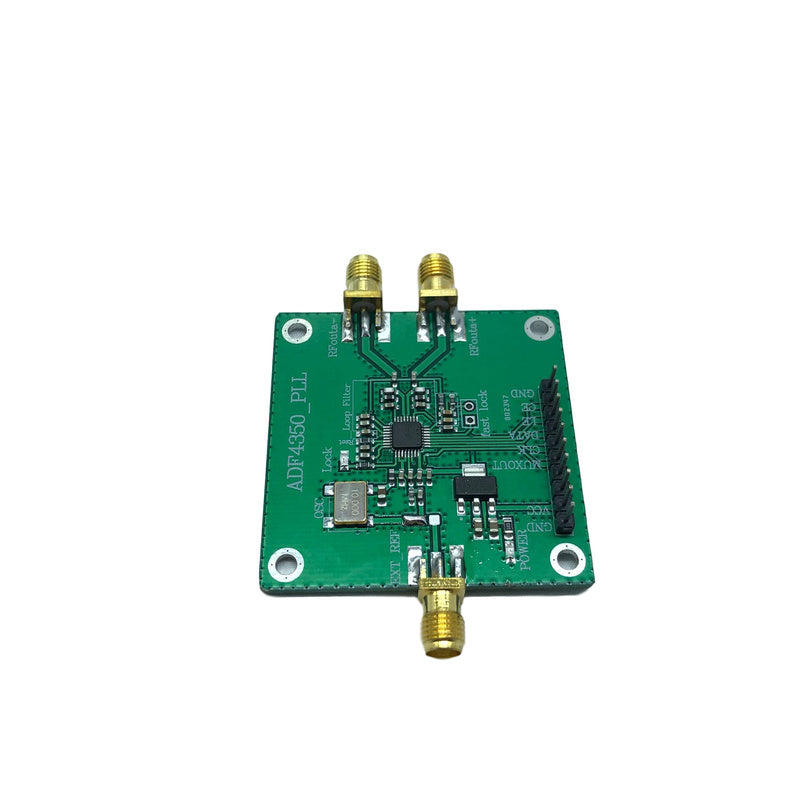

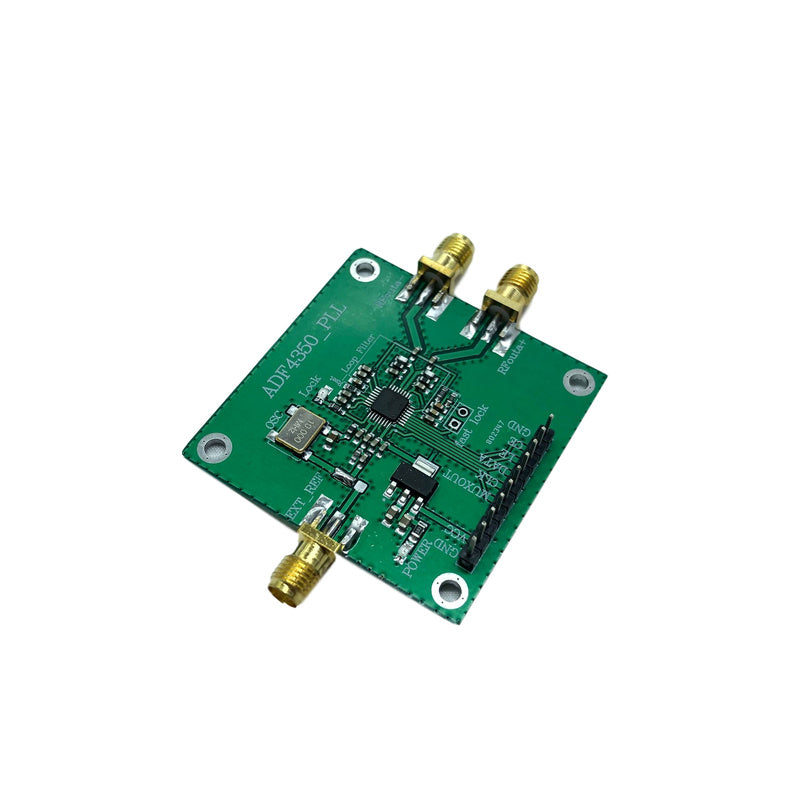

Adf4350/4351 Development Board Reference Official Circuit Principle Design, Output Frequency Range: 137m-4.4ghz
ADF435035M-4.4GADF4351
Technical Parameters:
1. Output Frequency Range:137MHz-4.4GHzADF4350
35MHz--4.4GHzADF4351
2. Power Supply Voltage: 4-9v (5vdc)
3. Output Signal: 2.2ghz--4.4GHz Sine Wave (Fundamental Wave)
137MHz -- 2.2GHz (Adf4350) Square Wave (Fundamental Frequency Division)
35mhz---2.2GHz (Adf4351) Square Wave (Fundamental Frequency Division)
4. Output Signal: Output Is Broadband, Signal Strength: 5dbm (Programmable Setting)
5. RF Connector: SMA Female Head
6. Control Interface: Three-Wire SPI
7. Reference Clock: 10.000MHz (Default), Which Can Be External through SMA Interface
8. Weight: 15G
Wiring Method:
