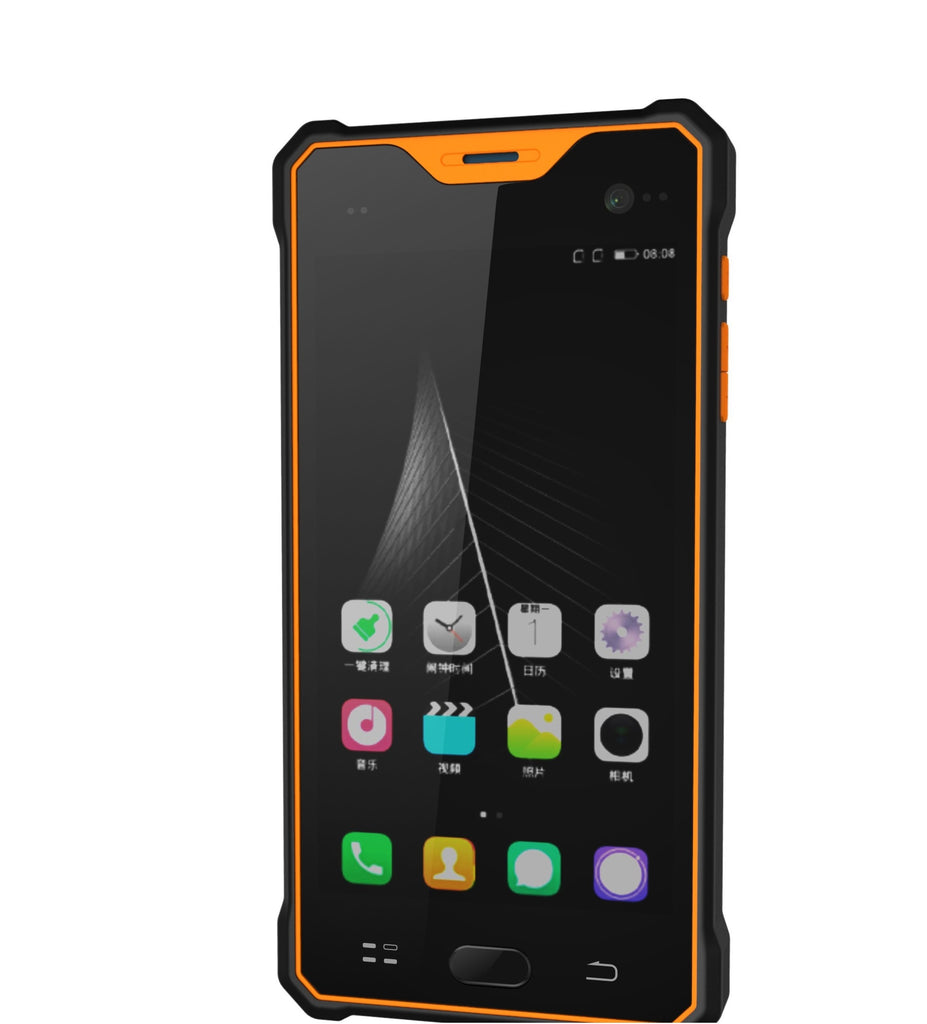

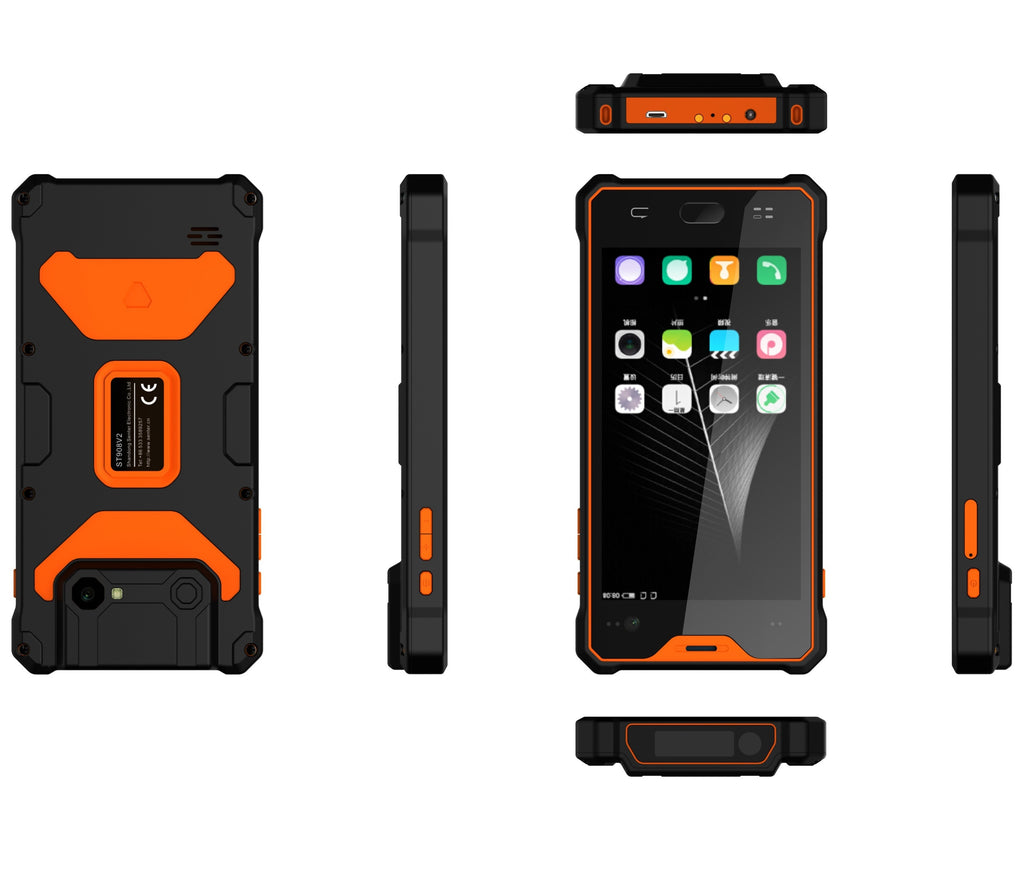

| S917V2 Industrial pda | ||||||
| Type | Details | Standard Configuration | ||||
| Product Form | Type | |||||
| Device Color | Black & Orange | |||||
| LCD | Screen Size | 5.5 inch LCD | ||||
| Resolution | 1920*1080 IPS touch screen | |||||
| Camera | Front | 5MP with automatic focus and light function | ||||
| Rear | 13MP with automatic focus and lighting function | |||||
| Speaker | Built-in | Support | ||||
| Mic | Built-in | Support | ||||
| Indicator | Built-in | A breathing light, a charging indicator. | ||||
| USB OTG | Built-in | U disk, mouse, keyboard, RS232, 485, support external YUV camera support network card 9500 chip, etc. | ||||
| Key | Buttons description | Button: One scan button on the side (the bar code and UHF can be used together), one power button, volume plus or minus button. The 3 physical function keys (Back Menu HOME) | ||||
| Battery | Capacity | 3.8V 5000mAh,Support fast charging (QC3.0) | ||||
| Endurance | standby current less than 10mA | |||||
| Appearance | Weight | 304g(host), 704g(host+UHF reader+ Pistol grip) | ||||
| Size | 170*84*15mm(host) | |||||
| System Hardware Configuration | ||||||
| Type | Details | Description | ||||
| CPU | Type | qualco Snapdragon 625 SDM450, 8 core | ||||
| Speed | 1.8GHz | |||||
| GPU | Type | qualco ® Adreno™ 509 GPU | ||||
| RAM | DDR3L | 4GB(optional 3GB ) | ||||
| ROM | Emmc | 64GB(optional 32GB) | ||||
| SD | Emmc | Max 128GB | ||||
| Sensor | Built-in | G_sensors, compass, accelerometer and gyroscope, light and distance (two in one) | ||||
| Interface Configuration | ||||||
| Type | Details | Description | ||||
| TF slot | Extensive External Memory | IF choose two sim card,can not choose TF card,only choose two from three | ||||
| SIM card slot | 3G/4G communication | SIM card slot ,Nano | ||||
| USB interface | Extensive External Memory and data transmission | USB 2.0 | ||||
| Earphone Jack | Audio Output | 3.5mm standard earphone jack x1 | ||||
| Software Configuration | ||||||
| Type | Details | Description | ||||
| Operation System | OS version | Android 8.1 os | ||||
| Network Connections | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module | Support IEEE 802.11a/b/g/n/ac 2.4G/5G | ||||
| BT | Built-in | BT4.0 (BLE) class1 transmission distance:10m | ||||
| 3G | Built-in |
Support CDMA 1X/EVDO BC0 |
||||
| 4G | Built-in | |||||
| GPS | Built-in | GPS+BDS+A+GPS+GLONASS | ||||
| NFC | Built-in | Support 13.56MHZ ,ISO14443A,B, ISO15693 Protocol,Support mifare card,reading distance 0-3cm | ||||
| Fingerprint | Built-in | Unlock | ||||
| Standard Accessories | ||||||
| Type | Details | Description | ||||
| handle belt | handle | handle belt | ||||
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 12V/4A | ||||

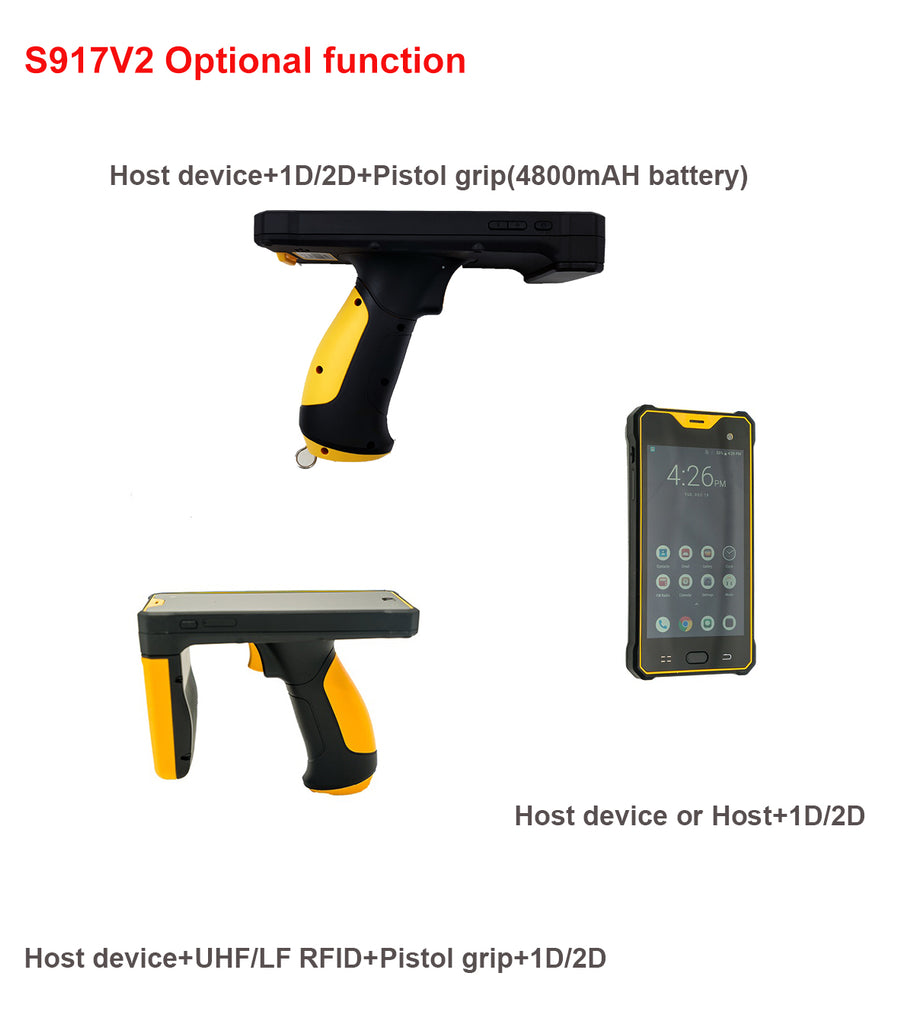

| Additional Optional functions | ||||||
| Data Collection | ||||||
| Type | Details | Description | ||||
| 2D Barcode Scanner | Optional | 2D,Newland NLS-EM3296, HoneywellN3680,N6603 | ||||
| Infared Meter | Optional | Working frequency: 37.9K | ||||
| RFID | UHF RFID (Optional) |
Working frequency: 902-928MHz or 865-868 MHz (M2600, Impinj R2000 chip) Reading distance: no more than 6m |
||||
| LF RFID (Optional) |
Working frequency: 125k/134.2KHz Reading distance: 0-10cm |
|||||

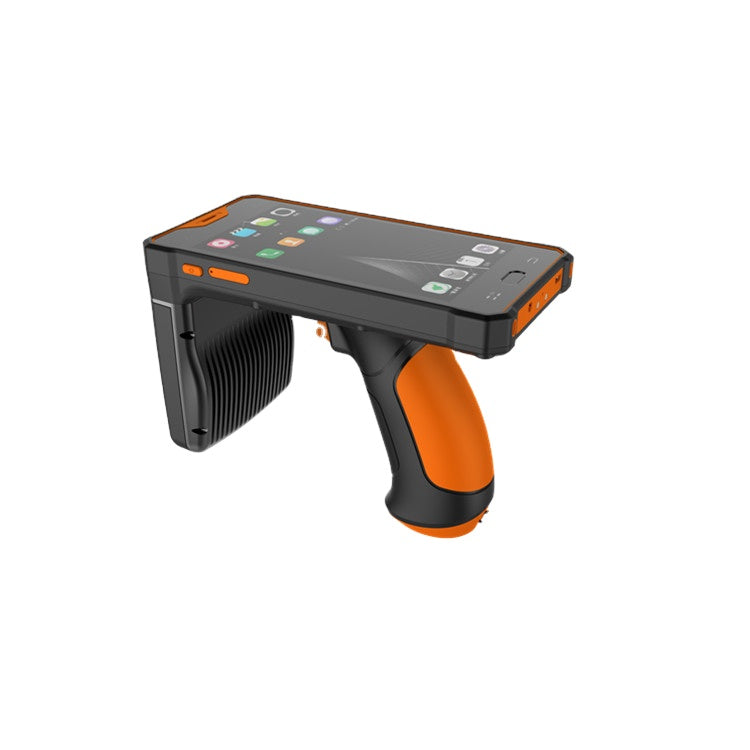

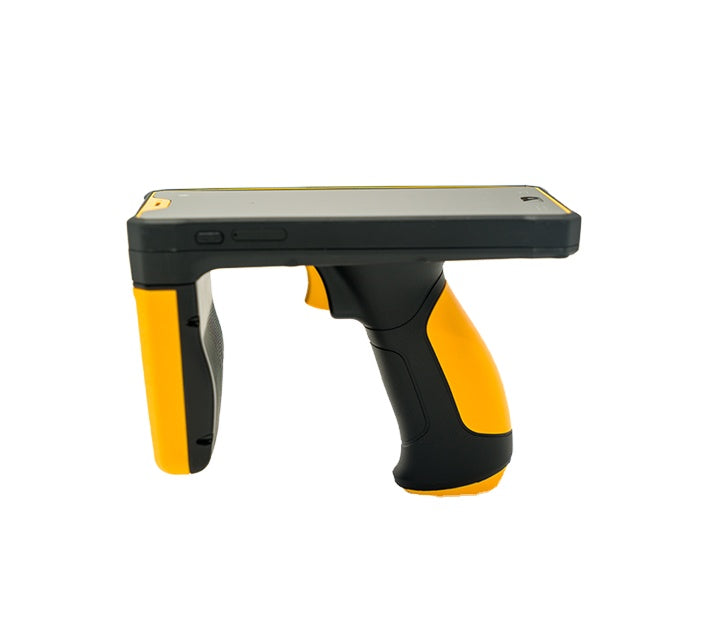

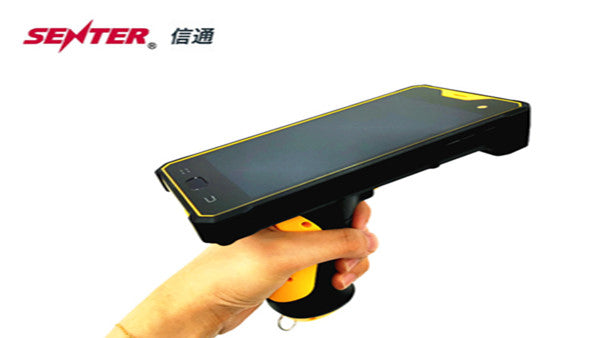

| Pistol Grip | Optional | With internal batteries and scan button (4800mAh battery inside) | ||||

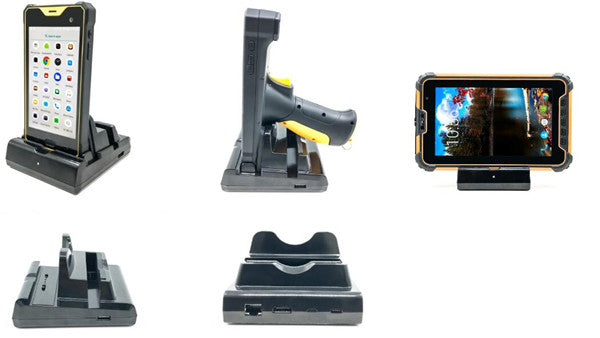

| Docking Station | Optional | Charging Docking Station | ||||
| Enviromental Characteristic | ||||||
| Drop hight | 120cm composite wood floors, in operation status | |||||
| Working Temp. | -10°C to + 50°C | |||||
| Storage Temp. | -40°C to + 60°C | |||||
| Humidity | 5%-95% | |||||
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
