Description:

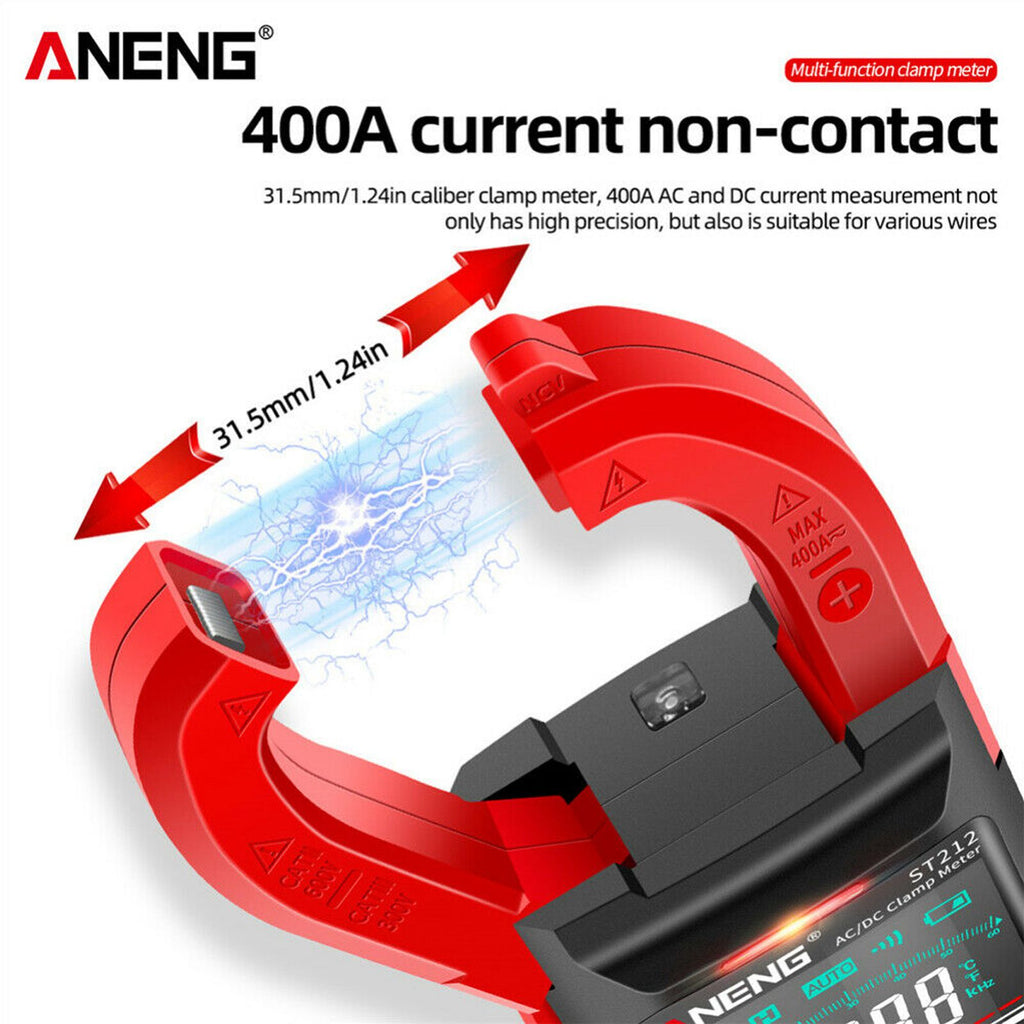

 AC Current Range: 60A/400A

 DC Current Range: 60A/400A

 DC Voltage Range: 600V/600mV

 AC Voltage Range: 600V/600mV

 Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

 Capacitance: 60nF/600nF/6uF/60uF/600uF/6mF/60mF

 Temperature: -40~1000℃, -40~1832℉

 Frequency: 60Hz/1000Hz

 Color: Black / Red (Optional)

 Material: ABS

 Display: LCD

 Max. Display Value: 6000 digit

 Sampling Time: About 3 times/second, bargraph 10 times/second

 Auto-off: 15 minutes

 Operating Temperature: 18~28℃

 Storage Temperature: -10~50℃

 Operating Height: Max. 2000m

 Power Supply: 2 * 1.5V AAA battery (NOT included)

 Item Size: 182 * 62.1 * 33.4mm / 7.17 * 2.44 * 1.31in

 Item Weight: 150g / 5.29oz

 Package Weight: 272g / 9.59oz

 Package Size: 21.7 * 8.5 * 4.5cm / 8.54 * 3.35 * 1.77in

 Specifications:

 It can measure AC and DC voltage, AC/DC current, resistance and test continuity.

 Automatically select the measurement function and range.

 Overload protection for the entire measuring range.

 LCD color display with backlight, easy to operate and read.

 Data retention function, low battery indicator, automatic shutdown.

 Suitable for testing and maintenance of electrical equipment.

 Multifunctional Clamp Meter: it has functions of testing voltage, current, resistance, capacitance, frequency, diode, line on-off, live line voltage identify,

 Safety Level: it complies with the over-voltage standard of CAT II 600V, level II pollution, dual-insulation protection and over load protection throughout the range.

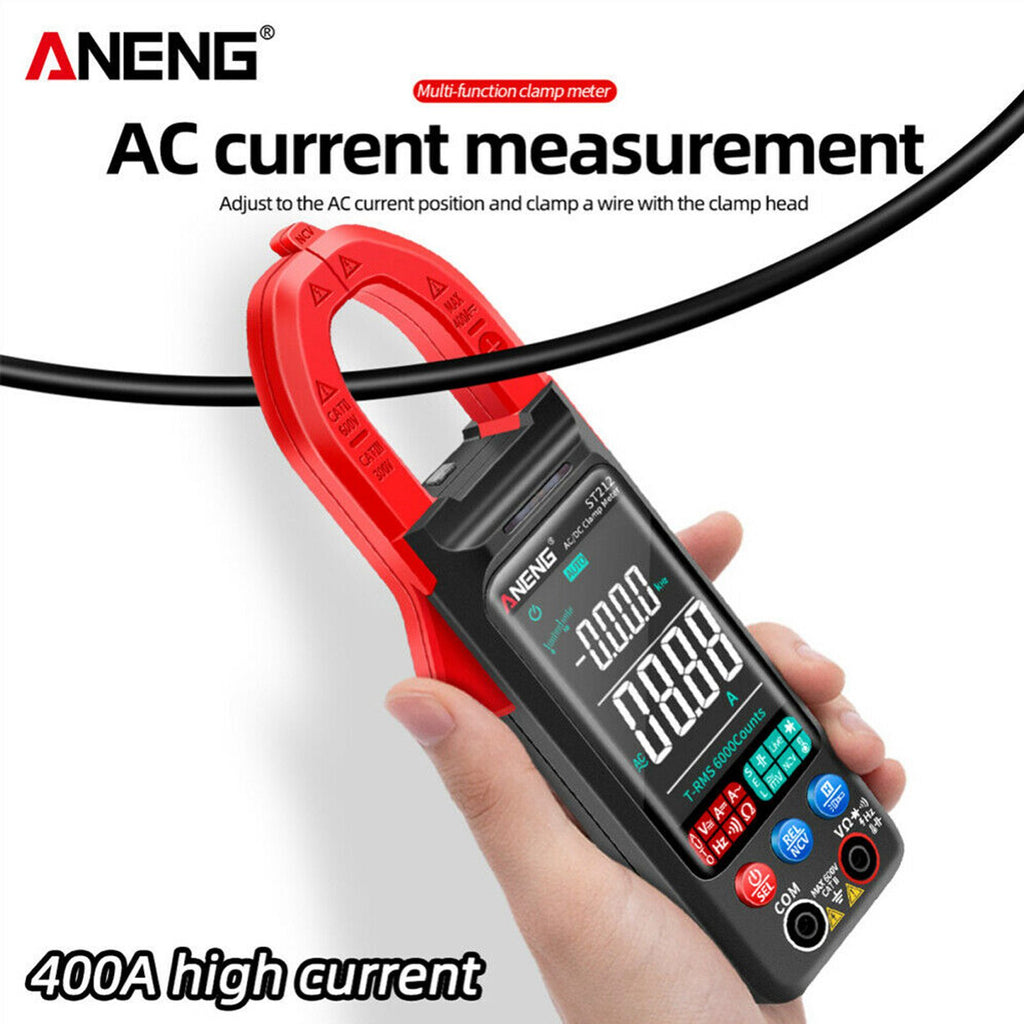

 Smart AC/DC Current Measurement: automatic and manual modes for the electric current measurement.

 Data Hold Function: convenient for observing or recording data.

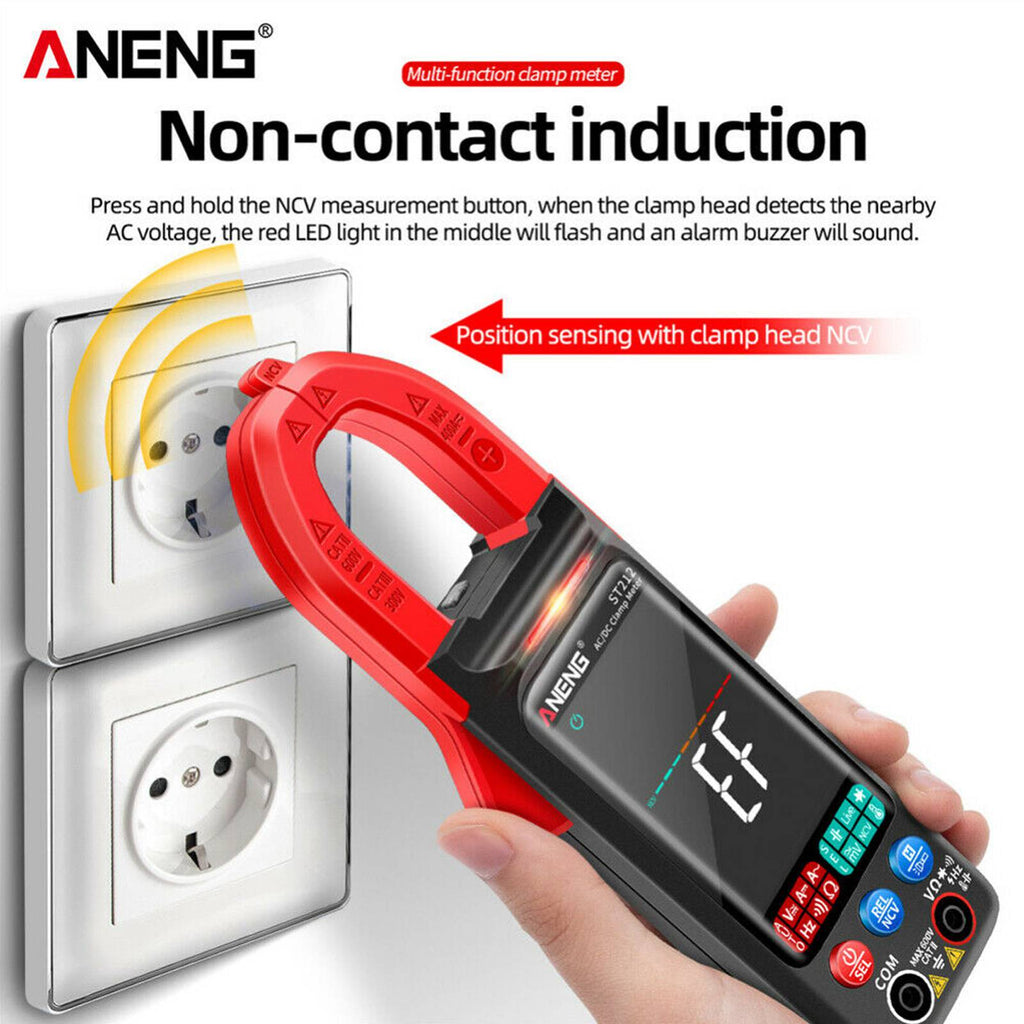

 NCV Non-contact Voltage Detection: get the sensor near to the cable being detected, then the buzzer will alarm and NCV alarm light will flash when it detects AC voltage.

 Auto Power-off: if there is no operation in 15 minutes, the instrument will shut down automatically to save battery energy.

 More Features: 6000 counts LCD display, flashlight, low battery indication, etc.

 Compact & Portable: convenient for one-handed operation when measuring, quicker and easier to use.

 Wide Range of Applications: perfect for home and professional use, automotive, home and industrial electrical troubleshooting.

 Package Included:

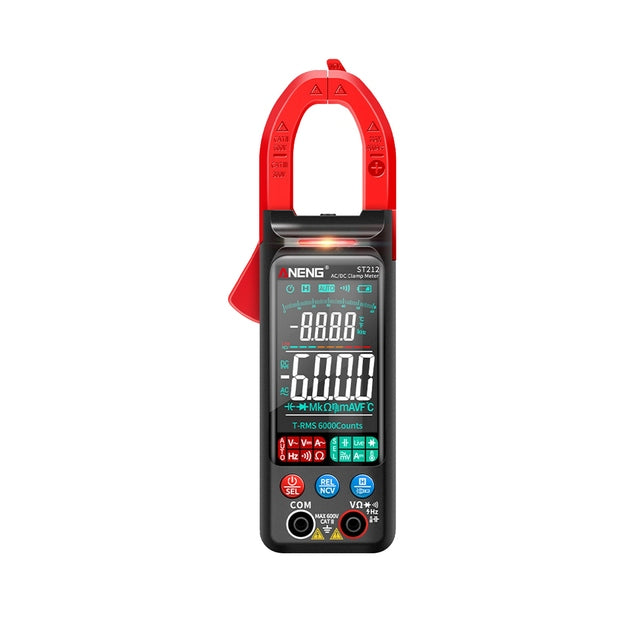

 1 * ANENG ST212 Clamp Meter

 2 * Test Probes

 1 * Thermocouple

 1 * User Manual
