Measuring Rang (170-960)HLD (17-68)HRC (19~651)HB (80~976)HV (30~100)HS

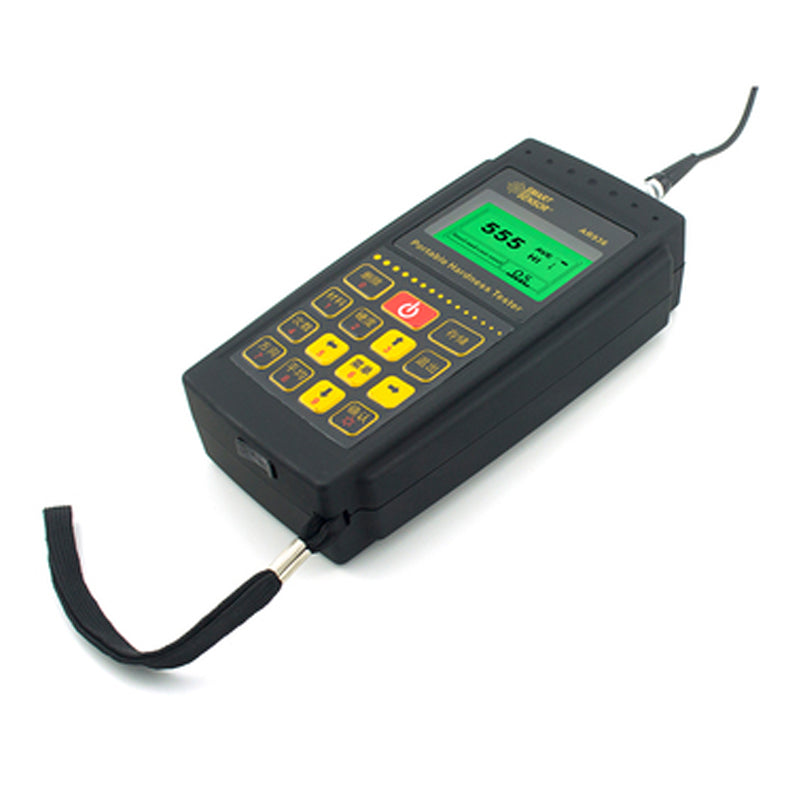

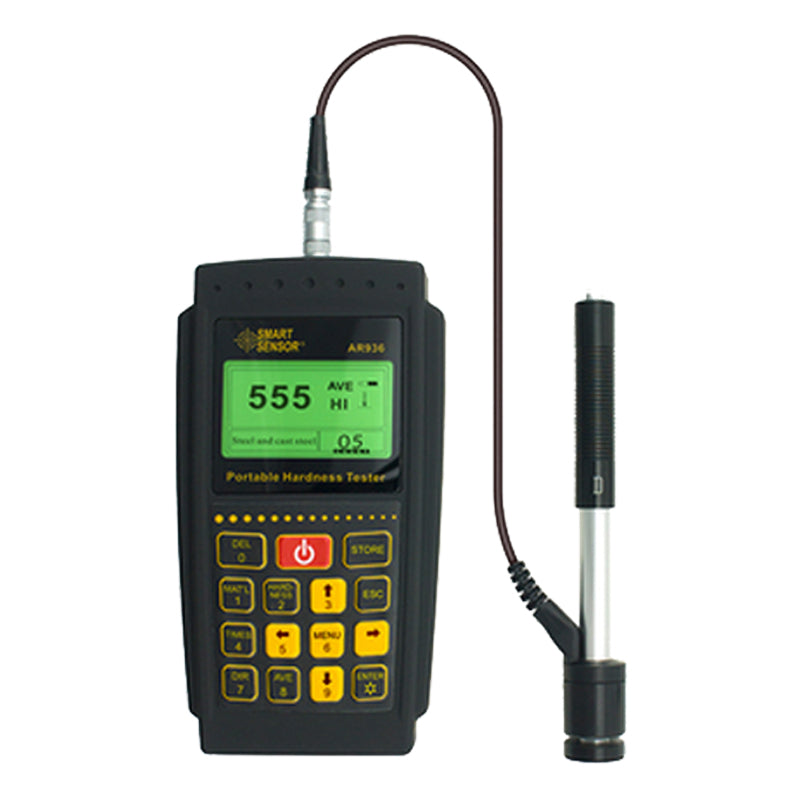

(59~85)HRA AR936 Portable Hardness Tester
Features：
AR936 is the most versatile all-in-one solution for portable hardness testing. The Leeb hardness principle is based on the dynamic (rebound) method and is best suited for on-site testing of heavy work piece, the installed machinery and permanently assembled parts, die cavity of molds, bearings and other parts, failure analysis of pressure vessel, steam generator and other equipment, testing surface of a small hollow space, material identification in the warehouse of metallic materials, rapid testing in large range and multi-measuring areas for large-scale work piece, etc.
Specifications：
Measuring Rang
(170~960)HLD,(17~68)HRC,(19~651)HB,(80~976)HV
(30~100)HS,(59~85)HRA,(13~100)HRB
Accuracy
+/-10HLD
Test Direction
360(plumb down,down,horizontal,inclined up, plumb up)
Hardness Unit
HL, HB, HRC, HRA, HV, HS
Display
Matrix LCD (128*64dot)
Data Store
Max 500 group
Chinese & English Version Selection
Yes
USD Transmission
USB
Auto Power Off
Yes
Backlight
Yes
Operation Environment
0~60 Celsius
Storage Temperature
-20~70 Celsius
Pcking Information
Power

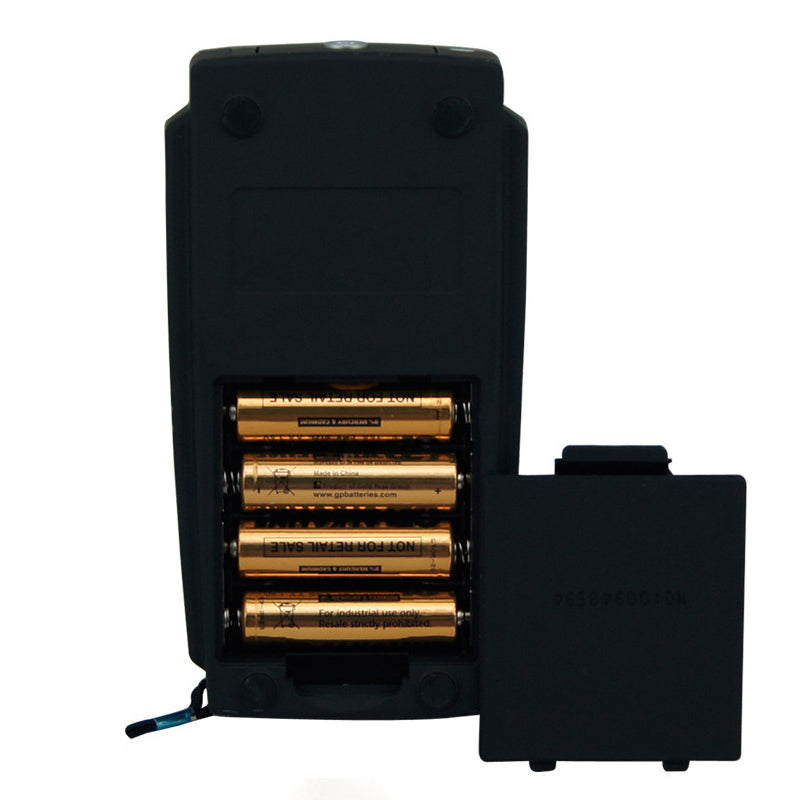

AA*4battery
Product Net Weight
360g
Product Size
150*80*38cm
Packing
Aluminium box
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
