Based on the Maranz SC7-S2 preamplifier circuit.

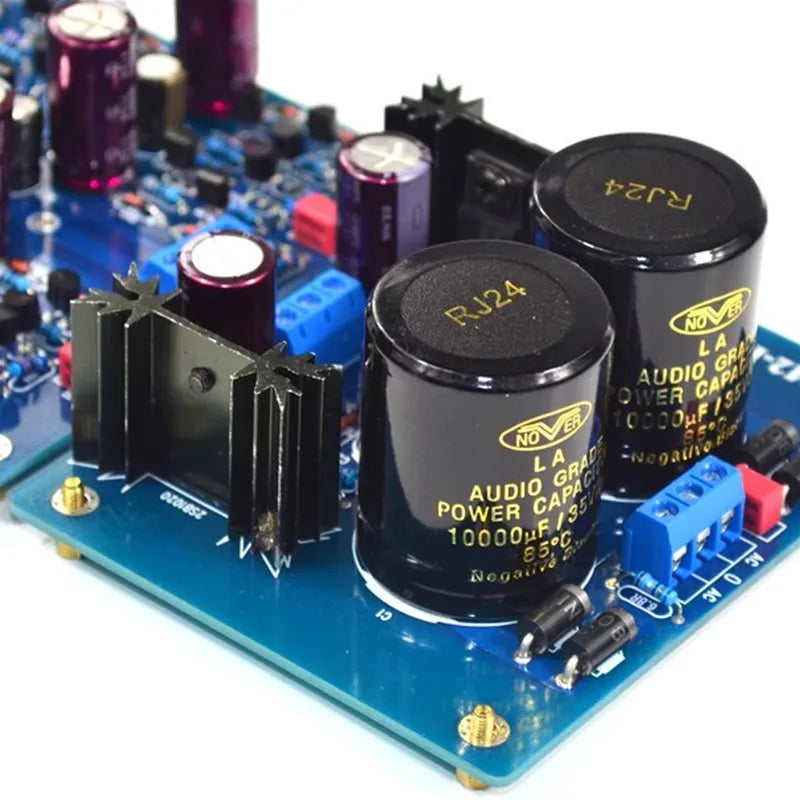

Power supply board: filtered by two 10000UF/35V NOVER capacitors, with sufficient energy. The voltage regulator composed of field-effect transistors K246 J103 and 2SD1415 has lower internal resistance, and the output filter uses gold ELNA capacitors, all for good sound quality

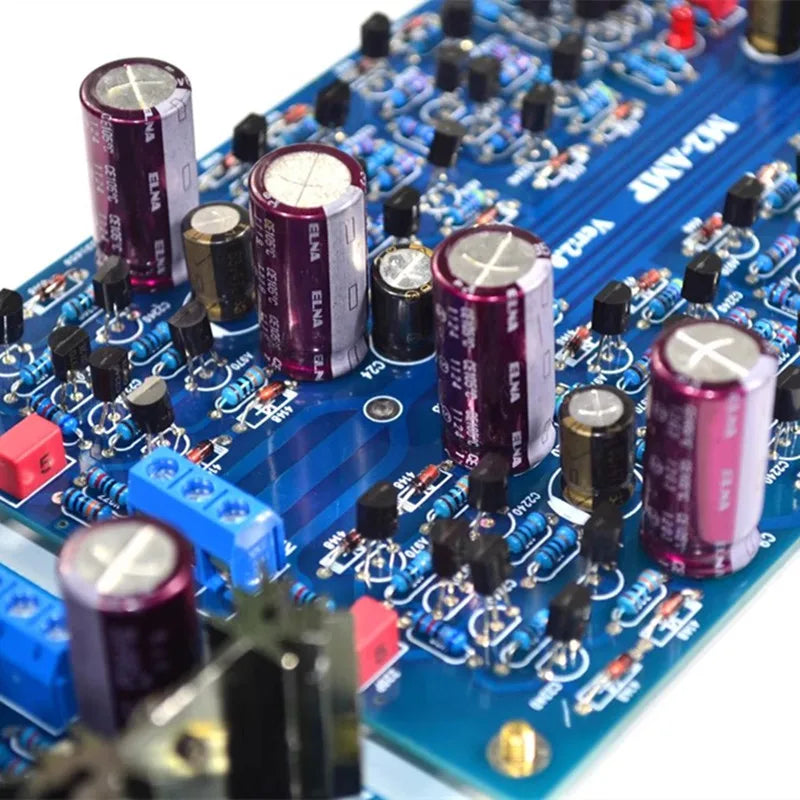

Amplification level: Use gold ELNA capacitors, CBB uses German MIMA capacitors.

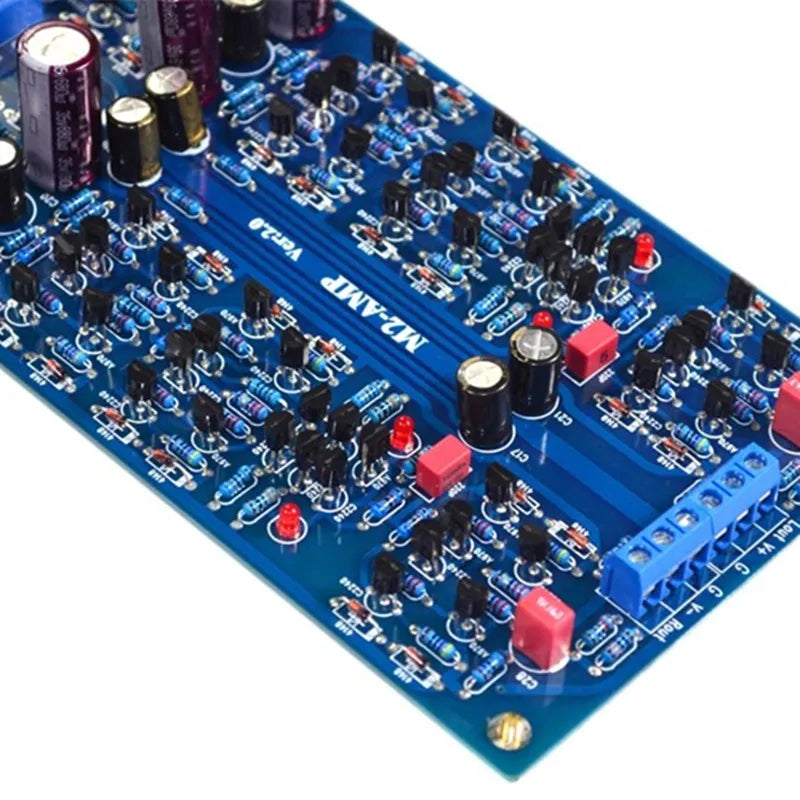

Core amplification part: Use more than 30 pairs of A970 C2240.
Specifications:
Working voltage: AC15V~0~AC15V
Magnification: 6x
Frequency response: 5HZ-30KHZ
Signal to noise ratio: 100DB

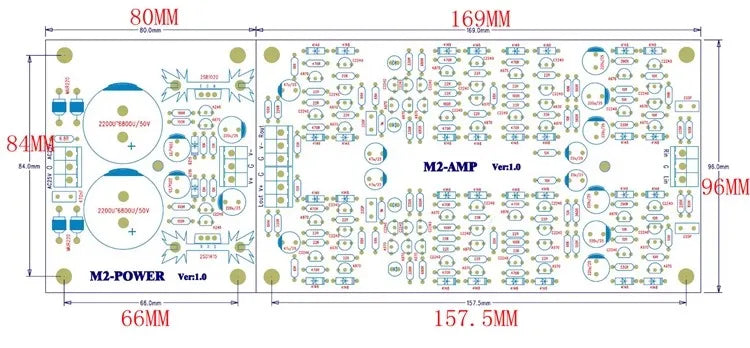

Amplifier board size: 169 * 96MM
Power board size: 80 * 96MM
Package List:
1 × Assembly Preamplifier Board
1 × Assembly Power Board
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
