ATOMSTACK S10 Pro 50W CNC Desktop DIY Cutting hine 410x400mm Engraving Area Fixed-Focus Ultra-thin Laser

2 sold in last 8 hours
mickcara
327720-1-S10PRO10W-us-CZECHREPUBLIC
In stock
$1,366.00
Size Guide
Color *
S10 PRO 10W
$1,366.00
customers are viewing this product
Tags:

Features:
Eye protection design: The panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you can also watch laser engraving without wear goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.
Easy to install solid structure: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
ultra-fine laser focus area is reduced to 0.08*0.06mm, high-density laser can easily cut 20mm light wood, 15mm thick acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving cutting speed is 40% higher than general model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.
Upgraded fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Wide compatibility:
More function:

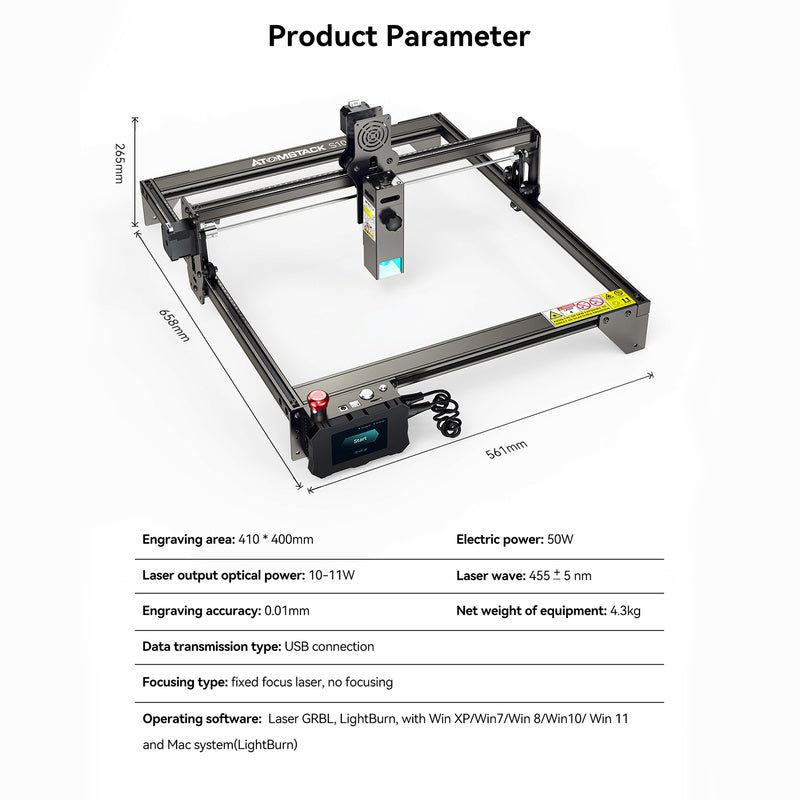

Specification:
Model: ATOMSTACK S10 PRO
Print Size: Recommend Print Size 410*400mm
Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Laser power: 50W
Laser output power: 10-11W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus

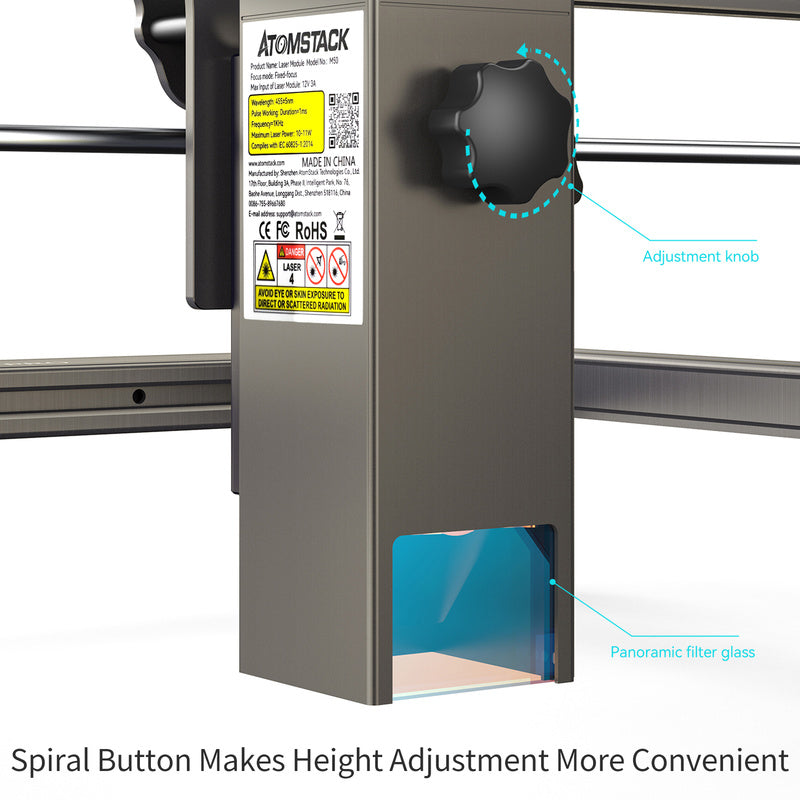

Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 3A
Package Size: 59.5*35*13cm/ 23*13.8*5.1in
Package Weight: 5.77kg/12.7lbs

Note:
● When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

Packing List:
1 x Tool Kit
4 x Foot Pad Foam
1 x Film
3 x Acrylic Sheet
3  x Wood Chips
10 x Wire Tie
1 x Desiccant
1 x Brush
1 x Clean Cloth
1 x Card Reader
1 x TF Card
1 x Power Adapter
1 x Instruction
1 x Data Line

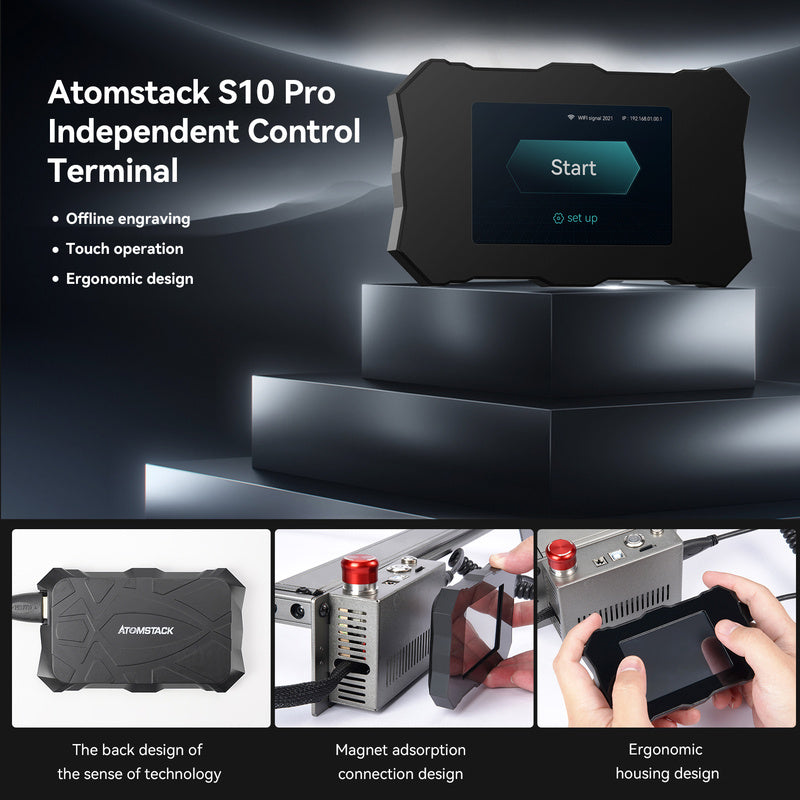

1 x Touch Screen Components
1 x High-Definition Multimedia Interface Cable
1 x Laser Module
1 x Cutting Pad
1 x X Axis Assembly
1 x Y Axis Left Profile
1 x Y Axis Right Profile
1 x Profile On The Base
1 x Under The Base Profile
3 x Foot Bracket
