General:
- Frequency Range VHF:136-174MHz UHF:400-520MHz(Dual band)
- Memory Channel 128 Group
- Channel Spacing 25KHz(Wide), 12.5K(Narrow)
- Operating Voltage DC7.4V
- Frequency Stability ±2.5ppm
- Operating Temperature -20~+60℃
- Antenna Impedance 50Ω
- Transmit Current H≤2.5A, M≤1.8A, L≤1.1A
- Modulation(Wide/Narrow) 16KΦF3E/11KΦF3E
- Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N)
- Stray Power ≤7.5uW
- Adjacent Channel power ≤-65dB/≤-60dB
- Signal-to-noise(wide/narrow) ≥-45dB/≥-40dB
- QT/DQT Deviatio (wide/narrow) 0.7±0.1KHz/0.4±0.1KHz
- Modulation Sensitivity 8-12mV
- Demission 138*68.7*37mm(no including the antenna)
- Weight About 300g(include in battery and antenna)
- Plug: EU Plug, US Plug, UK Plug, AU Plug
Receiver:
- Receiver Sensitivity ≤0.25uV(12dB SINAD)
- Audio Power 1W@10%
- Audio Distortion <10%
- Signal-to-Noise ≥45dB
- Adjacent Channel Selecitivity(wide/narrow) ≥-65dB/≥-60dB
- Intermodulation(wide/narrow) ≥-65dB/≥-60dB
- Stray Suppression ≥-65dB
- Receive Current ≤380mA

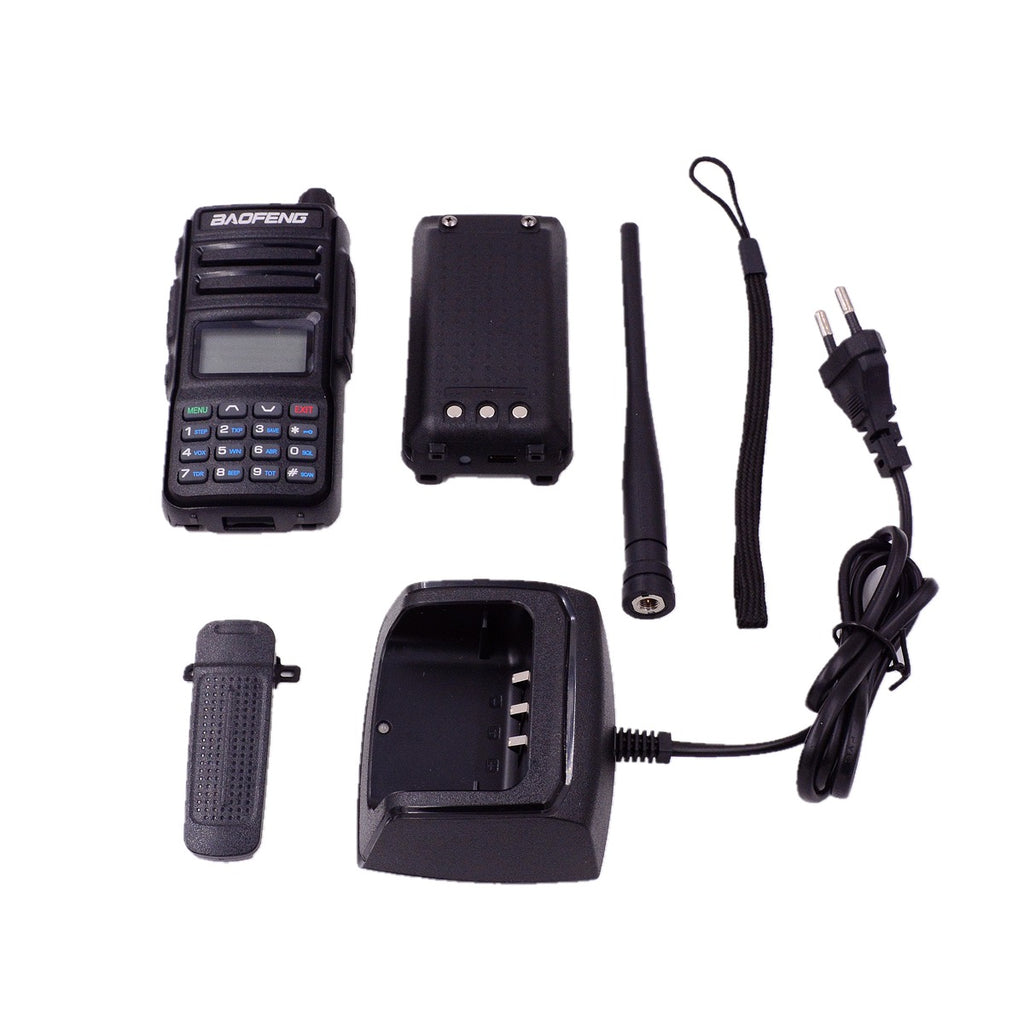

Packing List:

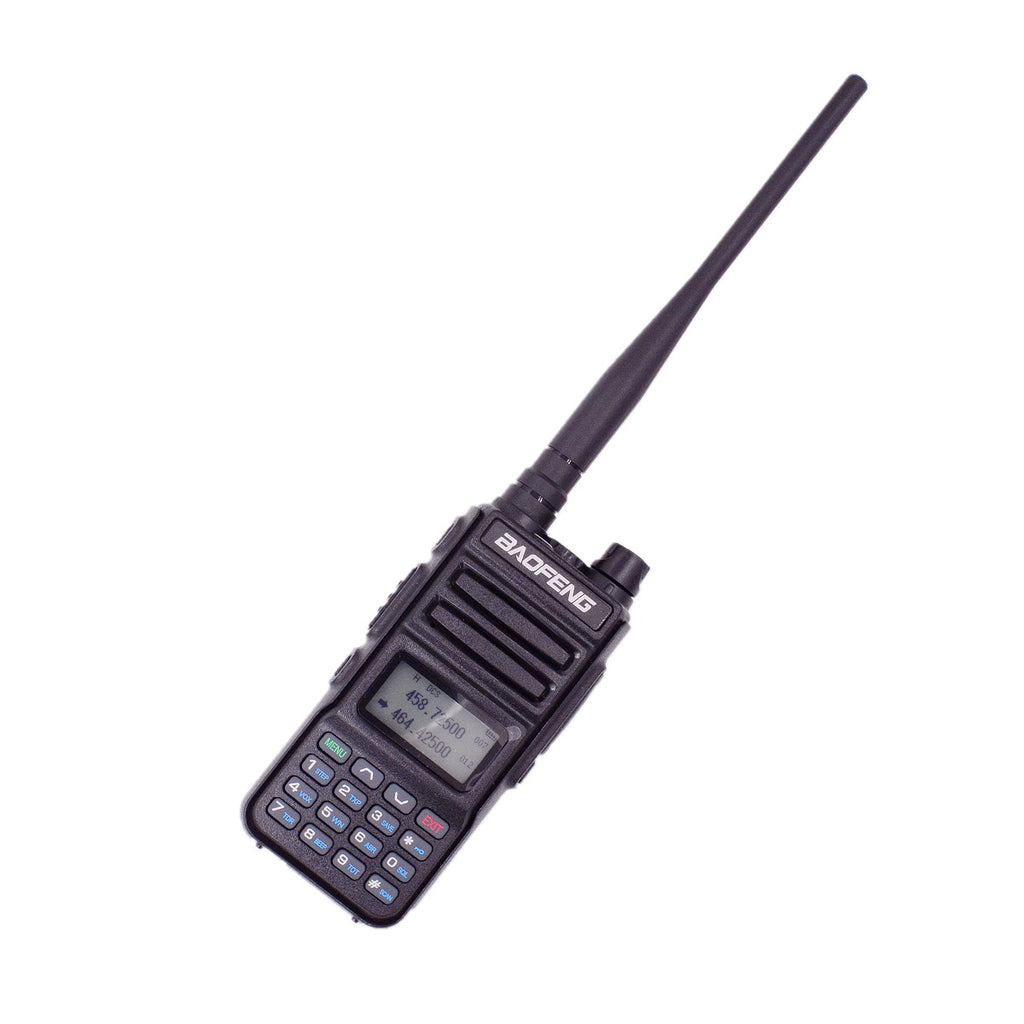

1 x Baofeng UV13 Ham Radio

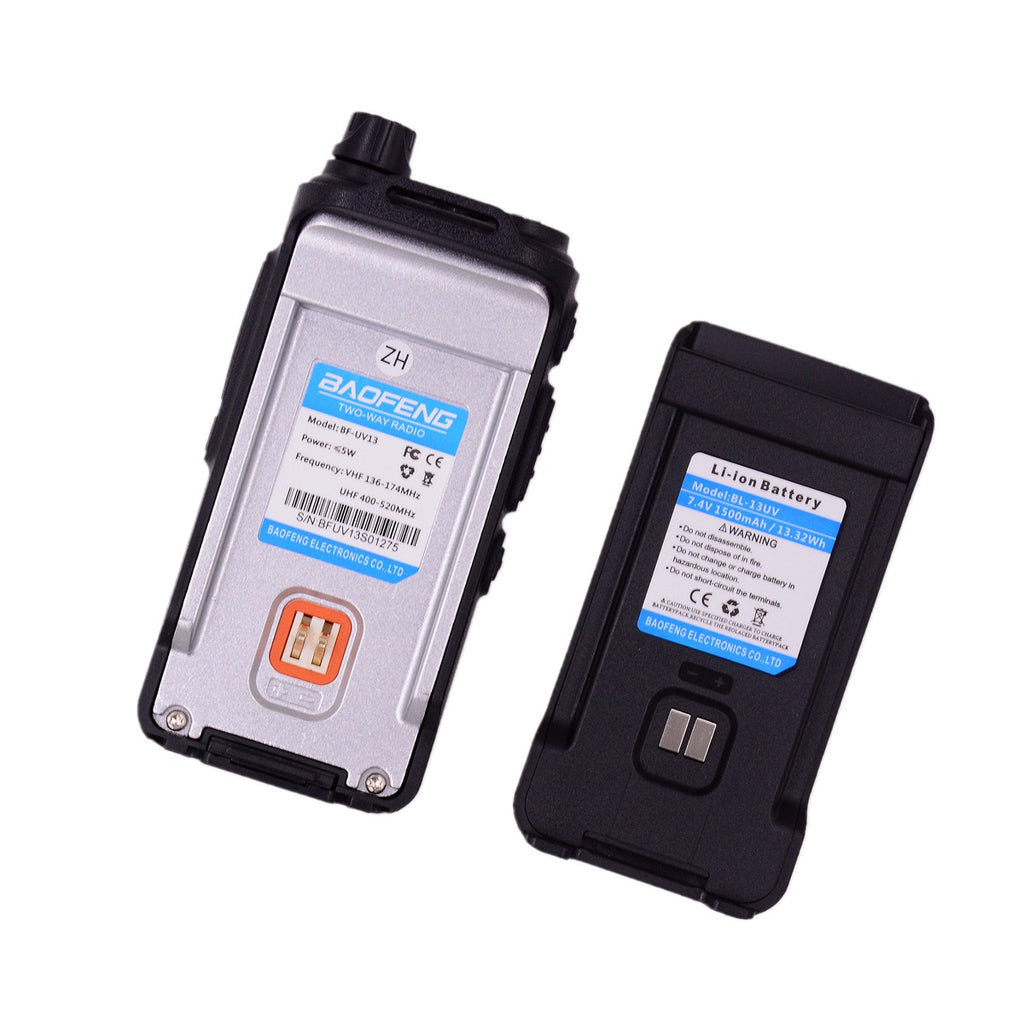

1 x Li-ion Battery
1 x Antenna
1 x Charger
1 x PTT Earpiece
1 x Belt Clip
1 x Hand Strap
1 x User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
