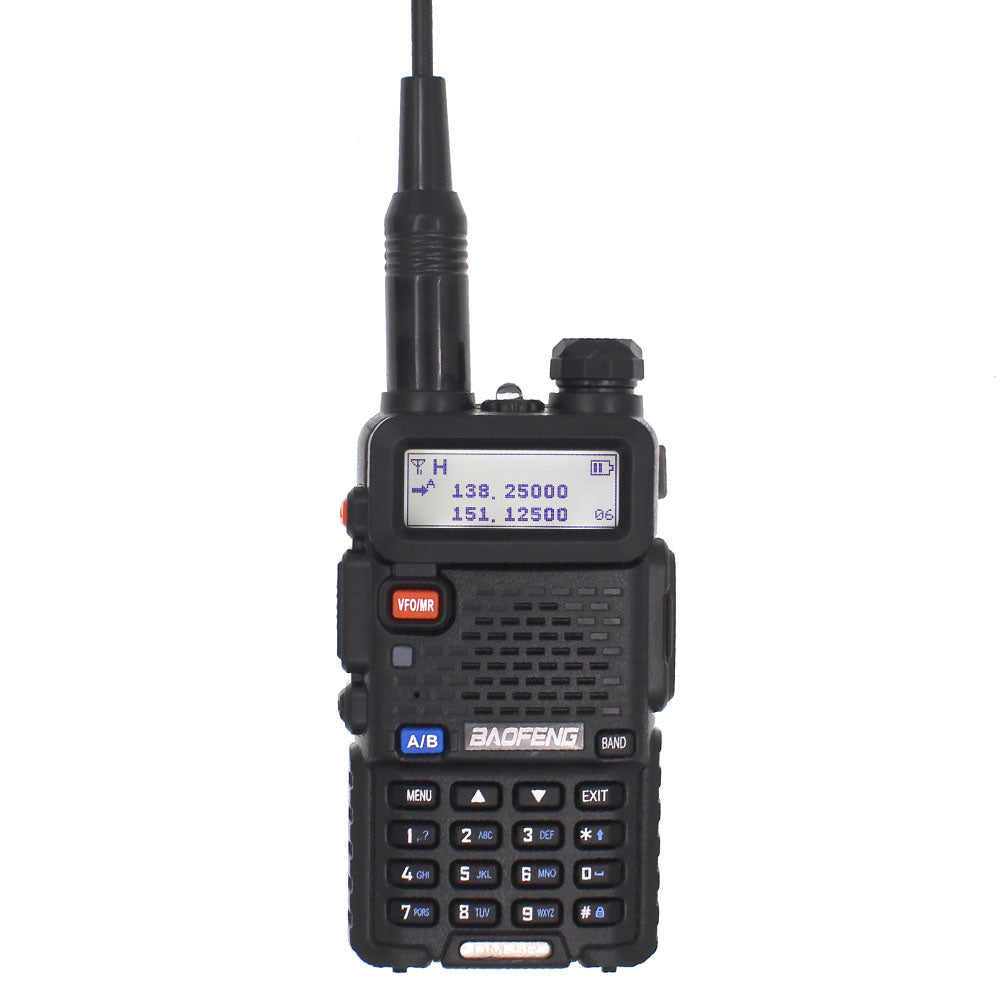

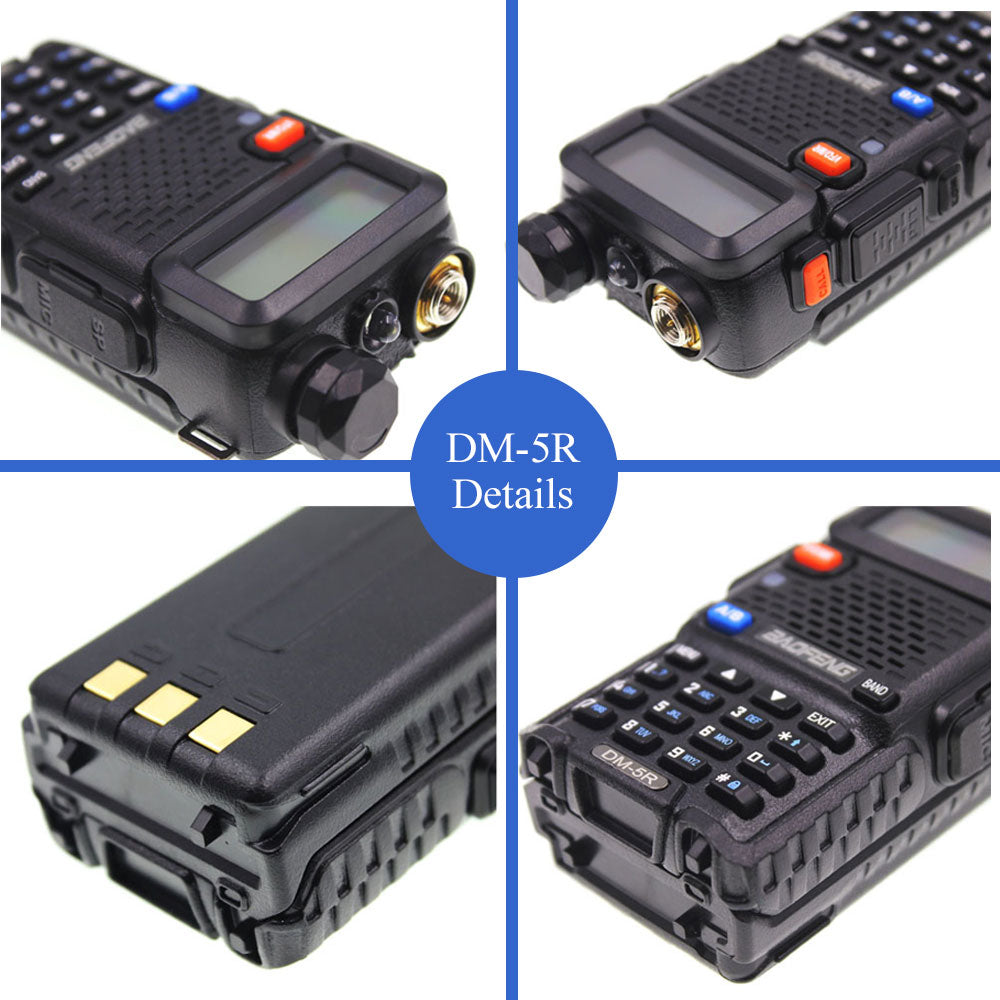

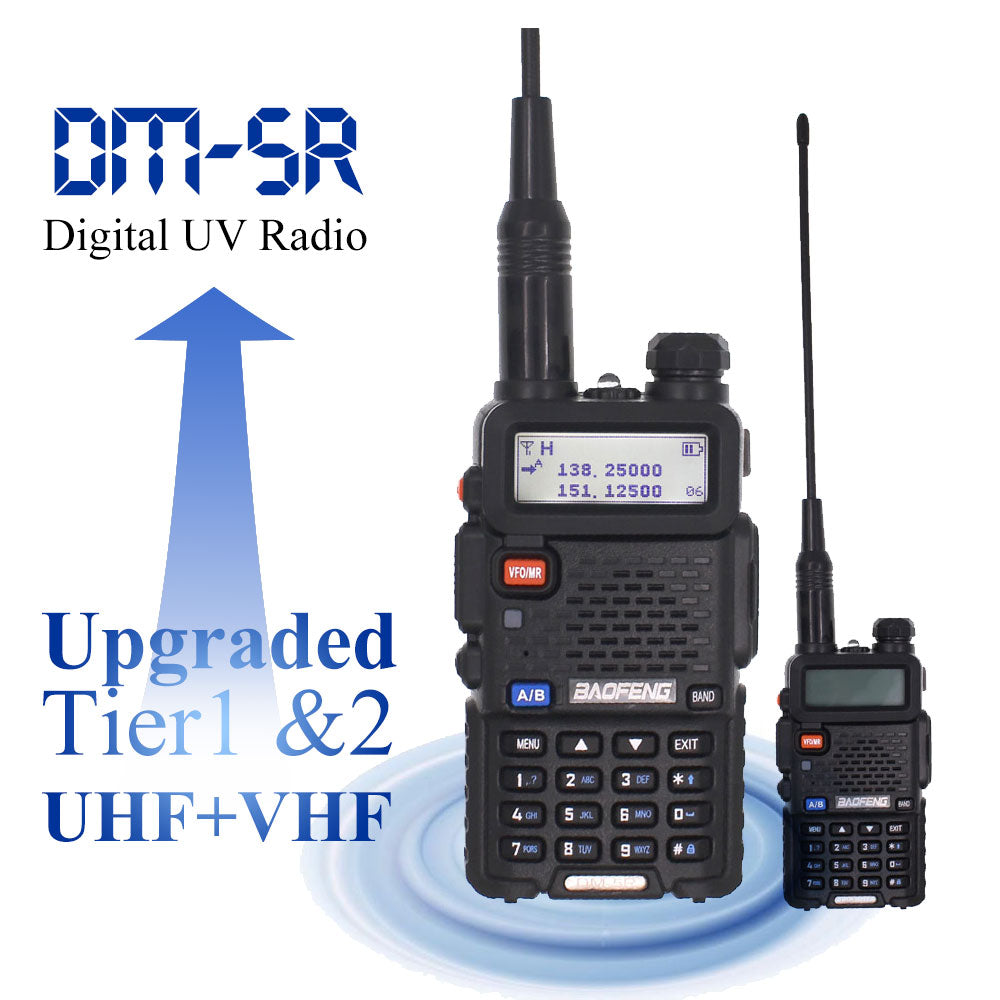

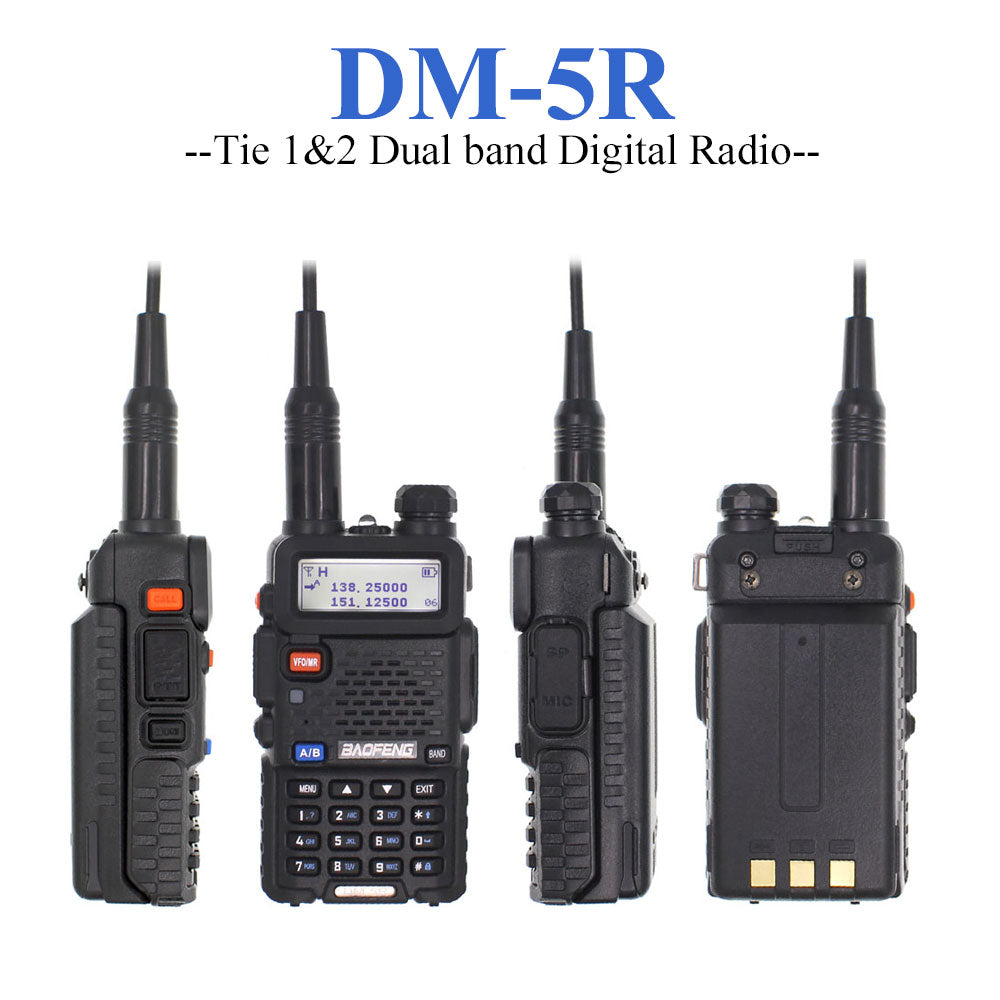

Baofeng DM-5R Walkie Taklie Digital & Analog Dual Mode Portable Radio VHF/UHF Dual Band DMR 5W 128CH FM Transceiver

Main features:

*Frequency range: VHF136-176MHz & UHF400-520MHz

*Digital tunable FM radio (receiving frequency: 65-108MHz)

*Bright flashlight lighting function

*Battery voltage display function

*Direct selection of menu items with numeric characters on the keyboard. The transmitting and receiving frequency can be entered directly.

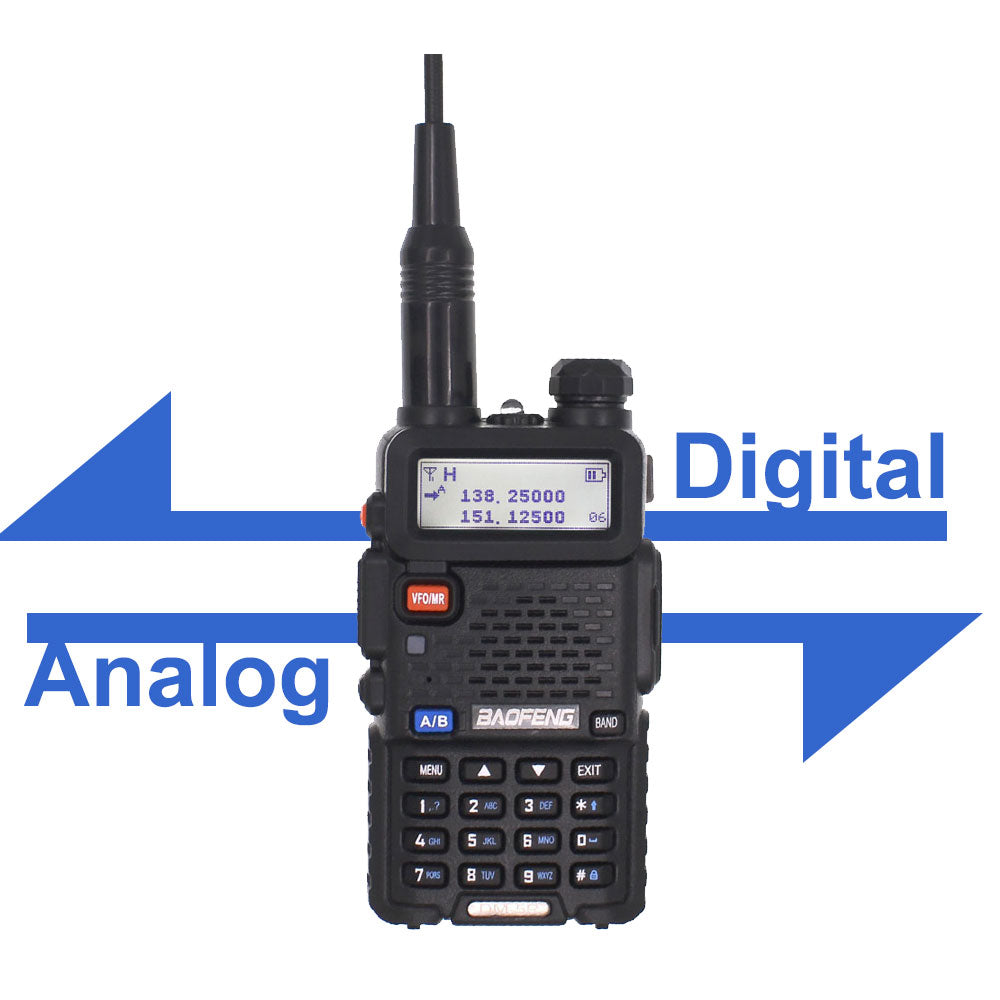

*Compatibility of digital and analog of DMR system;

*LCD display provided with Chinese and English voice prompts,friendly interface.

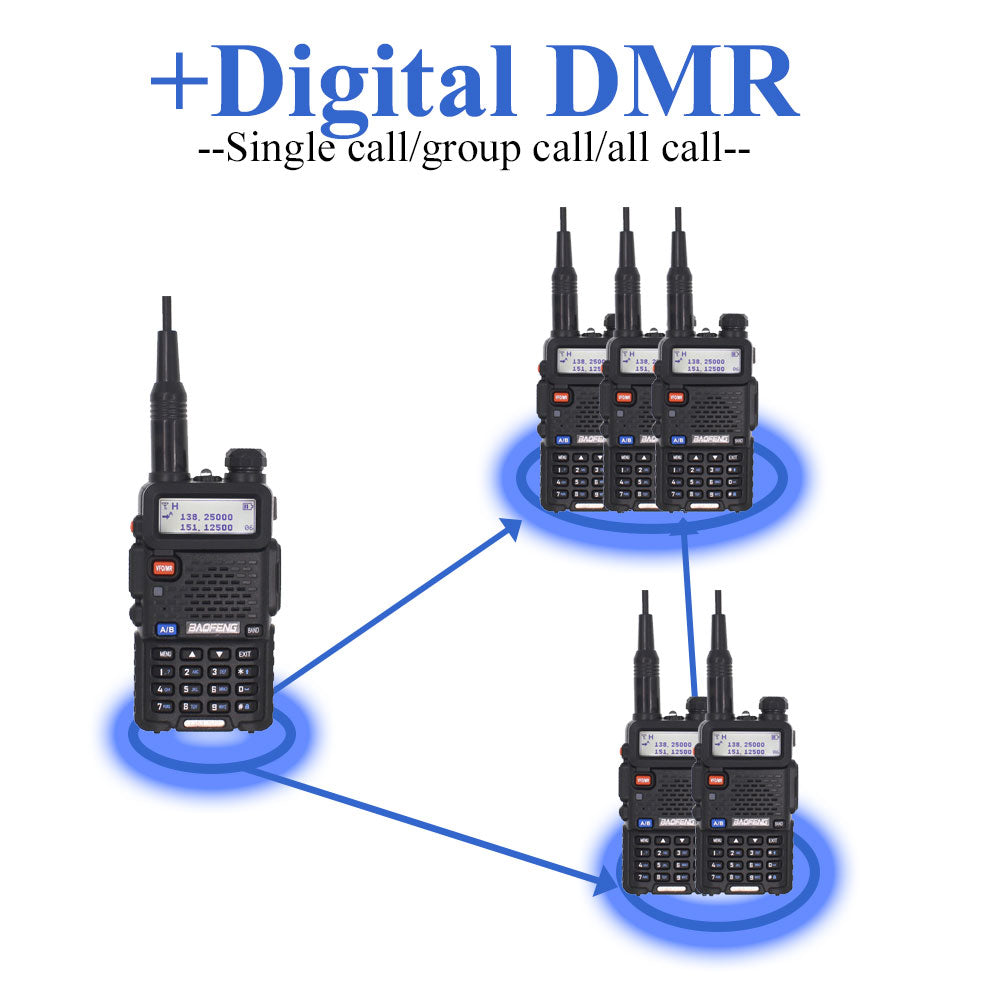

*Digital talkback function: support individual call, group call and all call and support digital voice encryption

*Support relevant application of relay in digital mode

*Support two-way radio detection in digital mode

*Support emergency alarm in digital mode

*Dual band, dual-display and dual-frequency waiting, relay cross-stage receiving and transmitting in U/V stage.

*Switching between high power and low power to meet the power requirement of users for different communication distances and to achieve better energy and power saving

*Up to 128 memory channels available for the programming of frequency and other various data

*Display of channel number, frequency, channel frequency and channel name, etc.

*Different CTCSS/DCS and DTMF signaling can be set for each channel so as to reject surplus calls from other radio stations

*Tail tone elimination avoiding the impact noise made by the speaker after the call to protect users from such noise impact.

*VOX allowing users to operate the two-way radio without using hands and to have a normal conversation without pressing the PTT key.

*Emergency alarm and ANI identification through DTMF

*DTMF, CTCSS and DCS signaling coding and decoding function

*8-level stepped frequency selection (2.5K, 5.0K, 6.25K, 10.0K, 12.5K, 20.0K, 25.0K and 50.0K)

*Provided with intermediate pilot frequency and reverse frequency function which allows it to adapt to the setting requirements under various complex conditions

*Auto power saving function. Reduce power consumption so as to extend the operation time of the two-way radio.

*Emergency call and sound and light alarm function

*Computer programming (read-write frequency and function setting) function

*Broad/narrow band (25KHz/12.5KHz) selection function

Specifications：

General specifications:

Frequency range VHF: 136-174MHz /UHF:400-520MHz (Dual Band)

Storage channel 128 groups

Stepped frequency 2.5/5/6.25/10/12.5/20/25kHz

Operating voltage DC7.4 V (rechargeable lithium battery)

Frequency stability ±1.5ppm

Operating temperature -20℃—+50℃

Operation mode same-frequency simple or different-frequency simplex

Antenna impedance 50Ω

Battery capacity 2000mAh

Volume 110×58×32mm (excluding antenna)

Transmitting:

Output power 5W/1W

Modulation (wideband/narrowband) Analog: 16K¢F3E/11 K¢F3E Digital: 4FSK

Maximum frequency deviation (W/N) ≤5KHz/≤2.5KHz

 FSK allowable error rate ≤3%

Spurious power ≤7.5uW

Adjacent channel power ≤-65dB/≤-60dB

Signal to noise ratio (wideband/narrowband) ≥-45dB/≥-40dB

CTCSS/DCS frequency deviation (W/N) 0.7±0.1KHz/0.4±0.1KHz

Modulation sensitivity 8—12mV

Transmitting current ≤1.5A

Receiving:

Analog sensitivity -122dBm (12dB SINAD)

Digital sensitivity -120dBm(BER≤5%)

Audio power 1W

Audio distortion <10%

Intermodulation (wideband/narrowband) ≥62dB/≥58dB

Adjacent channel selectivity (wideband/narrowband) ≥65dB/≥60dB

Receiving current ≤380mA

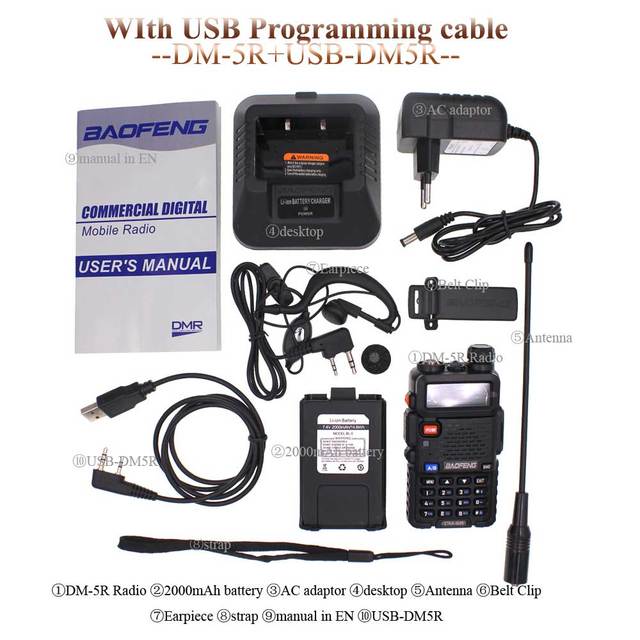

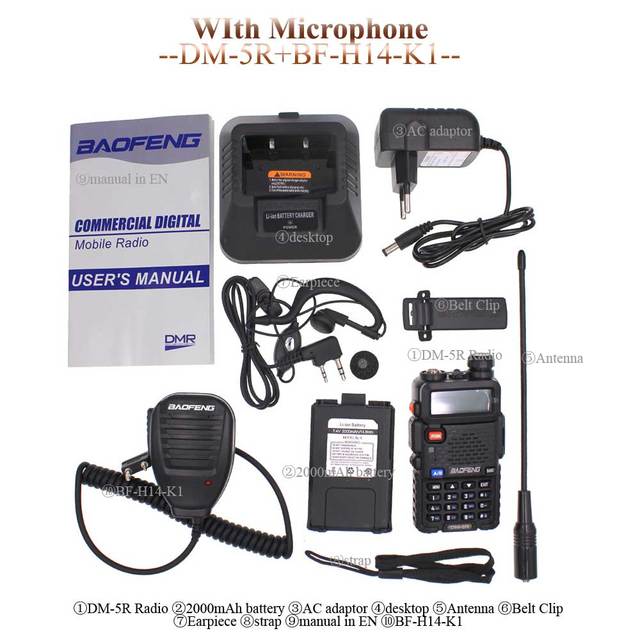

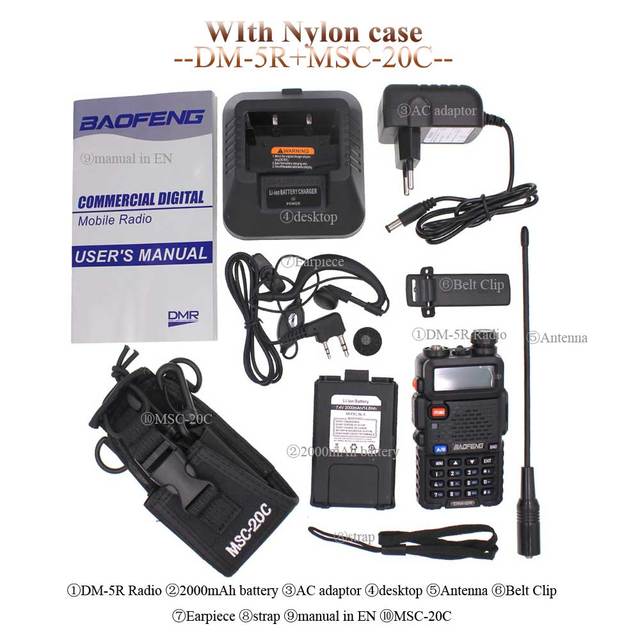

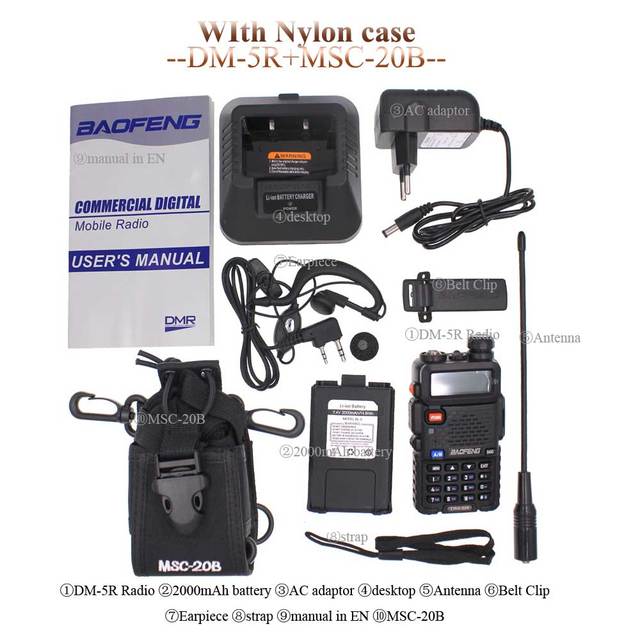

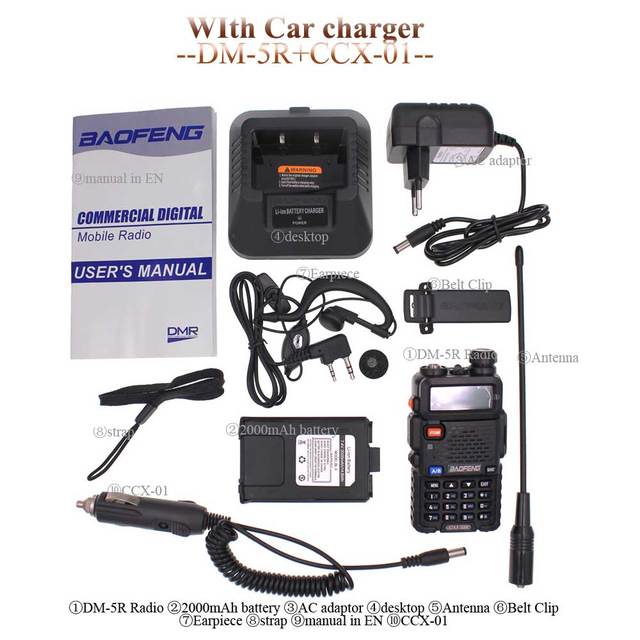

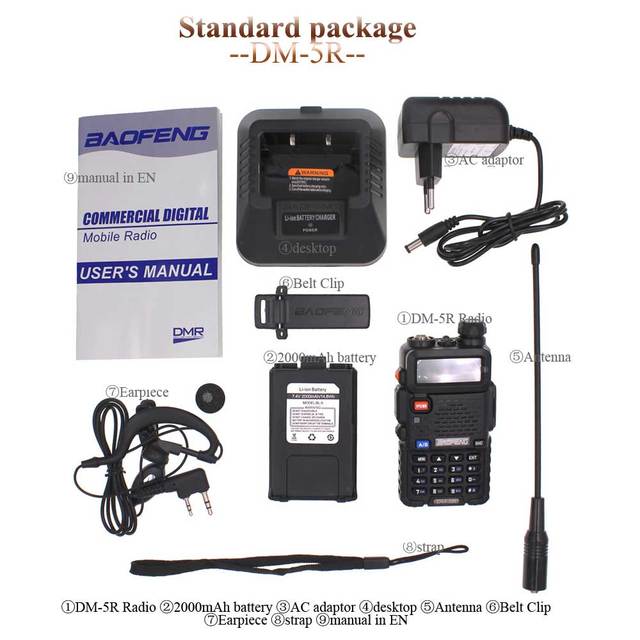

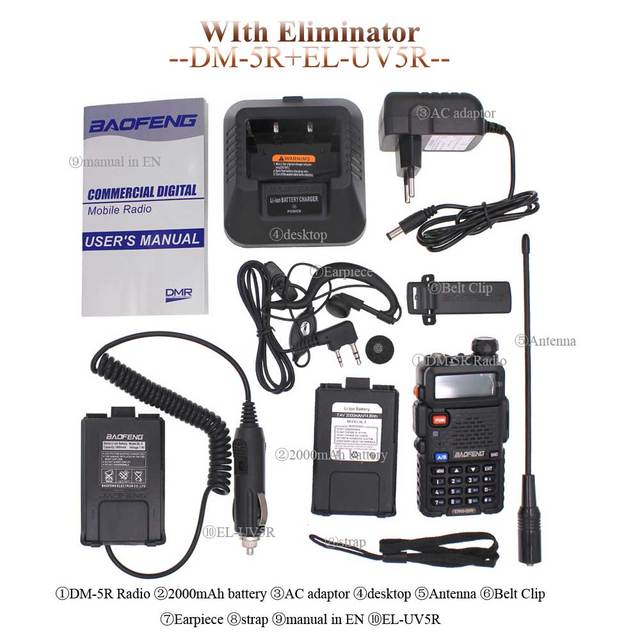

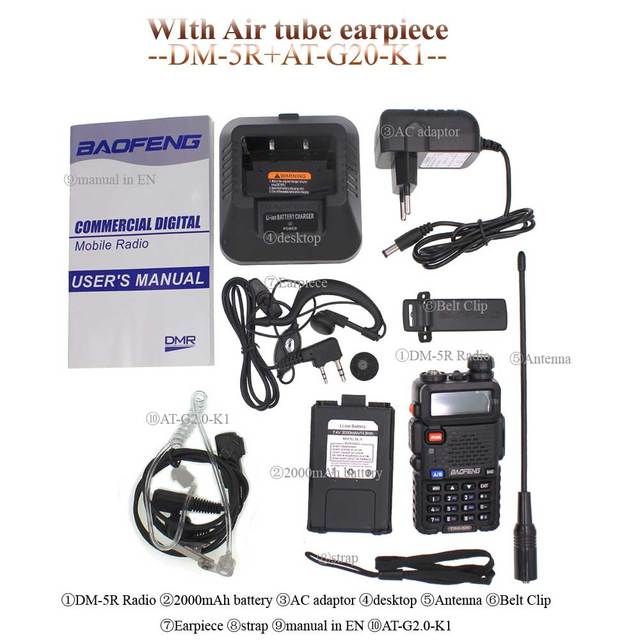

Standard Package :

1× BAOFENG DM-5R

1× 2000mAh Li-ion Battery Pack

1×100-240V AC Adapter (US/EU/UK/AU optional)

1× Antenna

1× Hand Strap

1× Belt Clip

1× Earpiece

1× User Manual in EN
