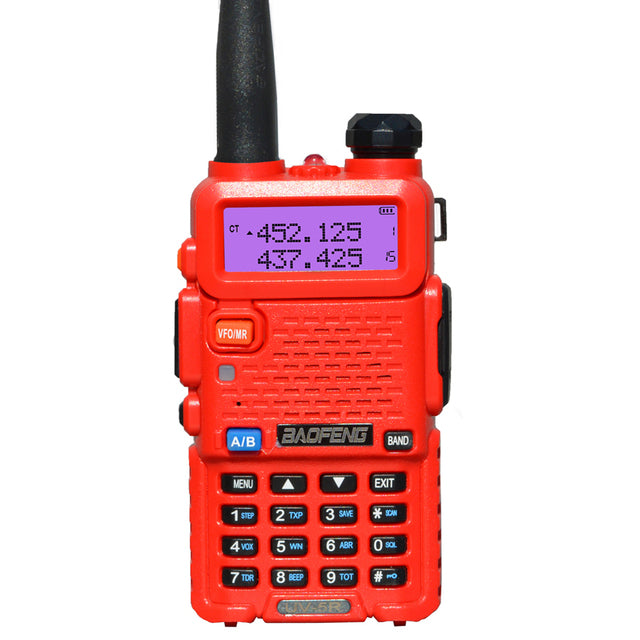

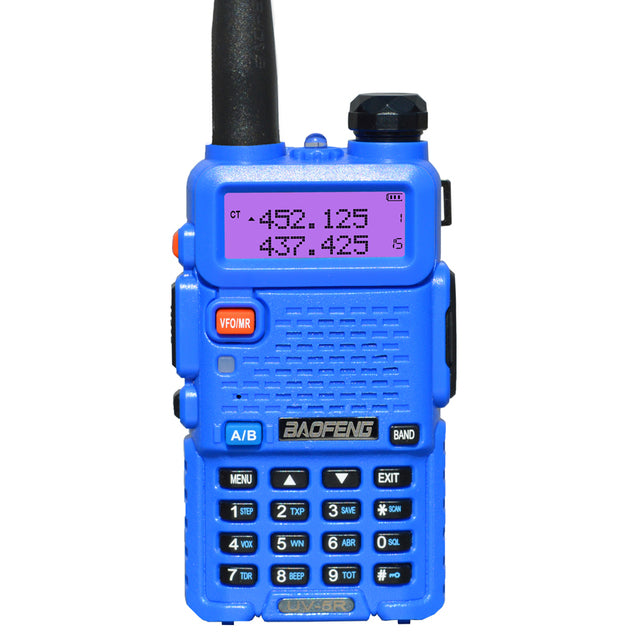

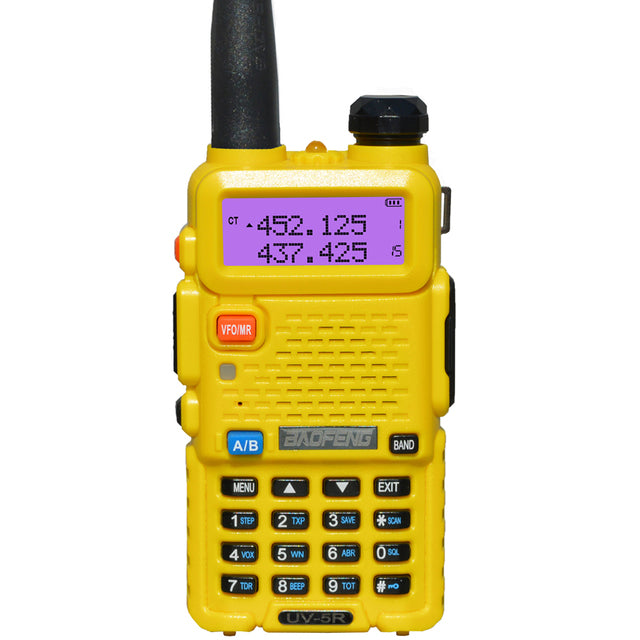

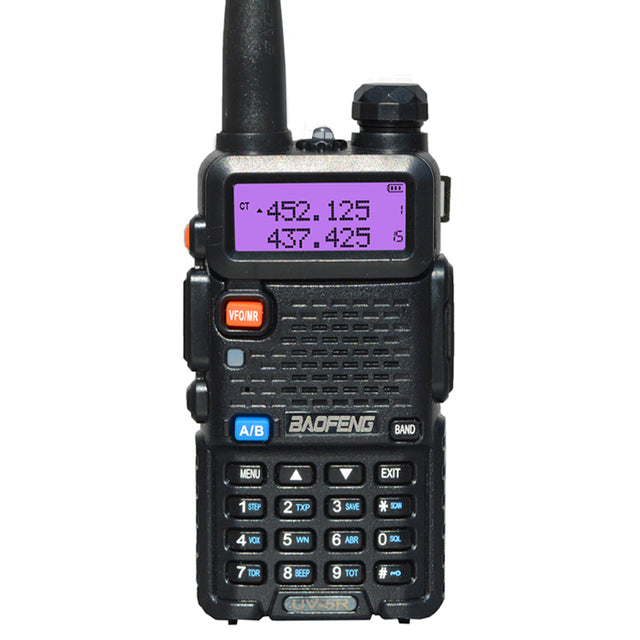

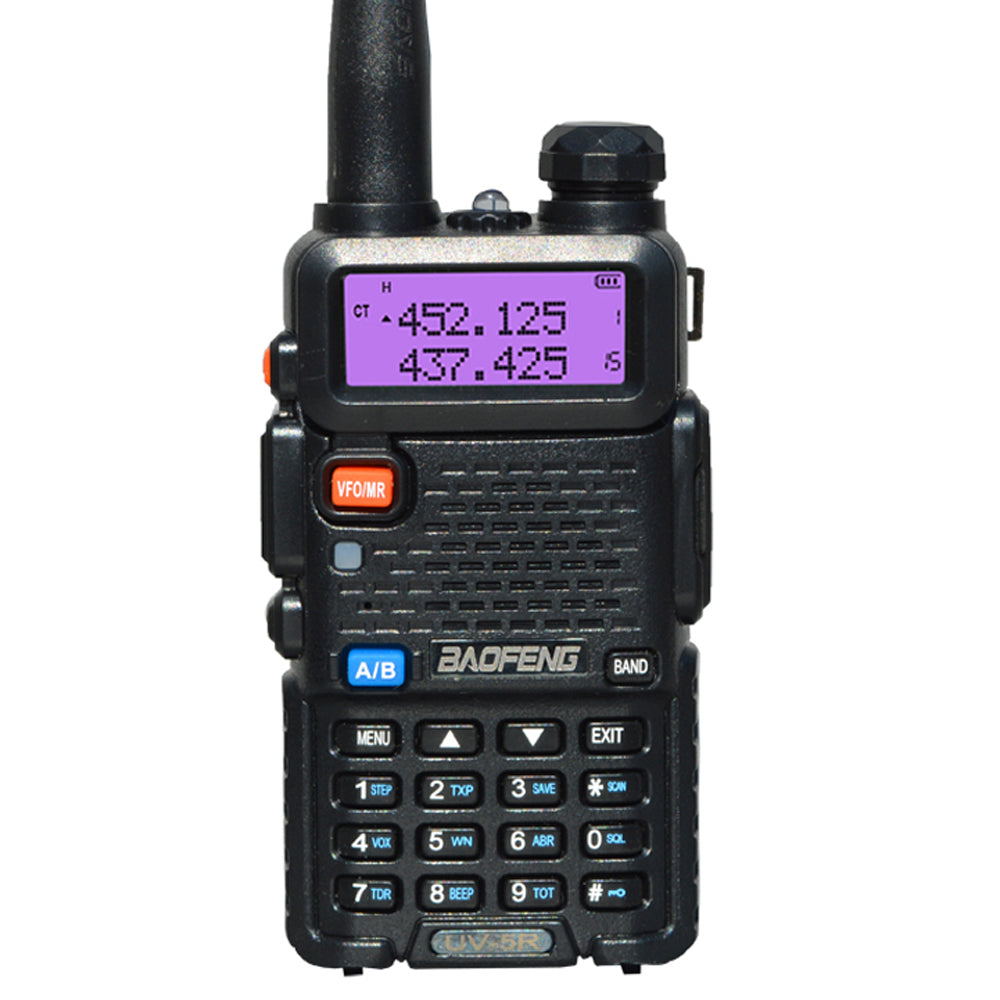

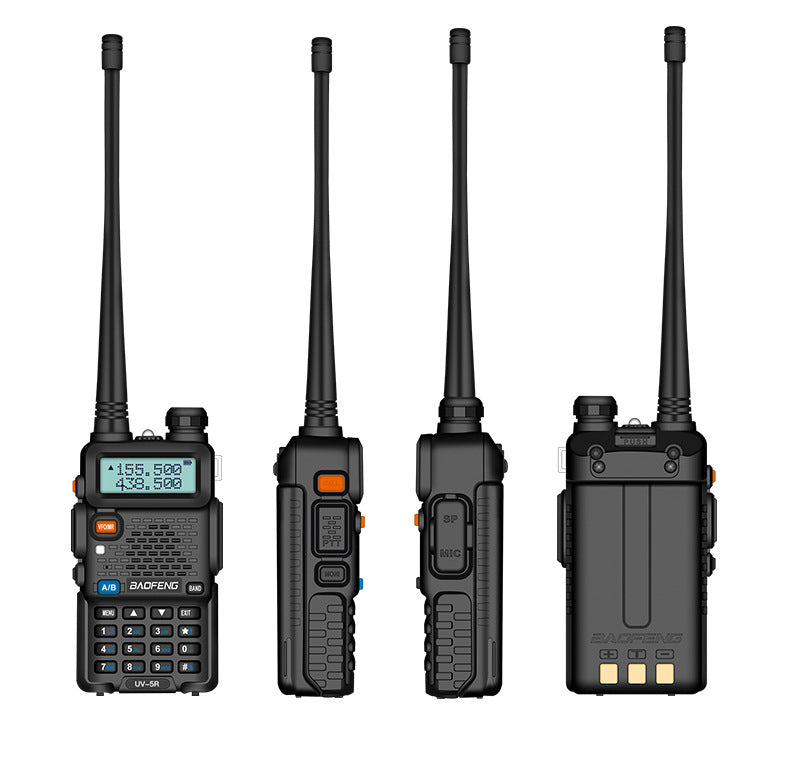

BaoFeng walkie talkie UV-5R two way cb radio upgrade version baofeng uv5r 128CH 5W VHF UHF 136-174Mhz &400520MhzFeaturesDurableWear Resistant,Sensitive and durable
Environmental protection PC
Rubber keyboard
Dual-band handheld transceiver with display function
Commercial FM radio receiver (65MHz-108MHz)
Built-in LED flashlight
Built-in RX CTCSS/DCS scan
Function VOX
Alarm function
Broadband/narrowband selectable
Function beep on the keyboard
Dual Watch/dual Reception
Crossband reception/transmission
Battery saving function
Programmable by PC
Built-in key lock

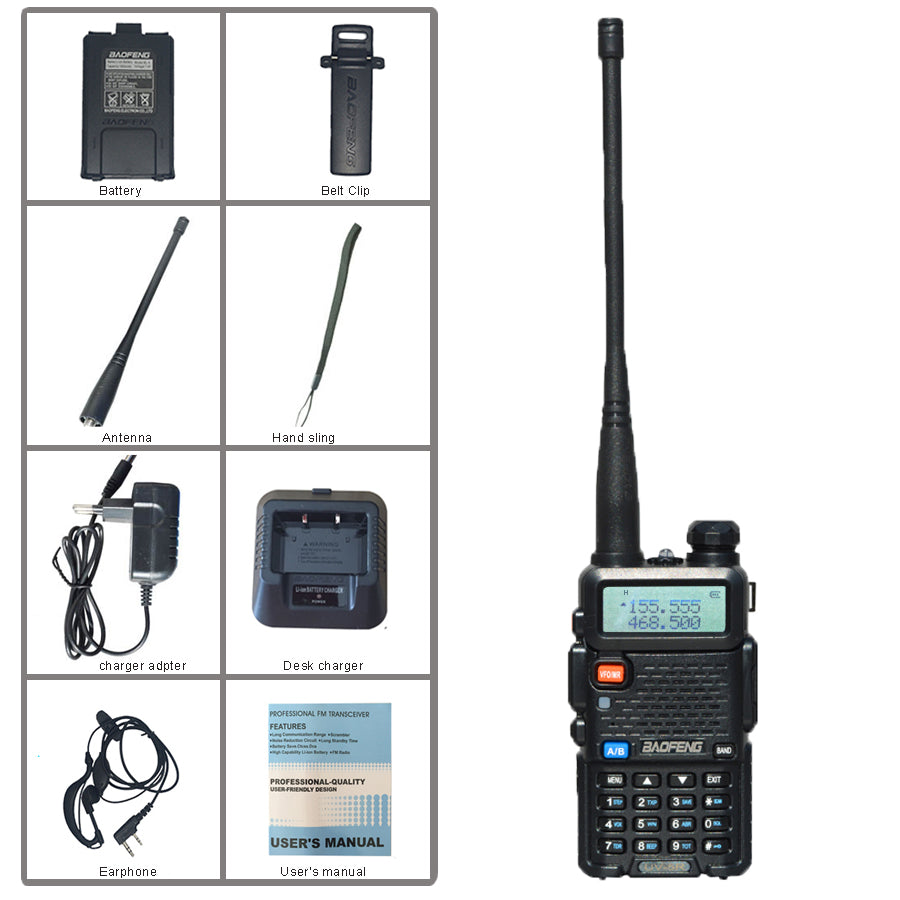

Package Contents
1 x Portable UV-5R Radio
1 x Battery
1 x Antenna

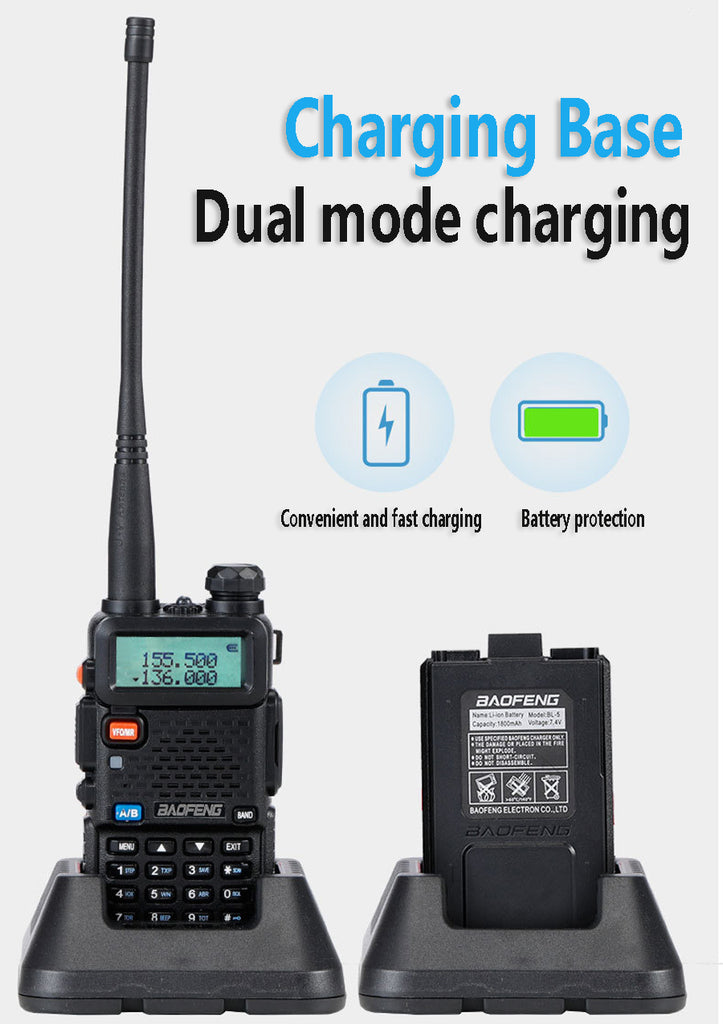

1 x Desk charger
1 x Charger adapter
1 x Belt clip
1 x The sling
1 x Earphone
1 x User's manual
Specifications
Dual band, dual display
A/B band independent operation
128 groups channels storage
Shortcut menu operation mode
VFO &MemorychannelsscanEmergencyAlarmTricolorbackgroundlightselectable
0~9 grades VOX selectable
PTT &ANIIDFMradioand25stationsstorage1750HzBrust Tone
Time-out Timer
Channel Monitor
Battery Saver
Keypad Lock
Channel Step: 2.5/5/6.25/10/12.5/25KHz
Low Battery Alert
ROGER SET
Emergency Alert
25KHz/12.5KHz Switchable
FM Radio (65.0MHz-108.0MHz)
Large LCD Display
LED Flashlight
Hight /Low RF Power Switchable
Wide/Narrow Band(25kHz/12.5kHz)
Transmitter time-out timer(TOT)
High/Low TX power selectable
Busy channel lock-out(BCLO)
Frequency Range
65-108MHz(FM Receive only)
136-174MHZ and 400-520HZ (TX/RX)
Channel No.
128
Frequency Stability
±2.5ppm
Antenna
High gain DualBand antenna
Antenna Impedance
50
Operating Voltage
DC 7.4V
Mode of operation
Simple or semi-duplex
Weight
250g(including battery, antenna)
Antenna :
SMA -Female

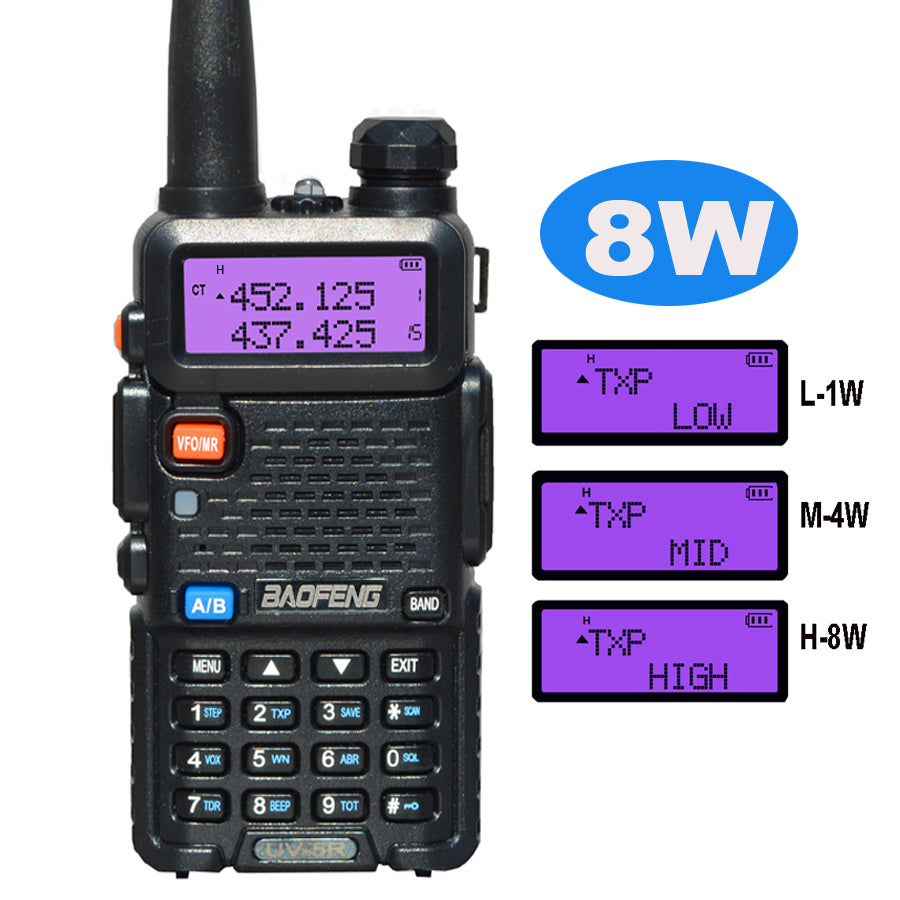

Output power
8W/4W / 1W (Max 5W)
Modulation Mode
16kF3E / 11kF3E
Maximum deviation
5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation
7W
Adjacent Ch. power
-65dB(Wide) / -60dB(Narrow)
Pre-emphasis characteristics
6dB
Current
1.6A(5W)
CTCSS/DCS deviation
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity
8-12mv
Intermediation distortion
10%
