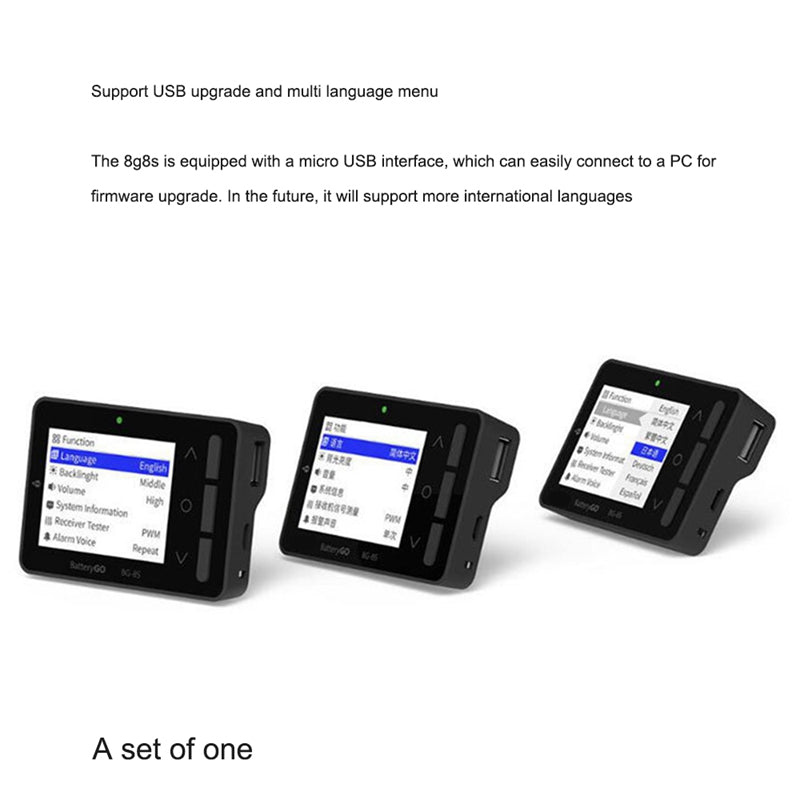

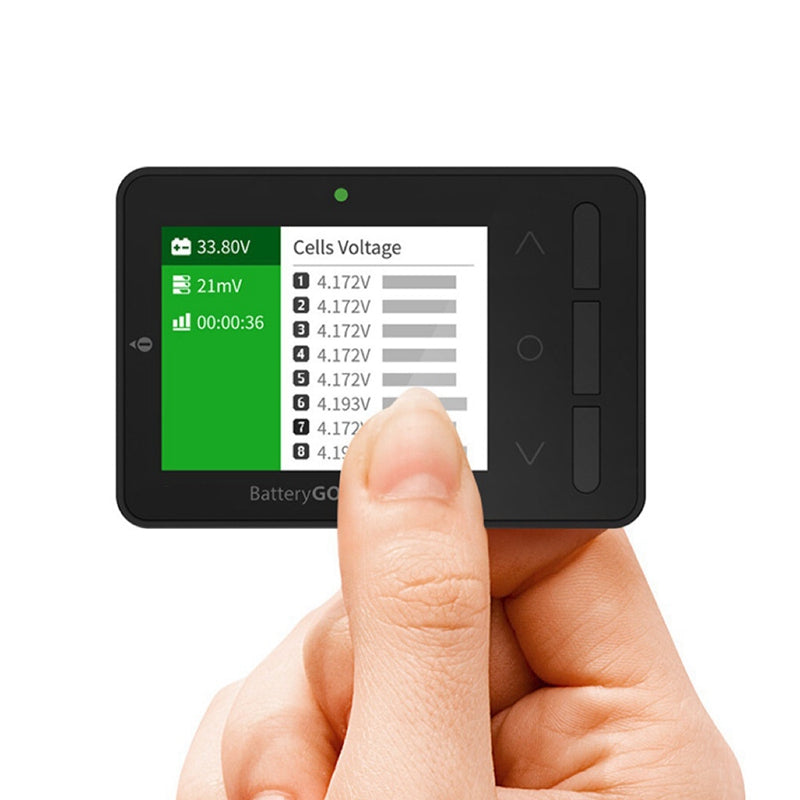

Smart Battery Checker: 260,000 color display visible under strong sunlight. Exquisite and powerful BG-8S smart battery checker fully support BattGO technology.

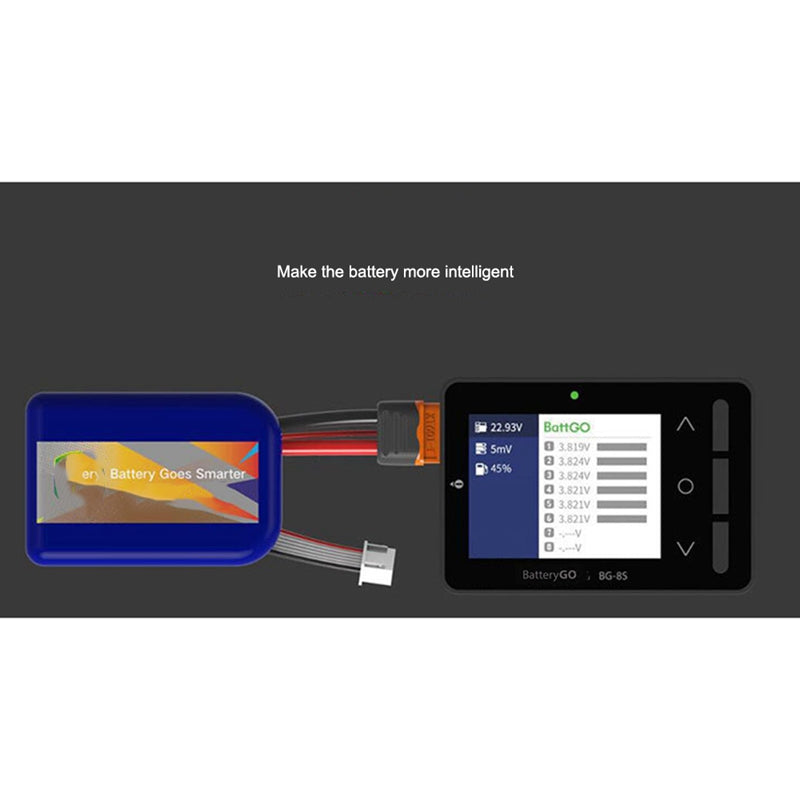

Make battery smarter: Cooperating with BattGO technology, only with XT60i connected and you can get full knowledge on detail parameters on your batter. Easy to read cells voltage, battery circulations, working parameters and fast set to your preferred settings.

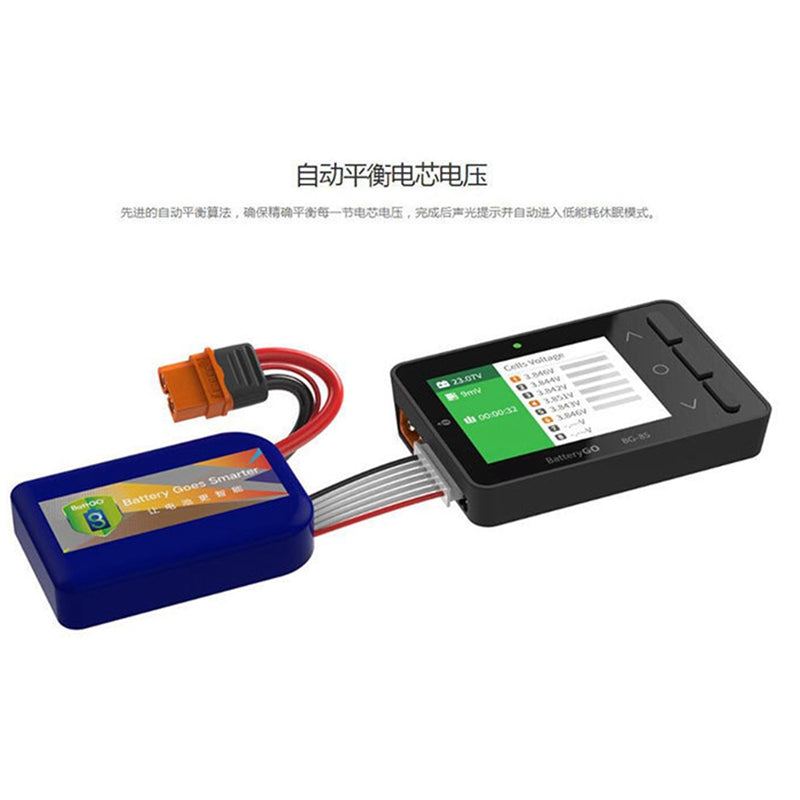

Auto balancing cells voltage: Advanced auto balancing algorithm, make sure every cell is well balanced. After completion auto into low power mode.

Powerful portable charging function: Connecting to your battery, BG-8S can become your power bank for mobile devices. Support Qualcom QC 2.0/3.0, compatible with BC1.2 and Apple devices. Maximum output 12V/2A.

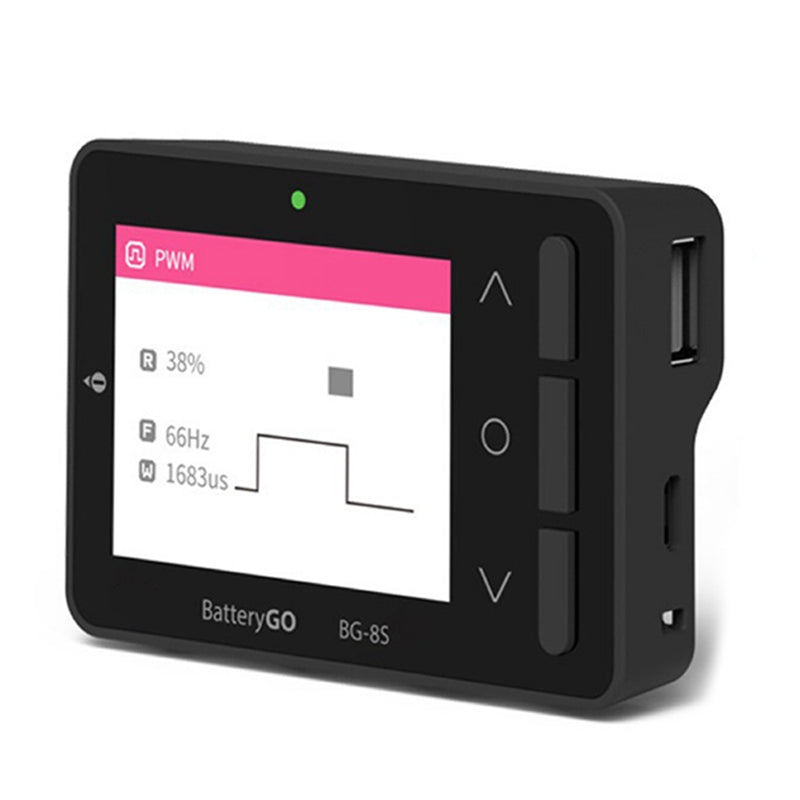

Receiver signal test and protocol analysis: With standard 3 pin plug, BG-8S cab detect BEC output voltage. BG-8S also support multiple protocol analysis including PWM, PPM&S.BUS and etc. With future firmware upgrades more Protocol analysis will be supported.

Specification:

Working voltage: 5.0V-36V

Input voltage: 0.8V-15V

Input voltage 2-8S: 0.8V-4.8V

Battery cells: 1-8S

Voltage measurement accuracy: ±0.005V 4.2V

Balancing cells accurancy: Less than 0.005V

Support USB charging: QC 2.0/3.0, BC1.2, Maximum output 12V/2A

Suppport smart battery: Charging and discharging setting,

read battery info and usage history.

Supported Batt.Type: LiHv(1-8S)/LiPo(1-8S)/LiFe(1-8S)

Lilon(1-8S)/NiMH/Cd(1-10S)

Display: 2.4//320x240 260,000 color IPS LCD

Operating Temperature: 0-40°C

Working Humidity: 10%-90%RH( noncondensing )

Storage Temperature: -20-60°C

Storage Humidity: 5%-90%RH( noncondensing )

size: 8 x 5.5 x 1.9cm

Material: plastic

colour: As shown

Package Contents:

1 x lipo battery tester(Due to different product batches, the appearance of the product may be different, but the function is the same)

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
