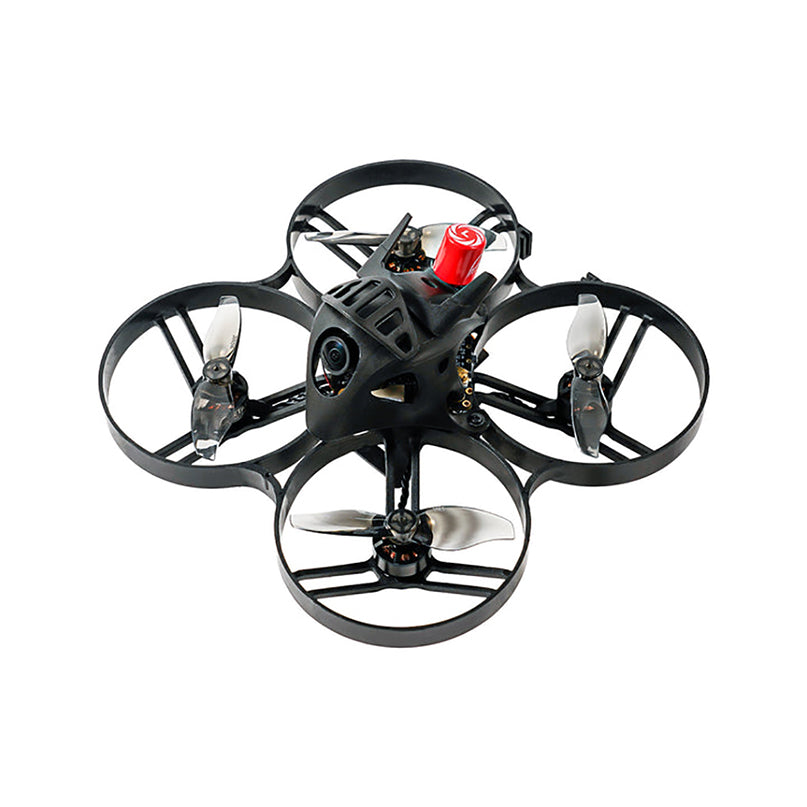

BETAFPV Meteor85 Brushless BWhoop Quadcopter 2S Walksnail / HDZero HD Digital VTX ELRS 2.4G Receiver FPV Racing RC Drone

  Experiencing super clear and sharper images, stepping into the HD world with BETAFPV Meteor85 HD. Based on the newest Meteor85 (2022), it comes with Walksnail Avatar Mini HD VTX or HDZero Whoop Lite Bundle, bringing conspicuous images and exceptional visuals to your eyes and capturing details that make the footage look as exciting as the flight. Together with 1103 11000KV motors and GF2015 2-blade props that feature strong propulsion, it gives pilots powerful and impressive results. Enjoy an immersive flight experience for freestyle tricks outdoors, and get the perfect shots with the new HD VTX system.

  Bullet Point

     Lightweight for 52.57g (Walksnail) and 48.30g (HDZero) whoop drone, this new 2S whoop drone with Walksnail HD VTX or HDZero VTX gives pilots an immersive flight experience and impactful visuals.

   New frame with the low profile of the battery slot, the drone's gravity center is reduced and improved the sense of compactness, perfectly enhancing the trust-to-weight ratio. It is durable and light enough, giving pilots a good balance of weight and a nice punch on a 2S battery.

   Featuring an upgraded propulsion system and a larger capacity battery. Meteor85 uses GF 2015 2-Blade props with 1103 11000KV motors, which gives full play to the efficiency of the power. Combined with a 450mAh 2S battery, Metero85 can fly up to 6 mins (HDZero) and 5 mins (Walksnail).

   Adopt with injection molding technique, this canopy is 2.50g ultralight weight and is more durable, anti-ruin, and heat-resistant, providing good protection for the whoop drone.

   Reserve solder pads for the external receivers with UART1 and UART2 on F4 1-2S 12A FC board. The SPI ELRS 2.4G and SPI Frsky version can be used as PNP quadcopter.

  Specification

  Item: Meteor85 Brushless Whoop Quadcopter (2S HD Digital VTX)

  Flight Time: 6 mins (HDZero)/5 mins (Walksnail)

  Camera Adjustable Angle: 0-45°

  Motors: 1103 11000KV Motors

  Battery: 450mAh 2S Battery

  Frame:Meteor85 Brushless Whoop Frame

  Propellers: Gemfan 2015 2-Blade Propellers

  Weight Without Battery: 52.57g (Walksnail)/48.30g (HDZero)

  Receiver: ELRS 2.4G, SPI Frsky

  FC&ESC:F4 1-2S 12A FC (2022)

  VTX Power Output: 350mW (Walksnail), 25mW/200mW (HDZero)

  VTX: 1S Walksnail-Avatar Mini HD VTX/HDZero Whoop Lite Bundle

  Camera: Wanlksnail-Avatar Nano Camera/HDZero Nano Lite Camera

  Meteor HD Series

  BETAFPV has been optimizing and upgrading the Meteor series for better performance. Based on the Meteor Series, the Meteor85 (2S HD) and Meteor75 (1S HD) not only have good performance in power, speed and maneuverability but also provide high-definition images for pilots at the same time.

      Meteor85 (HD)

      Meteor75 (HD)

                Frame

      Meteor85 whoop frame

      Meteor75 whoop frame

                Power

      2S

      1S

                Battery

      450mAh 2S battery

      BT2.0 450mAh 1S battery

                FC

      F4 1-2S 12A FC (2022)

      F4 1S 5A FC (2022)

                RX

      SPI ELRS 2.4G, SPI Frsky

      Serial ELRS 2.4G, SPI Frsky/PNP, TBS

                Camera

      Walksnail Camera or HDZero Camera

                VTX

      Walksnail Avatar Mini HD VTX or HDZero Whoop Lite Bundle

                Flight Time

      6 mins (HDZero) or 5 mins (Walksnail)

      3.5 mins (HDZero) or 3 mins (Walksnail)

                Used For

      Acro, dive, power loop freestyle tricks, and outdoor flying

      Freestyle tricks, indoor and outdoor flying

  HD Digital VTX System

  There are two HD versions to choose from. Based on Walksnail-Avatar, the Walksnail-Avatar Mini HD VTX also uses H.265 high-efficiency video coding, an industry-leading technology, providing 1080P/60FPS image recording with 22ms ultra-low latency. It is specially designed for 3.1-5V power input and 10g lightweight, which is compatible with Meteor85 whoop drone. Build-in 8 GB storage, the For Avatar-Mini HD VTX has the capability of recording HD video without interference from capacity and exporting video by USB cable. Besides, with Canvas Mode on For Avatar-Mini HD VTX, Betaflight full OSD display is supported and can be adjusted easily by remote control.

  HDZero Nano Lite Camera is designed for feather-lite drones where every gram counts. At a weight as low as 1.5g, combined with the new Whoop Lite VTX at 4.5g with 0.4g dipole antenna enables a world’s-first production digital FPV solution of about 7g. The HDZero Whoop lite Bundle supports 1-3S power input with 25mW/200mW RF power and is capable of recording in 720P/60FPS with super low latency of less than 19ms. What's more, pilots can activate and configure its OSD function on Betaflight Configurator.

  Flight Controller

  The latest F4 1-2S 12A flight controllers are applied to all BNF versions of Meteor85. Both SPI ELRS 2.4G and SPI Frsky can be used as PNP due to extra solder pads for the external receiver. The SPI Frsky version also can be switched to the Futaba SFHSS protocol through the Betaflight configurator. The ESC on the new board powered by BB51 hardware comes with Bluejay 48k ESC firmware, allowing 1103 11000KV motors to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 1-2S 12A FC.

      Meteor85 HD (SPI ELRS 2.4G)

      Meteor85 HD (SPI Frsky)

                FC Inside

      F4 1-2S 12A FC (SPI ELRS 2.4G)

      F4 1-2S 12A FC (SPI Frsky)

                Gyro

      BMI270

      BMI270

                FC Firmware

      BETAFPVF411SX1280

      BETAFPVF411RX

  Note: F4 1-2S 12A AIO SPI ELRS 2.4G comes with the default firmware betaflight_4.3.1_BETAFPVF4SX1280, which supports ELRS V2.0. ONLY the Betaflight firmware 4.3.0 and up start to support this BMI270 gyro. Please check the below link to download the firmware.

  Download the firmware and CLI dump file for the F4 1-2S 12A FC ELRS or Frsky.

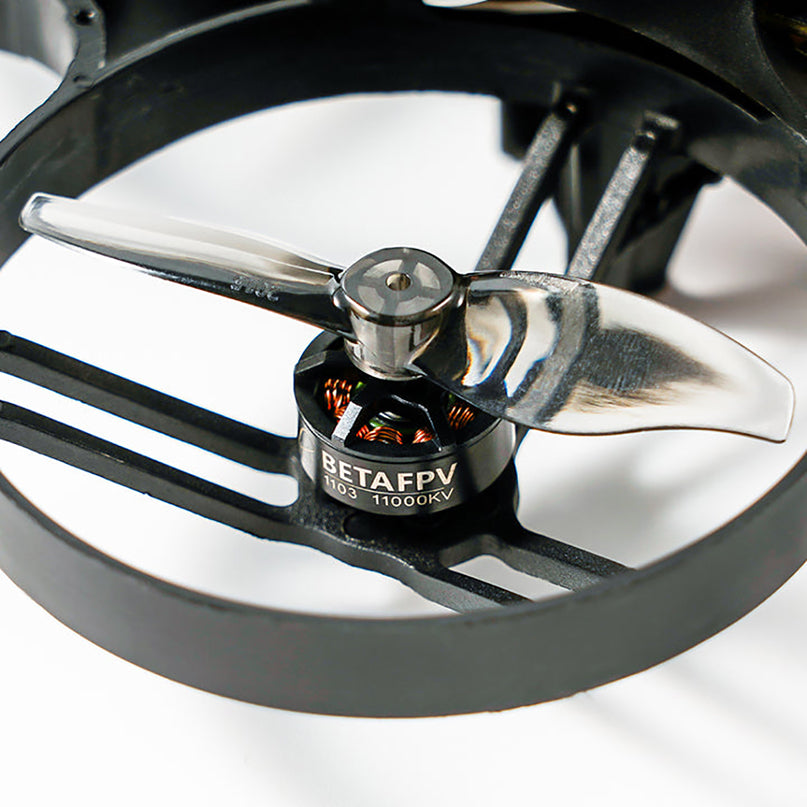

  Motors & Propellers

  Equipped with 1103 11000KV Brushless Motor and Gemfan 2015 2-blade props. 1103 motors are designed for 2S quadcopters with incredible power, smooth and quiet operation, and light enough. Meteor adopts 2015 2-blade props, which are lighter and durable enough, offering pilots a high-efficiency flight experience.

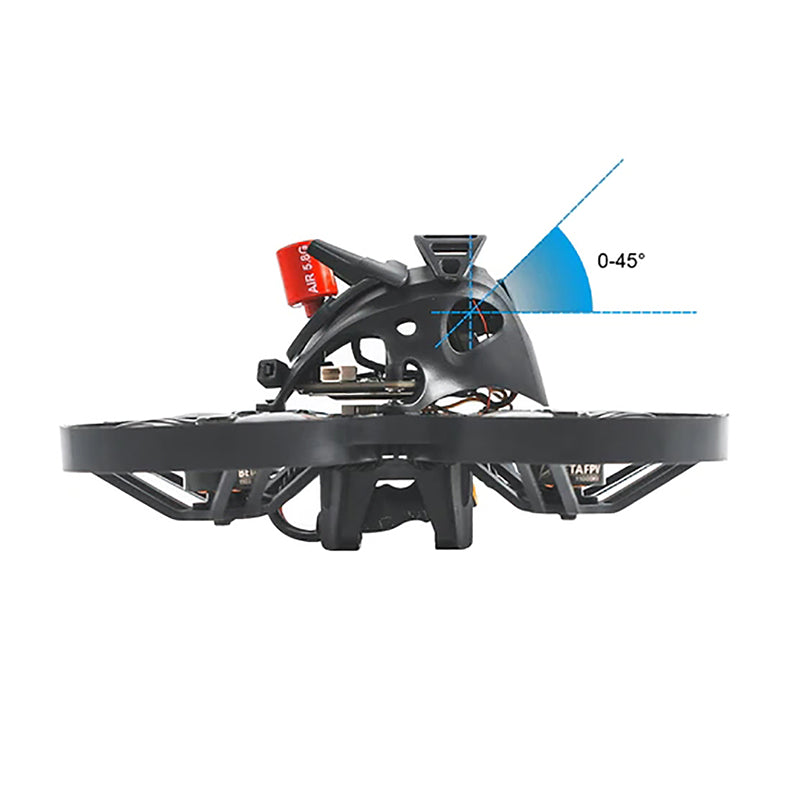

  Injection Molded Canopy for HD Camera

  Micro Canopy for HD Camera is specially designed to be compatible with Walksnail or HDZero HD digital VTX and has an adjustable camera lens of 0-45°. With the injection molding technique, the canopy is very durable and flexible for crash resistant. Besides, the hollow-out design not only reduces the influence of heat on electronic parts but also is available to be armed with decorative parts we prepared.

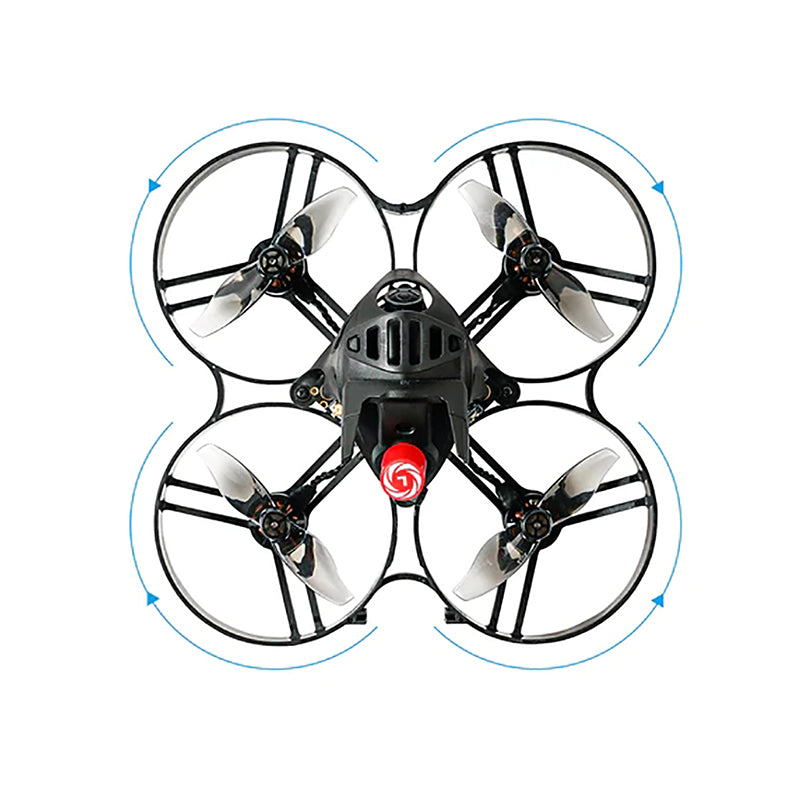

  Props out

  The Meteor85 drone comes with "props out" in default. Why do we need "props out" direction?

  Default Betaflight props direction, quadcopter dips, and "washes out" in hard corners. With reversed props or "props out", no more dipping even in hardest cornering.

  Recommend Parts

     Radio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE

   Battery: 450mAh 2S Battery

   Props: Gemfan 2015 2-Blade Propellers

   Frame: Meteor85 Brushless Whoop Frame

   Canopy:Micro Canopy for HD Camera

   Sticker: BETAFPV Waterslide Decals

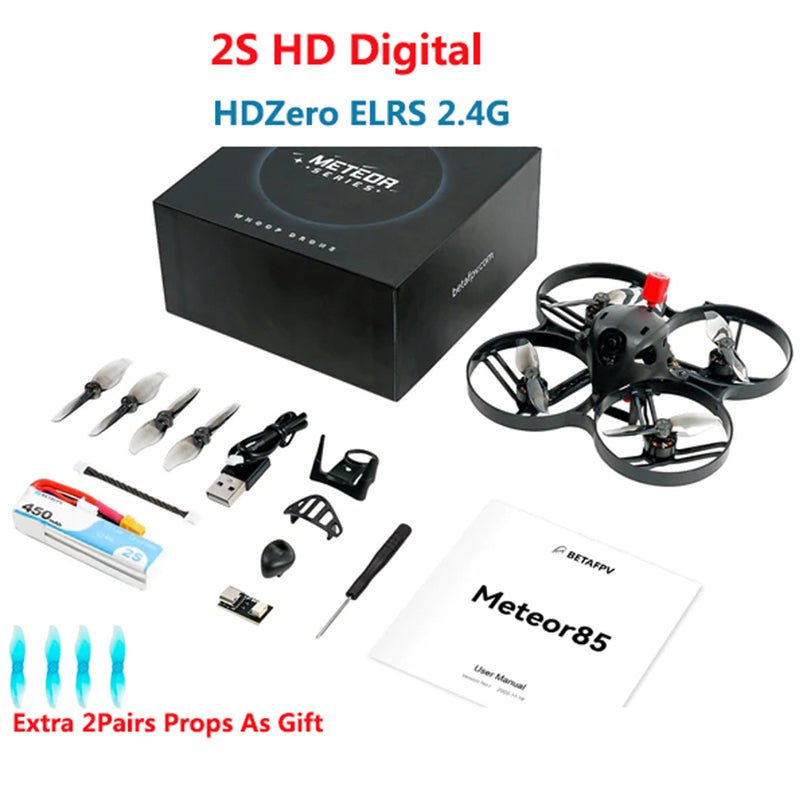

  Package

  1 * Meteor85 Brushless Whoop Quadcopter (2S HD Digital VTX) ELRS 2.4G or SPI Frsky

  1 * 450mAh 2S 45C Battery

  1 * Type-C to SH1.0 Adapter

  1 * SH1.0 Cable

  3 * Decorative Parts

  4 * Gemfan 2015 2-Blade Propellers

  1 * Walksnail VTX USB Cable (For Walksnail Version)

  1 * HDZero VTX Converter Cable (For HDZero Version)

  1 * Pack of Screws

  1 * User Manual
