Product specifications:

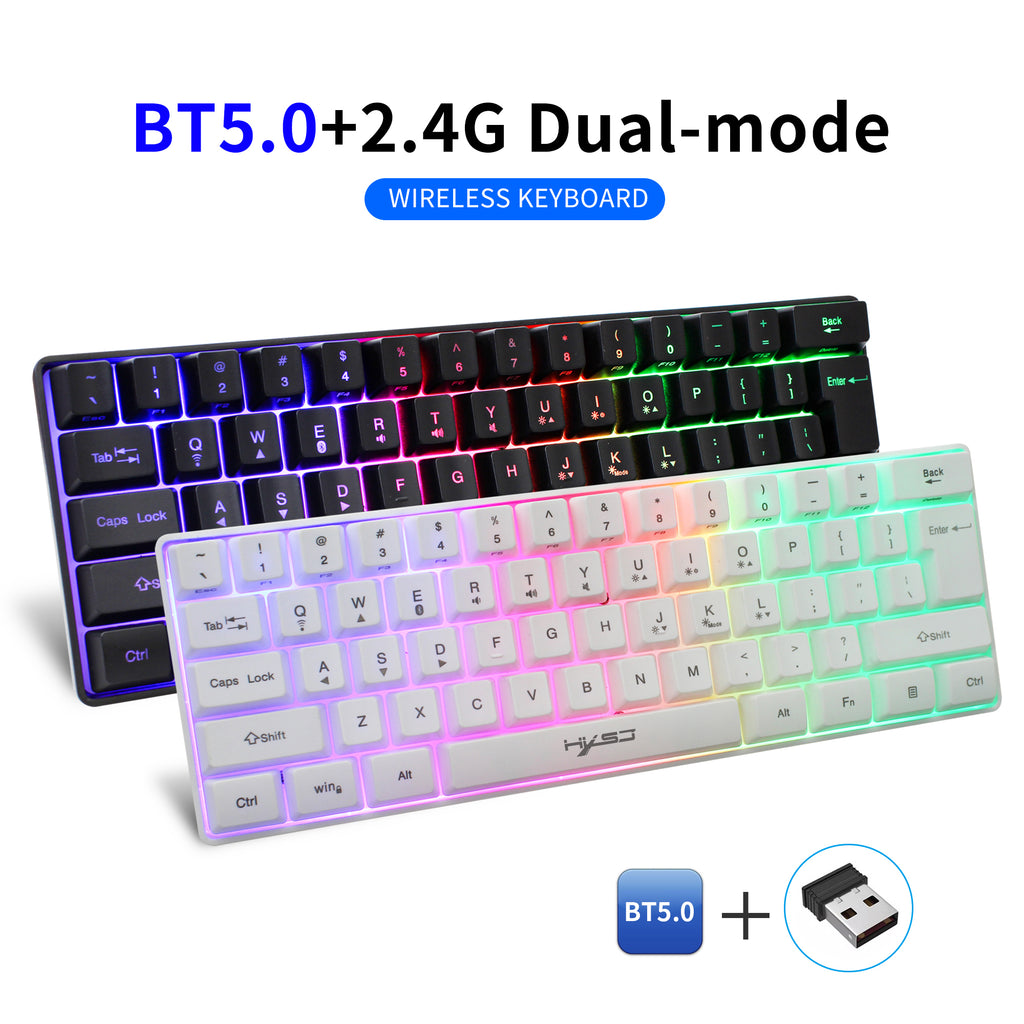

  Specification item:(BT5.0 + 2.4G) dual-mode wireless illuminated keyboard

  Product number:L500

  Interface Type:TYPE-C

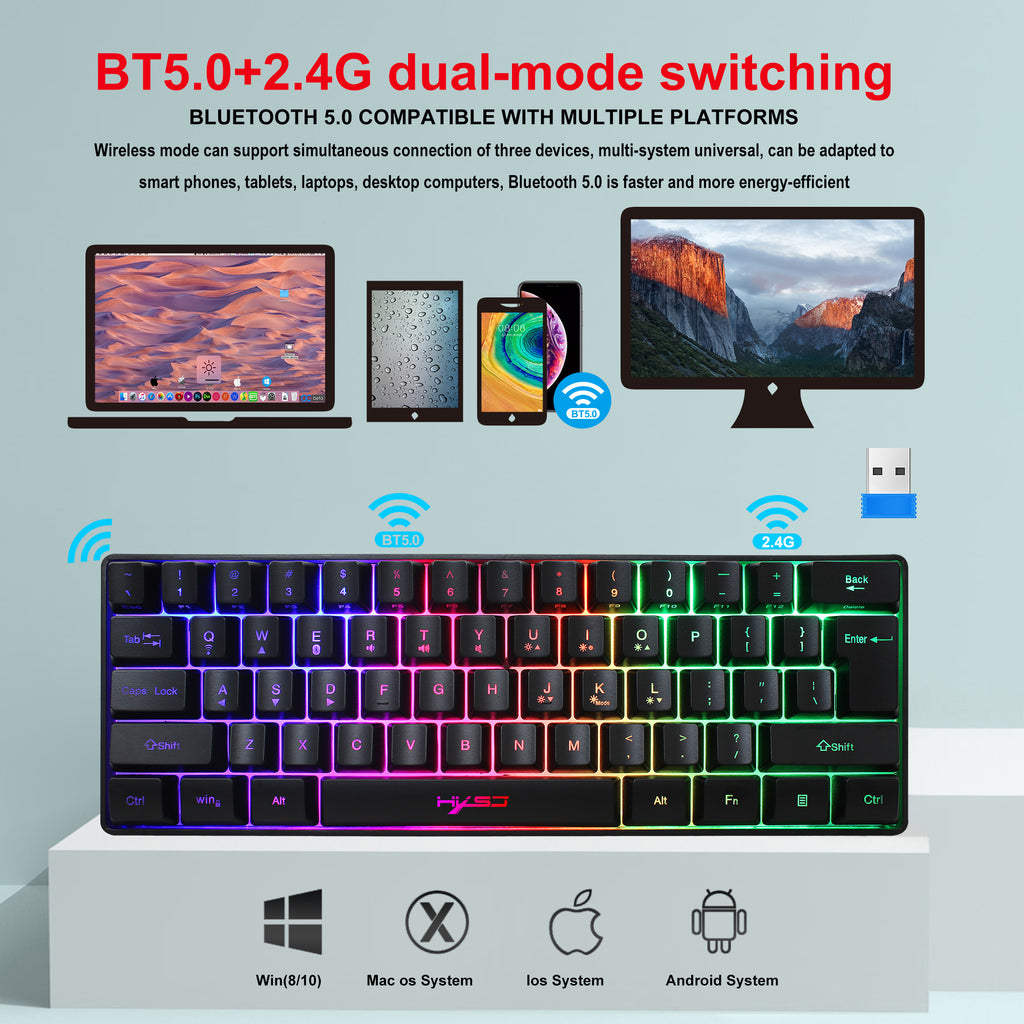

  Connection method:Bluetooth 5.0、2.4G

  product type:Membrane keyboard

  Built-in battery capacity: 2200mA

  Number of keys:61KEY

  Button life:10 million times or more

  Operating Voltage:3.0V±5% DC

  Working current:50mA (MAX)

  Charging Cable:1.5M Type-C Interface

  Keycap material:ABS

  Multimedia:With multimedia (laser carving)

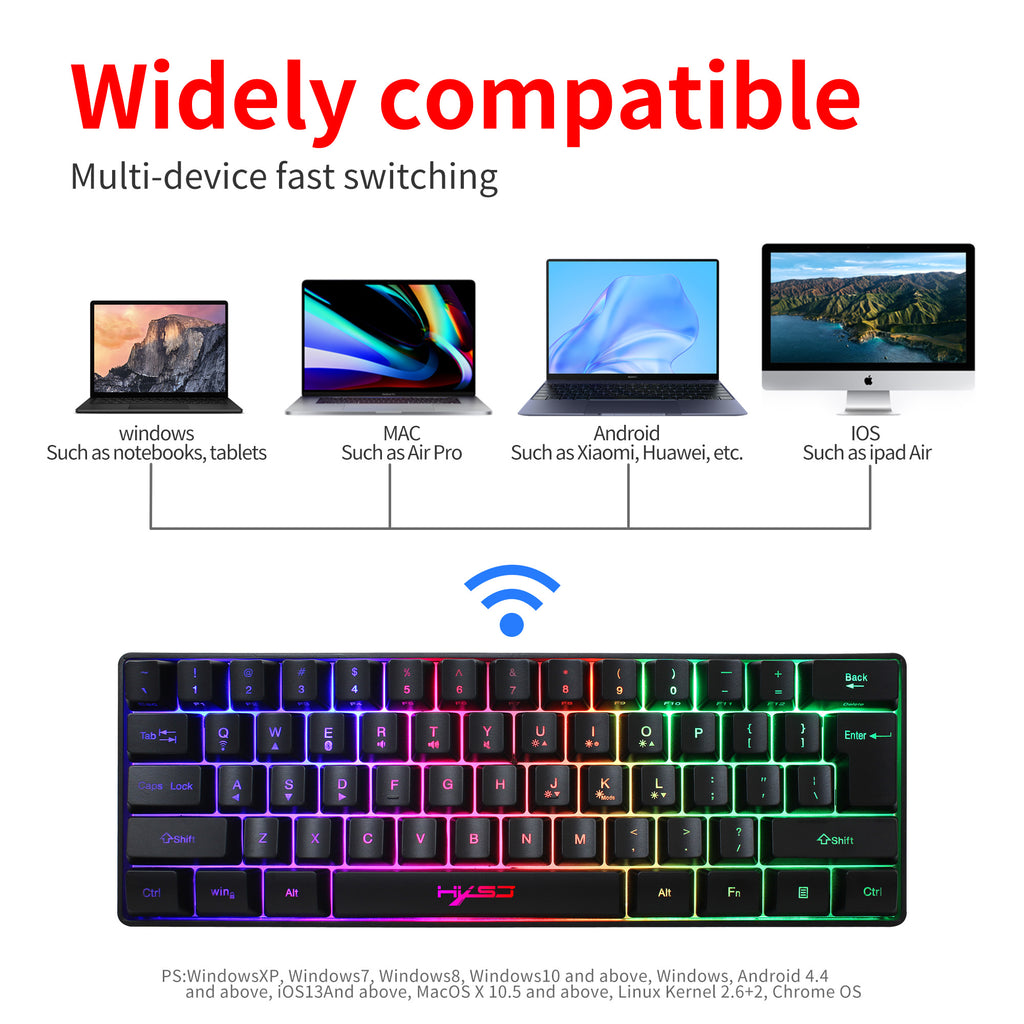

  System compatibility:Compatible with IBM PC Win98SE/Me/2000/XP/VISTA/WIN 7/WIN10 and mac system and the latest version.

  Supported devices: Multiple devices such as mobile phones, tablets, and desktop computers can be connected at the same time.

  Product weight: 389g

  Product size: 29.2*10.2*4CM

  Package weight: 540g

  Packing size: 32*13*4.5m

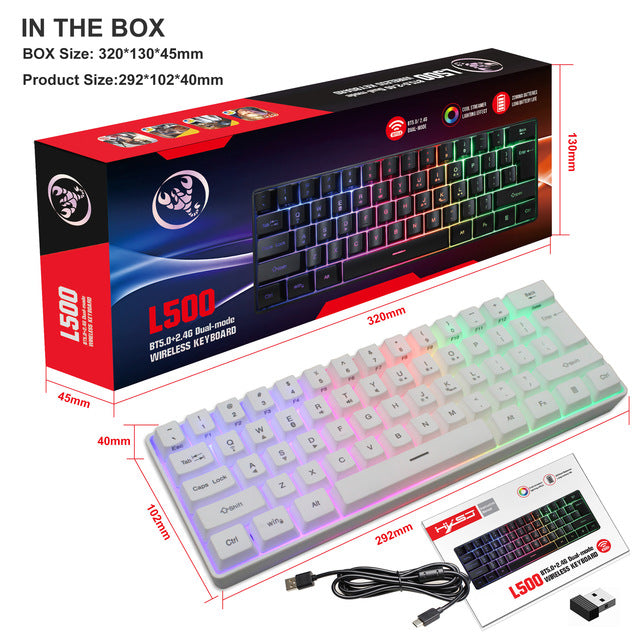

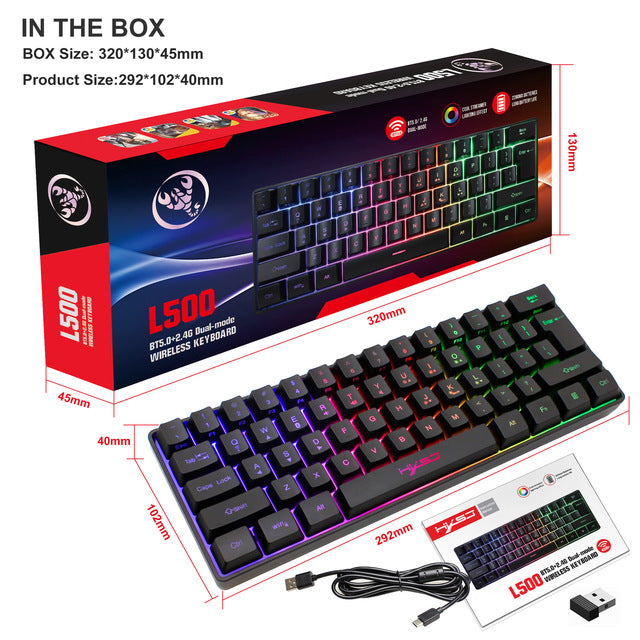

  Package included:

  1x Gaming keyboard

  1x USB receiver

  1x 1.5M Type-C charging cable

  1x English User manual

  Compound function key switch:

  Backlight adjustment:

  FN + U = streamer speed acceleration,

  FN + J=The streamer speed slows down, there are 5 speeds to adjust; the always-on backlight cannot be adjusted.

  FN +O= Enhanced backlight brightness, 3 levels adjustable;

  FN + L = the brightness of the backlight is reduced, 3 levels adjustable;

  FN + I = Backlight off/on, cyclic switching;

  FN + K= Streamer light switching mode;

  Compound function key switch:

  FN+Q: switch to 2.4G function;

  FN+E: switch to Bluetooth function;

  FN+R=Volume reduction

  FN+T=Volume up

  FN+Y=mute

  N+Win =Lock the key Win and APP

  FN+`~ key: Esc

  FN+1! key: F1

  FN+2@ key: F2

  FN+3# key: F3

  FN+4$ key: F4

  FN+5% key: F5

  FN+6^ key: F6

  FN+7& key: F7

  FN+8* key: F8

  FN+9 (Key: F9

  FN+0) key: F10

  FN+- key: F11

  FN+ =+ key: F12

  FN+Back key: Delete

  Dual-mode connection instructions:

  Bluetooth connection method:

  1. Turn the switch at the bottom of the keyboard to the ON state.

  2. Long press the "FN+E" key, at this time, there is a red light flashing quickly at the top of the W key, and the keyboard enters the transmit Bluetooth code pairing state (code pairing mode).

  3. Open your own Bluetooth device search and find BT5.1 KB and click connect, the LED stops flashing, and the Bluetooth connection is successful.

  2.4G connection method:

  1. Turn the switch at the bottom of the keyboard to the ON state.

  2. Long press the "FN+Q" button, at this time, there is a green light flashing quickly at the top of the E button. The keyboard enters the 2.4G pairing mode.

  3. Insert the 2.4G receiver, after the connection is successful, the green light of the E key stops flashing, and it is complete.

  ◎Automatic sleep power saving mode:

  Supports not operating the keyboard within 30 seconds, the backlight turns off by itself, the keyboard enters the sleep state, press any key to wake up.

  ◎The charging indicator light is red when charging, and the light is off when fully charged.When the low voltage indicator is flashing, it indicates that the battery is insufficient, please charge it in time;

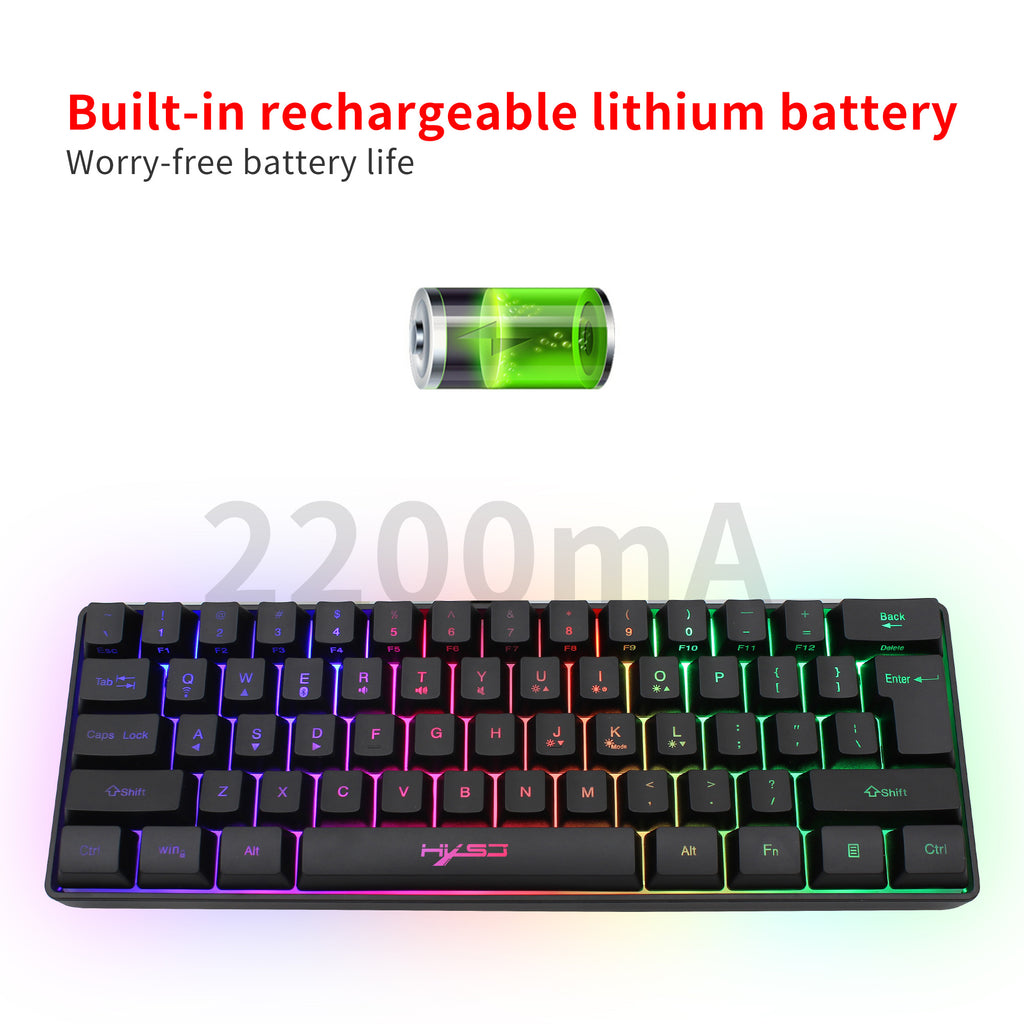

  ◎Built-in 2200mA capacity battery, fully charged with 5V/1A equipment in about 2 hours; you can continue to use this product while charging.
