Introduction:
It is a pocket digital clamp meter, Has the characteristics of safety, high precision and easy to carry; Full-featured, suitable for factory and home use, Is also an ideal multi-function clamp meter for professionals and instrument lovers.
Feature:
Max display value: 2000 Count.
True-RMS / Automatic-Range.
LCD display with backlight for clear reading.
Support one-handed switching of all test functions, making operation more convenient and quick.
Can measures DC/AC voltage, AC Current (by jaw minimum 1mA), Resistance, Diode, Temperature, Continuity, Dangerous voltage alarm and Live/Neutral wire distinguish.
When measuring AC current (0~2A), it can be accurate to 1mA.
Activate v~alert(NCV) at any function.
Data hold, Low battery indication functions, Auto power off.
Jaw size:20mm.
Added back hooks, convenient to carry.
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards.
Over-voltage protection class CAT III 300V, CAT II 600V
Measuring range:
DC voltage: 200mV/2V/20V/200V/600V 0.1mV/0.001V/0.01V/0.1V/1V ±(1.0%+3counts)
AC current: 2A/20A/200A 0.001A/0.01A/0.1A ±(2.5%+5counts)
AC voltage: 200mV/2V/20V/200V/600V 0.1mV/0.001V/0.01V/0.1V/1V ±(1.0%+3counts)
Resistance: 200/2k/20k/200k/2M ohm 0.1/0.001K/0.01K/0.1K/0.001M ohm ±(1.0%+3counts)
20Mohm 0.01Mohm ±(1.2%+20counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds.
Diode: 0.001V Displays the approximate value of the diode forward voltage
Temperature: -20°C~500°C 1°C/2°F (2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (not included)
Size: 179mm x 67mm x 36 mm
Weight: 137g

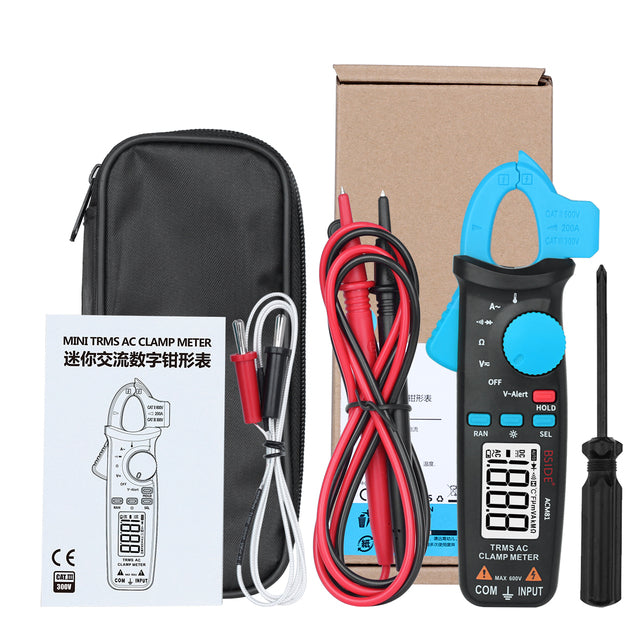

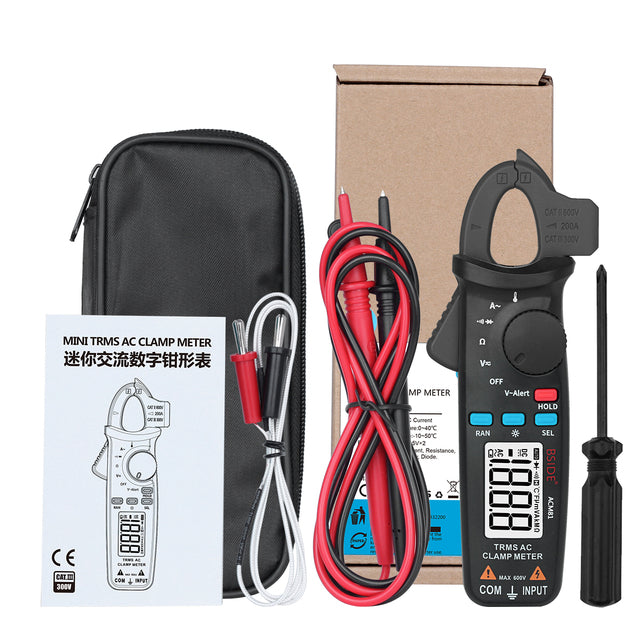

Package Includes:
1 x Digital Clamp Meter
1 x Test Leads;1 x Thermocouple
1 x User Manual;1 x Carrying Case
1 x Gift (Screwdriver
