• Tire Pressure Monitoring Sensor TPMS fits for Ford
• Interchange Part Number: TPMS-19, 8C2Z-1A203-A
• Replaces your old and damaged one.
• Placement on Vehicle:Left, Right, Front, Rear

• Support models:
  2007-2016 for Ford F-150
  2008-2016 for Ford F-250 F-350 F-450 F-550 Super Duty
  2007-2016 for Ford Mustang
  2007-2014 for Ford Edge
  2006-2016 for Ford Escape
  2008-2016 for Ford Expedition
  2006-2016 for Ford Explorer
  2008-2015 for Ford
  2008-2016 for Ford Taurus

  2008-2016 for Ford Fiesta
  2008-2016 for Ford
  2008-2016 for Ford
  2008-2011 for Ford Crown Victoria
  2011-2016 for Ford Transit Connect
  2006-2011 for Ford Ranger




  2008-2016 for Navigator
  2008-2011 for Town Car
  2007-2008 for Mark LT
  2006-2010 for Mountaineer
  2006-2010 for Monterey
  2006-2011 for Mariner


How to Train for Ford Tire Pressure Monitior Sensors TPMS

• 1. Turn the ignition switch to the OFF position, then press and release the brake pedal.
• 2. Cycle the ignition switch from the OFF position to the RUN position for 3 times, ending in the RUN position.
• 3. Press and release the brake pedal.
• 4. Turn the ignition switch to the OFF position.
• 5. Turn the ignition switch from the OFF position to the RUN position 3 times, ending in the RUN position.
• *The horn will sound once and the TPMS indicator will flash if the training mode has been entered successfully.
• If equipped, the message center will display TRAIN LF TIRE.*

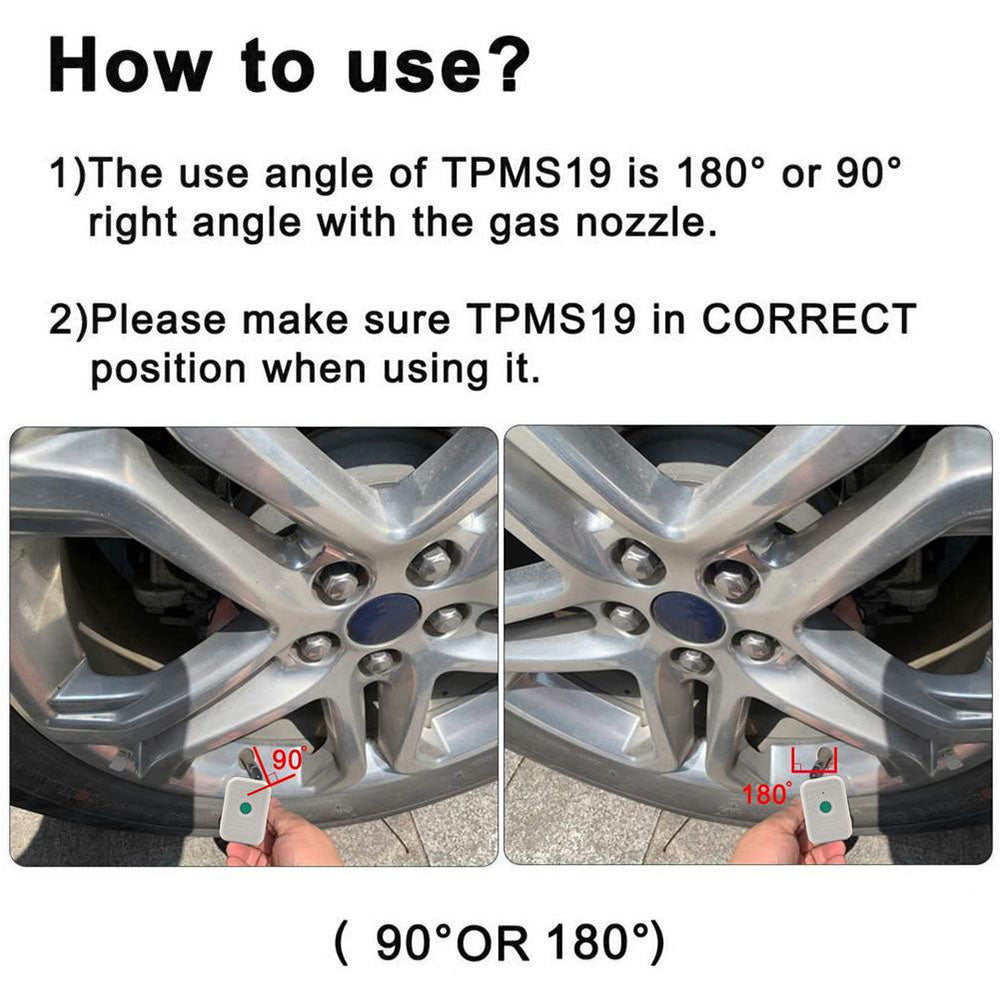

• 6. Place the tire pressure monitor activation tool on the LEFT (Driver's Side) FRONT tire sidewall at the valve stem.
• Press and release the test button repeatedly on the TPMS Tool until the horn beeps.
• (It may take up to 6 seconds for the tool to activate the sensor, Leave the tool on the sidewall for the entire 6 seconds).
• The horn beeping indicates that the body control module has recognized the TPMS sensor.
• 7. Within 2 minutes of the horn sounding confirming programming of the LF tire,
• place the TPMS tool on the RIGHT (Passenger's Side) FRONT tire sidewall at the valve stem and press the test button to activate the sensor.
• 8. Repeat step 7 for RIGHT REAR followed by LEFT REAR tire in that order. The procedure is complete after the last tire has been trained.
• When training is complete, the message center (if equipped) will display TIRE TRAINING COMPLETE.
• For vehicles not equipped with a message center, successful completion of the training procedure is verified by turning the key to the
• OFF position without the horn sounding. If the horn beeps twice when the switch is turned to OFF the training procedure was not successful.
•
•
• NOTE: The TPMS training procedure must be done on one vehicle at a time, in an area without radio frequency interference - at least 3 feet away from other vehicles equipped with TPMS sensors.
•

Package Included:

• 1* Tire Pressure Monitoring Sensor For Ford
