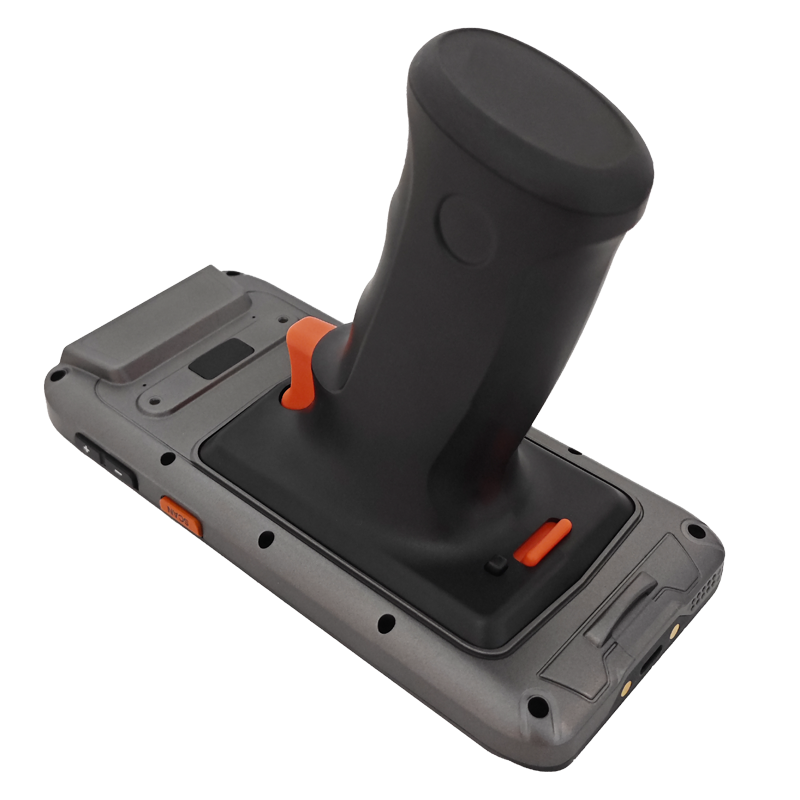

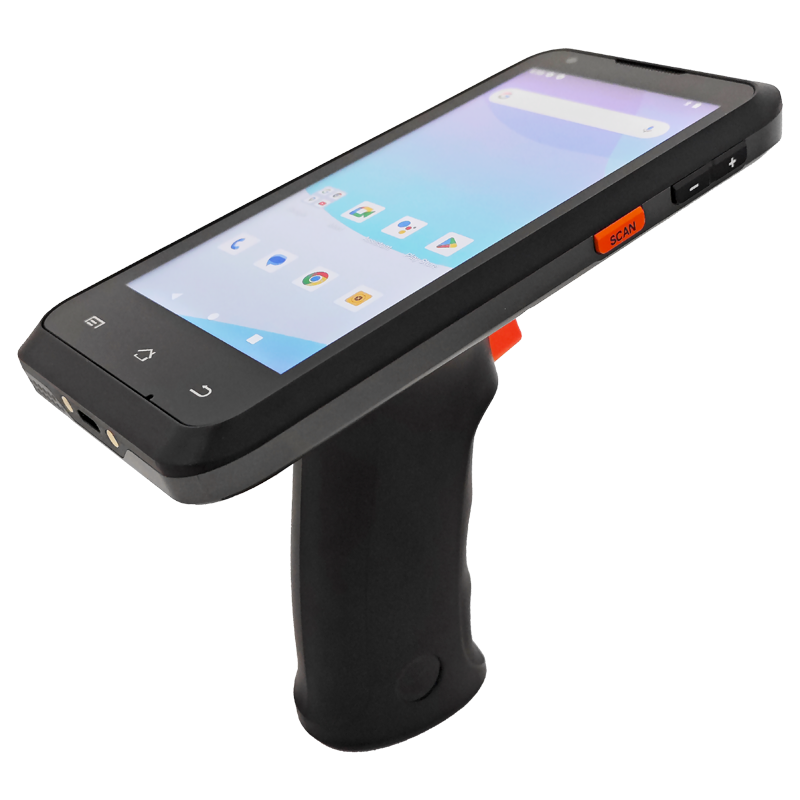

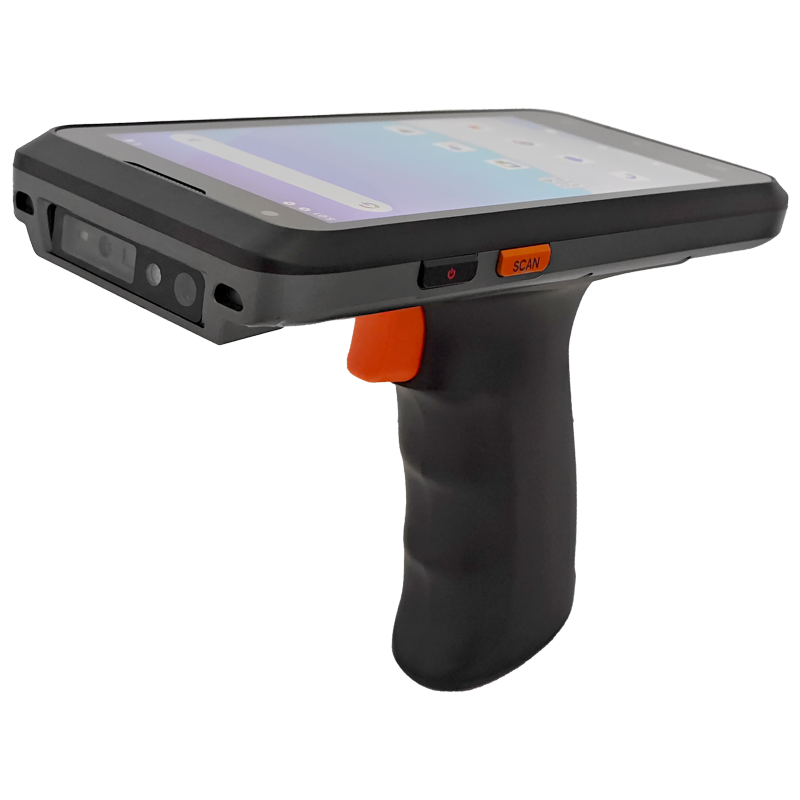

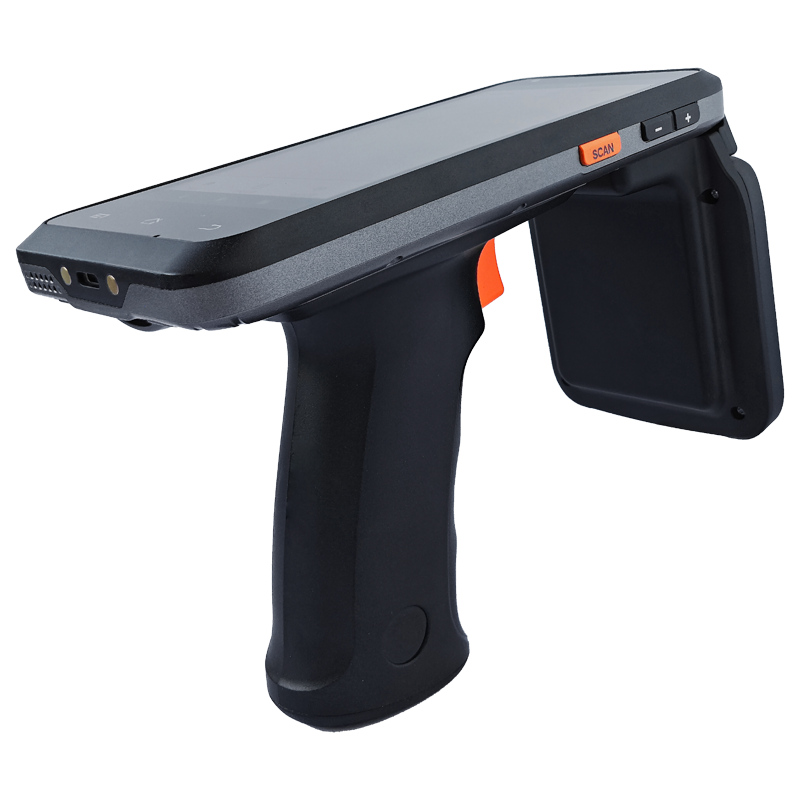

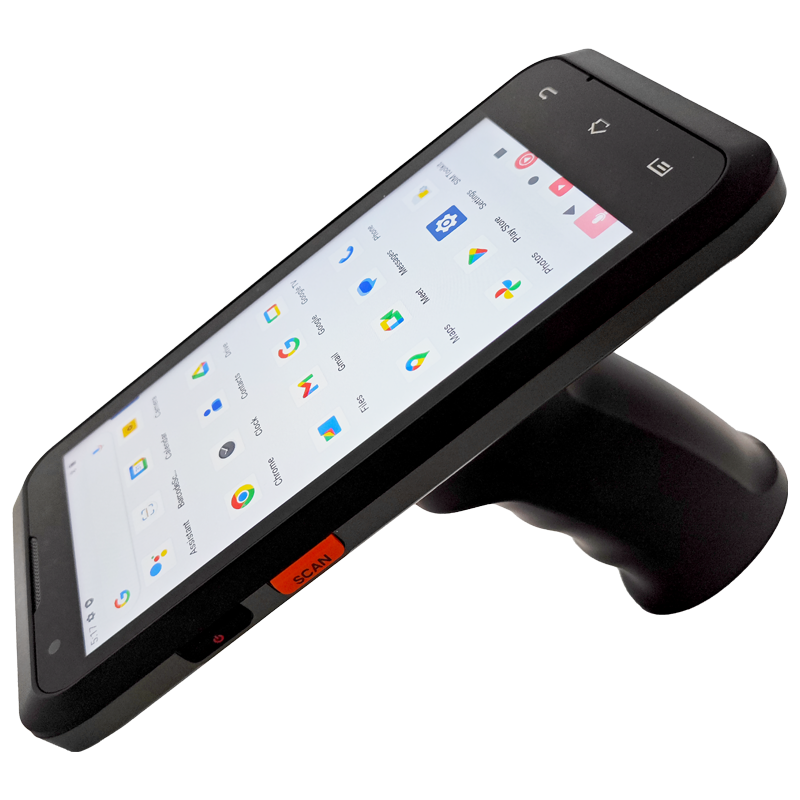

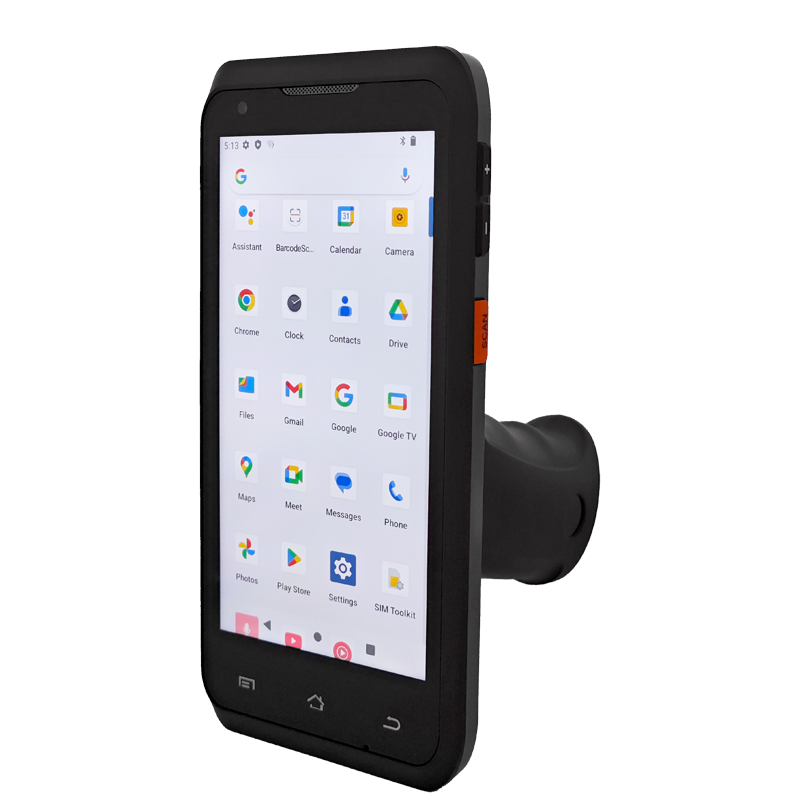

5.5 inch android data terminal pda with Cortex-A53 MTK6765 2.3Ghz, 3G RAM, 32G ROM, camera 13MP AF, Wifi(802.11a/b/g/n), bluetooth 5, 4G-LTE, 3G, 2G, GPRS, GPS, GSM and 1D/2D barcode scanner, NFC(HF13.56mHz) or 125kHz RFID(option) or UHF RFID (option)
Selling points:
PLS follow this: Default configuration: Cortex-A53 MTK6765 2.3Ghz + 3G RAM + 32G ROM + Wifi + BT5 + GPS + FDD-TLE 4G/WCDMA/GSM + phone + 13MP pixel Camera barcode scanner (Support google play store) 2D ,NFC ,LF(125K) for option;
Compact and Portable Ergonomic Design
Android OS (Android 13 ) Highly optimized Android operating system.
13 mega pixel camera.
High capacity 7.7V 3000mAh (equal to 3.85V 6000mAh) large capacity battery for critical requirements;
Pogo Pin interface for convenient charging with optional charge cradle.
|
CPU
|
Cortex-A53 MTK6765 2.3Ghz
|
|
|
Operating system
|
Android 13.0
|
|
|
memory
|
RAM：DDR4 4GB NandFlash：64GB
|
|
|
Extend memory
|
MicroSD/TFcard slot(Max up to 1TB)
|
|
|
Display
|
5.5 inch QVGA imitative glass durable touch screen, 720X1440 pixel, 350cd/㎡
|
|
|
keyboard
|
5 keys, 3 touch function key
|
|
|
battery
|
7.7V 3000mAh=3.85V 6000mAh Rechargeable Li-polymer Battery
|
|
|
size
|
170×79×22mm
|
|
|
weight
|
378g
|
|
|
camera
|
13MP, automatic focusing
|
|
|
slot
|
Micro SD（TF）card slot * 1, Micro SIM card slot * 1， PSAM card slot * 2
|
|
|
Light
|
Battery light * 2
|
|
|
interface
|
Type-C * 1, cradle charger interface
|
|
|
Audio
|
Speaker * 1, Microphone *1, headphone * 1
|
|
|
Phone function
|
Support HD voice mobile call
|
|
|
Vibrating alert
|
support
|
|
|
compass
|
support
|
|
|
Audio decibel
|
Louderspeaker 90dB
|
|
|
Data collector specification
|
|
|
|
1D barcode
|
Code 39, Codabar, Code 128, Discrete 2 of 5, Interleaved 2 of 5, Code 93, UPC-A, UPC-E，EAN-8, EAN-13, MSI, EAN-128, ISBN/ISSN etc. |
|
|
2D QR code
|
Newland CM60
1D:Code 39, Codabar, Code 128, Discrete 2 of 5, Interleaved 2 of 5, Code 93, UPC-A，UPC-E, EAN-8, EAN-13, MSI, EAN-128, ISBN/ISSN etc. 2D：PDF417, QR Code(QR1, QR2, Micro QR), Data Matrix, GS1-DataBarTM(RSS-Limited, RSS-14, RSS-14 Stacked, RSS-Expand) etc. |
|
|
NFC（optional）
|
ISO14443A, ISO15693, Mifare（support S50 & S70 card read and write）
|
|
|
125K(optional）
|
125KHZ
|
|
|
UHF RFID（optional）
|
2-3 meters distance for UHF reader
|
|
|
WiFi
|
IEEE 802.11a/b/g/n/ac, support 2.4GHz, 5.0GHz
|
|
|
Bluetooth
|
Bluetooth 5.0
|
|
|
GPS
|
Support GPS, Beidou
|
|
|
Wireless communication
|
FDD-LTE
|
|
|
Operating Environment
|
|
|
|
Operating Temperature
|
-20°C~+55°C
|
|
|
Storage Temperature
|
-40°C~+80°C
|
|
|
Environment Humidity
|
5%RH ~ 95%RH (no condensation
|
|
|
IP rate
|
IP66, 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
|
|
|
accessories
|
Type C charging cable * 1, battery * 1.
|
|
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
