Features:
Wide Measurement Range: can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, temperature, triode, diode, circuit on and off.
HD Large LCD Display: multifunctional large screen 2.9-inch digital display with large font for clearly readout even in the dark environment.
Measurement Data Retention: hold the display after you take the measurement, convenient for writing down the measured data or enter it into a spreadsheet.
Compact & Portable: powered by a 9V 6F22 battery(NOT included), the multimeter is convenient for carrying around. Comes with a storage zipper bag for effectively protect the multimeter from damage.
Smart Anti-burning Design: the multimeter meet double insulation safety standards and has overload protection for all ranges, safer for operation.

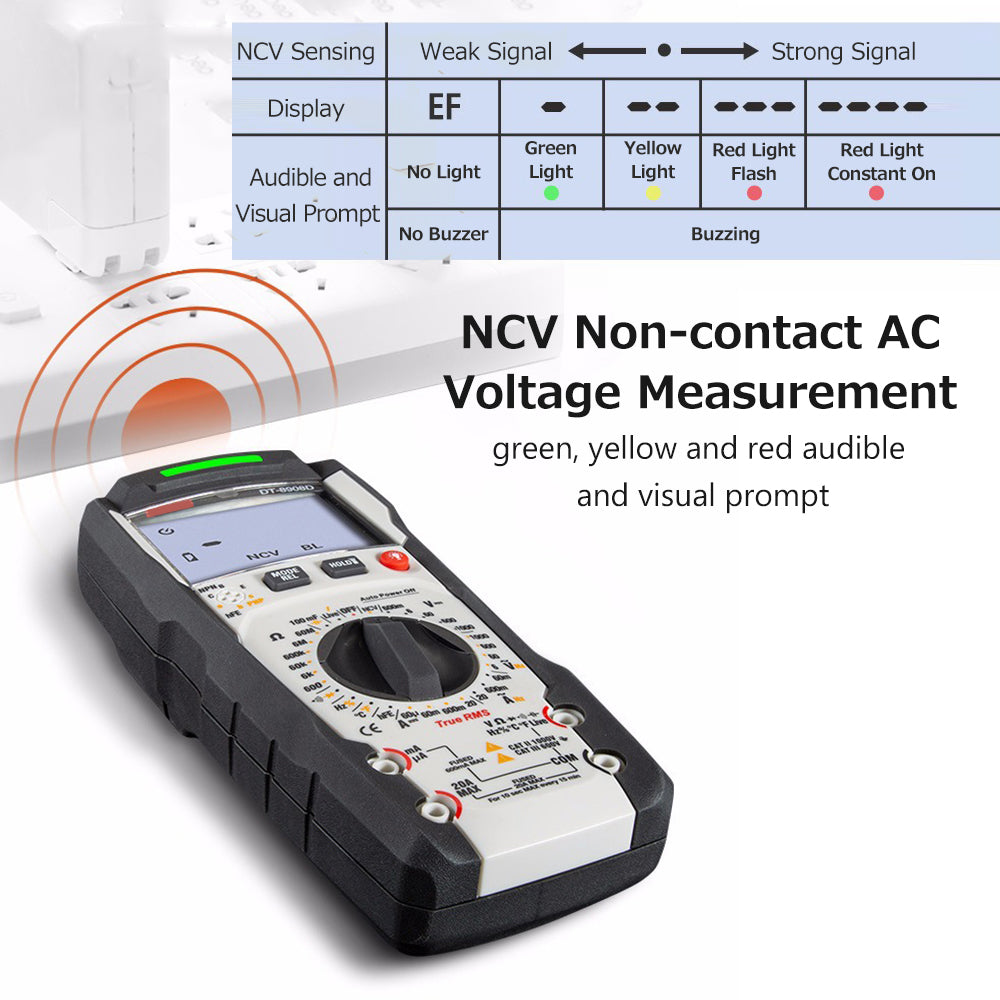

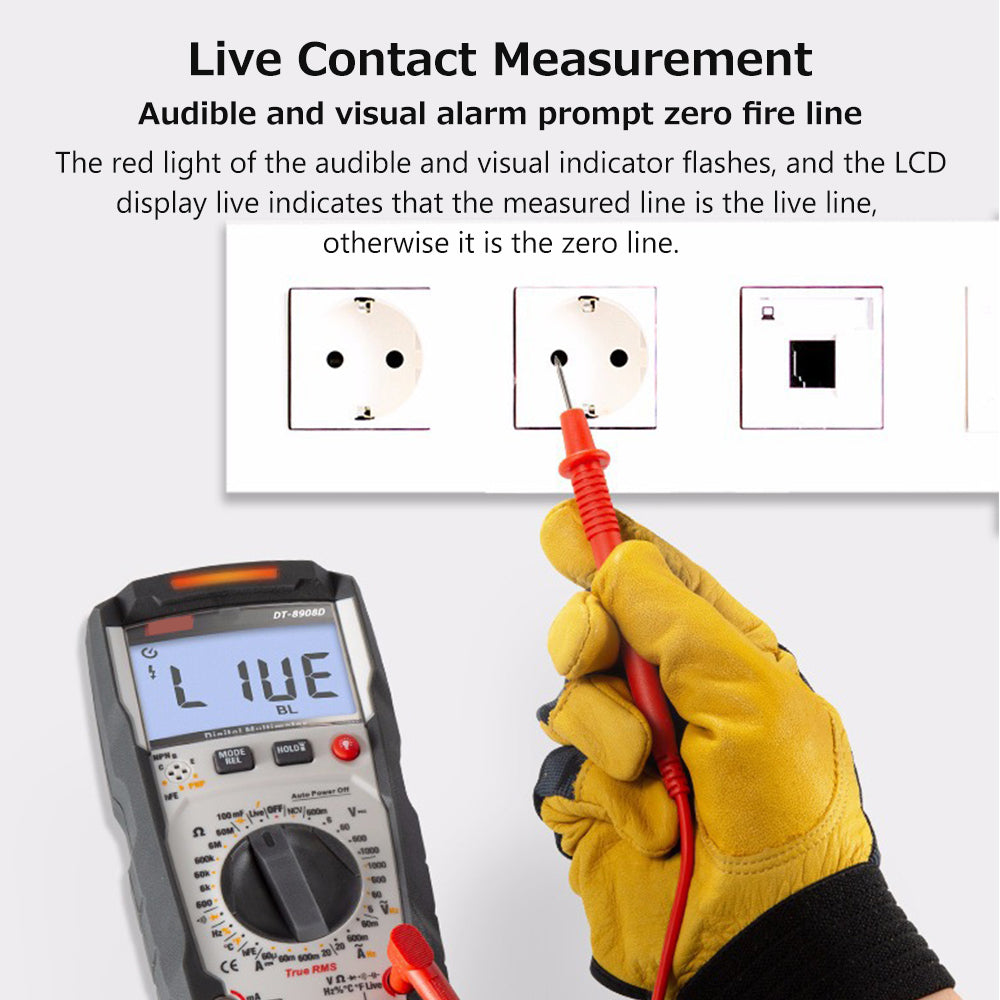

Other Features: live wire judgement, NCV test, continuity test, sound and light buzzer, flashlight, etc.
Specifications:
DC Voltage: 600mV/6V/60V/600V/1000V
AC Voltage: 6V/60V/600V/1000V
DC Current: 60uA/60mA/600mA/20A
AC Current: 60mA/600mA/20A
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

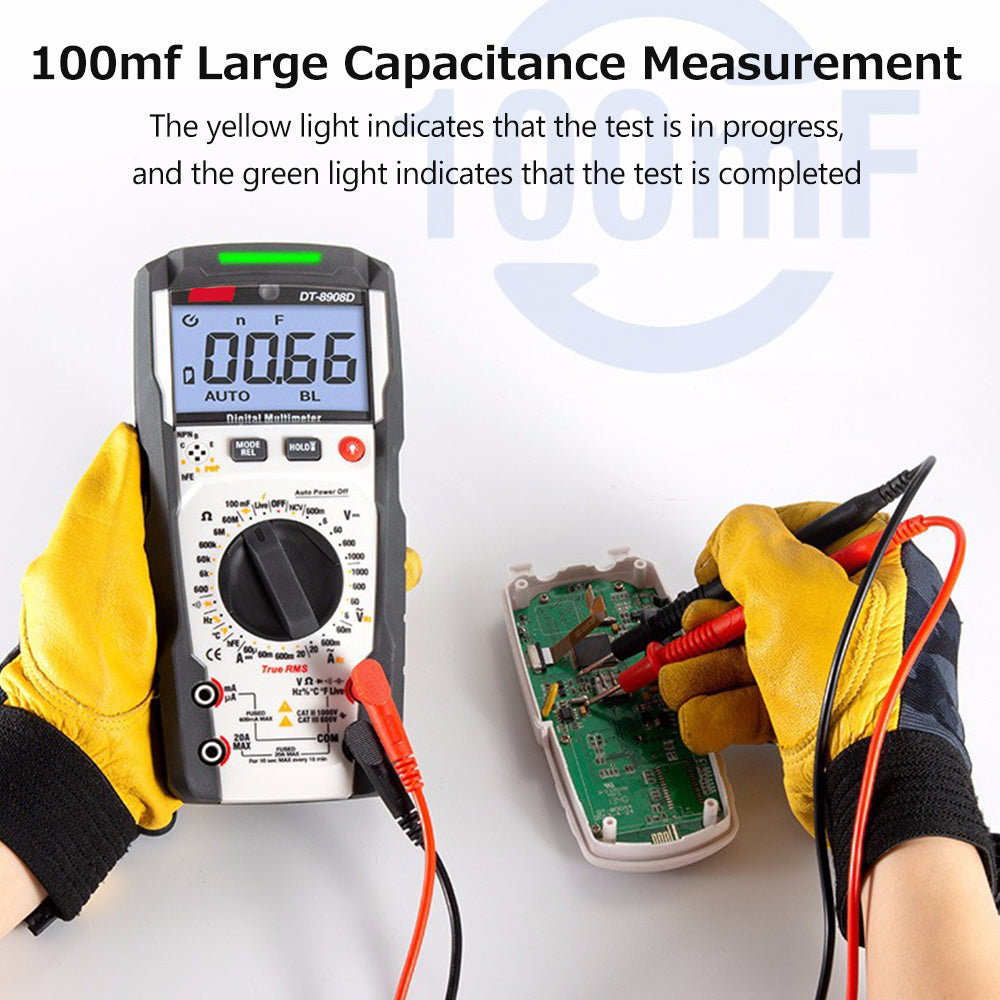

Capacitance: 60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF
Frequency: 10Hz~10MHz
Duty Cycle: 0.1~99.9%
Temperature: -18~1000℃(0~1832℉)
Triode: 1000β
Diode Test: Yes
Short Circuit Buzzer Test: Yes
Material: ABS
Display: 6000 counts LCD

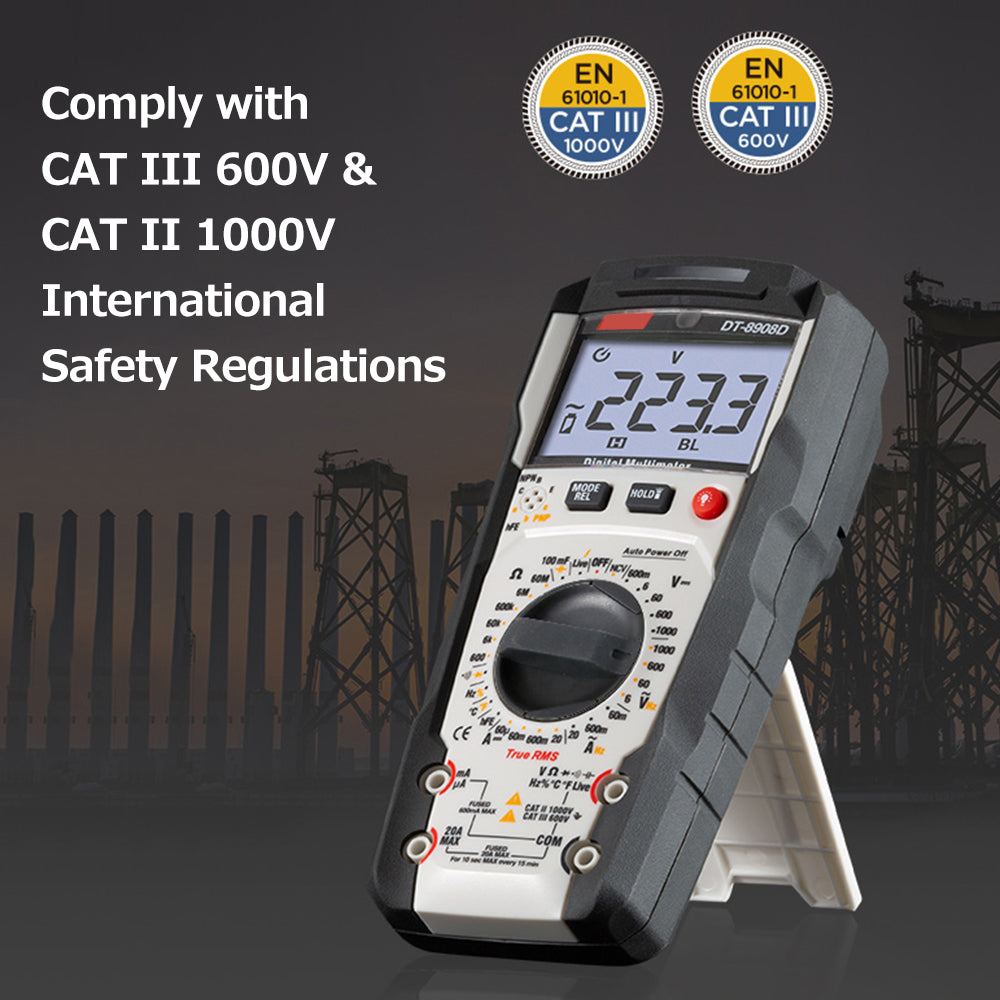

Safety Level: CAT III 600V, CAT II 1000V
Pollution Level: 2
Over Range Indication: OL
Sampling Time: 3 times/second
Operating Environment: 0~40℃(41~104℉), <70%RH
Storing Environment: -10~50℃(14~122℉), <80%
Operating Altitude: <2000m
Power Supply: 4 * 1.5V AAA battery (NOT included)
Item Size: 190 * 89 * 60mm / 7.48 * 3.50 * 2.36in
Item Weight: 408g / 14.39oz
Package Weight: 532g / 18.76oz
Package Size: 21.5 * 16.5 * 6.5cm / 8.46 * 6.50 * 2.56in

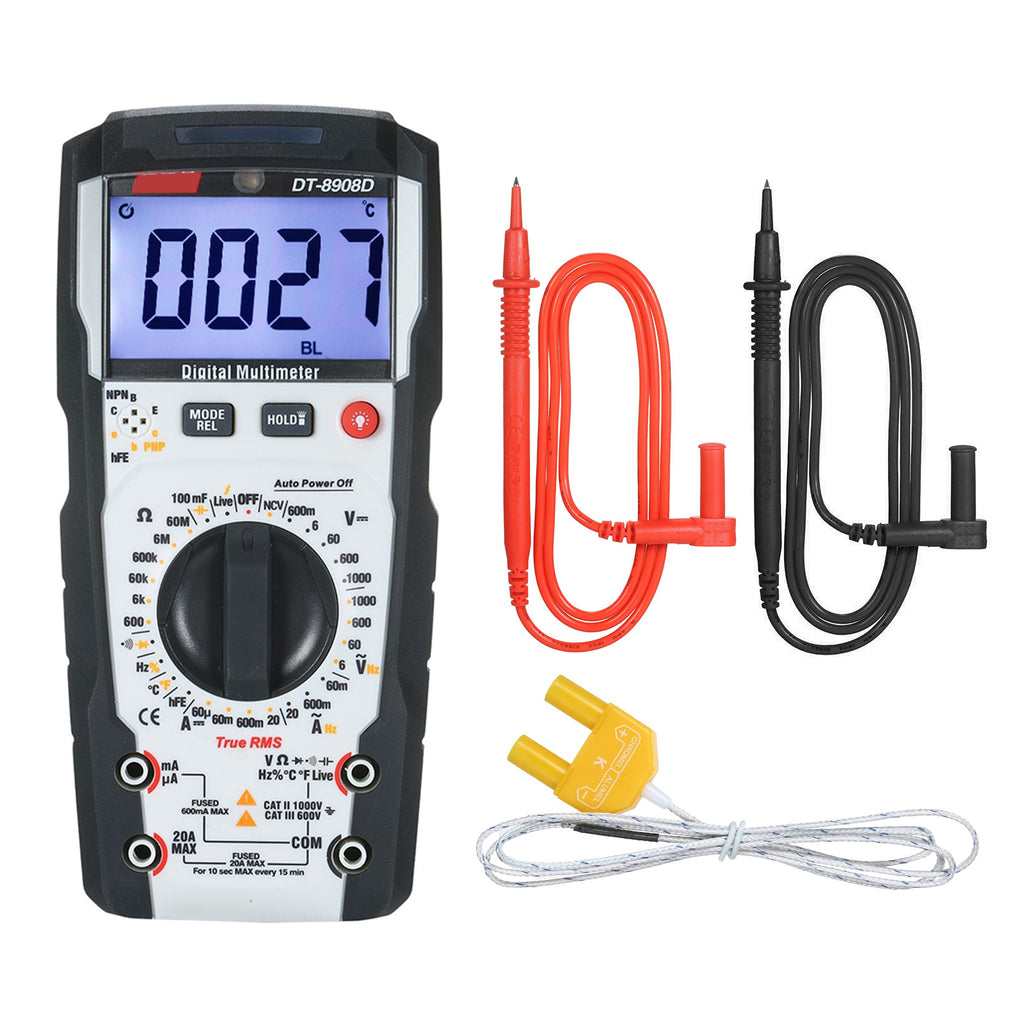

Packing List:
1 * Multimeter
1 * Pair of Test Lead
1 * Temperature Probe
