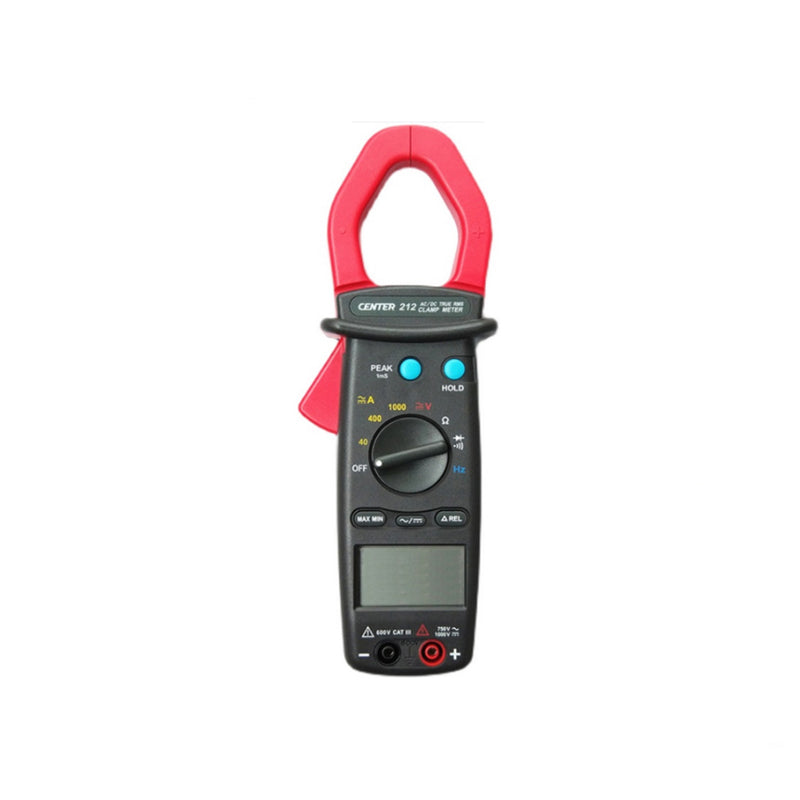

CENTER212 Digital AC / DC Clamp Meter True RMS Clamp Meter
CENTER 212 series are mid-size clamp meters. These clamps can measure up to 1000A with resolution 0.01A. 1ms Peak function is also built-in this series of clamps. This is especially useful for start current measurement. Maximum, Minimum, and Hold function are also standard functions for these testers.
Features:
1.AC/DC current measurement
2.True RMS
3.High speed bargraph
4.Data hold function
5.Peak function
6.Auto ranging
7.Auto power off
8.600V CATIII
Specifications:
AC Current
Range
Resolution
Accuracy
50Hz~60Hz
60Hz~500Hz
40A
0.01A
1.9%+5
2.5%+5
400A
0.1A
1000A
1A
DC Current
Range
Resolution
Accuracy
40A
0.01A
2.5%+10
400A
0.1A
1000A
1A
AC Voltage
Range
Resolution
Accuracy
50Hz~500Hz
400V
0.1V
1.5%+5
750V
1V
DC Voltage
Range
Resolution
Accuracy
400V
0.1V
1%+2
1000V
1V
Resistance
Range
Resolution
Accuracy
400Ω
0.1Ω
1%+2
4000Ω
1Ω
Diode
Range
Active Region
1.7mA
Continuity
Range
Active Region
< 100Ω
Frequency
Function
Range
Resolution
Accuracy
Hz (A)
4KHz
1Hz
0.1%+1
10KHz
10Hz
Hz (V)
4KHz
1Hz
10KHz
10Hz
Jaw opening size: 40mm
Battery: 9V x 1(not included package)
Dimensions: 242 x 66 x 36mm
Weight: 500g
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
