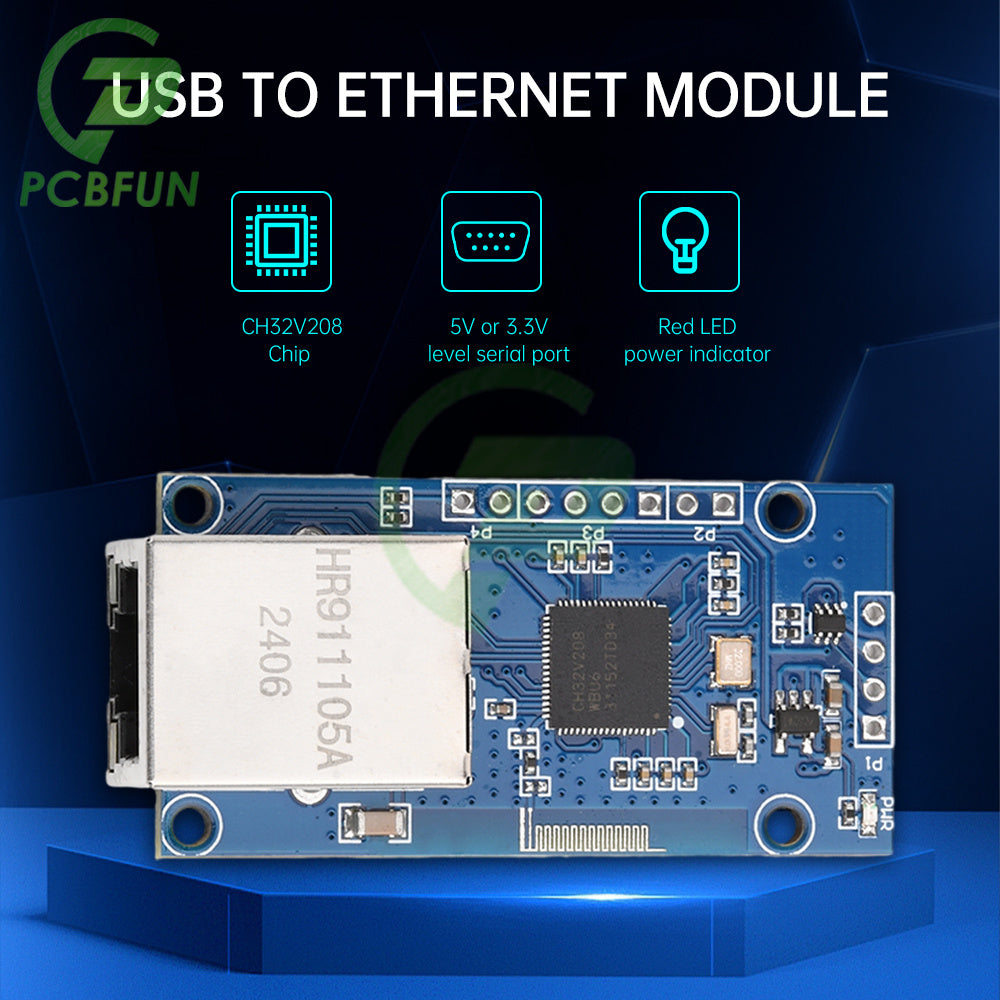

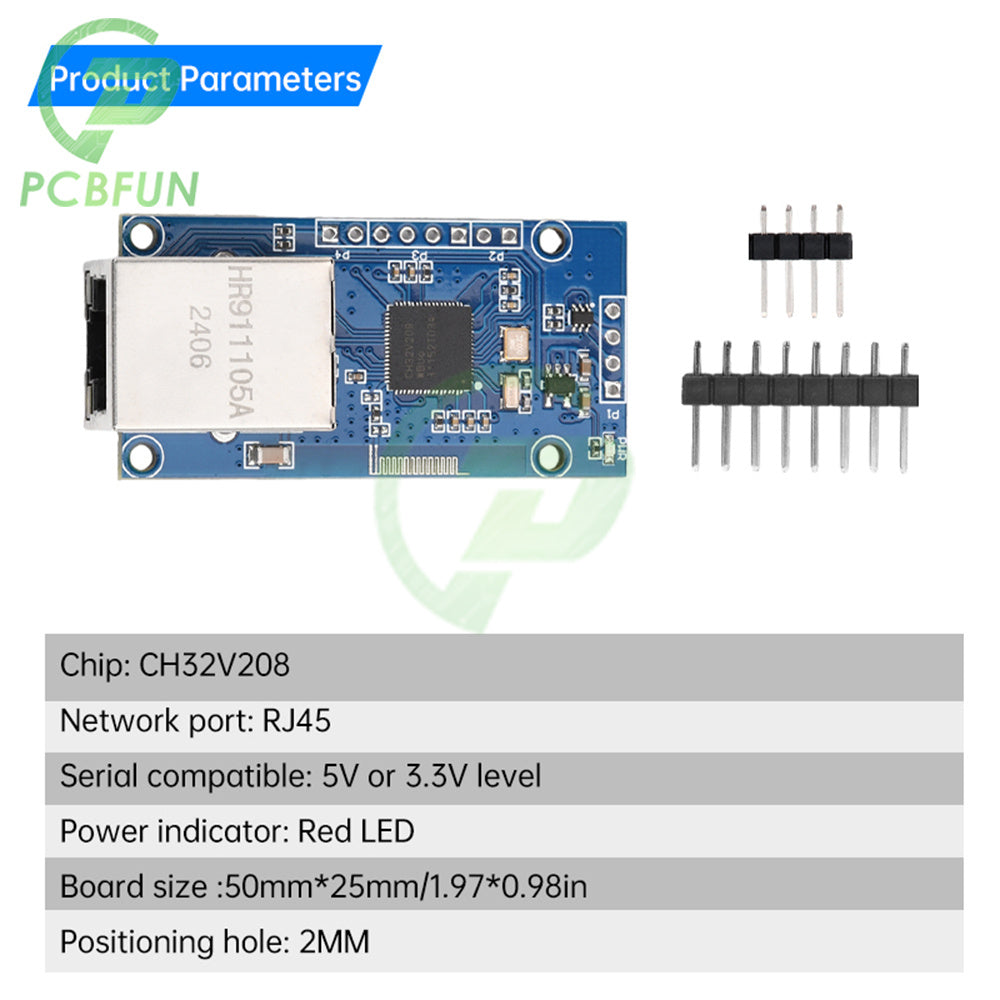

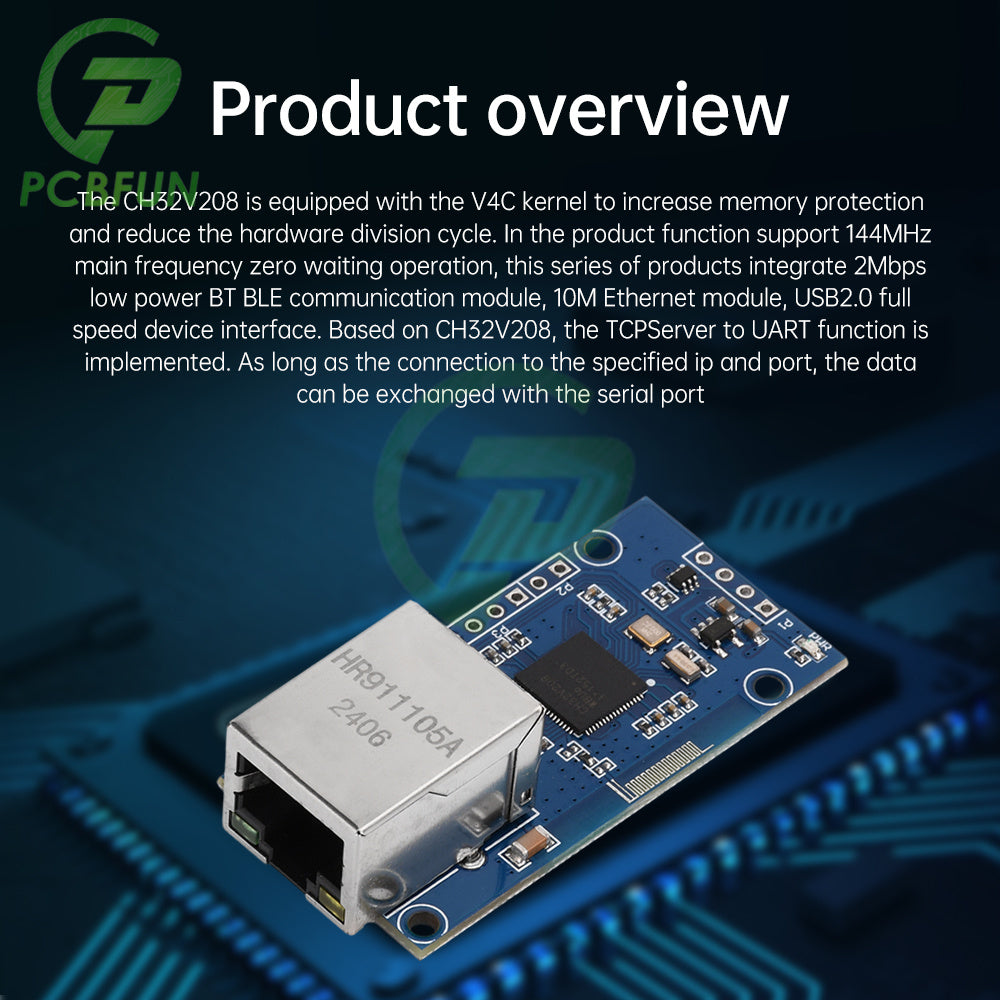

Chip: CH32V208
Ethernet port: RJ45
Serial port compatibility: 5V or 3.3V level

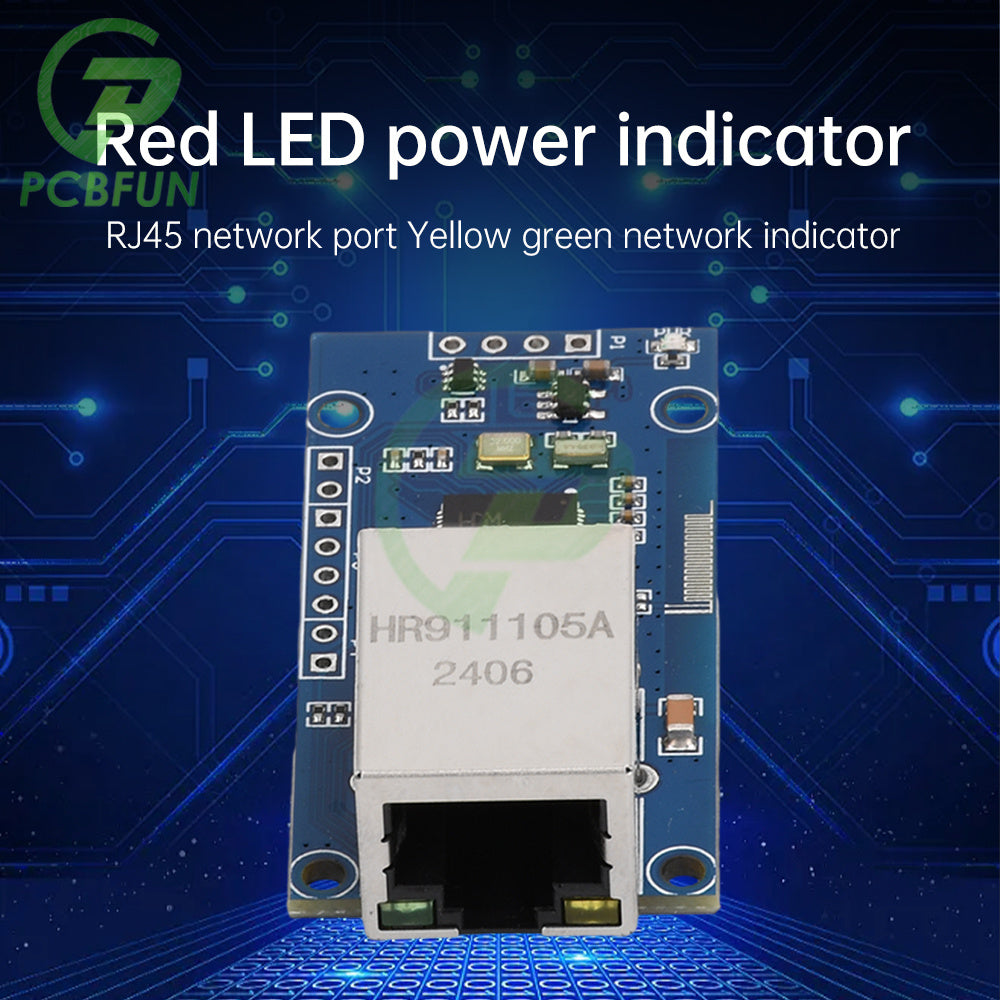

Power indicator light: red LED
Board size: 50mm * 25mm
Positioning hole: 2MM

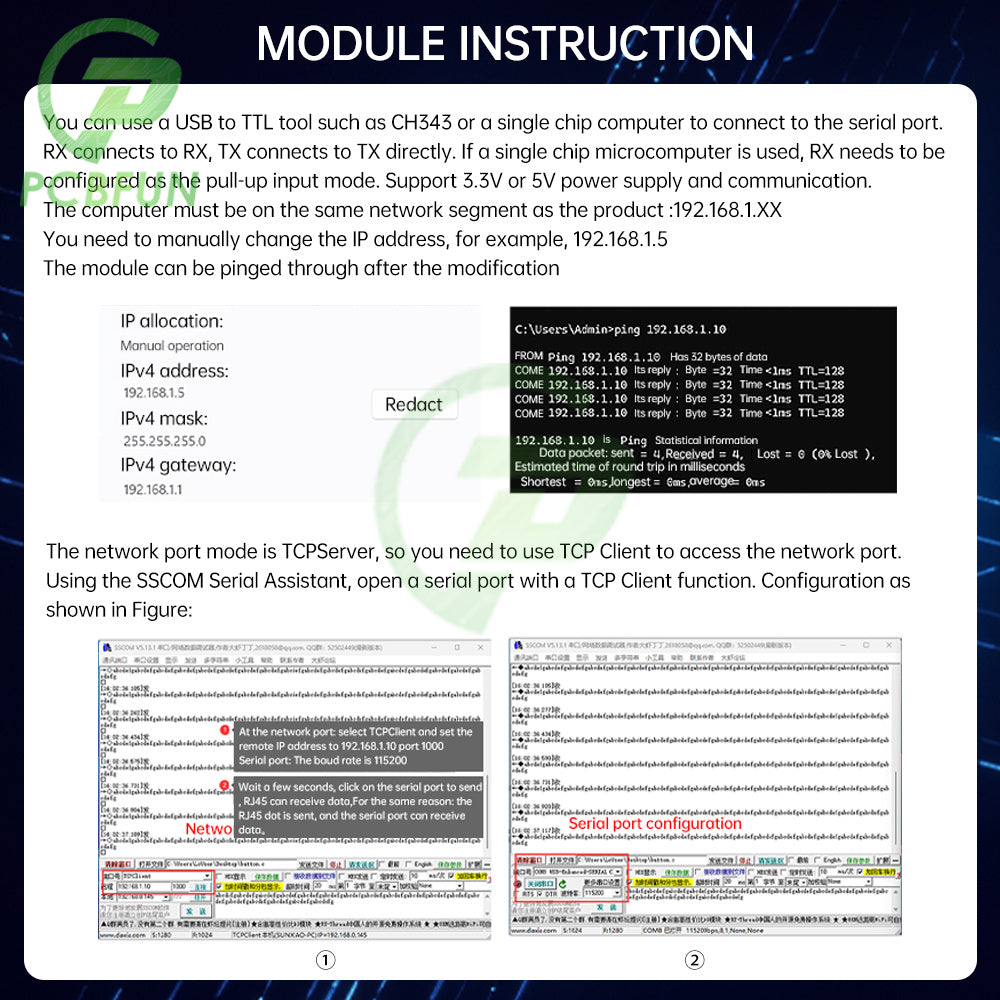

Module usage instructions:

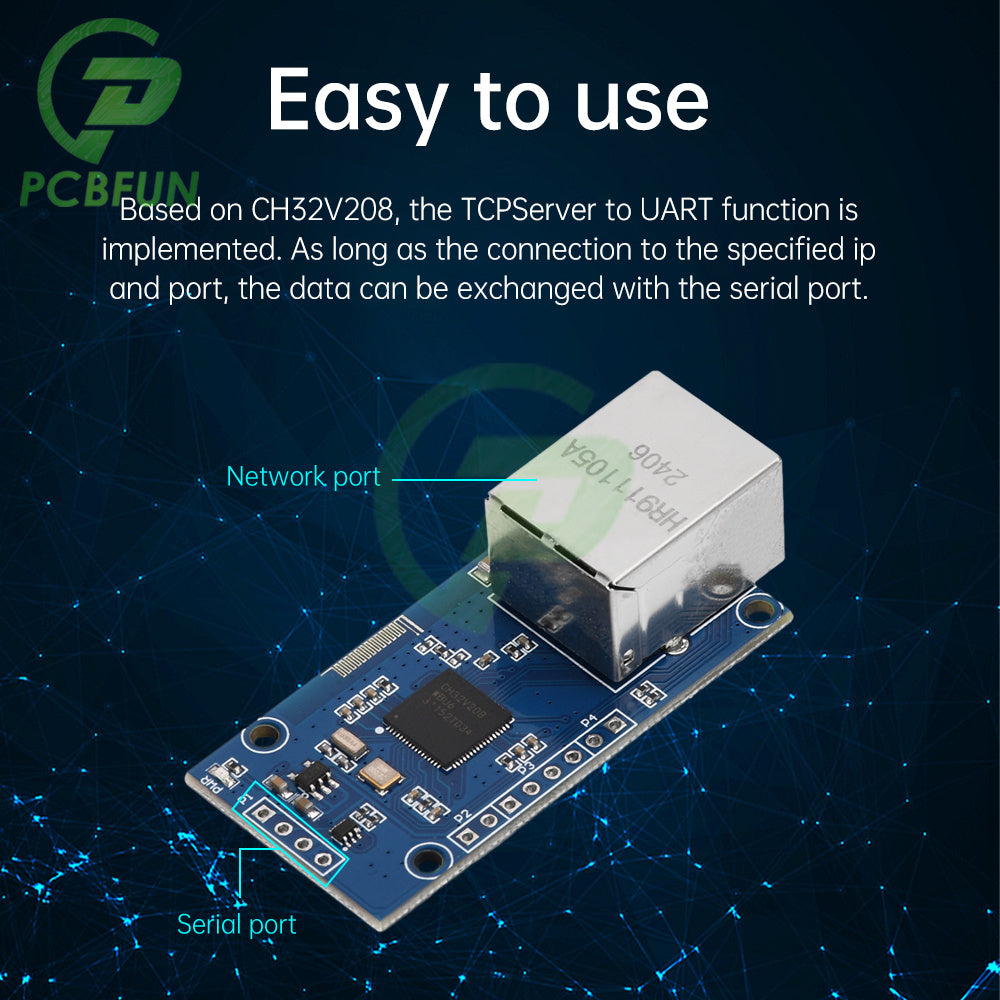

You can use USB to TTL tools such as CH343 or a microcontroller to connect to the serial port.
RX connected to RX, TX connected directly to TX, if using a microcontroller, RX needs to be configured for pull-up input mode. Supports 3.3V or 5V power supply and communication.
The computer needs to be on the same network segment as the product: 192.168.1.XX
Need to manually modify the IP address, for example, as shown in Figure 192.168.1.5
After modification, the module can be pinged
Package include:
1. USB to Ethernet module X1
2.4p single row needle X1
3.8p single row needle X1
