WG45 Gloss Meter (45°Test Angle)

 WG45 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability.

 It is mainly used on Ceramic, enamel , plastic, film etc.

 _______________________________________________________________________________________

 1.Main Feature

 (1)   High accurate and consistent capacity; Pass CE/ROHS/CNAS approval;

 (2)   Automatic measure ,Statistical Mode( show average,Max, Min) ,Tolerance determination, Manually entering standard samples gloss data ;

 (3) Humanized design, good man-machine communication interface;

 (4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;

 (5) Automatic shutdown function, low power warning functions, full data storage hint functions;

 (6) PC software support , can output many kinds of format of report, data transmission etc.

 _______________________________________________________________________________________

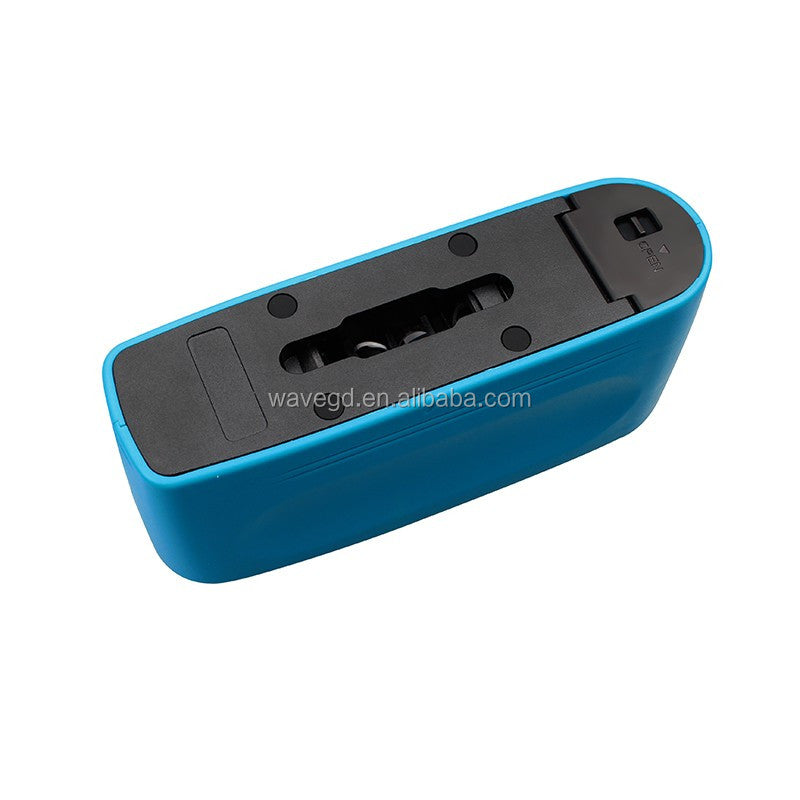

 2.Aperture (caliber) Application:

 Big aperture is normally used on flat or wide arc surface samples.

 ______________________________________________________________________________________________________

 3.GlossW Software Effect:

 ___________________________________________________________________________

  4. Specification

                Specification

       Unit

       Single Gloss Meter

                             Measuring Angle

              degree

       45°

               Measuring Range

       GU

 45°: 0-1000

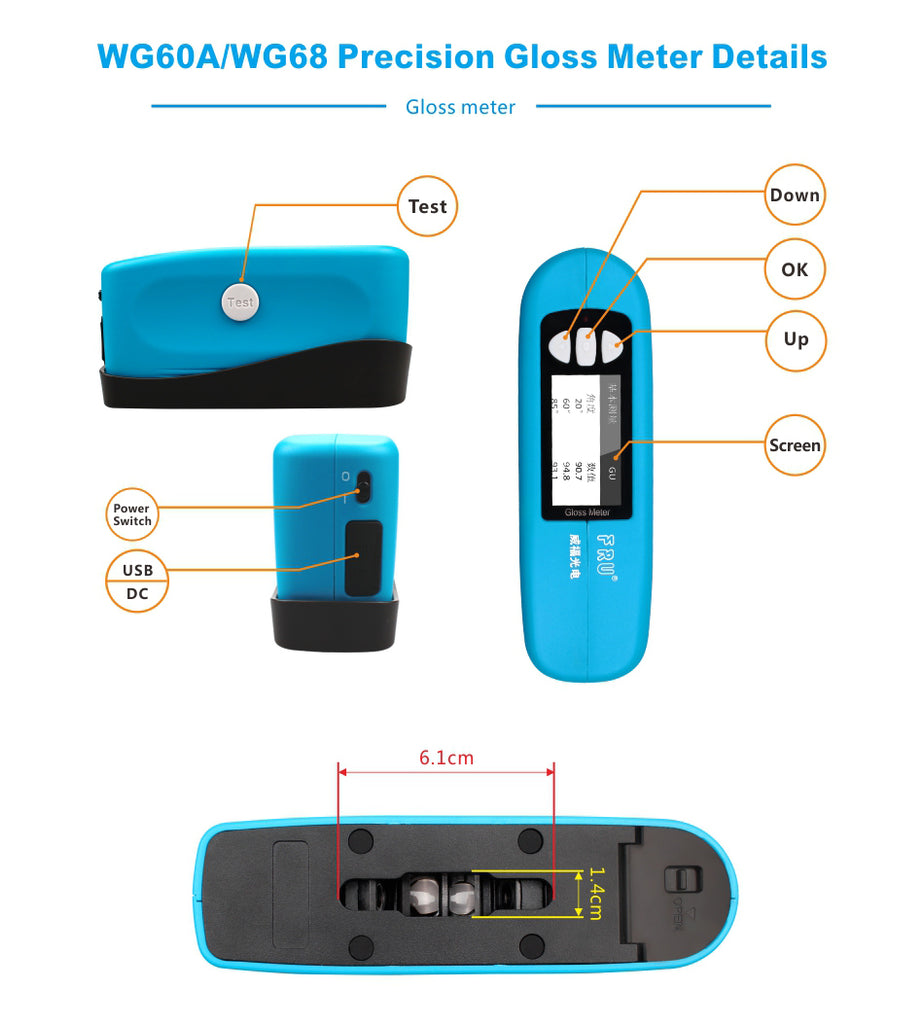

               Measuring Spot

       mm

                                            45°: 6.1*1.4cm

               Division Value

       GU

       0-1000: 0.1

               Repeatability

       GU

       0-100:0.2 >100:0.2%

               Indication Error

       GU

       ±1.5

               Zero Error

       GU

       0.2

               Working Temperature

       ℃

       10℃ - 40℃

               Storage Temperature

       ℃

       -10℃ - 70℃

               Humidity Range

       Relative humidity less than 85%, without condensation

               Power Adapter

       Section 2 5 alkaline batteries/power adapter

               Volume

       mm

       159x49x72

               Weight

       g

       500
