Remote control, no distance limit
Wide range power supply 9~12VDC
8 relay outputs (10A/30VDC, 10A/250VAC)
Dial code to control the first relay, SMS control 8 relays
Temperature/humidity control (up to 8 groups)
DC Power supply: Standard adapter DC12V/500mA Range 9-12VDC
Power consumption: Standby 12V/50mA, working Max 12V/200ma
GSM Frequency: 850/900/1800/1900Mhz
SIM interface: supporting 3V Mini SIM card
External antenna: SMA Antenna interface, 50 Ohm, Gain 3dB
Keyboard interfaces: Support extended keyboard key control
Sensor interfaces: 1 Temperature and humidity sensor interface
Humidity detection range: 0 to100%
Temperature detection range: -40 to +110 degree
Relay outputs: channel. 10A/30VDC 10A/250VAC
Output logic: normal ly open and normally closed
Colour:Silver
Material:metal
Size: 159x60x33mm
Voltage: DC9-12V
Package Contents:

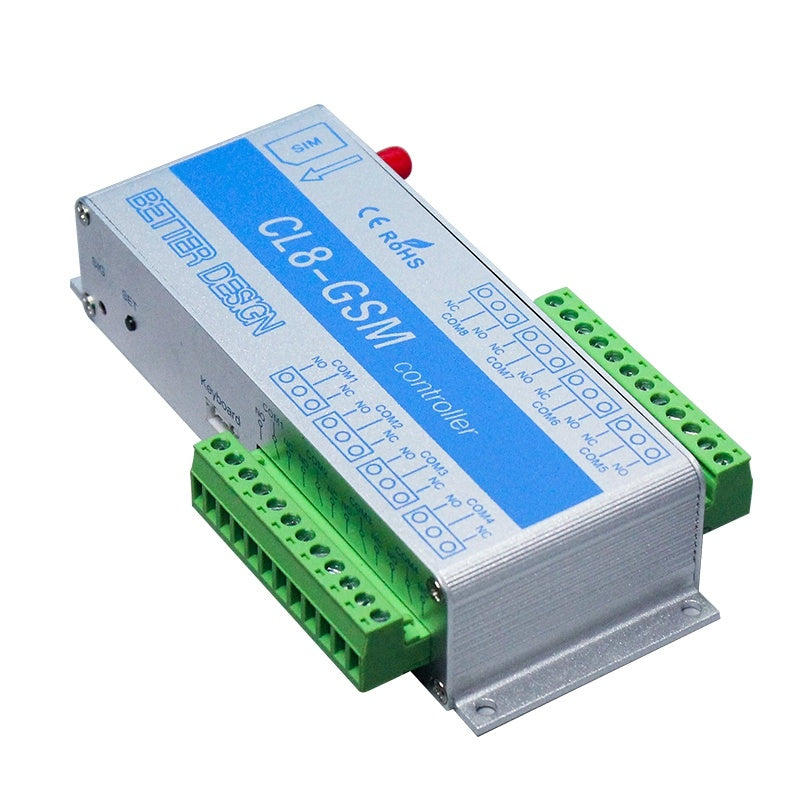

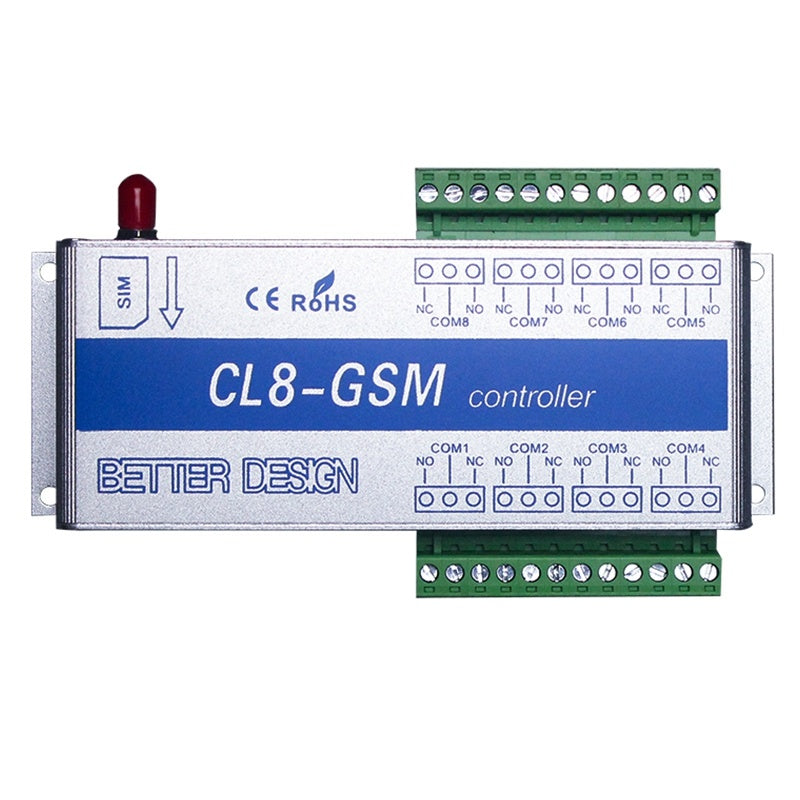

1 x CL8-GSM smart switch
1 x Power adapter
1 x Antenna
1 x English manual
