Specification

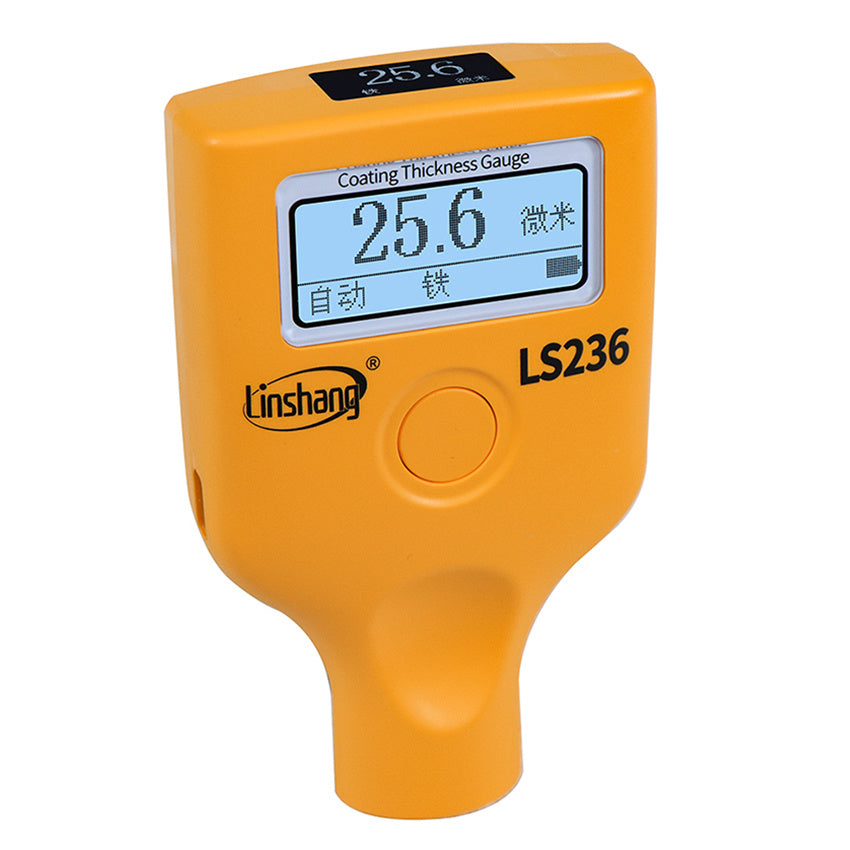

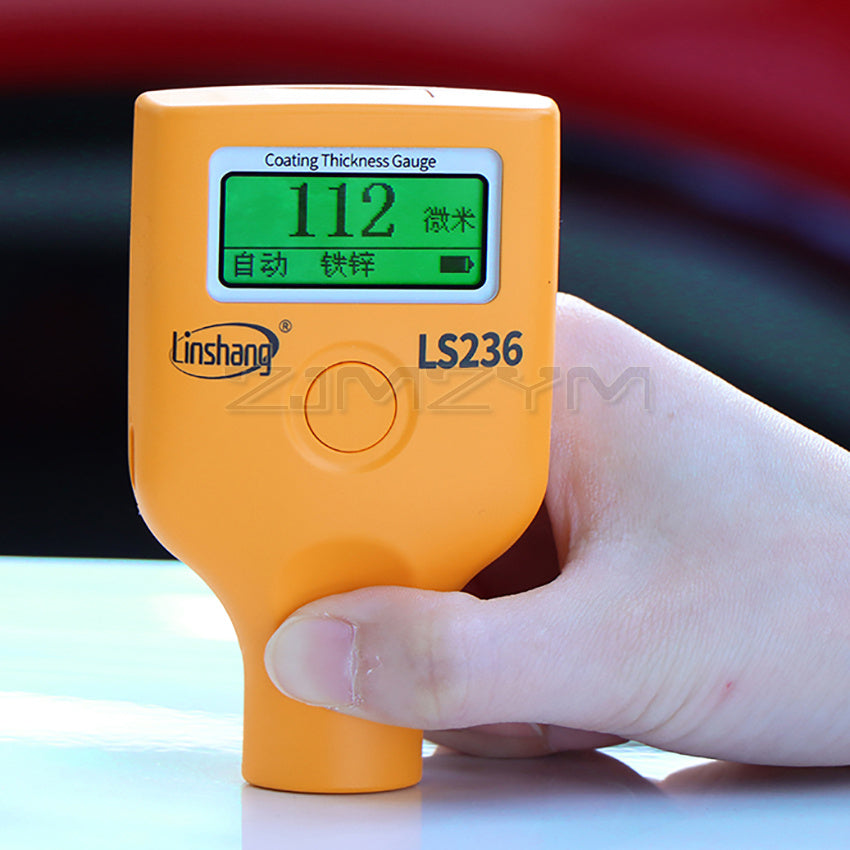

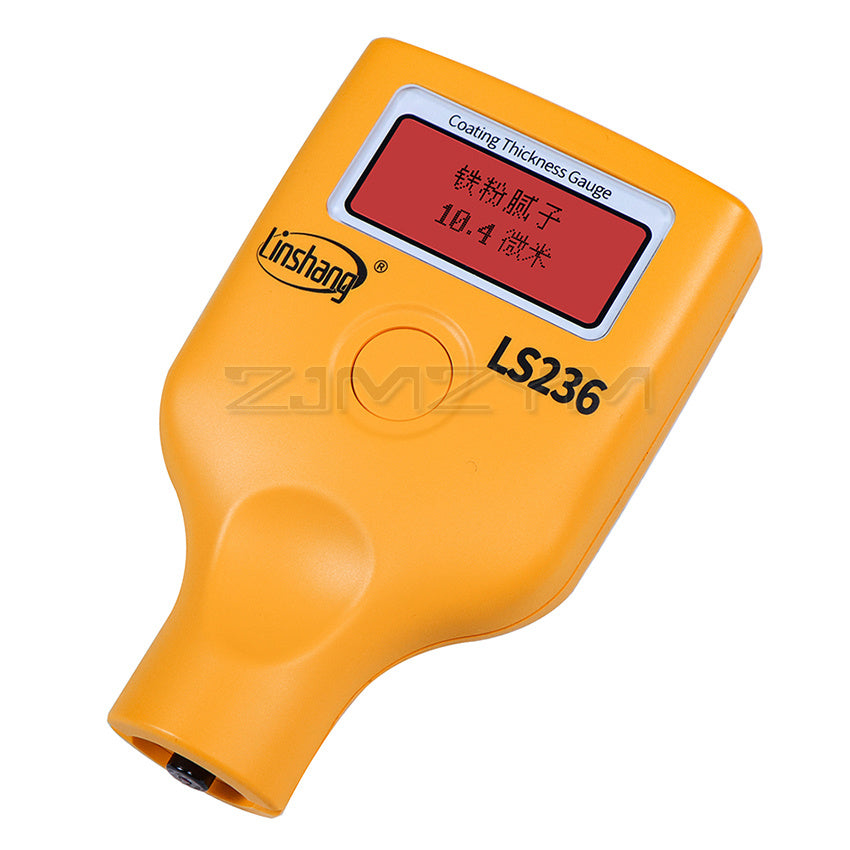

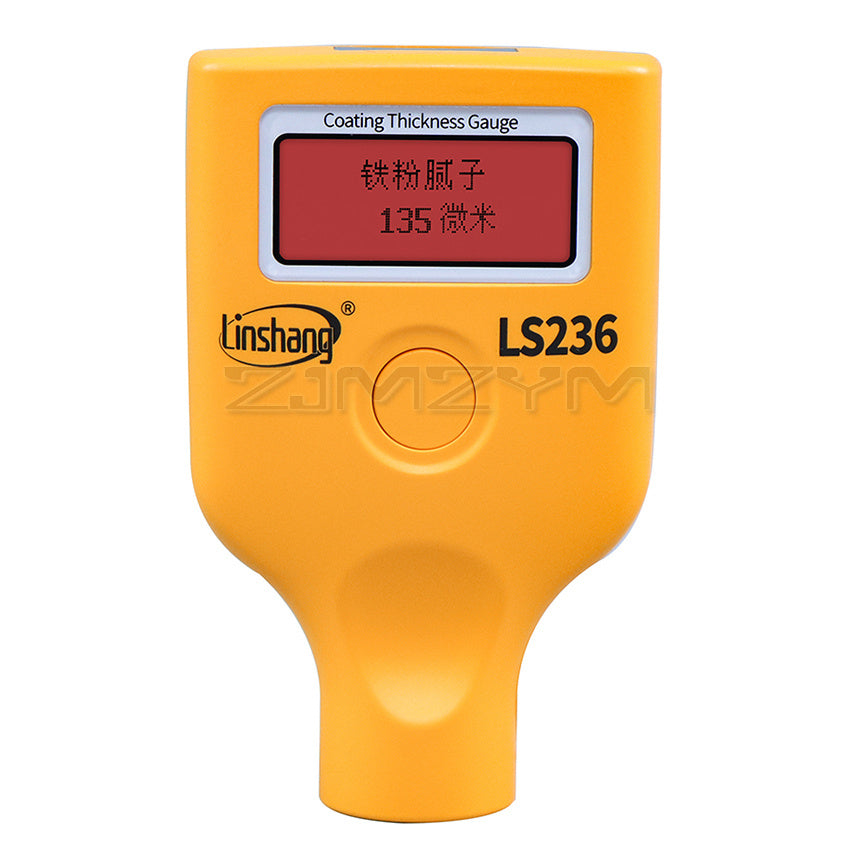

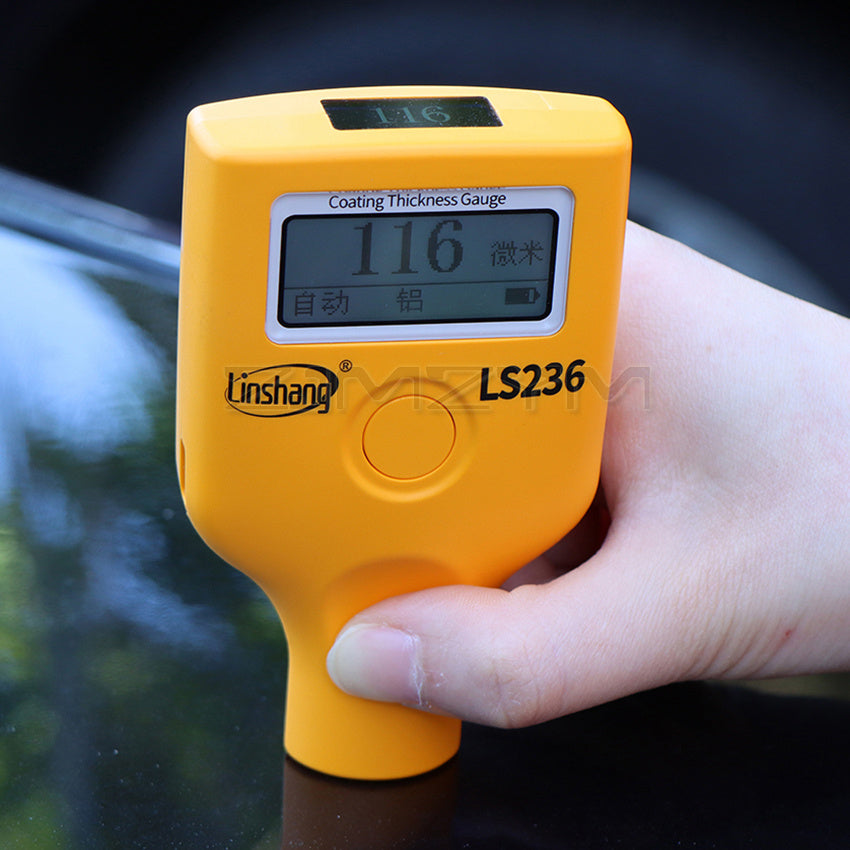

Name: Coating Thickness Gauge
Model: LS236 (Double screen, three color backlight)
Measurement range: 0.0μm - 2000μm
Resolution:
0.1μm: (0μm-99.9μm)
1μm: (100μm-999μm)
0.01mm: (1.00mm-2.00mm)
Measurement accuracy: ≤±(3% of reading + 2μm)
Unit: μm / mil
Measuring interval: 0.5S
Min. measuring area: φ=25mm
Minimum radius of curvature: convex surface: 5mm / concave surface: 25mm
Minimum substrate thickness: Fe: 0.2mm / NFe: 0.05mm
Display: LCD + OLED low temperature resistant screen
Probe: Ruby
Probe type: built-in integrated
Operating temperature range: -40℃~50℃
Storage temperature range: -50℃~60℃

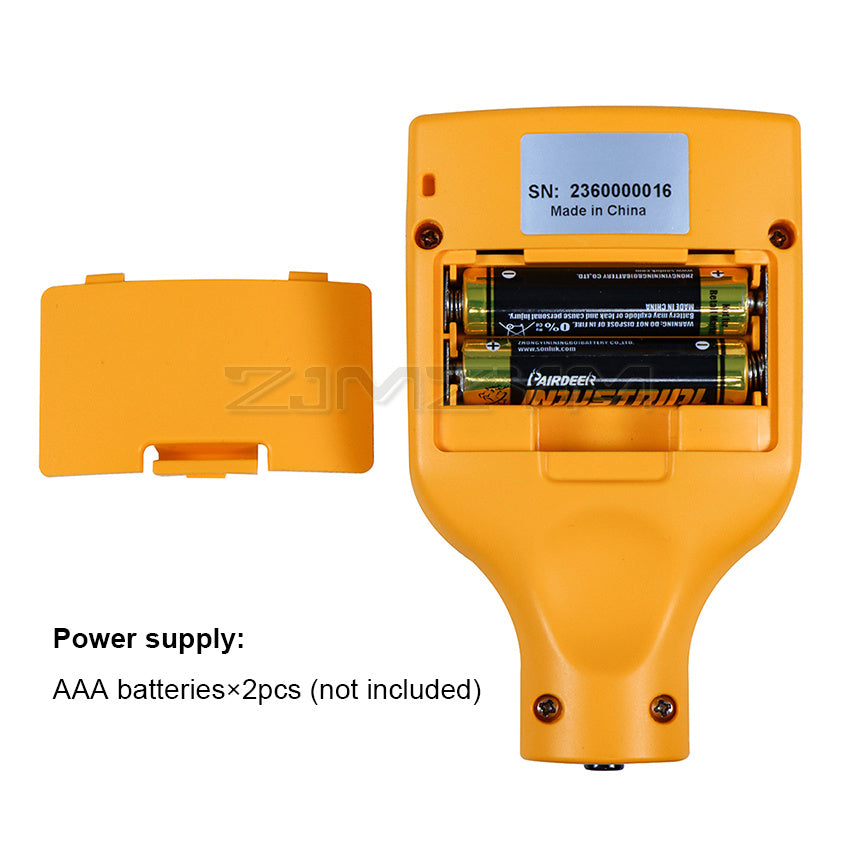

Power supply: 1.5V AAA batteries×2pcs(not included)
Measurement principle: Fe: Hall effect / NFe: eddy current effect
Machine size: 100*60*24mm
Package Included:
LS236 Coating Thickness Gauge*1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
