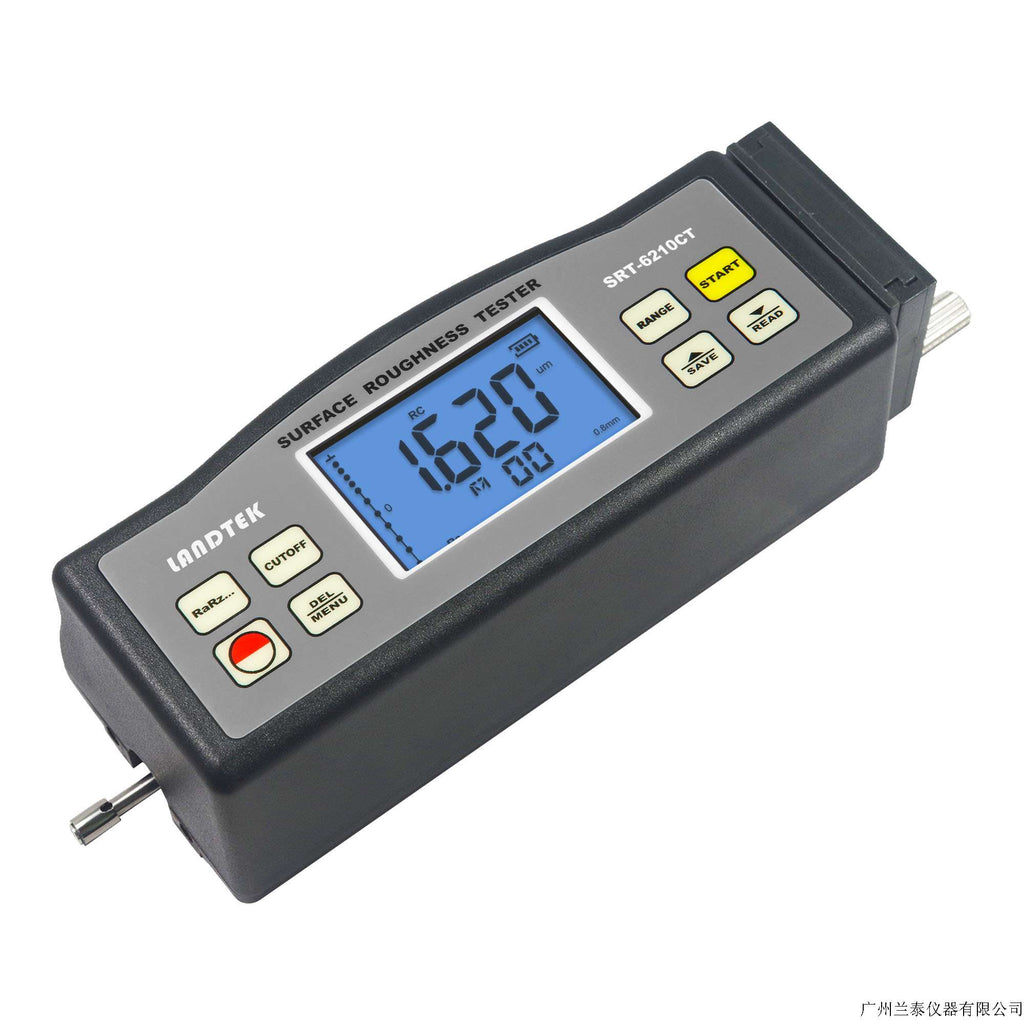

Application:

Widely used in construction site to measure surface roughness of concrete.

Features:

* Be compatible with four standards of ISO, DIN, ANSI and JIS.

* Multiple parameter measurement: Ra, Rz, Rq, Rt.

* Highly sophisticated inductance sensor.

* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.

* Built-in lithium ion rechargeable battery and control circuit with high capacity.

* Small in size, light in weight and easy to use.

* Manual or automatic shut down.

* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.

* Metric /Imperial Conversion.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Principle:

When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.

Specifications:

               Standards

            GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1

                Parameters

            Ra,Rq,Rz,Rt

                Measuring Range

            Ra,Rq:0.005µm~20.00µm Rz,Rt:0.020µm~200.0µm

                Accuracy

            ≤±10%

                Fluctuation of Display Value

            ≤6%

                Resolution

            0.001/0.01/0.1

                Sensor

            Radius of Probe Pin

            10µm

                Material of Probe Pin

            Diamond

                Measurement Force of Probe

            16mN(1.6gf)

                Probe Angle

            90º

                Vertical Radius of Guiding Head

            48 mm

                Maximum Driving Stroke

            17.5mm/0.7inch

                Cutoff length(l)

            0.25mm,0.8mm,2.5mm

                Driving Speed

            Sampling

            When Length=0.25mm,Vt=0.135 mm/s

                When Length=0.8mm,Vt=0.5mm/s

                When Length=2.5mm,Vt=1mm/s

                Returning

            Vt=1mm/s

                Profile Digital Filter

            RC,PC-RC,GAUSS,D-P

                Evaluation Length

            1L~5L Optional

                Data Memorize

            7 Groups

                Operating Conditions

            Temp:0ºC~50ºC   Humidity:<80%RH

                Power Supply

            Bulit-in Rechargeable Li-ion Battery

                Dimensioms

            140mmx52mmx48mm

                Weight

            420g

                Standard Accessories

            Main Unit

                Standard Sample Plate SSP-100

                Standard Sensor SSP-100

                Small Screwdriver

                Carrying Case ( B09 )

                Operation Manual

                Optinal Accessories

            RS-232C Cable with Software

                Bluetooth Adapter with Software

                Extension Rod SER-150

                Groove Stylus SRP-110

                Curvature Probe SRP-120

                Measurement Stand SRS-1

Probes:
