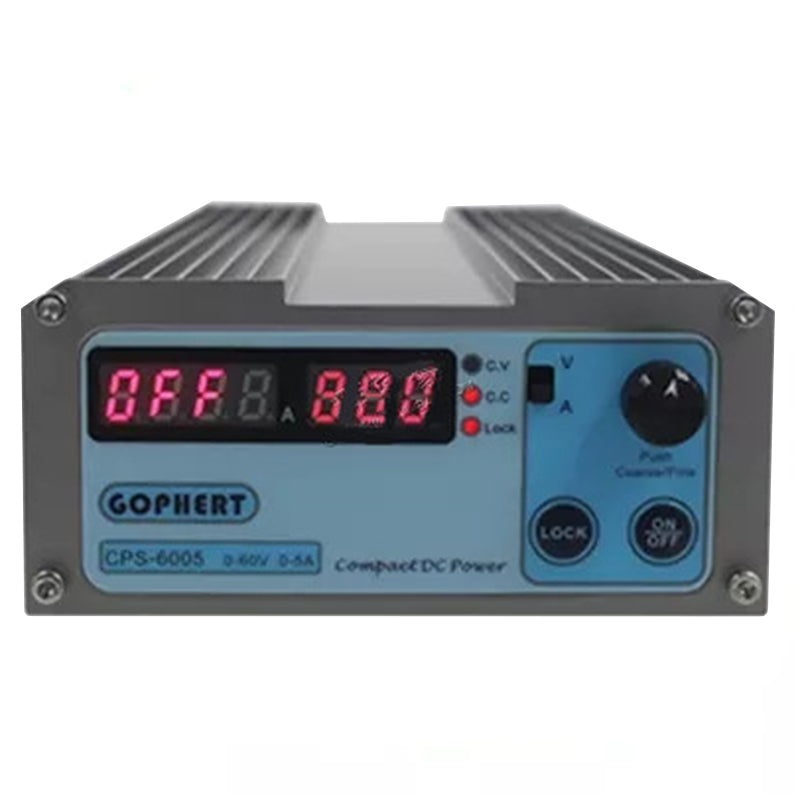

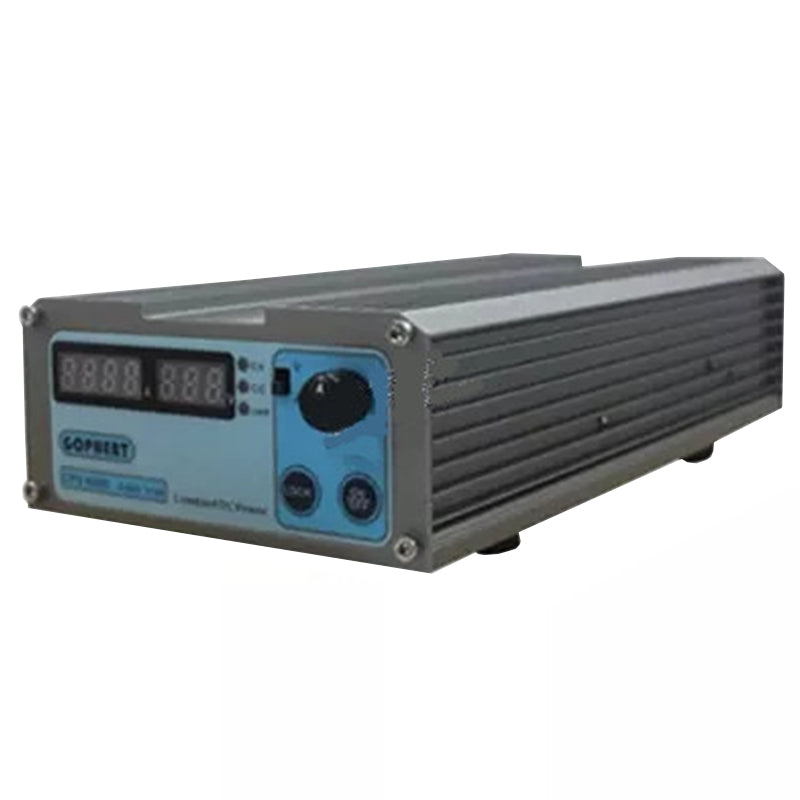

CPS-6005 60V5A Precision Digital Adjustable DC Power Supply With OVP/OCP/OTP DC
Power 0.001A 0.1V
Voltage: 0-60V
Current: 0-5A
Power: 300W
Features
Top performance cost ratio
High power density, smallest and compact
Aluminum shell, lower EMI
The microprocessor(MCU) control
Using Encoder to set the voltage and current
Four digital current meter and three digital volt meter
Soft start without overshooting
High efficiency, up to 88%
Low Ripple & Noise
Output ON/OFF
LOCK switch
Intelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protection
Specification：
Operation Voltage Range 198 – 264Vac
Operation Frequency Range 45 – 65HZ
Output Voltage Range 0 – 60V
Output Current Range 0 – 5A
Efficiency (220Vac/full load) ≥88%
Full Load Input Current(220Vac) ≤2.3A
No Load Input Current(220Vac) ≤120mA
Volt Meter Accuracy ≤ 0.3% + 1 digits
Current Meter Accuracy ≤ 0.3% + 2 digit
Constant Voltage
Load Regulation (0-100%) ≤ 50mV
Line Regulation(198-264Vac) ≤ 50mV
Ripple & Noise (Peak-Peak) ≤ 70mV
Ripple & Noise (r.m.s) ≤ 10mV
Set Accuracy ≤ 0.3% + 10mV
Transient Response Time (50%-100% rated Load) ≤ 1.0ms
Constant Current
Load Regulation(90%-10% Rated Voltage) ≤ 100mA
Line Regulation (198-264Vac) ≤ 20mA
Ripple & Noise (Peak-Peak) ≤ 50mAp-p
Set Accuracy ≤ 0.3% + 20mA
Size(width× height× depth) 120×55×240mm
Net Weight 1.2KG
Package incluede:
1 x Adjustable Switching DC Power Supply
1 x AC Power cable (US / UK / EU / AU Plug, we will sent the right one for your country)
1 x User Manual
