Product parameters

Product model: CSY-3200

Rated voltage: AC100-220V

Rated power: 30W

Product size: length 18cm* width 18cm* height 12cm

Machine weight: 2.5kg

Filling flow: ≤3.2L/min

Filling range: 10g～3kg

Maximum suction lift: 2 meters

Filling height: 0-35cm

Product Support:

Adjustable flow

data storage

Power-off memory

Automatic peeling

Automatic start and stop

Automatic frequency conversion

automatic count

Automatic reset

adjustable delay

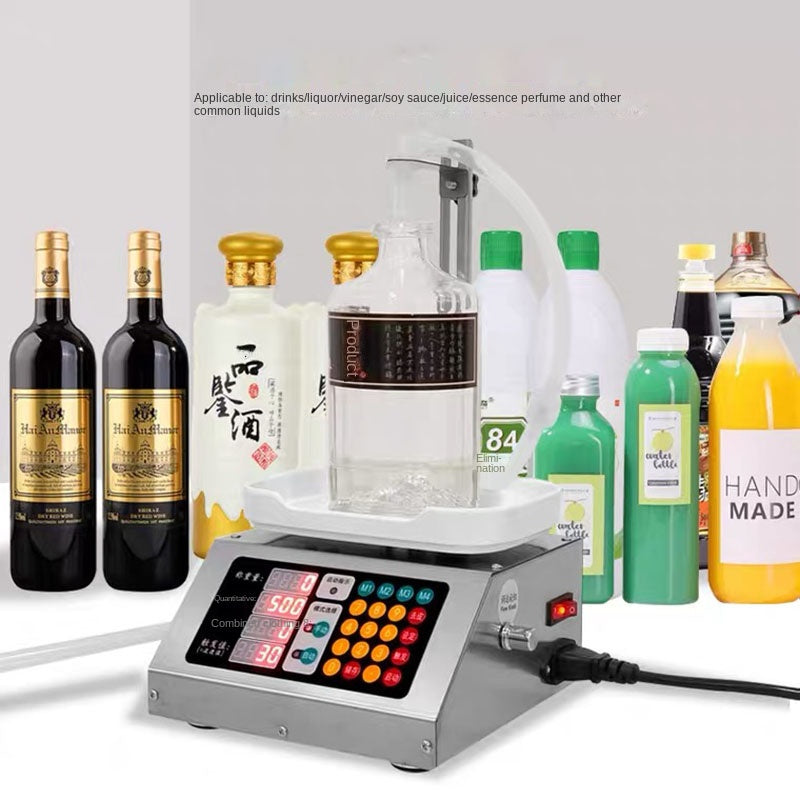

This machine can be applied to: beverages/white wine/vinegar/soy sauce/juice and other products, essential oils, perfumes, liquid products, etc.

If you are not sure whether the product meets your requirements, please contact customer service to communicate

[Applicable requirements for weighing and quantitative filling machine]:

① The container to be filled must be a bottle that can stand upright. The liquid that can be filled must be: pure liquid, free of impurities and non-viscous.

② Cream, honey, diesel oil, engine oil, kerosene, gasoline are not suitable.

③The filling volume can be set: 5g-3kg, the division value is 1g. [For water: 1g (g) = 1mL (ml)]

One: Weighing quantitative + automatic frequency conversion = high precision!

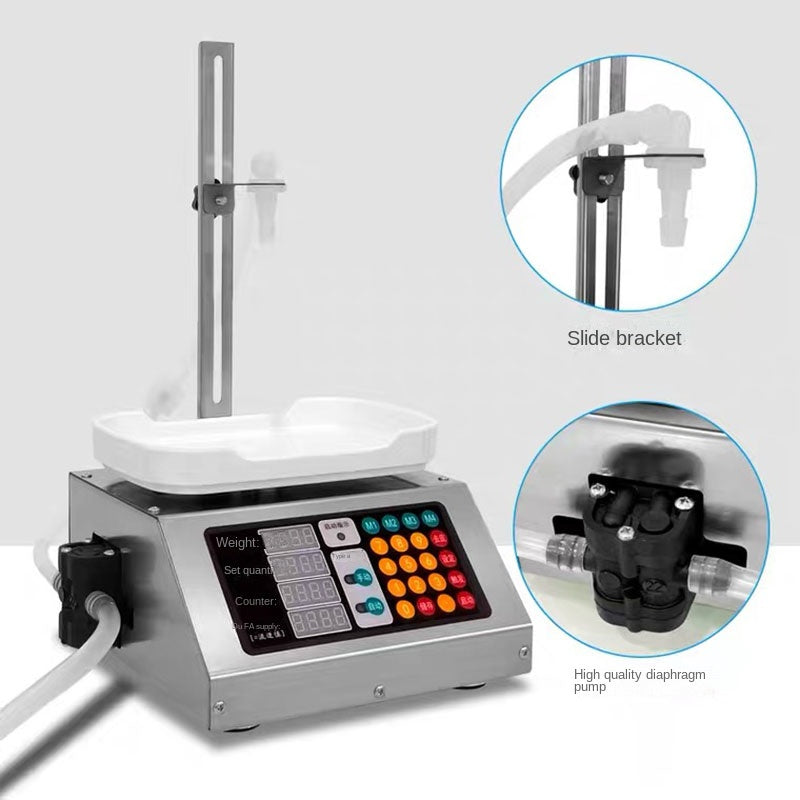

Using a high-precision peristaltic pump, the filling is controlled by setting the filling weight. When the tempo is nearing the end, the tempo will automatically decrease and the volume will automatically stop. After repeated tests, the filling effect has high precision, small error, and shocking!

Two: Five Automatic - True Automatic!

The first automatic: bottling, automatic peeling.

Second Auto: Automatically start after peeling.

3rd Auto: Automatically decelerates towards the end.

The fourth type of automatic: automatic shutdown when the filling volume is reached.

Fifth automatic: automatic reset after taking out the bottle.

Three: simple operation, easy to use!

Set whatever you want, fill whatever you want. No corrections, no debugging, just get started. During the filling process, all you need to do is lift the empty bottle and remove it after filling. The whole process is super easy. Truly liberate people from complex operations.

Four: The difference in bottle weight is large, and the filling has no effect!

In actual production, there are many bottles (such as thick-walled glass bottles, ceramic bottles, steel bottles, etc.), and the weight of empty bottles varies greatly, which brings great trouble to batch weighing and filling. The product has an automatic peeling function before starting, which easily solves this problem, and the large difference between empty bottles is completely unaffected.
