summary

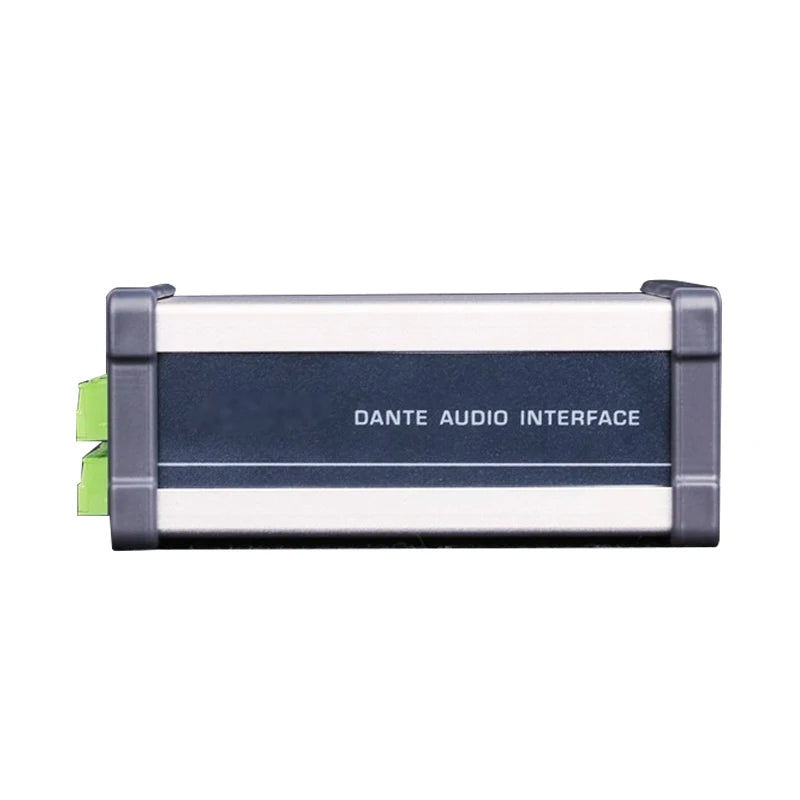

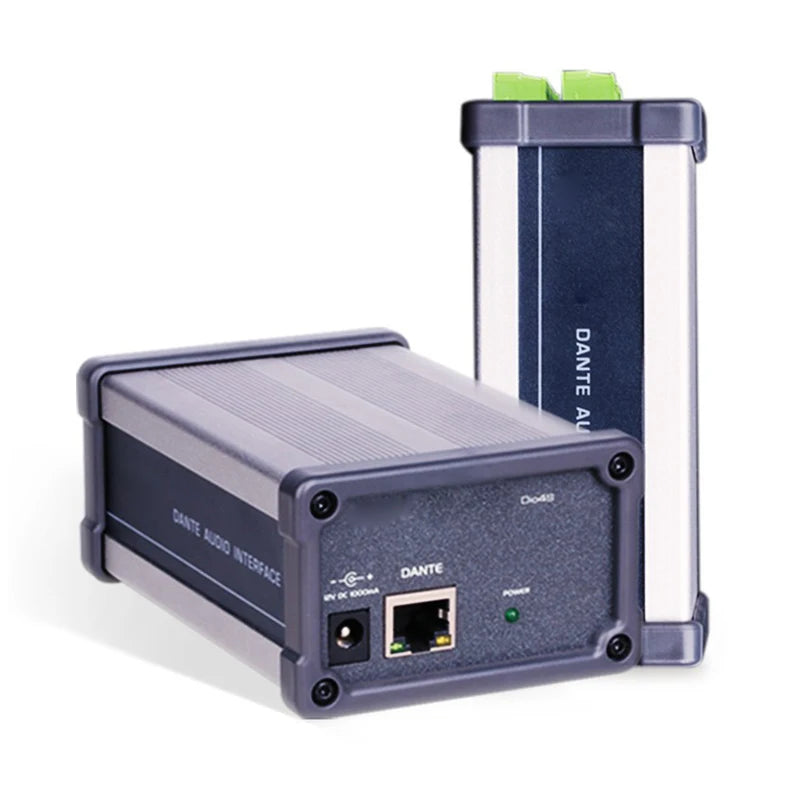

In Dante's system, the four inputs of Dio4s are an ideal interface for adding microphones/lines to the system. The four balanced line outputs can be used simultaneously, and all audio channels are used in conjunction with the Dante network. It adopts a miniaturization with an integrated mounting bracket, allowing it to be installed in small spaces near the sound source (such as under a table) to reduce the number of analog cables.

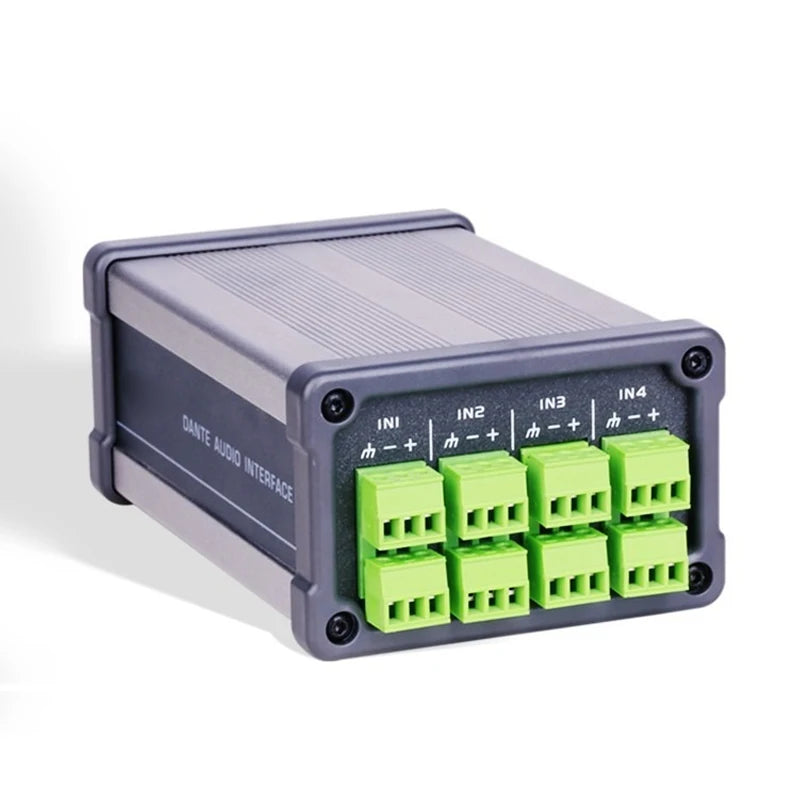

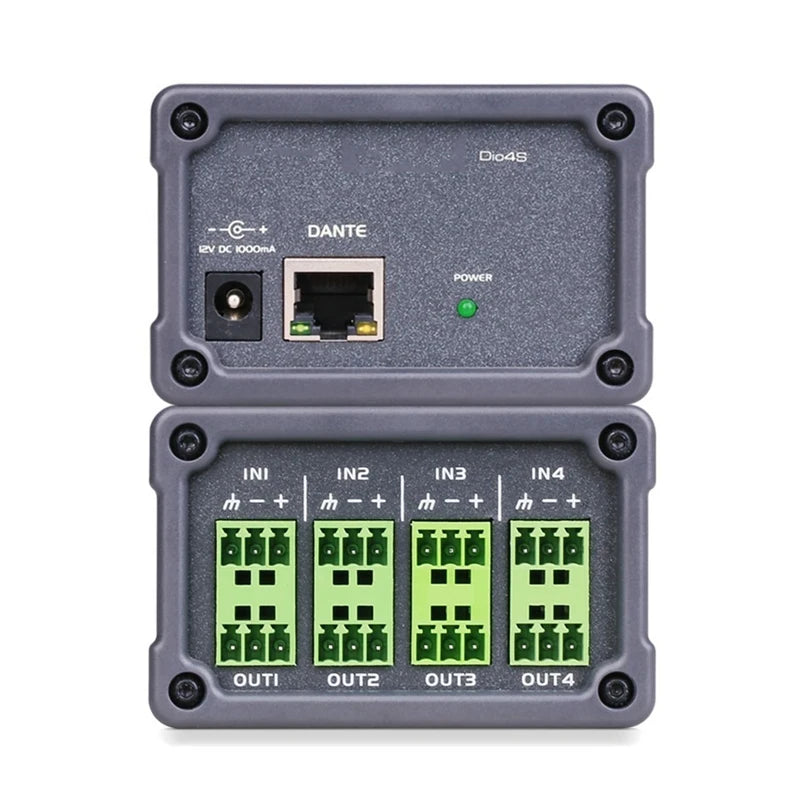

On balanced or unbalanced connections, Dio4s has 4 balanced microphone/line inputs, using a 3-pin Phoenix plug plug plug connector, and 4 balanced line outputs, as well as a 3-pin Phoenix plug plug plug connector.

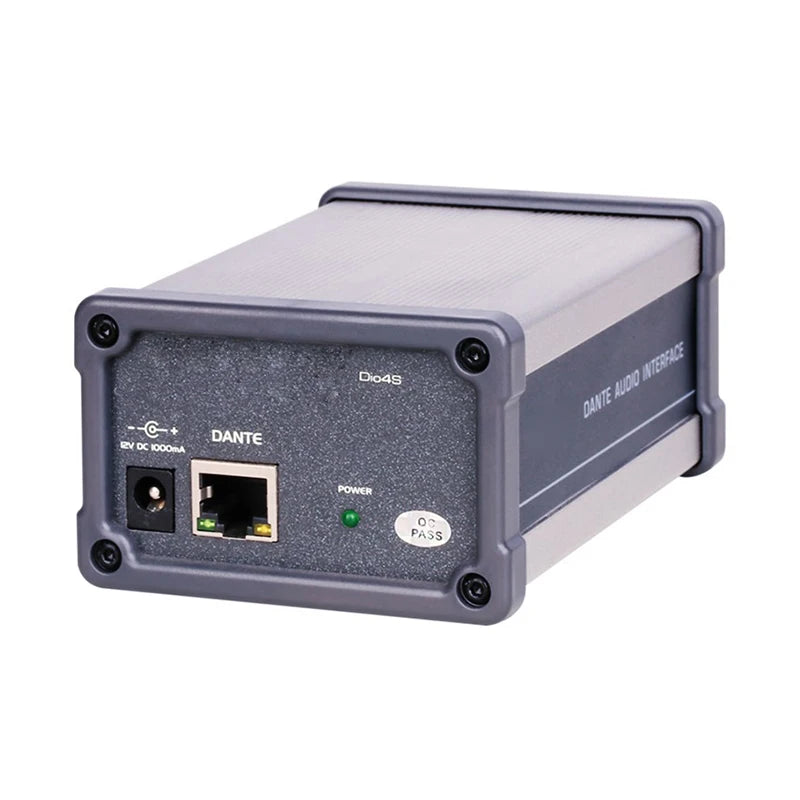

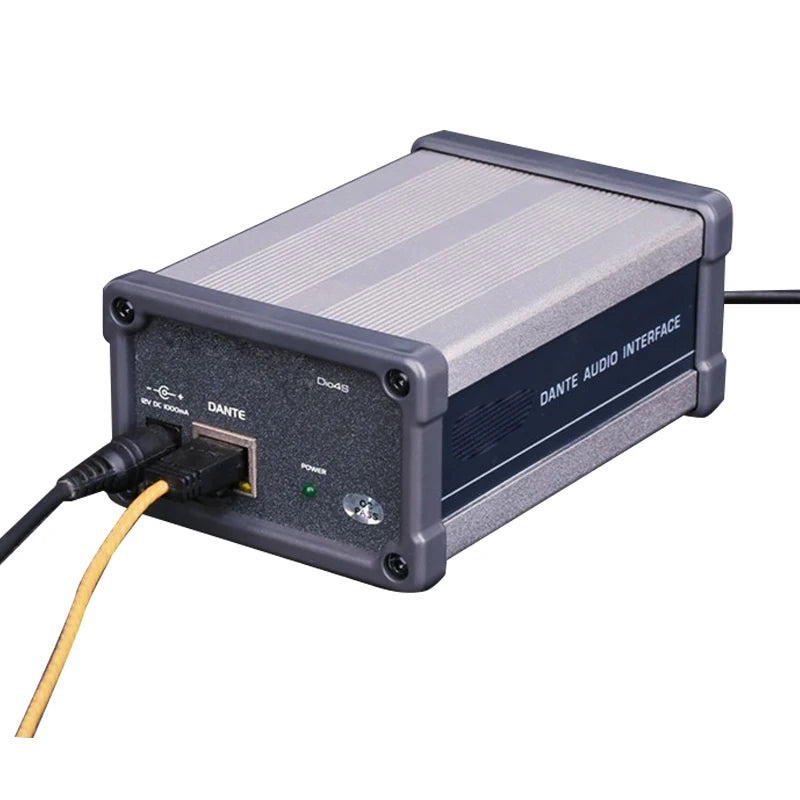

Front panel power indicator light, Dante network interface, and power interface.
Dio4s is powered by an external+12 VDC power supply.
Specification parameters
Network interface: 1 * RJ45
Audio input
Input type: 4 balanced/unbalanced inputs
Input compensation:>1.8K Ω
Maximum input level:+4dBu @ 0dB gain
Audio output
Output type: 4 balanced/unbalanced outputs
Output compensation: 200 Ω balance
Maximum output level:+4dBu balanced
Audio metrics
EIN:-115dBu
System THD+N:<0.02%
Frequency response: 20Hz -20kHz,+/-1dB
dynamic range
THD+N:<0.02% @1khz， The input signal is less than the maximum value of 3dB
Dante Network
Physical level: Standard network
Connector: Single RJ-45
Cable quality: CAT-5
Conversion speed: 100 Mbps
Power requirement:+12V DC
Power consumption: 10W Max
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
