Features

  High performance: This AIO uses high thermal conductivity silicone inside and aluminum alloy housing outside for better heat dissipation; Because of this, it has excellent water and dust resistance up to IP67. It can be used even after 30 minutes of immersion in fresh water. Suitable for various climates and harsh environments.

  High reliability and durability: Built-in F411 FC, 6S-45A ESC, ELRS 2.4GHz receiver, each interface on the AIO has short circuit protection, even if one interface is protected due to some factors, the other interfaces can be used normally.

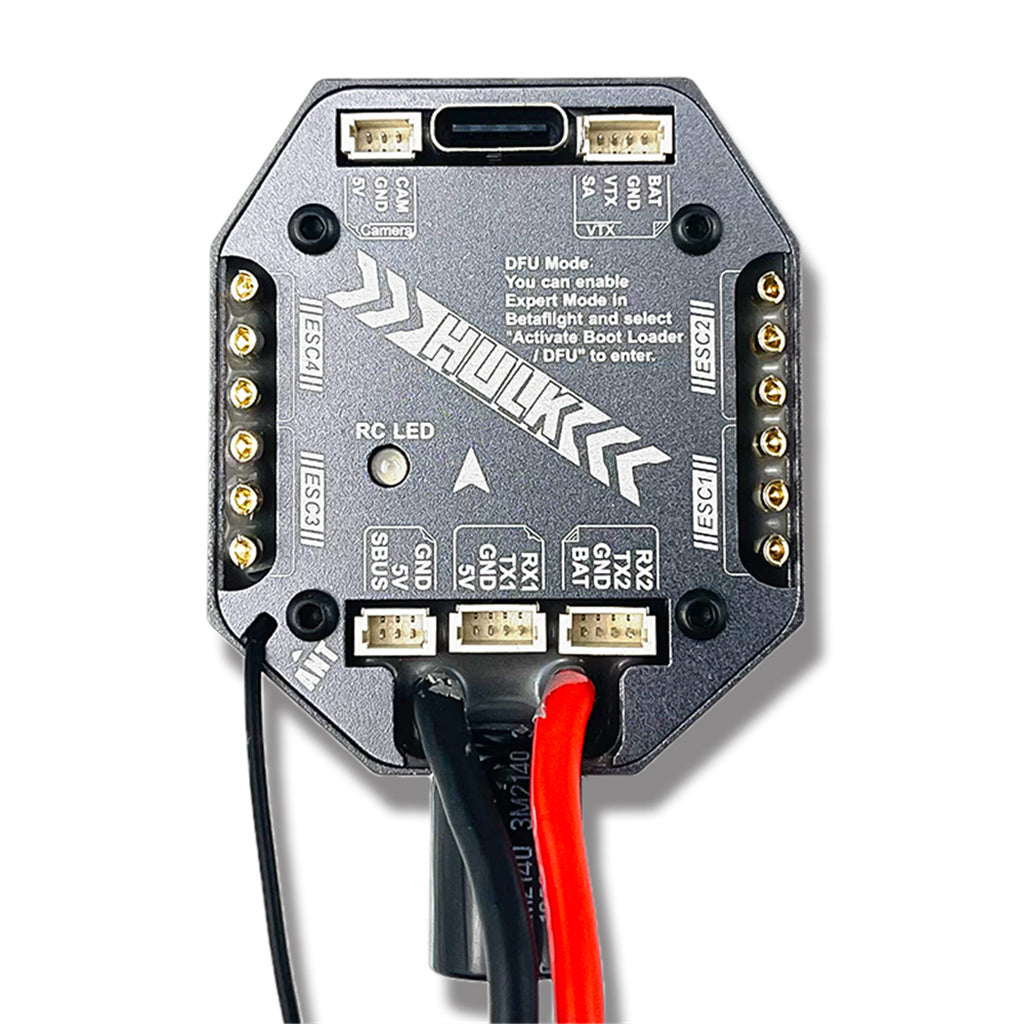

  Rich interface: This AIO is reserved for Analog CAM, Analog VTX, CADDX VISTA KIT null terminal, SBUS Port, UART1 plug-and-play interface to meet the needs of different users.

  Parameter configuration.

  FC: MCU STM32F411CEU6 (100MHz)

  IMU: MPU6500

  OSD: Betaflight OSD AT7456E

  RF Chip：SX1281 (2.4GHz)

  Firmware target: Betaflight__DARWINF4SX1280

  BEC output: 5V/0.5A x 3 & BAT/0.75A x 2

  Port resources：2x Uarts (1,2)

  1x Softuart (Apply for VTX)

  1x SBUS (RX1 inverter)

  ESC: MCU EFM8BB21F16G

  Input Voltage: 3-6S LiPo

  Continuous current: 45A

  MAX current:(5 seconds): 55A

  ESC Traget：J_H_40

  Size: L46.2mm x W39.5mm x H10mm

  Installing Hole: 25.5x25.5mm (M2)

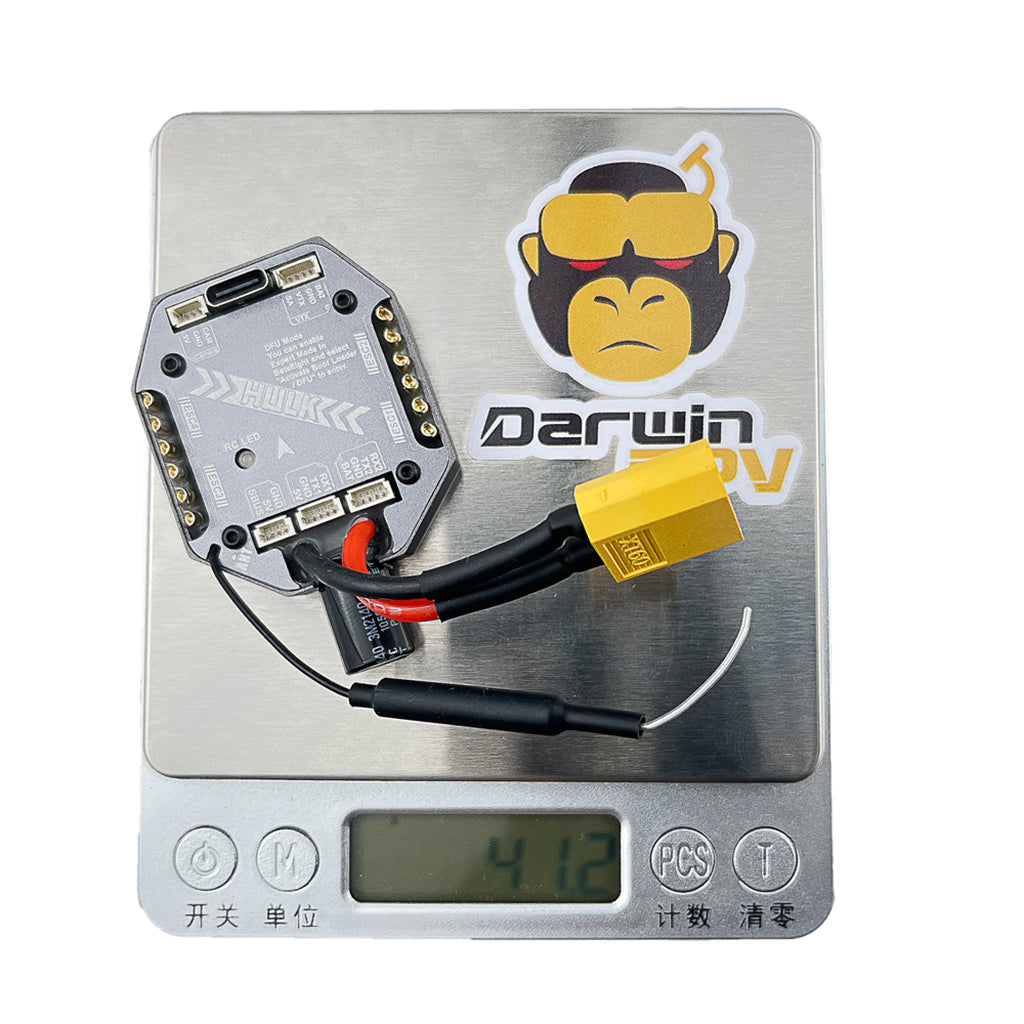

  Weight：41.5g

  Caution.

  ①Seawater is very corrosive, this AIO is not recommended for seawater environment, once it falls into seawater, please use fresh water to clean it immediately.

  ②The AIO supports 3-6S battery, remember not to reverse the battery connection, otherwise it will burn the AIO.

  ③After receiving the product, first enter Betaflight to check whether the gyroscope and accelerometer are detected and whether the gyroscope attitude is normal.

  ④Pull the throttle in Betaflight to make sure the four motors rotate normally including the correct motor steering, and then install the paddle for test flight; make sure to unload the paddle when pulling the throttle to avoid major accidents.

  Confirm the above notes without any product problems can be installed paddles and start to fly cool!

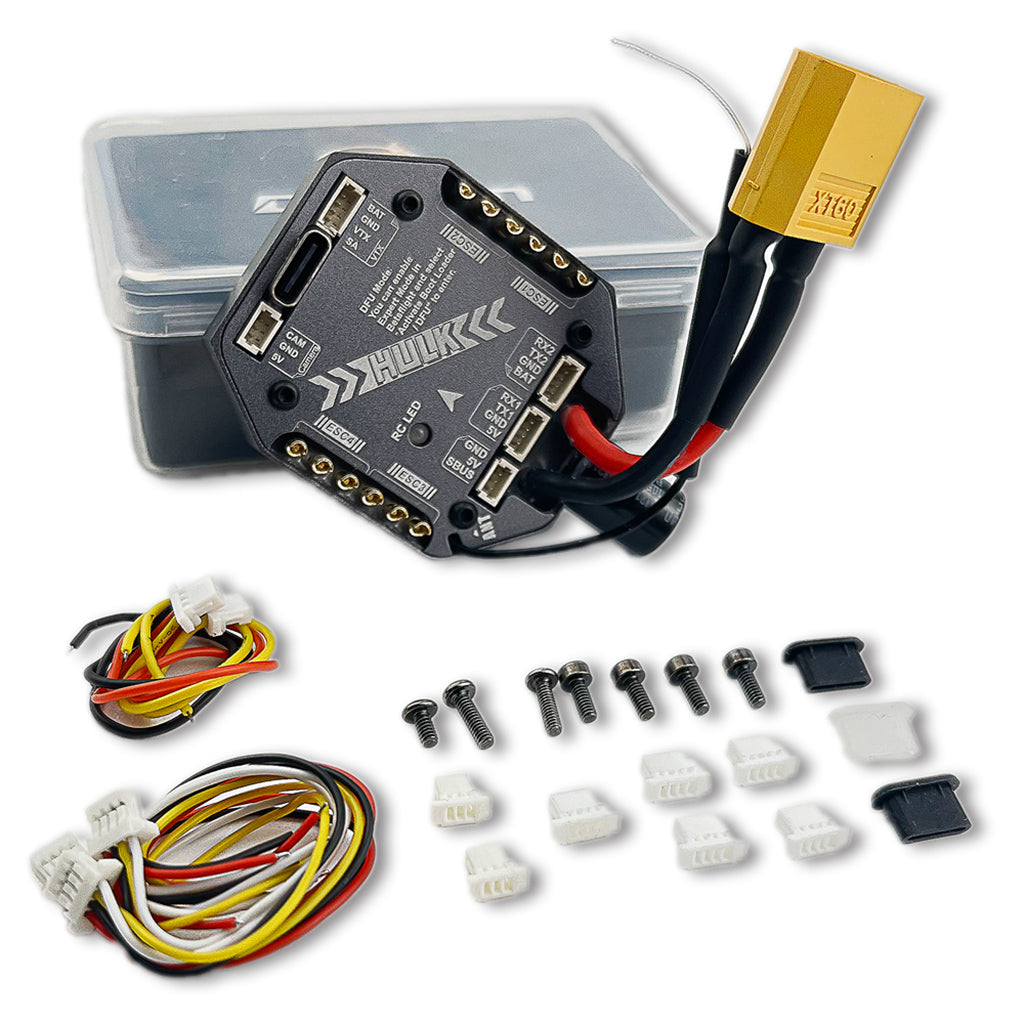

  Packing list.

  1 x AIO

  5 x spare cable

  7 x screws

  3 x TYPE-C rubber plugs

  7 x SH1.0 socket plugs

  1 x sticker

  1 x instruction manual
