Specification:
Brand new
Material: Plastic
Color: Black
Size: about 135 * 100 * 25mm / 5.31 * 3.94 * 0.98in
Battery voltage: 12V
Nominal charge / discharge current: 20A
USB output voltage: 5V
Total USB output current: 3A
DC output voltage: 12V
Total DC output current: 2A
Overload / short circuit protection: 1.5 times the rated current
Short circuit recovery time: 10s
Open circuit voltage of the solar panel: 40V
No load loss: 0.05 W.
Control mode: Intelligent software control, Working temperature: -35 ~ 55 ℃

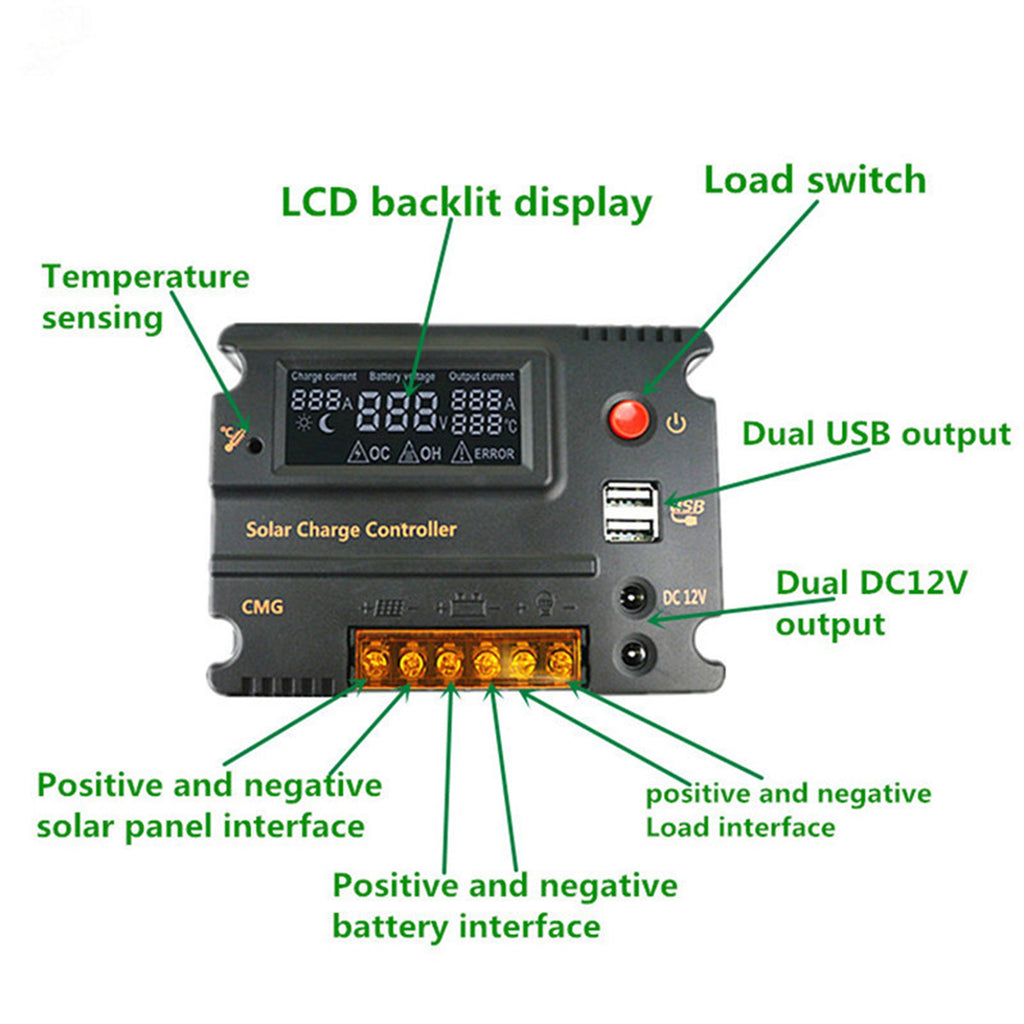

Feature:

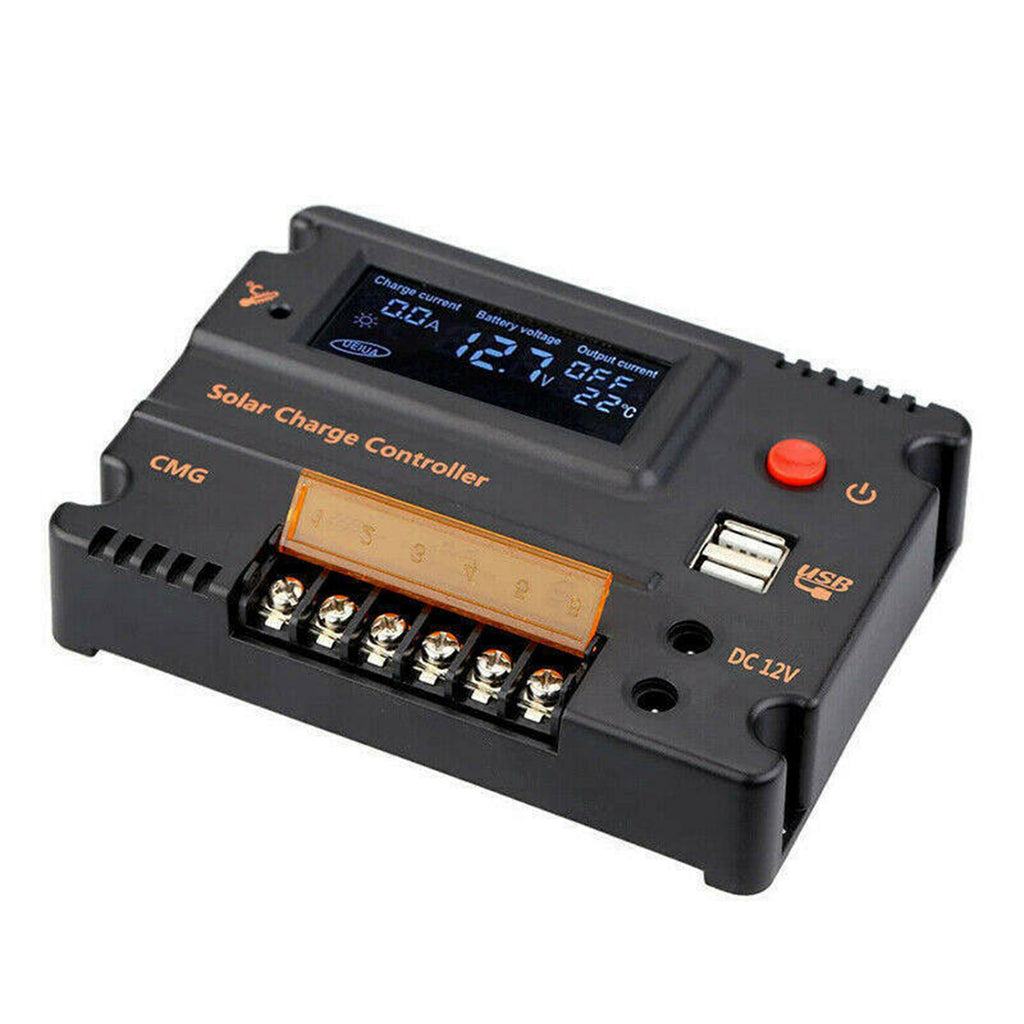

All parameters are displayed on the LCD screen.
With output switch, intelligent control.
Fully automatic operation.
Digital accuracy of the microcontroller.
A key to open and close the load.
PWM charging mode (SOC).
With separate temperature detection circuit, high-precision temperature compensation function.
Charging from DC 12V and USB 5V for DC lamp and phone.
Overvoltage protection;
Short circuit protection;
Light protection;
Undervoltage protection;
Overcharge protection;
Reverse polarity protection.
Good workmanship and good performance.
Easy to use.
Long lifetime.

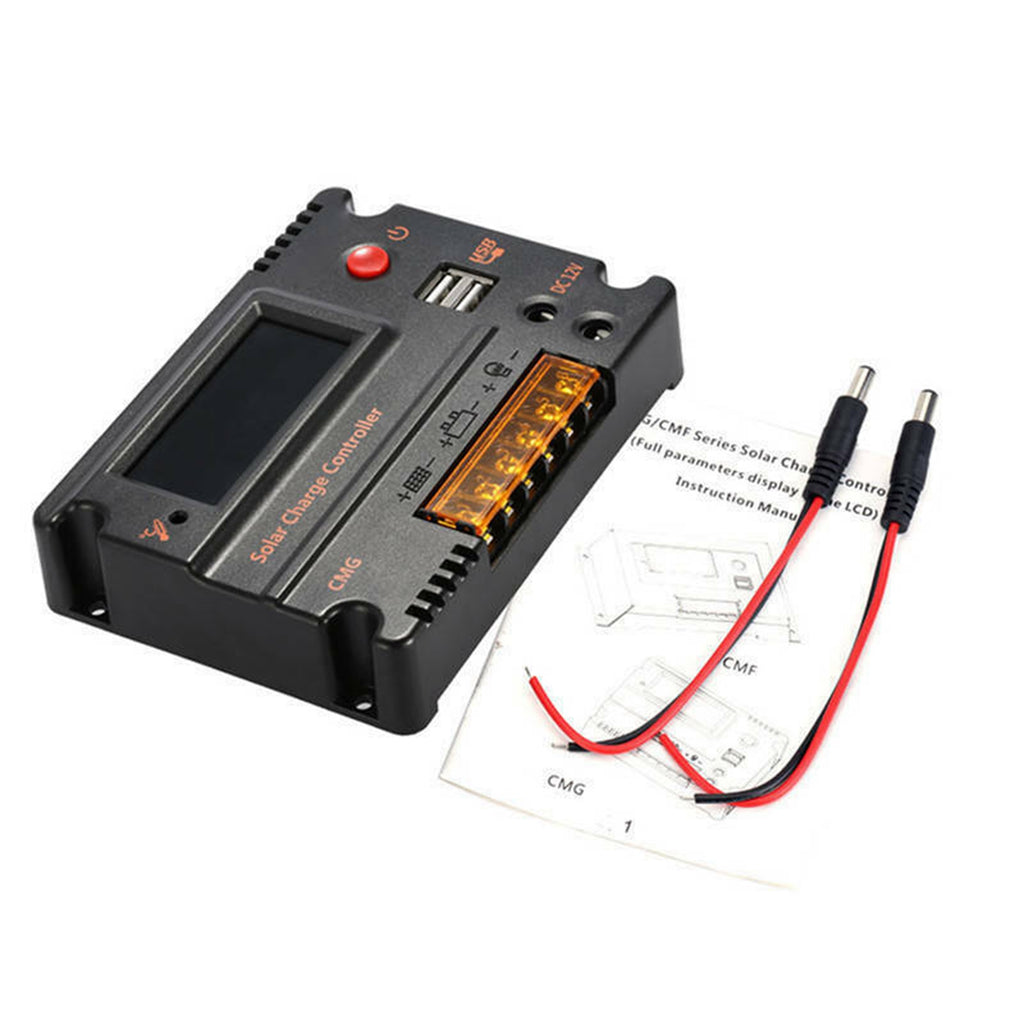

Delivery content:
1 x solar charge controller
2 x DC cables
1x User Manual (English)
