Feature:
1. Hydroelectric separation technology, double magnetic circuit coupling clutch, the volume is only 4/5 of the ordinary micro hydroelectric generator, but the output power is 2-3 times that of the ordinary hydroelectric generator.
2. Ingenious structural design, the angle of the inlet and outlet pipes can be installed in a straight or L shape according to the requirements.
3. Reasonable waterway design, low flow loss, low water pressure (0.05Mpa) start, and smooth start when the load is short-circuited.
4. After being isolated by the diode, it can directly supply rechargeable batteries below 3000MAH or Farad capacitors below 5F for charging and power supply. It is a good partner for smart faucets and induction faucets.
Specifications:
Operating water pressure: 0.08-0.45Mpa
Peak operating water pressure: 0.55Mpa
Peak pressure: 1.6Mpa
Traffic Loss: 3.6% (at 0.25 MP)
Operating temperature range: 5℃～85℃
Output voltage: 9.8~18.5VDC/no load, 8.8~15VDC/0.1 K load
Output current: 128~260 MA/0.1 K load.
Dimensions: ￠85.4×42.5×81.4 MM
Output port during detection: open
Output power 3.5W
The angle of the inlet and outlet pipes can be 90 degrees, 180 degrees, 270 degrees, 3 angles

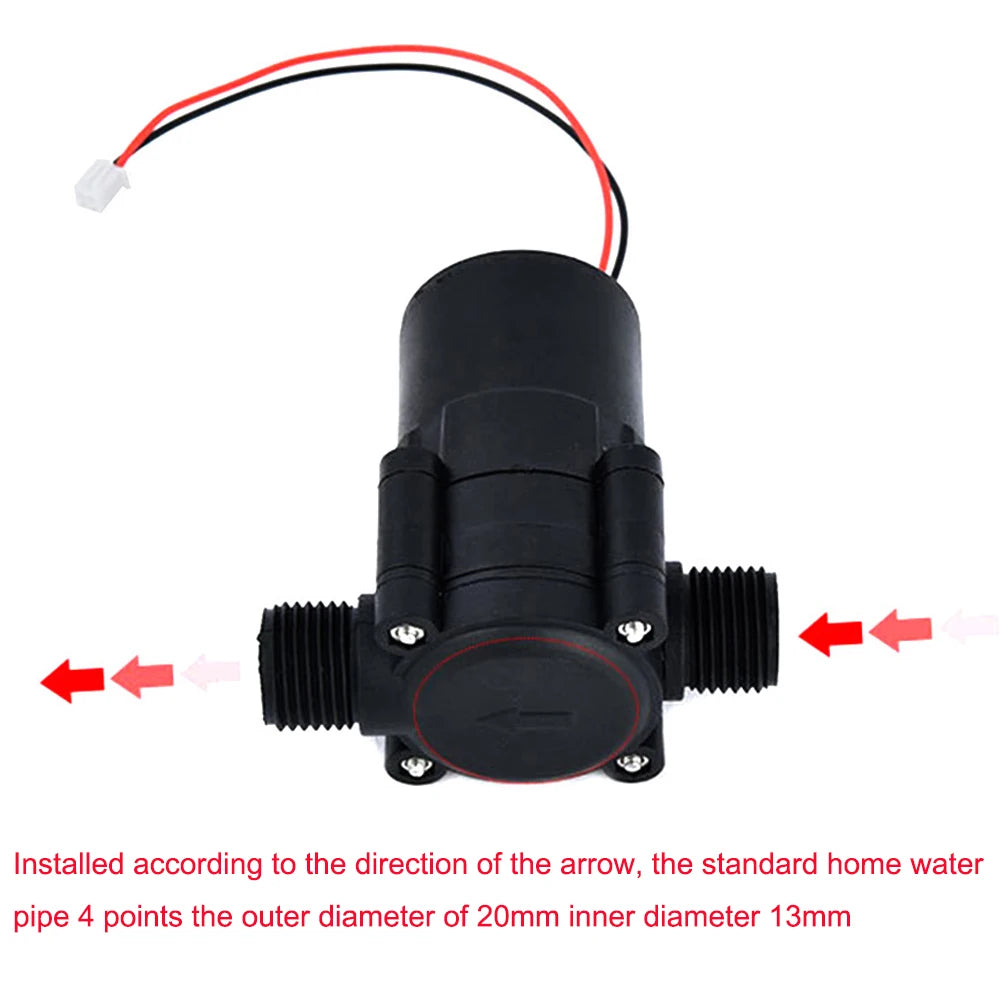

Installation method: Install in the direction of the arrow, the standard household water pipe is divided into 4 pipes, the outer diameter is 20mm and the inner diameter is 13mm
