Features:
1. When the main power supply fails, the switcher can automatically switch to the backup power supply to ensure continuous and stable operation of the load (such as servers, communication equipment), to avoid any interruption caused by power failure
2. Support 5V to 60V DC voltage input, wide compatibility, applicable to a variety of different power systems and equipment requirements, to improve the flexibility and versatility of use

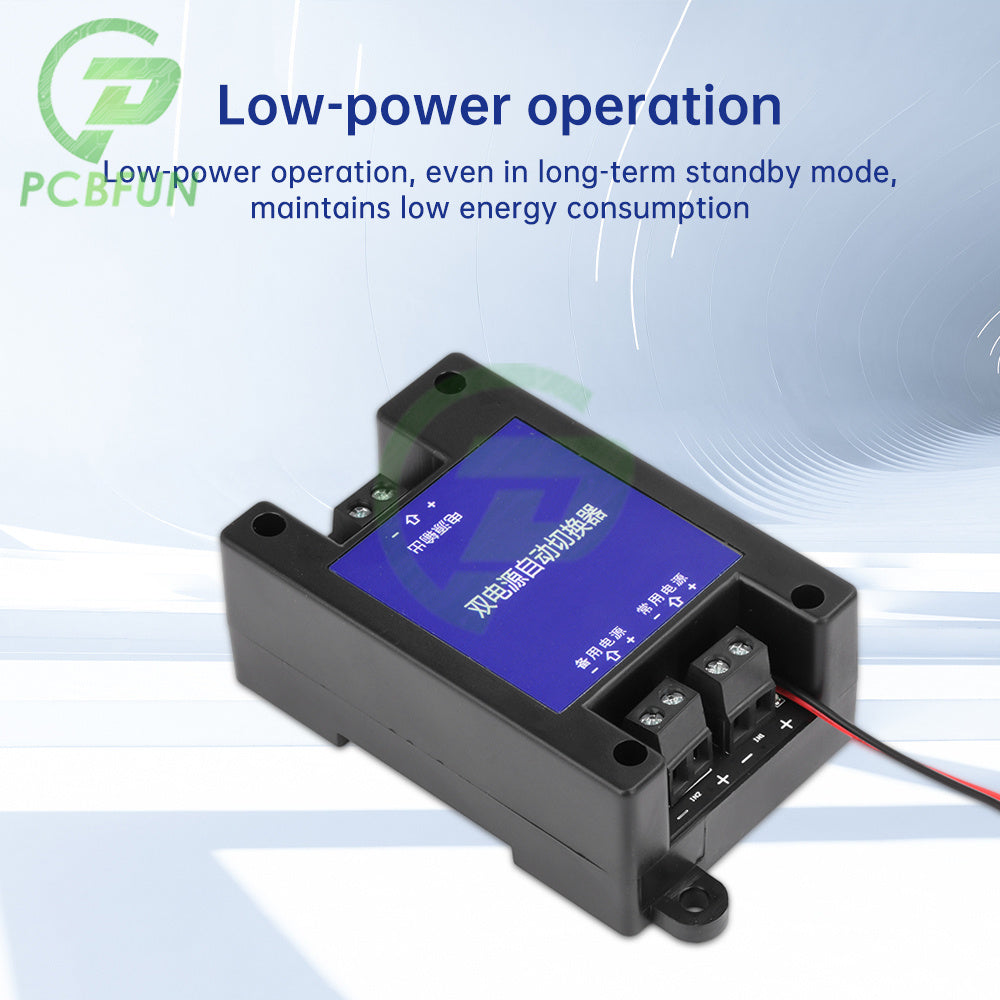

3. Low-power operation, even in the long-term standby state can also maintain low energy consumption

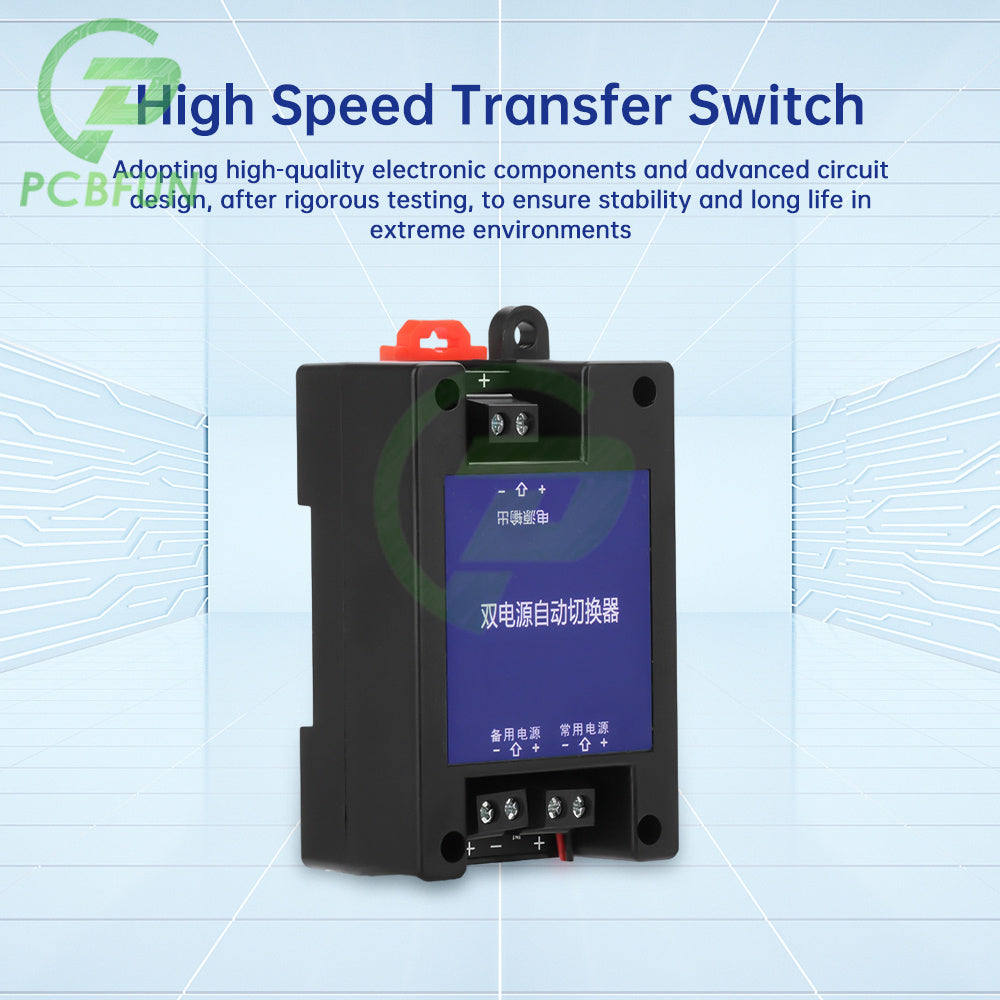

5. Using high-quality electronic components and advanced circuit design, after rigorous testing to ensure the stability and long life in extreme environments
Parameter:
5V

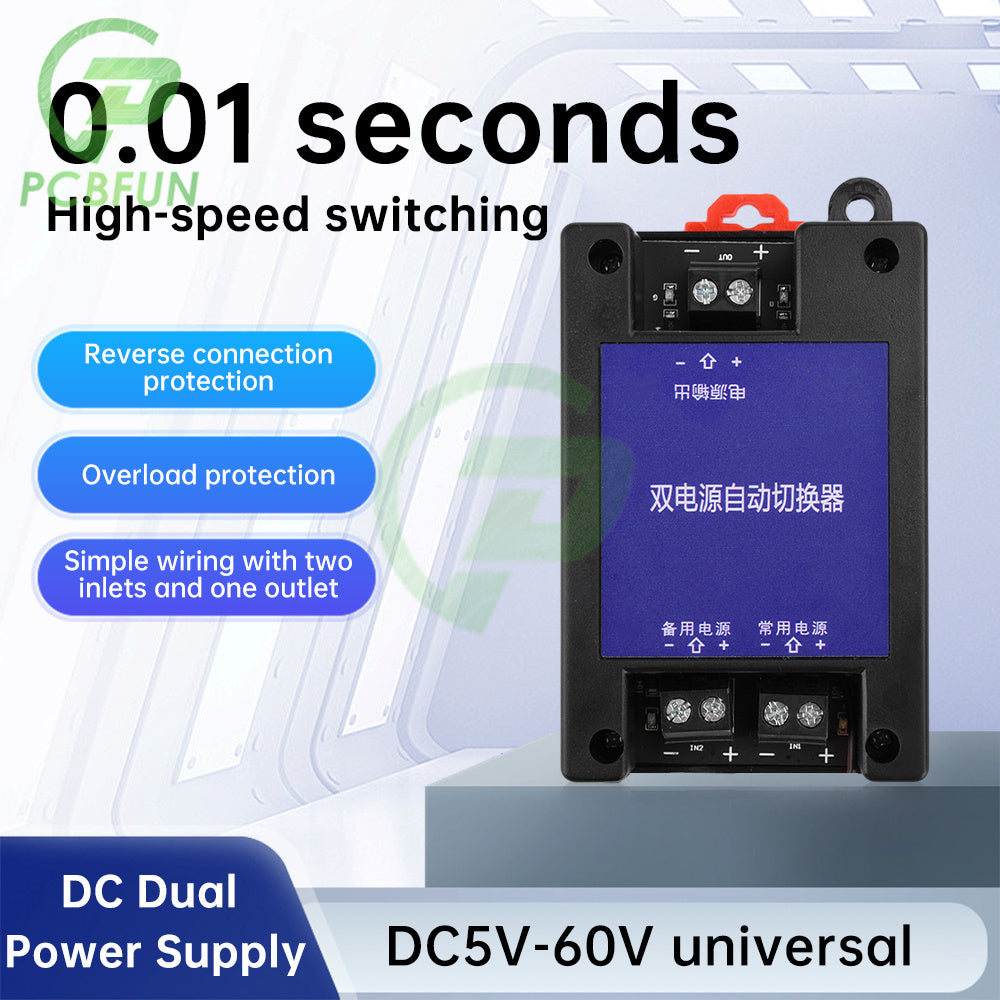

Switching time: 0.01 seconds
Operating voltage: 5V
Rated current: 5A
Maximum current: 8A
Rated power: 25W
Maximum power: 40W
Self-power consumption: 0.4W
12V
Switching time: 0.01 seconds
Operating voltage: 12V
Rated current: 5A
Maximum current: 8A
Rated power: 60W
Maximum power: 96W
Self-power consumption: 0.4W
24V
Switching time: 0.01 seconds
Operating voltage: 24V
Rated current: 5A
Maximum current: 8A
Rated power: 120W
Maximum power: 192W
Self-power consumption: 0.4W
Limit voltage: 3.75VDC-75VDC
Operating temperature: -45℃-75
Working humidity: 30%-80
Package include:
Dual power automatic switcher *1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
