Features:
It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
The impedance become small, and we can then measure the true series resistor value.
Using this theory, we can measure the capacitor is bad/ damaged or good in condition.
Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.
During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.

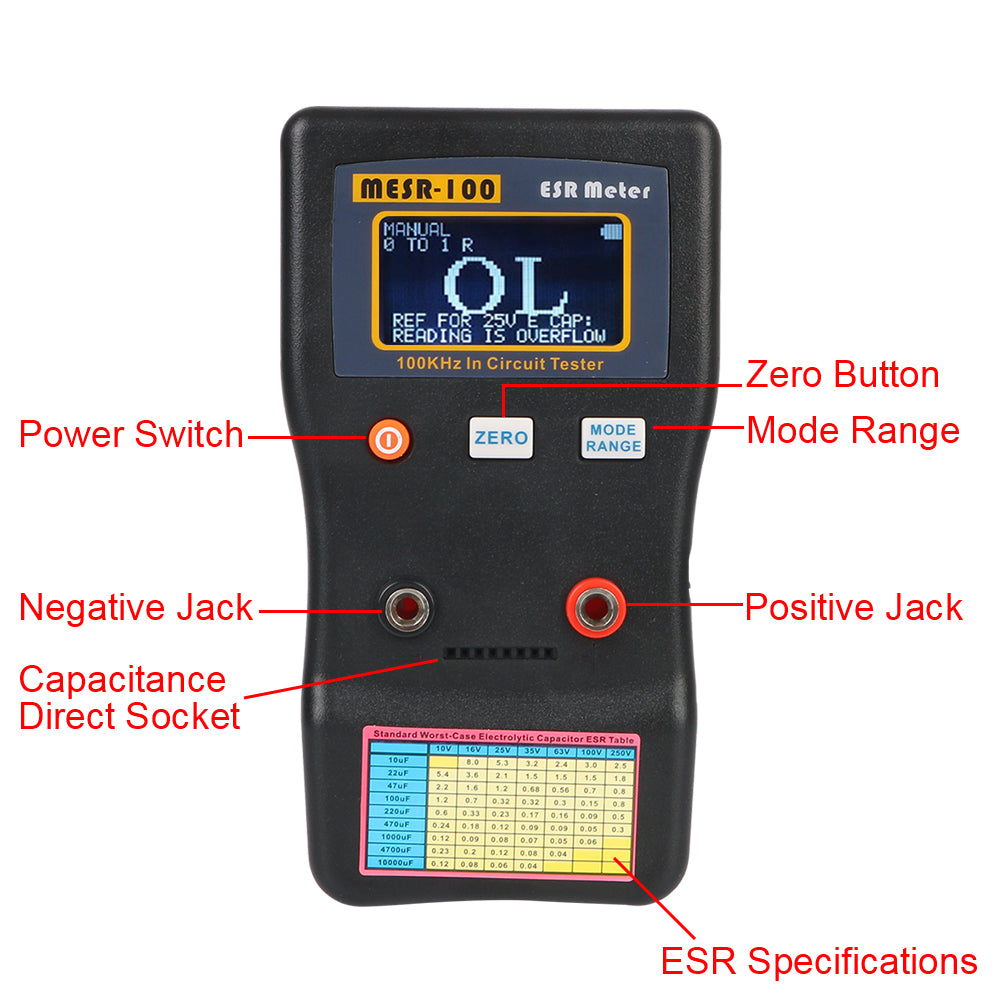

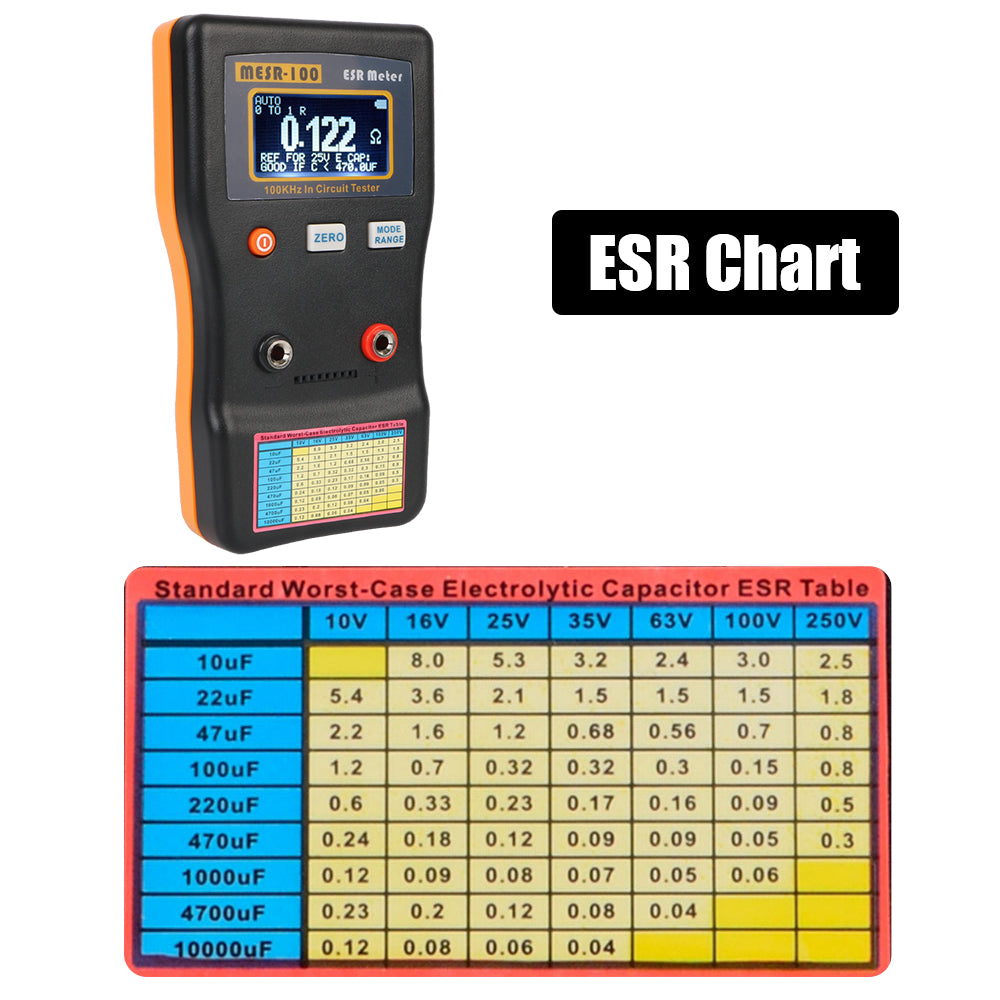

Dual terminal, for fast and easy inspect internal resistance of the capacitor, a printed ESR table for fast check.
Equipped with a SMD alligator clip for more accurately testing. Copper plating on the surface, which is anti-corrosion and oxidation resistance.
Specifications:
Type: Capacitor Tester
Color: Black

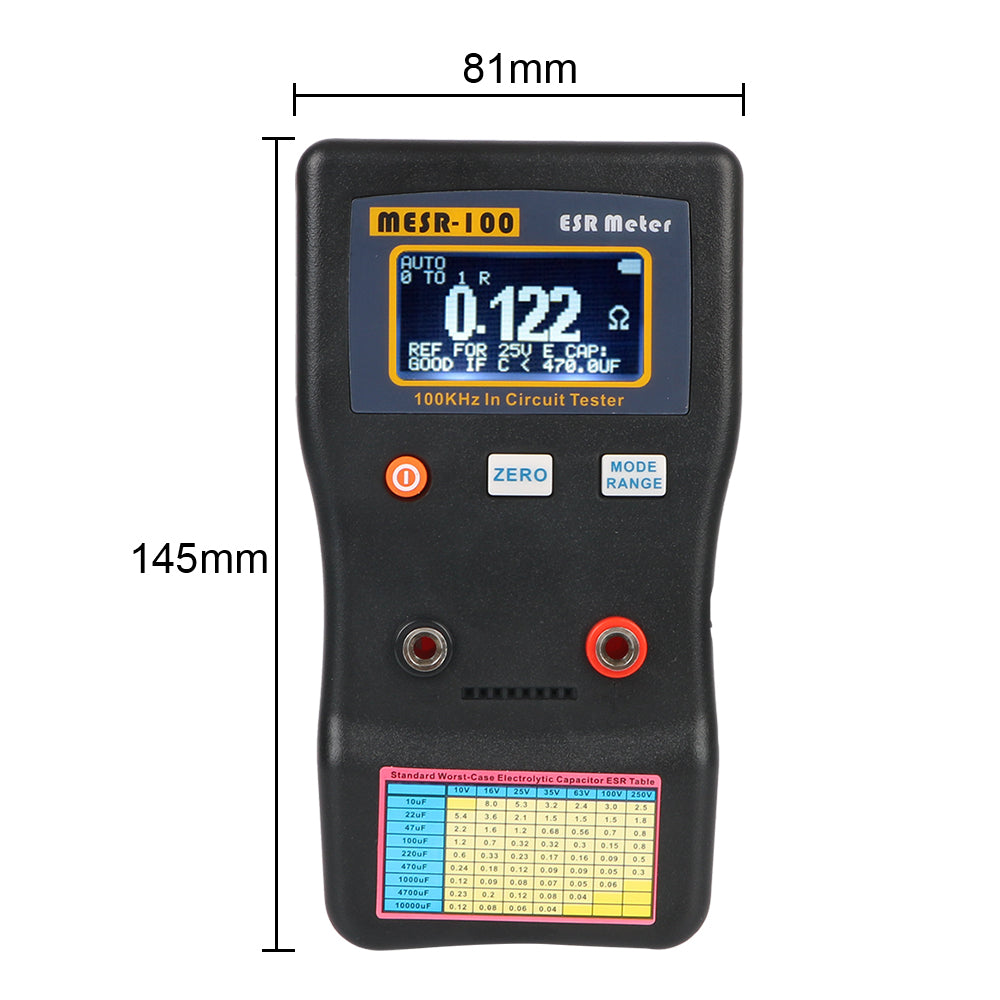

Size: As picture show
Range Accuracy (After zero, Refresh Time(Manual Mode)

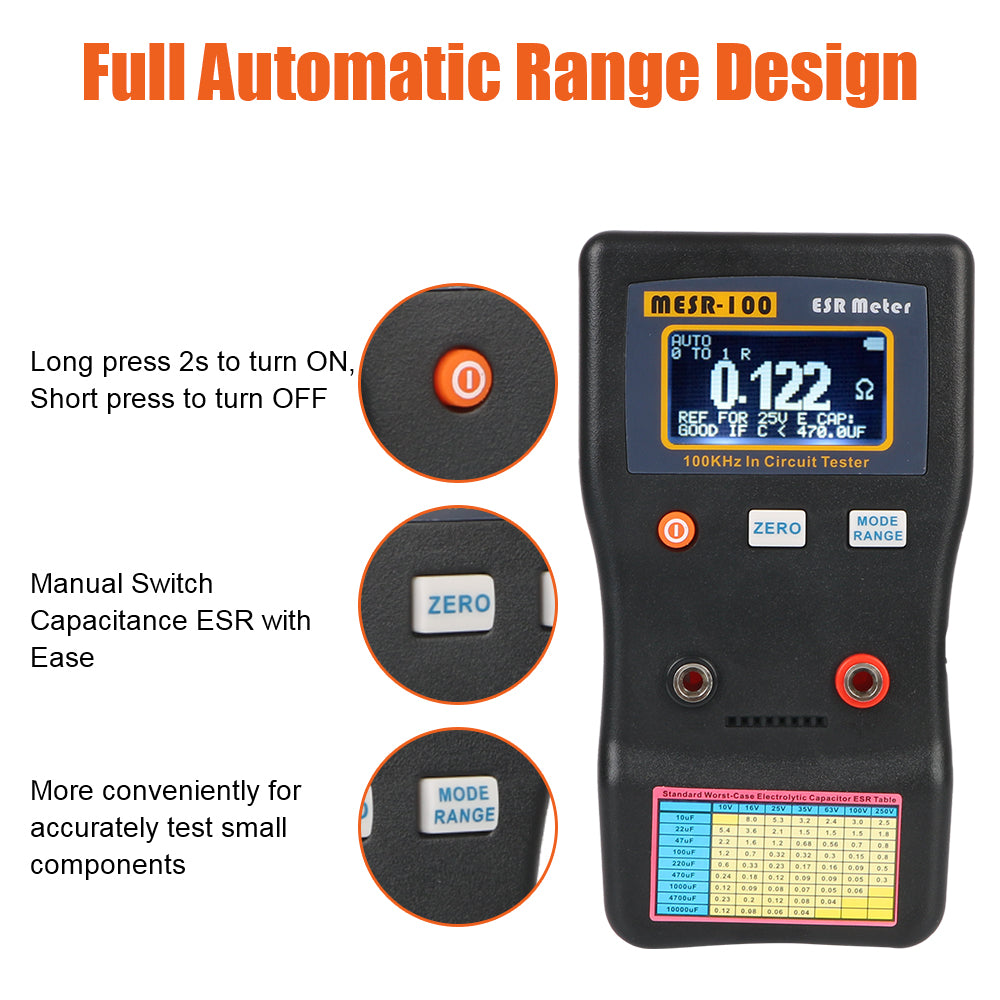

Tested with 1,10,100R Auto mode take 0 to 2s, Test need more time depends on capacitance value (As below):
0.000 to 1.000R 1%+2Digit ～0.4s
1.000 to 10.00R 1%+1Digit ～0.4s
10.00 to 100.0R 2%+1Digit ～0.4s
Accuracy: Up to 1% (detail on above table)
Wide Measurement Range: >1uF
High Resolution: 4 digit, or 0.001Ohm @ 1 Ω range
Measuring voltage: <～40mV RMS (TESTING VOLTAGE)
External Power: 5V micro USB
Operating Current: 0.02A
Battery: 2 * AA 1.5V Battery (NOT included)
Battery Life time: >80 Hours
Package Included:
1 x Capacitor Tester

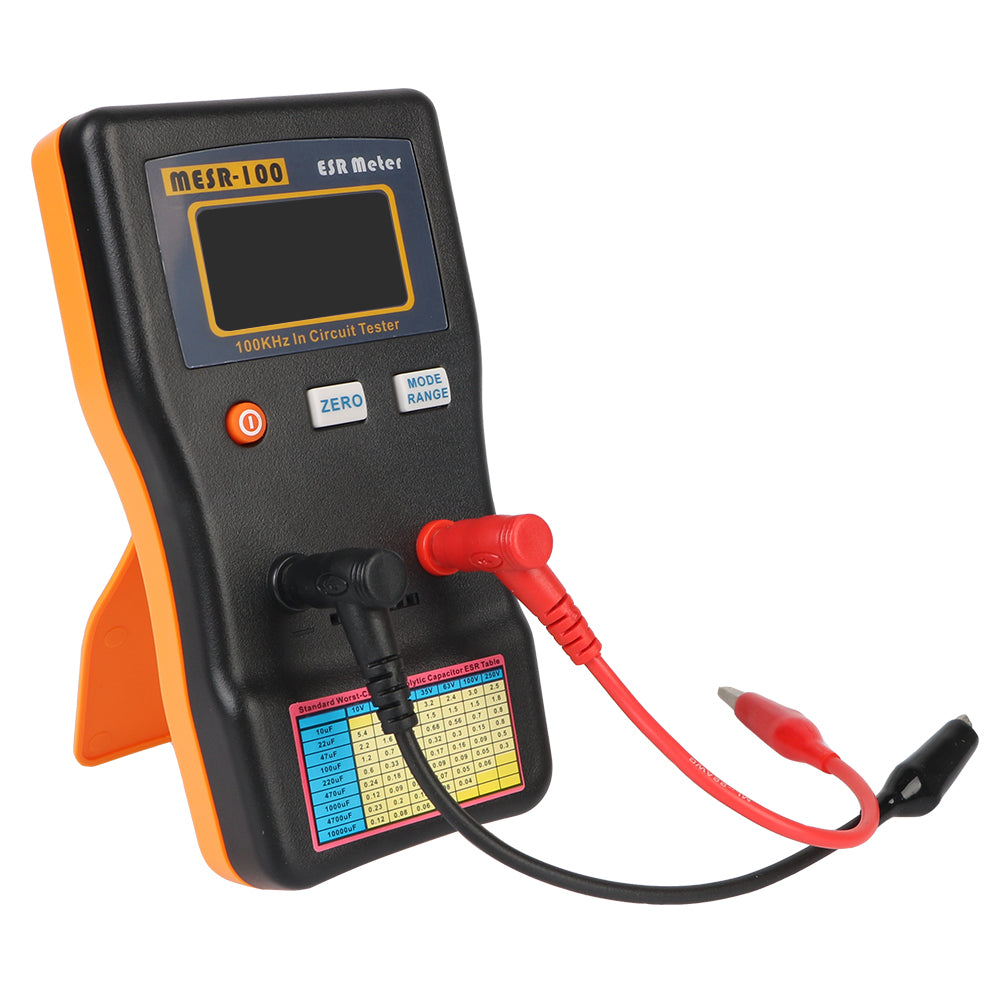

2 x Test Clips
1 x User Manual
