Specifications

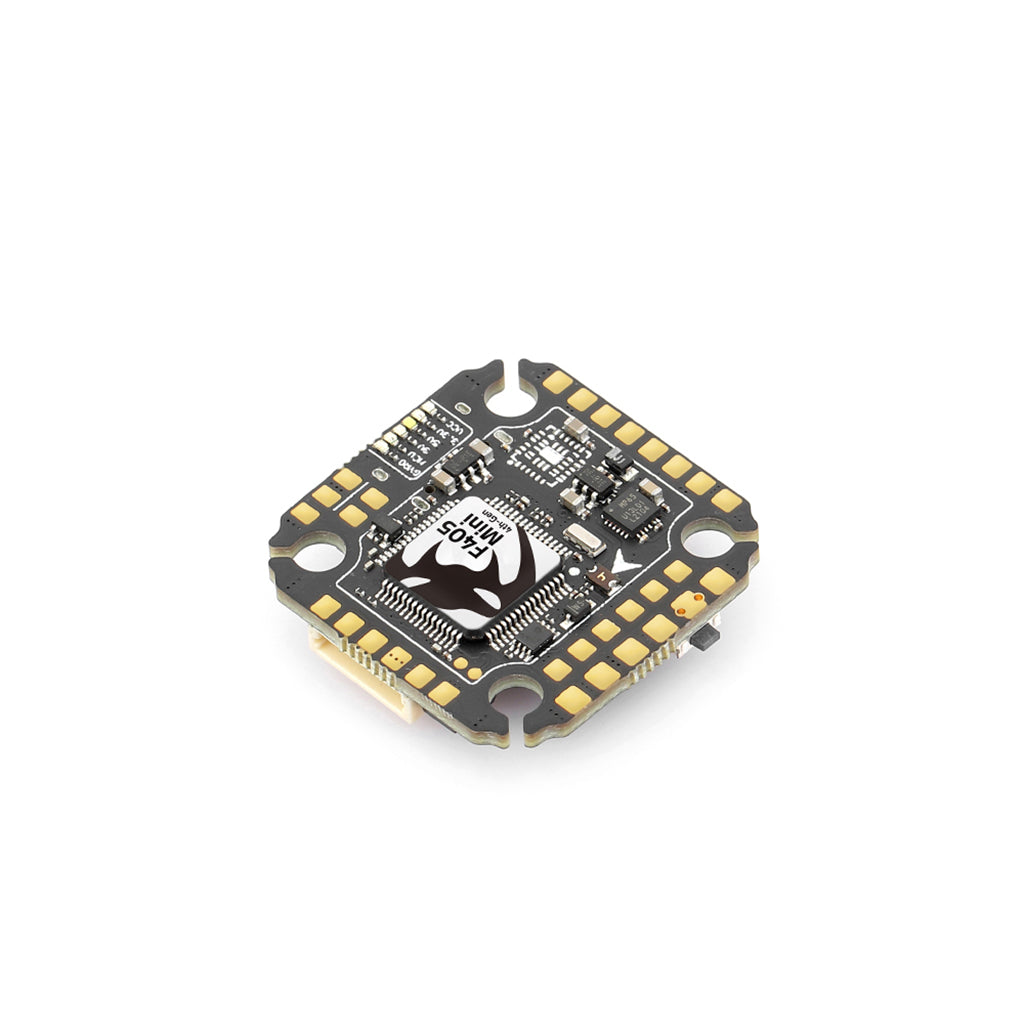

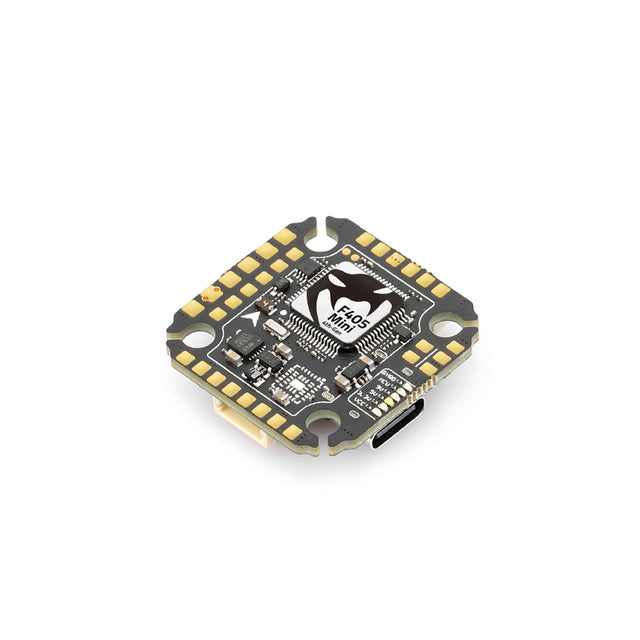

MAMBA MK4 F405MINI
MCU: 168MHz STM32F405
GYRO: MPU6500
OSD: Yes
Blacbox: 16M Flash Memory
Barometer: SPL06
Uarts: 6Set
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 6 Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED
AIR UNIT Port: Yes
WIFI: No
VTX Switch: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2.5A& 9V 2A
Input: 3~6S Lipo (12.6~25.2V)
Mounting size: 20mm,M2/M3
ESC Specifications
MAMBA F30 MINI
Input voltage: 3~5S Lipo (12.6V~21V)
Continue current: 30A×4
Burst current: 40A (10S)
BEC: No
Target:BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
Mounting size: 20mm,M2
MAMBA F40_BLS MINI
Input voltage: 3~6S Lipo (12.6V~25.2V)
Continue current: 40A×4
Burst current: 45A (10S)
BEC: No
Target:BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
Mounting size: 20mm,M2
Supply :
High Frequency 470uF/35V ×1
8pin sh1.0 ×2
AIR UNIT sh1.0 ×2
18AWG 60mm ×2
AMASS Original XT30
MK4 F405 MINI F40 Stack Included:
1x MAMBA MK4 F405MINI FC
1x MAMBA F40 MINI ESC
1x High frequency capacitor 470uF/35V
2x 8pin sh1.0
2x AIR UNIT sh1.0
2x 16AWG 60mm
1x AMASS Original XT60
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
