Features:

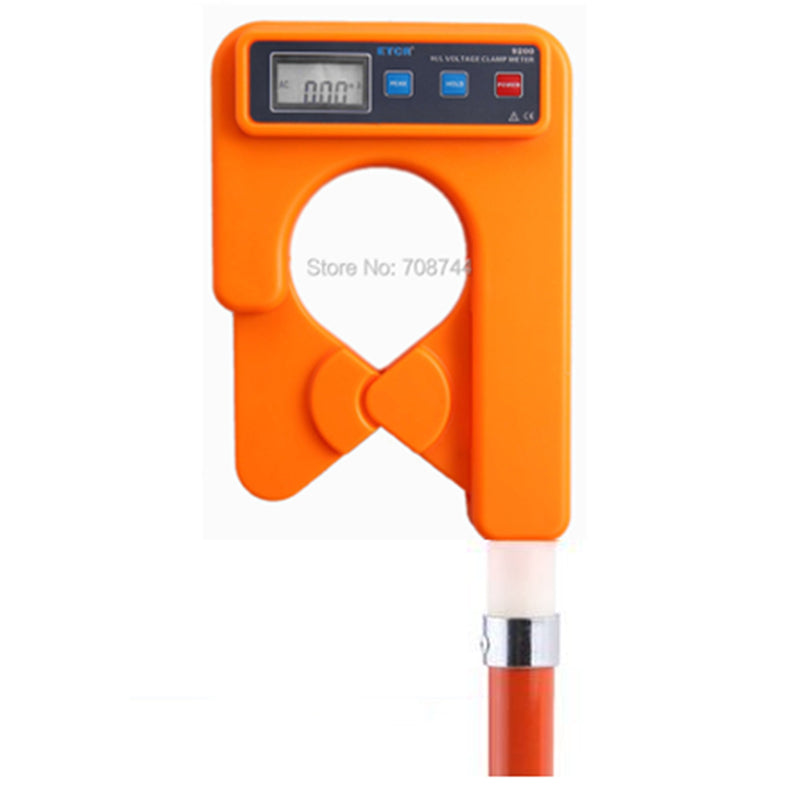

ETCR9200 H/L Voltage Clamp Current Meter has broken through the traditional structure, which is specially well-designed for measuring high voltage current, adopt latest CT technology and integrated mask digital technology, composed of special clamp current meter and high voltage insulation rods. Without insulation rods, it can used as high-precision low-voltage clamp meter and leakage current meter, can accurately measure the current or leakage current of 0.01mA.

Specifications:

      Function

            H-voltage AC current measure, L-voltage AC / leakage current measure

         AC current monitor online

       Power Supply

   DC6V Alkaline Dry Battery ( 1.5V AAA X 4 ) ( Not included package )

       Test Method

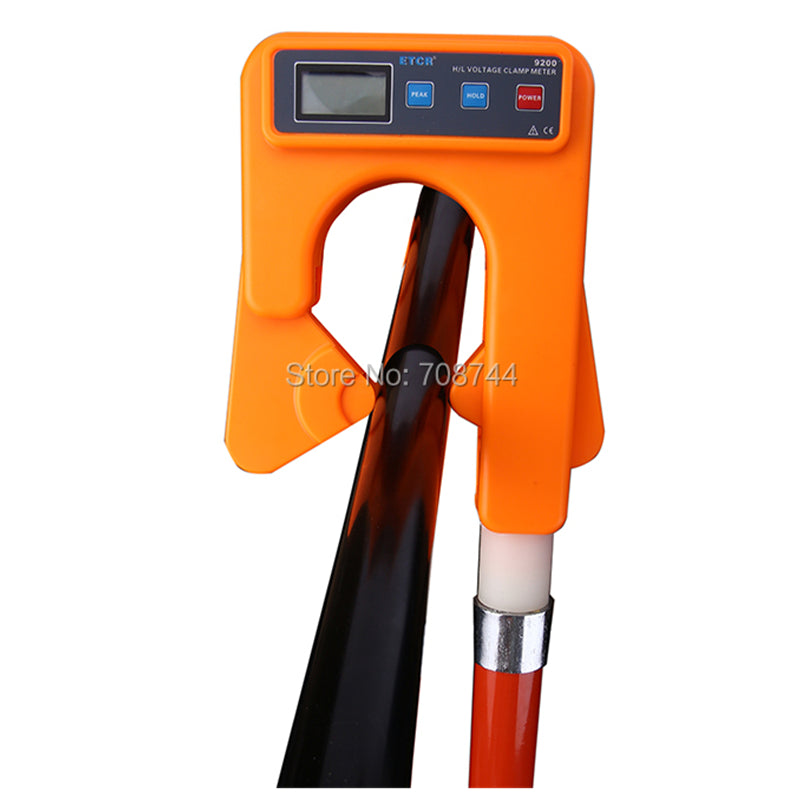

   Clamp CT, Integral Method; hook the meter on the line to test, save the physical power of user

       Clamp Diameter

   Φ68mm

       Range of measurement

   0.00mA~1000A(50Hz/60Hz Automatic)

       Resolution

   0.01mA

       Shift

   0.00mA~1000A Automatic Shift

       Test Accuracy (23℃±5℃,≤80% RH)

   0.00mA~299mA: ±1%±3dgt

       0.30A~49.9A: ±1.5%±5dgt

       50.0A~199.9A: ±2%±5dgt

       200A~600A: ±3%±5dgt

       601A~1000A: ±4%±5dgt

       Display Mode

   4 digital LCD display

       LCD Dimension

   Tester: LCD: 35mm×21.5mm

       Meter Dimension

   Tester: 218mm×135mm×60mm

       Sampling Speed

   About 2 times/second

       Data Storage

   99 Groups, during storage, the symbol “MEM” gives indication, “ FULL” mark will flash to indicate the memory has been full

       PEAk Maintenance

   Automatically maintain the height of the test value, usually in the test mode pressPEAK, LCD top right corner will display “ PE ” , that is, to keep open the PEAK function, then press PEAK key to cancel this function key

       Circuit Voltage

            Test insulating sheath wires ( ≤60kV ) and bare wire t ( ≤35kV )

          ( operated with insulation rod )

       Data Preservation

   Under general test mode, press HOLD button to preserve data, “ DH ” symbol display. then press HOLD Key to cancel this function

       Data Access

   “ MR ” symbol indicates, it can read the stored data by turning upwards and downwards

       Overflow Display

   Exceed measurement range overflow function: “ OL A ” symbol display

       Auto Shut Down

   About 15 minutes after booting, the meter will shut down automatically, in order to decrease the battery consumption.

       Battery Voltage

   When the battery voltage is below 4.8V, the symbol of battery voltage will show to remind to replace battery

       Weight

            Tester: About 620g ( Including battery )

         Total quality of meter: about 2.3kg ( including insulation rod and battery )

       Work Temperature and Humidity

   -10℃ ~ 40℃; ≤80%Rh

       Storage Temperature and Humidity

   -10℃ ~ 60℃; ≤70%Rh

       interference

   No same frequency interference of 315MHz and 433MHz

       Insulated Rod Dimension

   Φ32mm, 1m / Section ( 5 Sections )

       Insulation Intension

            Tester: AC 2kV / rms ( Between core and shell )

         Insulating rod: AC 100kV / rms ( 5 sections insulating rod all connections, between both ends )

       Structure

   Anti - Dripping Type II

       accessories

   Tester: 1set; meter box: 1 pcs; Insulating rod ( 1m ) : 5 sections
