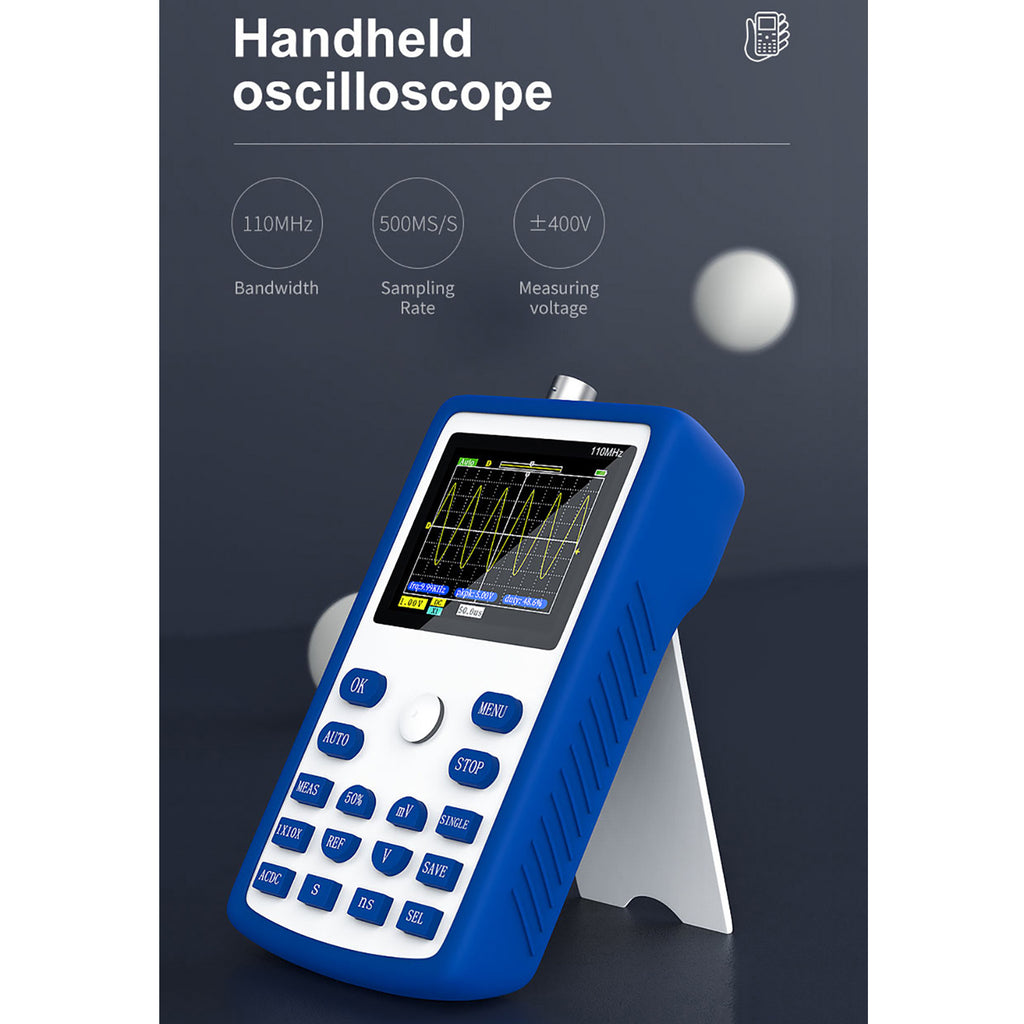

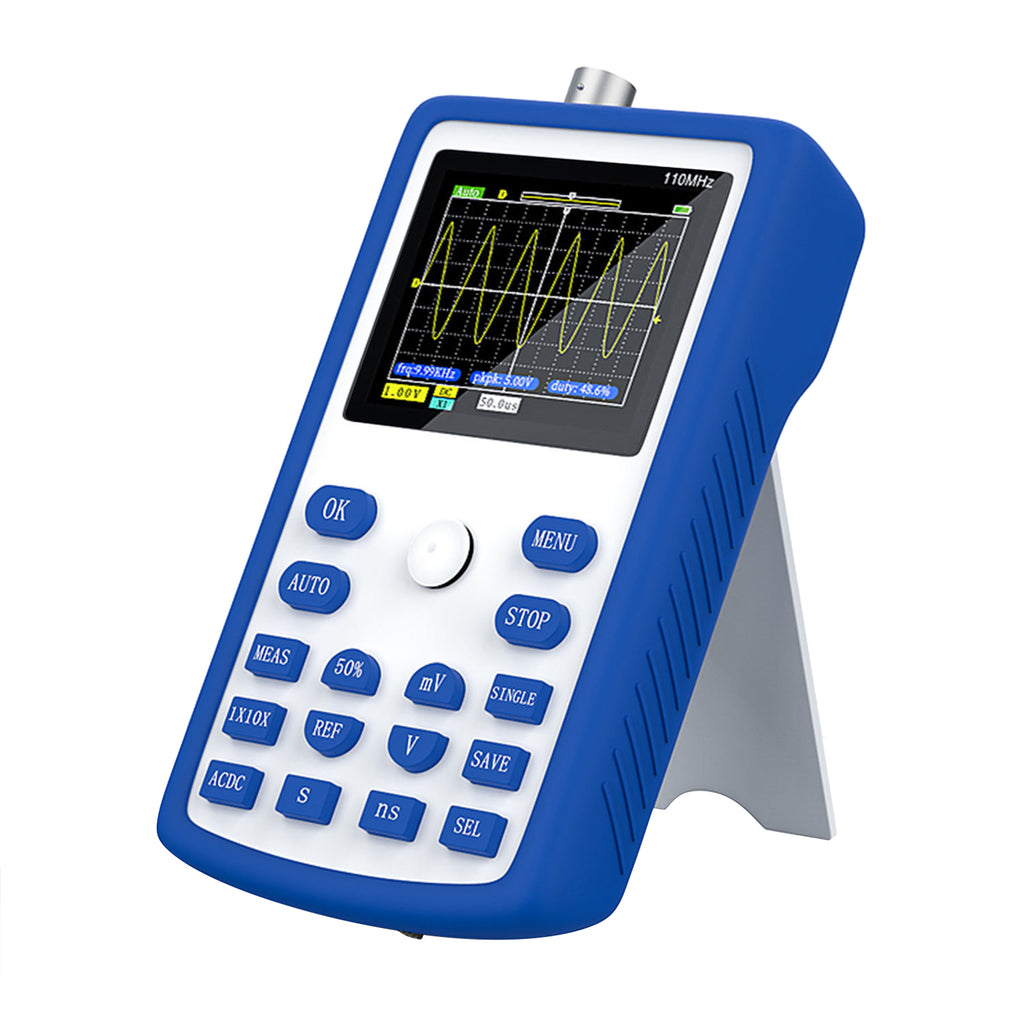

Features:
500M sampling rate, 110MHz bandwidth. 20mV/ div-100V/ div vertical sensitivity.
Color display with 320 * 240 resolution, exquisite and smooth lines make the waveforms clear.
Premium silicone protective cover with fine touch feeling, favorable impact resistance.
Handheld design convenient to use, with foldable back bracket to place on the table if needed.
Built-in 3000mAh rechargeable battery, long working time, get rid of cable annoyance.
Equipped with storage bag, easy to keep the items organized and carry around.
Specifications:
Material: ABS + silicone
Color: Blue
Number of Channels: 1
Screen Size: 2.4 inches
Screen Resolution: 320 * 240
Analog Bandwidth: 110M
Sampling Rate: 500M
Waveform Measurement: 14 types
Storage Depth: 240 kpts
Time Base Range: 5ns-10s
Single Trigger: Stand by

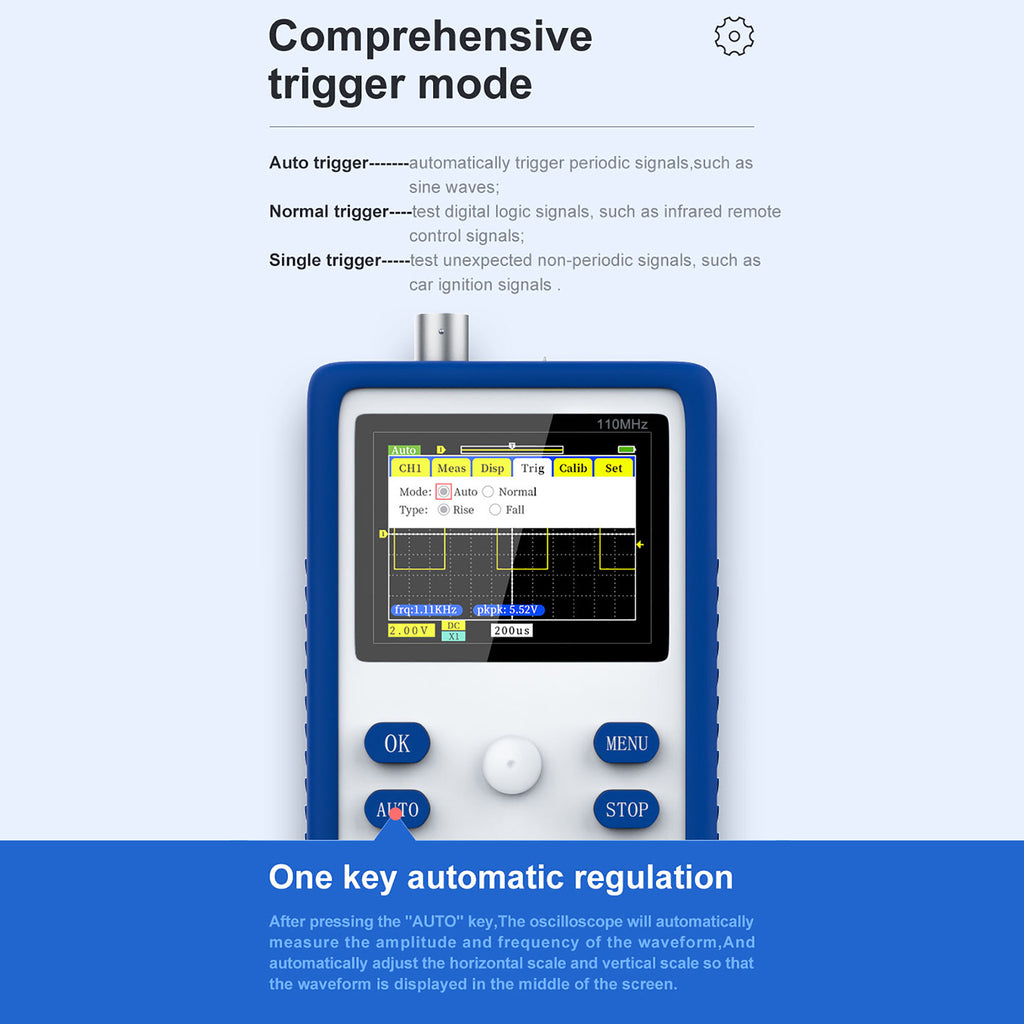

Trigger Mode: Auto/ Normal
Trigger Type: Rising edge/ Falling edge
Display Mode: YT/ scroll
Afterglow Time: None/ 1s/ ∞
Vertical Sensitivity: 20mV/ div-100V/ div
Voltage Measurement Range: ±40V (x1 gear); ±400V (x10 gear)
Channel Coupling: AC/ DC
One-button Automatic: Stand by
Rise Time: <3ns
Measurement Accuracy: ±2%
Reference waveform: Stand by
Waveform Save: Stand by
Frequency Accuracy: ±0.01%
Input Resistance: 1MΩ
Charging Method: 5V/ 800mA
50% Back in: Stand by
Operation Method: Button + Joystick
Waveform Analysis: Stand by
Language: Chinese/ English
Battery Capacity: 3000mAh
Item Size: 76 * 27 * 130mm / 3.0 * 1.1 * 5.1in
Item Weight: 206g / 7.3oz
Package List:
1 * Oscilloscope
1 * High Voltage Probe
1 * BNC Clip Probe
1 * USB Cable
1 * Charger
1 * Manual
