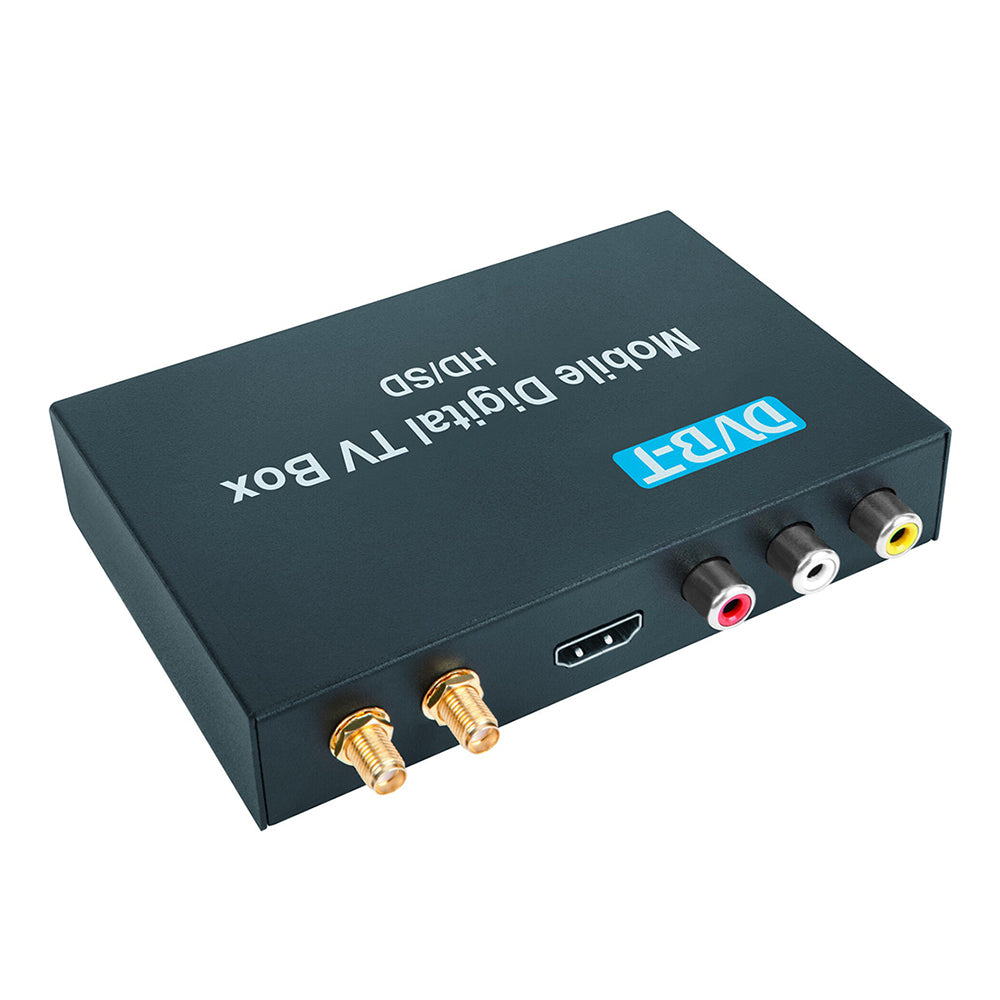

Description: CARMobile HD DVB-T Receiver
Specification
RF Input:UHF:470MHz~862MHz
VHF:174MHz~230MHz
Input Impedance:75Ω
Signal Level:-80dBm~-10dBm
Connector Type:SMA type terminal×2
Channel Band Width:6M/7M/8M
Constellation:QPSK, 16QAM, 64QAM
Guard Interval:1/32, 1/16, 1/8, 1/4
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
COFDM Carrier Mode: 2K And 8K Non Hierarchical/Hierarchical
Transport Stream:MPEG-4AVC/H.264 HP@L4
MPEG-2 MP@HL/ML
Video Aspect Ratio:4:3/16:9
Video System: PAL/NTSC
Video Output:1±0.3Vpp
Video Resolution YPbPr Resolution:
720*576@25fps/720*480@30fps/HD
1920×1080p/1920×1080i
Audio Decoder:MPEG-2/HE_AAC(DD/DD +optional)
Audio Channel:R/L/ST
Audio Output:1Vpp 47Kohm Adjustable With E Volume

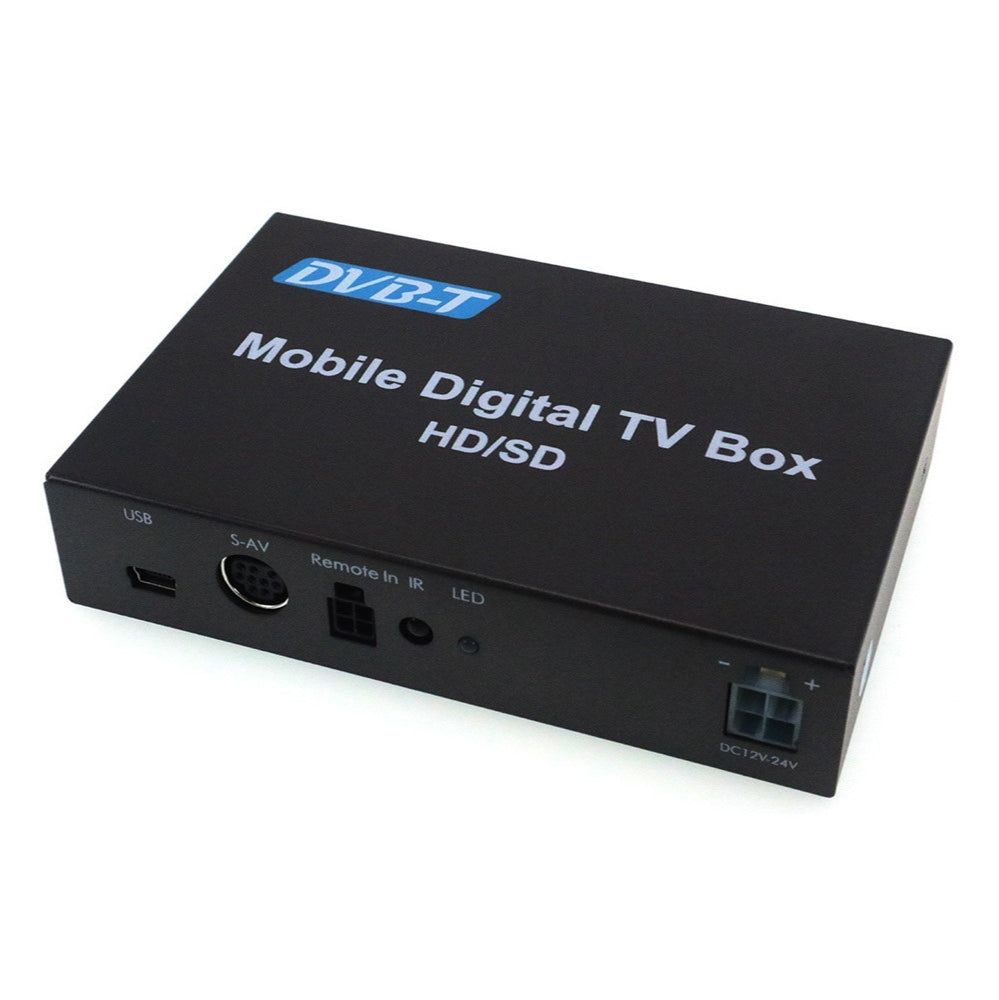

Power Cable And Jack: 4Pins:
1. DC+12~24V Input
2. ACC
3. GND
4.NC
IR Extension Jack:For IR Extension Box
A/V Output Jack: Video RCA Jack×1,Audiop RCA Jack(R/L) ×2
Upgrade and Multimedia Port:USB
S-AV connector :
Input Jack :Video RCA Jack×1, Audio RCA Jack (R/L)2
Ouput Jack: Video RCA Jack×2
ANT1,ANT2 Input Jack:Female SMA Type
Operating Temperatuer:-10℃~+50℃
Storage Temperatuer:-40℃~+65℃
Power Supply: DC+12V~24V±10%
Power Consumption: Running: 4.5W Max.
Standby: <0.85W.
Dimension:25(H)*118(L)*78(W)mm
