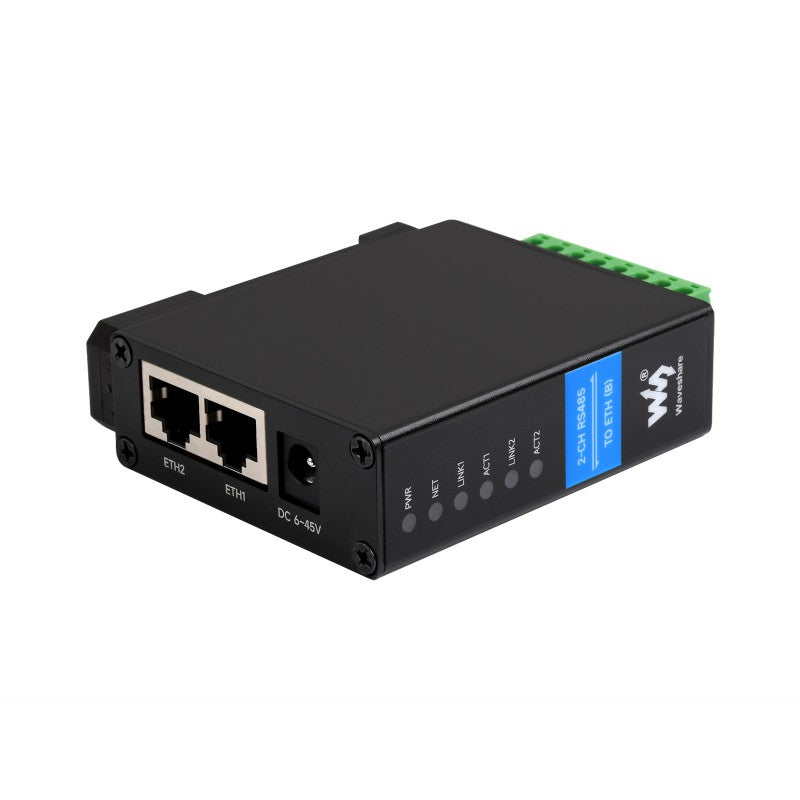

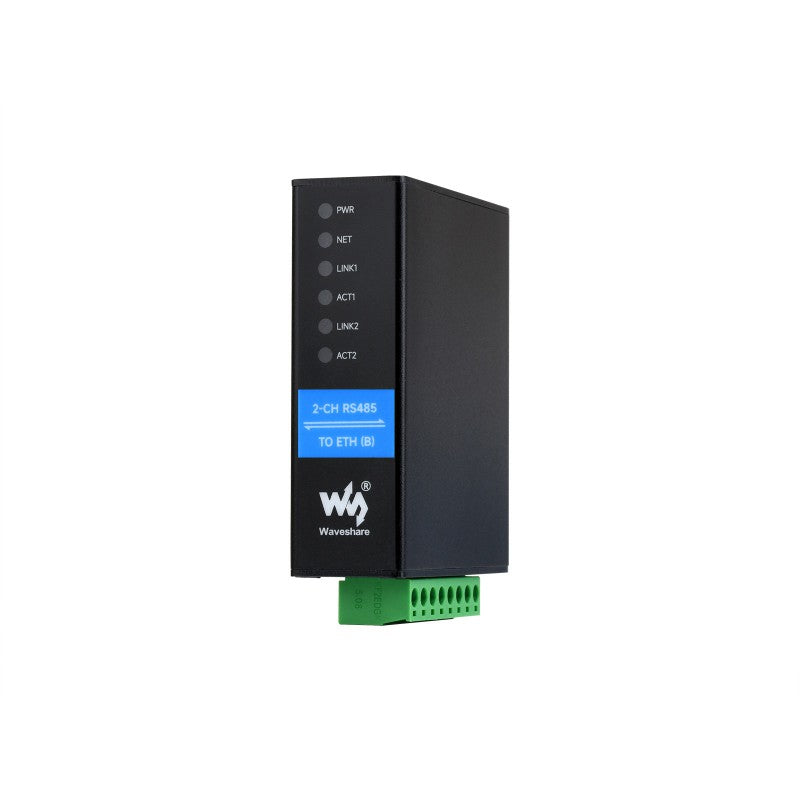

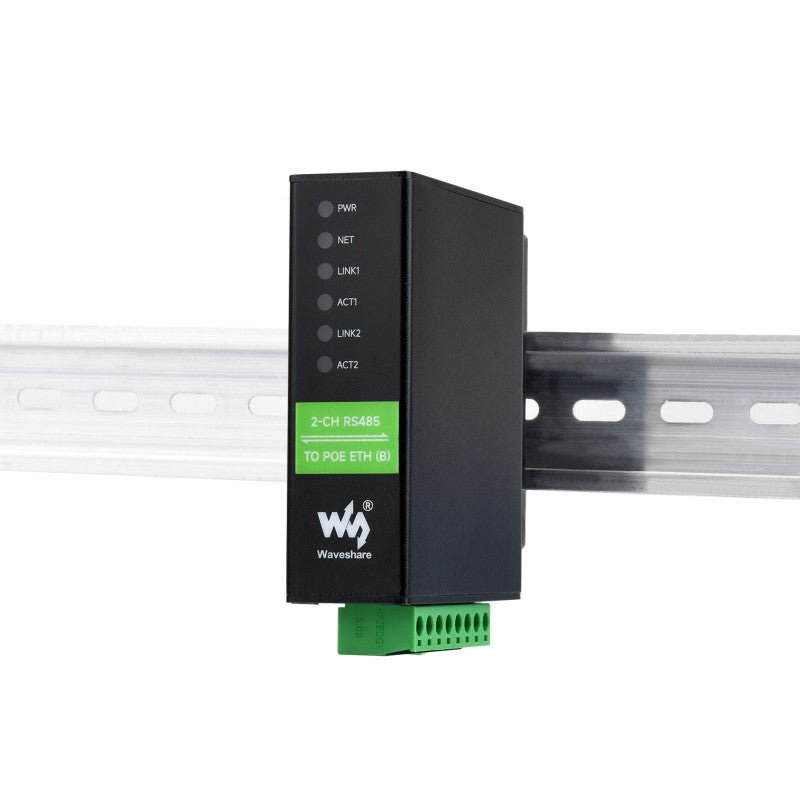

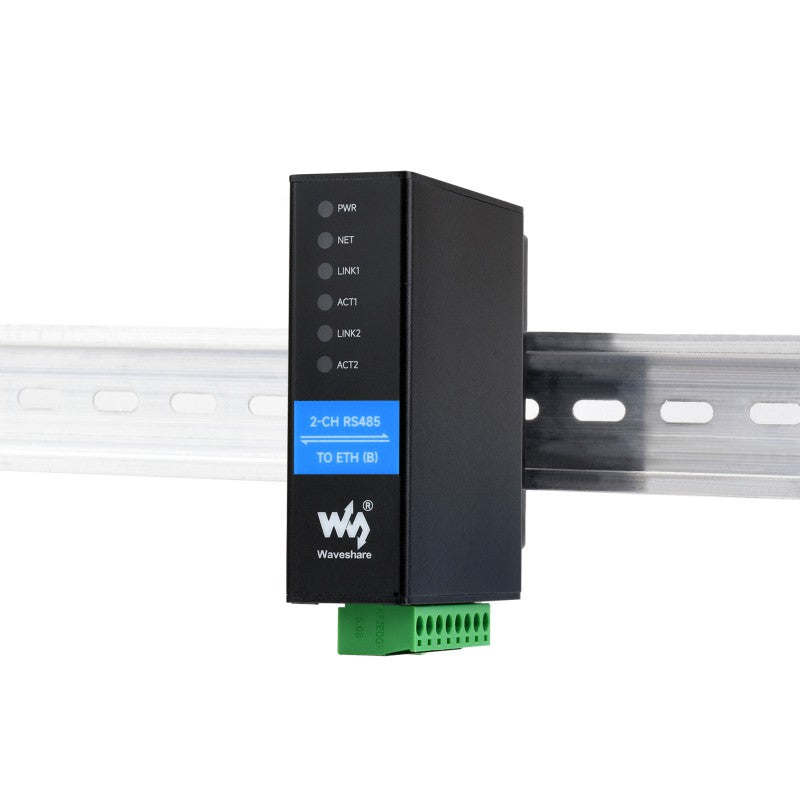

2-Ch RS485 To RJ45 Ethernet Serial Server, Dual Channels RS485 Independent Operation, Dual Ethernet Ports, Rail-Mount Industrial Isolated Serial Module, Bi-Directional Transparent Transmission.
Features At A Glance
|
|
2-CH RS485 TO ETH (B) |

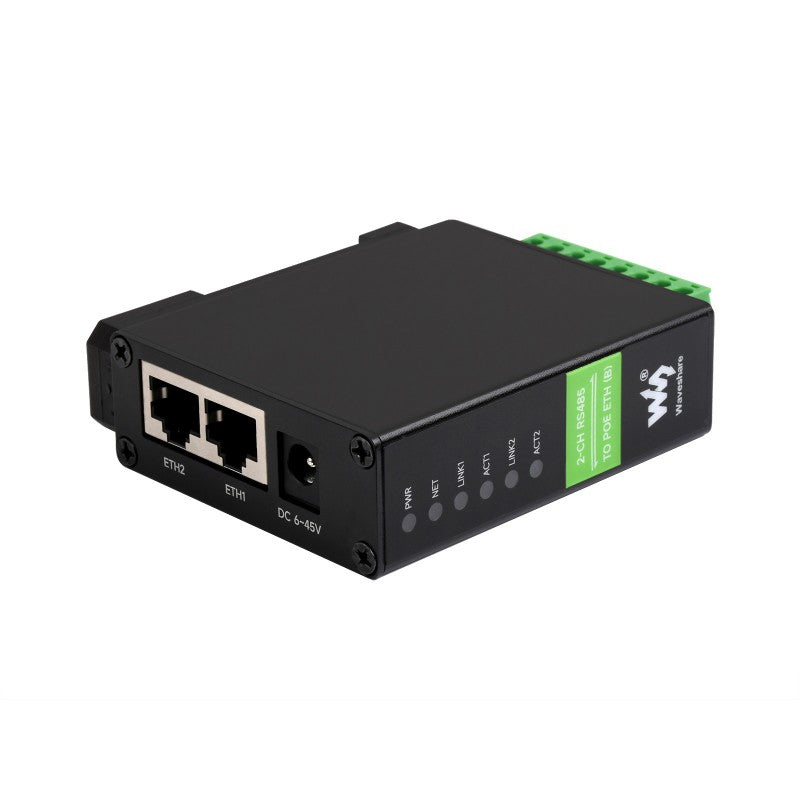

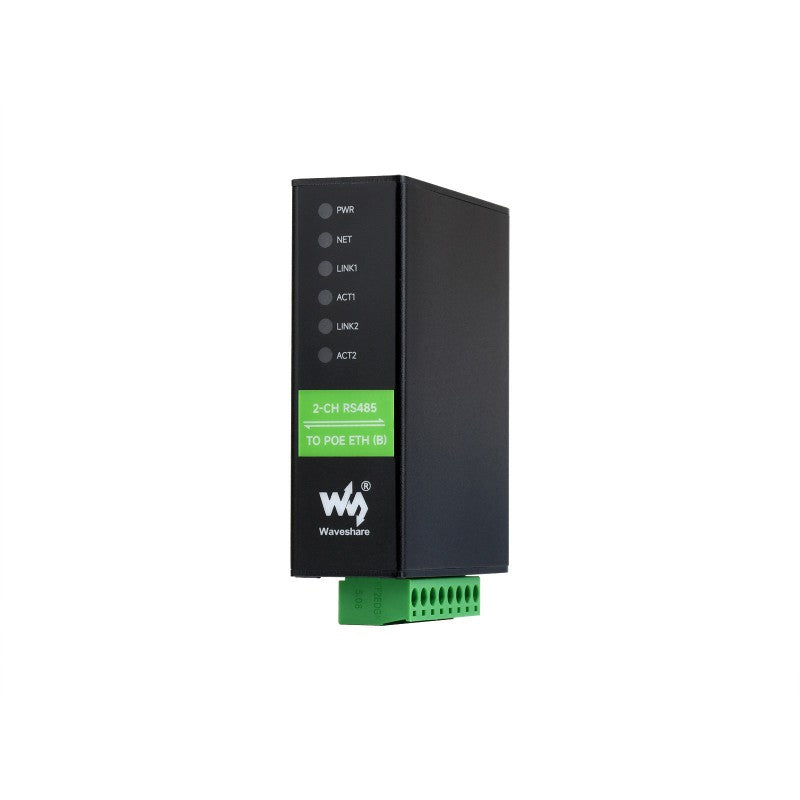

2-CH RS485 TO POE ETH (B) |
|
2-CH RS485 + Common network port + Electrical isolation |
2-CH RS485 + PoE network port + Electrical isolation |
|
|
Product Type |
Serial server, Modbus Gateway, MQTT Gateway |
|
|
Basic Function |
Bi-directional transparent data transmission between RS485 and Ethernet |
|
|
Communication interface |
RS485 port × 2, Ethernet port × 2 |
|
|
Power supply |
DC 5.5 power port, 6 ~ 45V DC screw terminal |
DC 5.5 power port, 6 ~ 45V DC screw terminal, or PoE port |
|
Isolation Protection |
Power isolation, Signal isolation |
|
|
COMMUNICATION |
||
|
Ethernet |
RJ45 |
RJ45 with PoE support, IEEE 802.3af compliant |
|
10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection |
||
|
Serial port |
Isolated RS485 (the 2 channels can receive and transmit independently at the same time) |
|
|
SERIAL SPECIFICATION |
||
|
Baudrate |
300 ~ 115200 bps |
|
|
Parity bit |
none, odd, even, mark, space |
|
|
Data bit |
5 ~ 9 bits |
|
|
Flow control |
N/A |
|
|
SOFTWARE |
||
|
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS |
|
|
Configuration |
host, web browser, device management functions library |
|
|
Communication method |
TCP/IP direct communication, VCOM |
|
|
Operating mode |
TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast |
|
|
ENVIRONMENT REQUIREMENT |
||
|
Operating temperature |
-40℃ ~ 85℃ |
|
|
Humidity range |
5% ~ 95% relative humidity |
|
|
Dimensions |
L × W × H: 78.0 × 72.5 × 24.2 mm |
|
