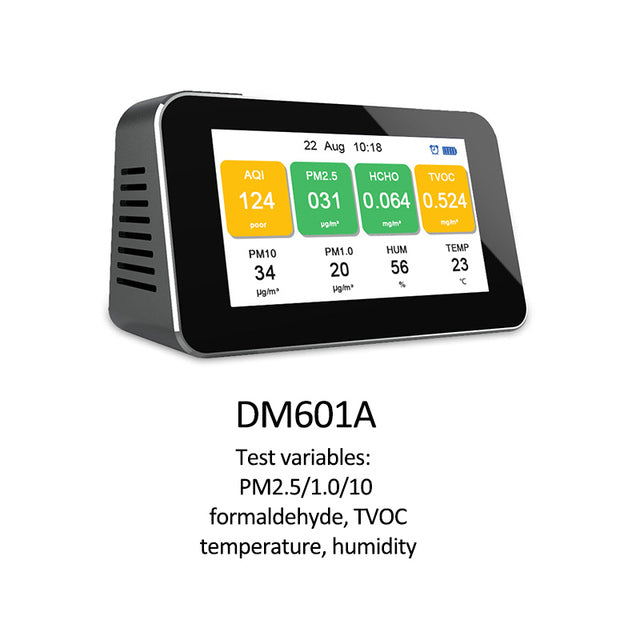

DM601 LCD Screen Air Quality Detector PM2.5 PM1.0 PM10 CO2 TVOC Particle Detectors Temperature Humidity Monitor

 Model:DM601A

 Product Description

 This product is a multifunctional air quality detector that detects Formaldehyde (HCHO), Total Volatile Organic Compounds (TVOC), Particulate Matter <2.5 micron-sized particles (PM2.5/1.0/10), Temperature, and Humidity with clock and record function. As a scientific air quality detection device, it combines multiple air sensors with a built-in fan to allow real-time monitoring of formaldehyde (HCHO), total volatile organic compounds (TVOC), PM2.5/1.0/10, temperature, and humidity on its digital LCD display.

 Product Specifications

 Display method: 4.3 INCH LCD screen display,320 x 240 pixels

 Atmospheric pressure:86Kpa - 106Kpa

 Detectionmethod for PM:laser scattering

 Sampling time:1.5 seconds

 Detection temperature: -10°C to 50°C; 14°F to 122°F

 Relativehumidity:20% - 85%

 Storage temperature:-10°C to 60°C; 14°F to 140°F

 Concentration unit for HCHO and TVOC:mg/m³

 Powersource:Lithium battery with 3000 mAh capacity; 5V DC power charging via micro USB port

 Product weight: 580g

 Material:ABS + LCD Screen

 Function 1:measure HCHO

 Function 2:measure PM2.5 PM10 PM1.0

 Function 3:measure TVOC

 Function 4:Temperature Humidity

 Function 5:Dispaly Air quality Index ( AQI)

 PM2.5 Detection range:0-999 ug/M3

 HCHO Detection range:(0.001-1.999Mg/M³)

 TVOC Detection rang :0.001-9.999Mg/M3

 Power Supplyrechargeable Battery 3000MAH

 including USB Charge cable

 Product name:AlarmClock HCHOAir quality Monitor

   Application:Bedroom, Living room, Car, Office etc indoors

 Measure : HCHO /PM2.5 /PM10 /PM1.0 /TVOC /AlarmClock /Temperature /Humidity /Date Time /AQI

 Product size:131*78*67.5MM

   Model:DM601

 Features:

 You can use it in your home, outsdoor, in your car and wherever you want.

 With a variety of functions, you can meet a variety of detection needs.

 Independent sensors, such as carbon dioxide sensor, dust laser sensor, TVOC sensor, temperature and humidity sensor, make the detection results more accurate and professional.

 History records,you can compare the data and see the change.

 Detection range: AQI(0-500), PM2.5 (0-999ug/M³), CO2( 0-5000ppm), TVOC(0.001-9.999Mg/M³)

 ARM processor, fast computing speed, more accurate detection results.

 It can detect PM2.5 PM1.0 PM10 CO2 TVOC Temperature Humidity.

 Specifications:

 Material: Metal

 Color: Black

 Battery: 1 * lithium battery, 3000mAh (included)

 Charging method: DC5V Micro USB

 Display method: 4.3in LCD screen display

 Atmospheric pressure: 86Kpa-106Kpa

 Sensor for CO2: infrared (NDIR)

 Detection method for PM: laser scattering

 Sampling time: 1.5 seconds

 Detection temperature: -10°C~50°C

 Relative humidity: 20%~85%

 Storage temperature: -10°C~60°C

 Concentration unit for CO2 : PPM

 Concentration unit for PM: ug/m³

 Concentration unit for TVOC: mg/m³

 Item size: 131 * 78 * 67.5mm / 5.2 * 3.1 * 2.7in

 Item weight: 345g / 12.2ounce

 Package size: 173 *153 * 90mm / 6.8 * 6.0 * 3.5in

 Package weight: 590g / 1.3lb

 Packing List:

 1 * Air Quality Detector

 1 * USB Cable

 1 * User Manual
