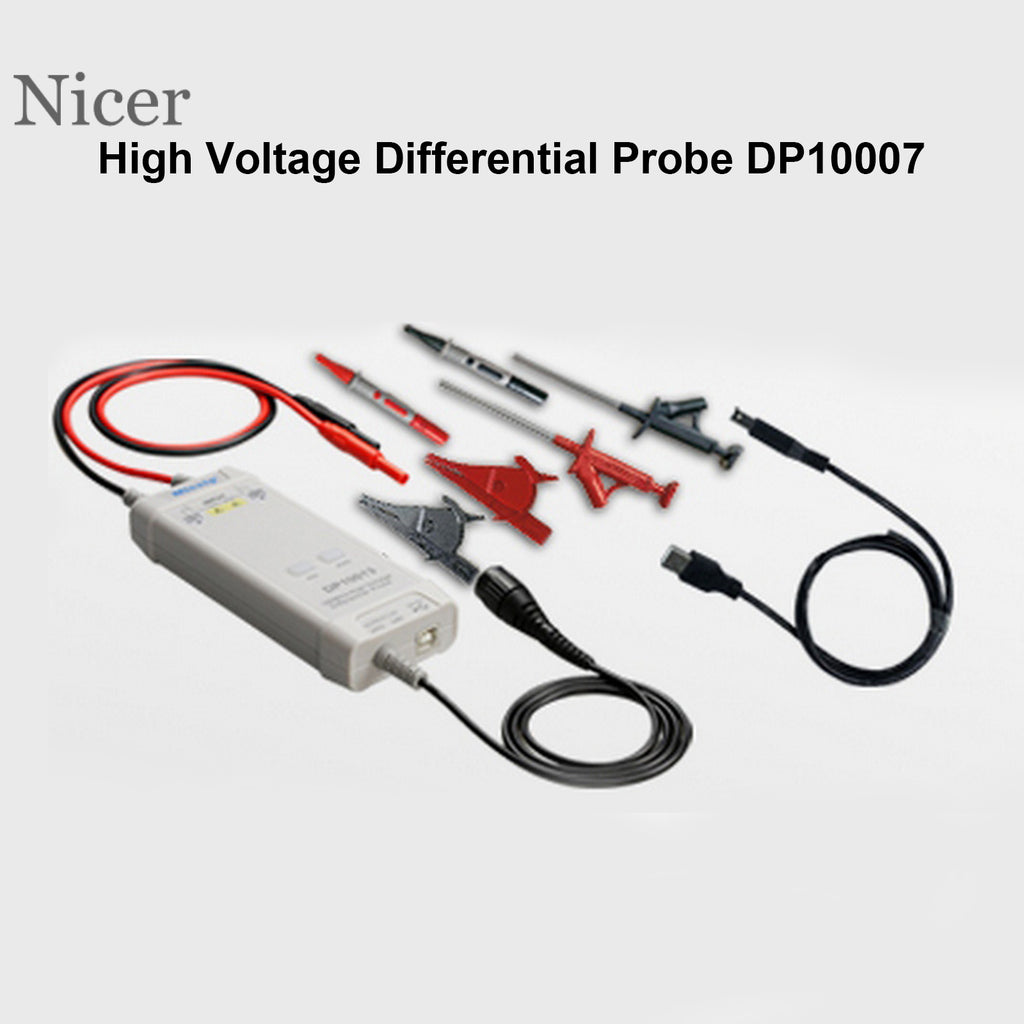

DP10007 Oscilloscope High Voltage Differential Probe 700V 100MHz Probe Clip Kit 3.5ns Rise Time 10X/100X Attenuation Rate
☞PROFESSIONAL DP SERIES: The DP10007 maximum differential test voltage( DC + Peak AC) up to 700V, it will be a great helper for your measuring project.
☞PORTABLE: With portable and simple design, you can take the DP10007 to work anywhere with the small package box. Power supply USB DC 5V output, more portable while oscilloscope has USB interface.
☞APPLICATION: Designed for the measurement of high voltage differential signal, to meet the demand for floating measurement.
☞PRECISE SIGNAL: With stable physical properties and high quality plug-in cards, you will get a accurate signal. But please note that a calibration is needed when a substantial change in temperature or other circumstances affect the accuracy of the probe's zero point. You can short the input terminals of the probe, then power the probe while simultaneously pressing the 10X and 100X keys for 3 seconds.
☞WIDELY USED: The attenuation rate is 10X/100X, widely used in any brand of oscilloscope.

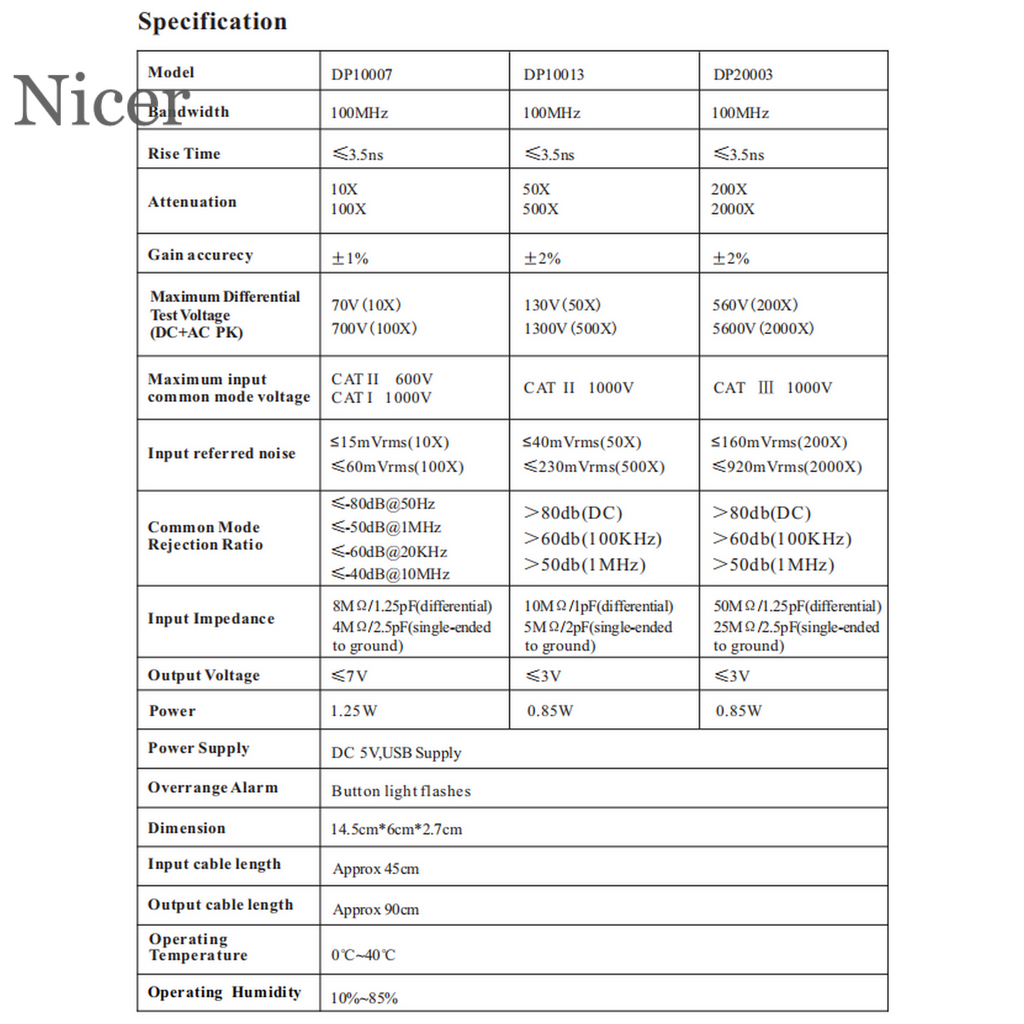

Accuracy: ±1%
Max differential test voltage (DC+AC PK-PK): 70V (10X); 700V (100X)
Max input common mode voltage: 1000V CATI / 600V CATII
CMRR: ≤-80dB @ 50Hz; ≤-50dB @ 1MHz; ≤-60dB @ 20KHz; ≤-40dB @ 10MHz
Input impedance: 8MΩ/1.25pF (differential); 4MΩ/2.5pF (Single-ended to ground)
Output voltage: ≤7V
Over range alarm: Button light flashes
Power supply: DC 5V, USB supply
Power: 1.25 W
Operating Humidity: 10–85%RH
Storage Humidity: 5–90% RH
Operating Temperature: 32-104℉(0-40℃)
Dimensions: 5.71 x 2.36 x 1.06 inches(14.5 x 6 x 2.7cm)

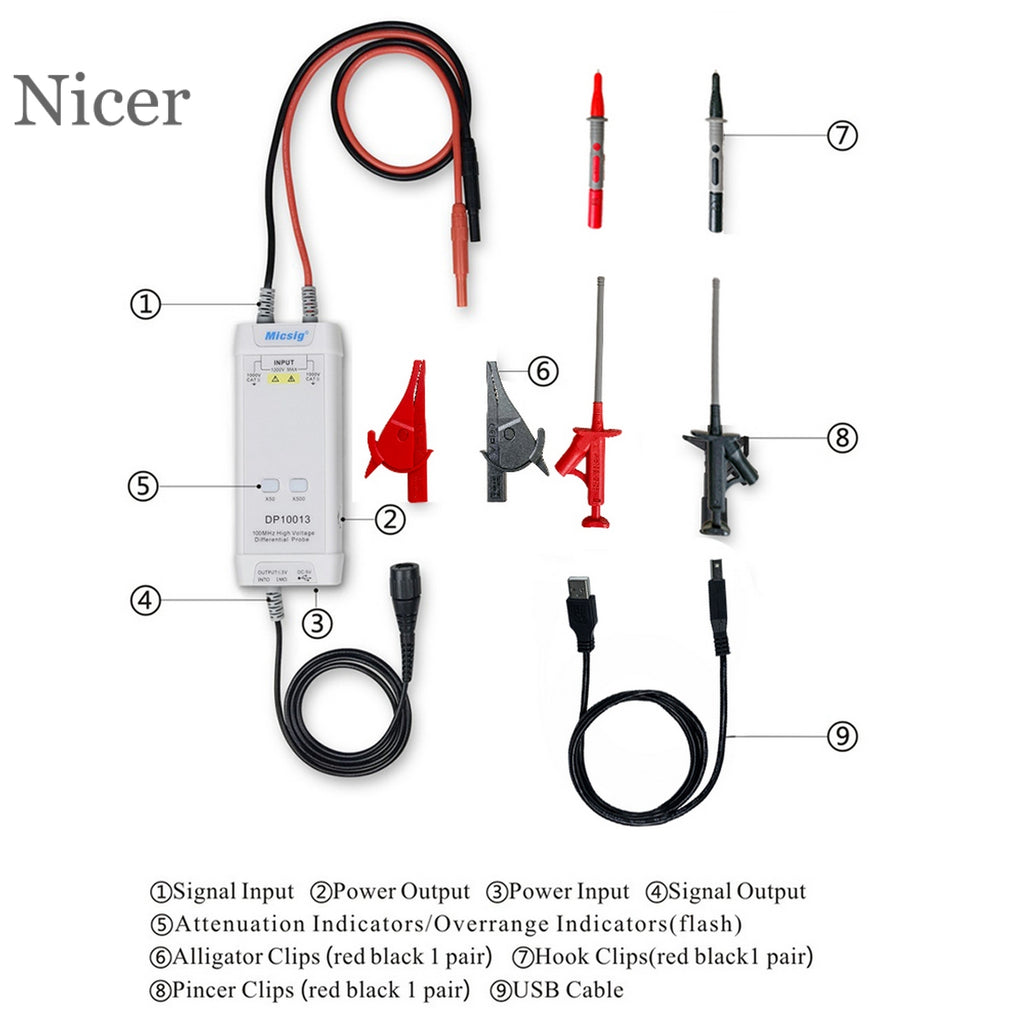

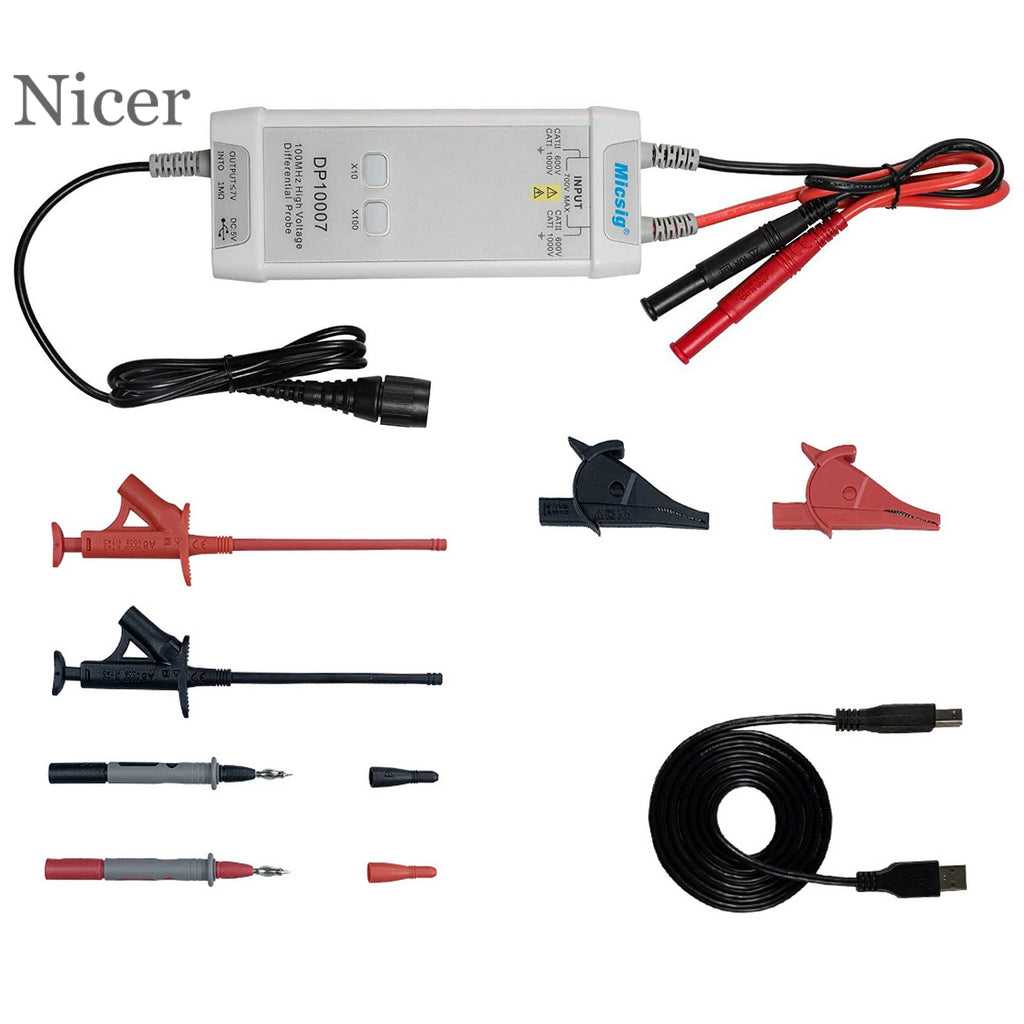

1x Power Supply
1x USB power cable
2x hook clips, in red and black pairs
2x alligator clips, in red and black pairs
2x pincer clips, in red and black pairs
1x storage box
1x manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
