Features:

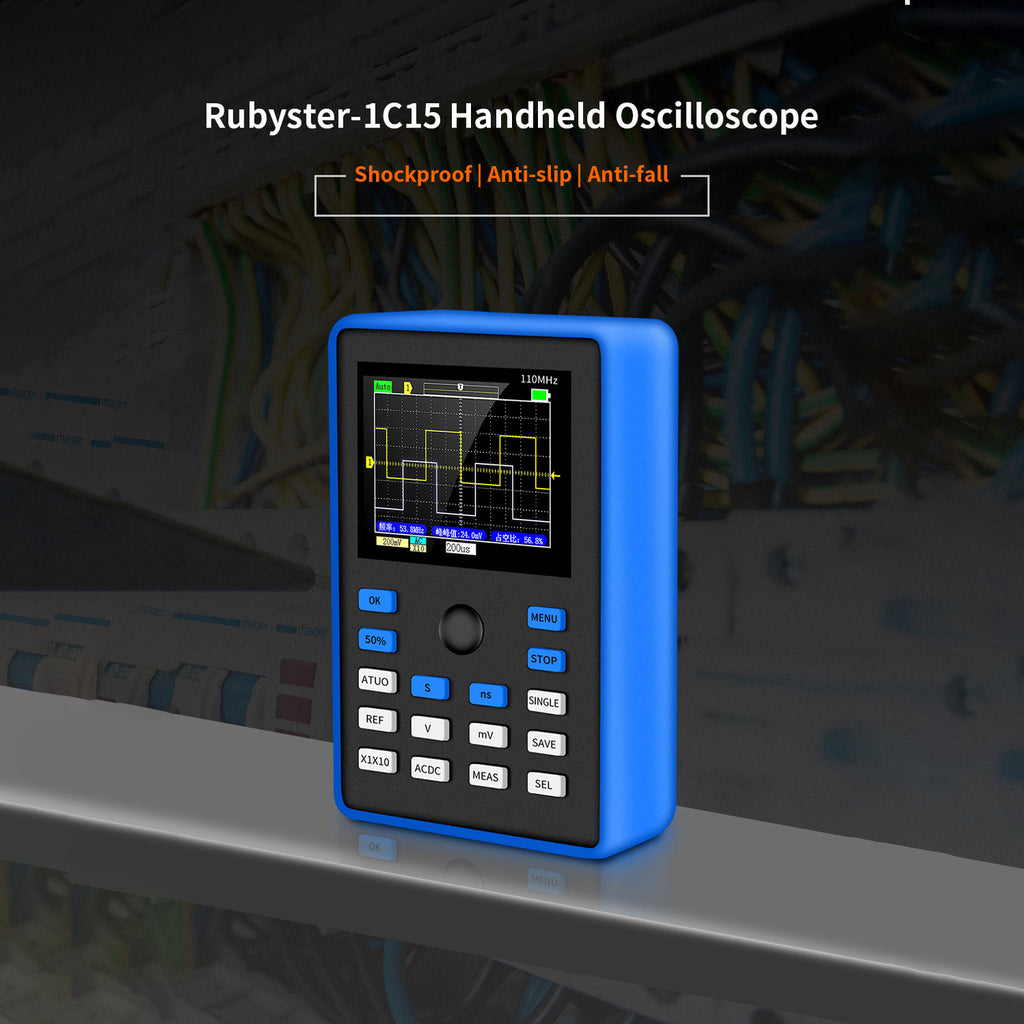

 It is a full-featured, practical, cost-effective handheld oscilloscope.

 500M real-time sampling rate, 110MHz analog bandwidth.

 In addition to all the functions of a conventional handheld oscilloscope, it has added a one-button fast auto function on this basis, so you can grasp the waveform as easily as a desktop computer.

 Fast waveform storage function, can store up to 81 pictures.

 Reference waveform, you can pause to save the previous frame waveform to the screen at any time, and you can compare it with the currently refreshed waveform.

 Afterglow and scroll modes make it easier to detect and record waveforms.

 Built-in 3000mAh rechargeable battery, can work continuously for more than 10 hours when fully charged.

 The body is equipped with a fine quality silicone sleeve, which is non-slip and anti-fall.

 The joystick replaces the previous direction button, which is simpler and more efficient to operate.

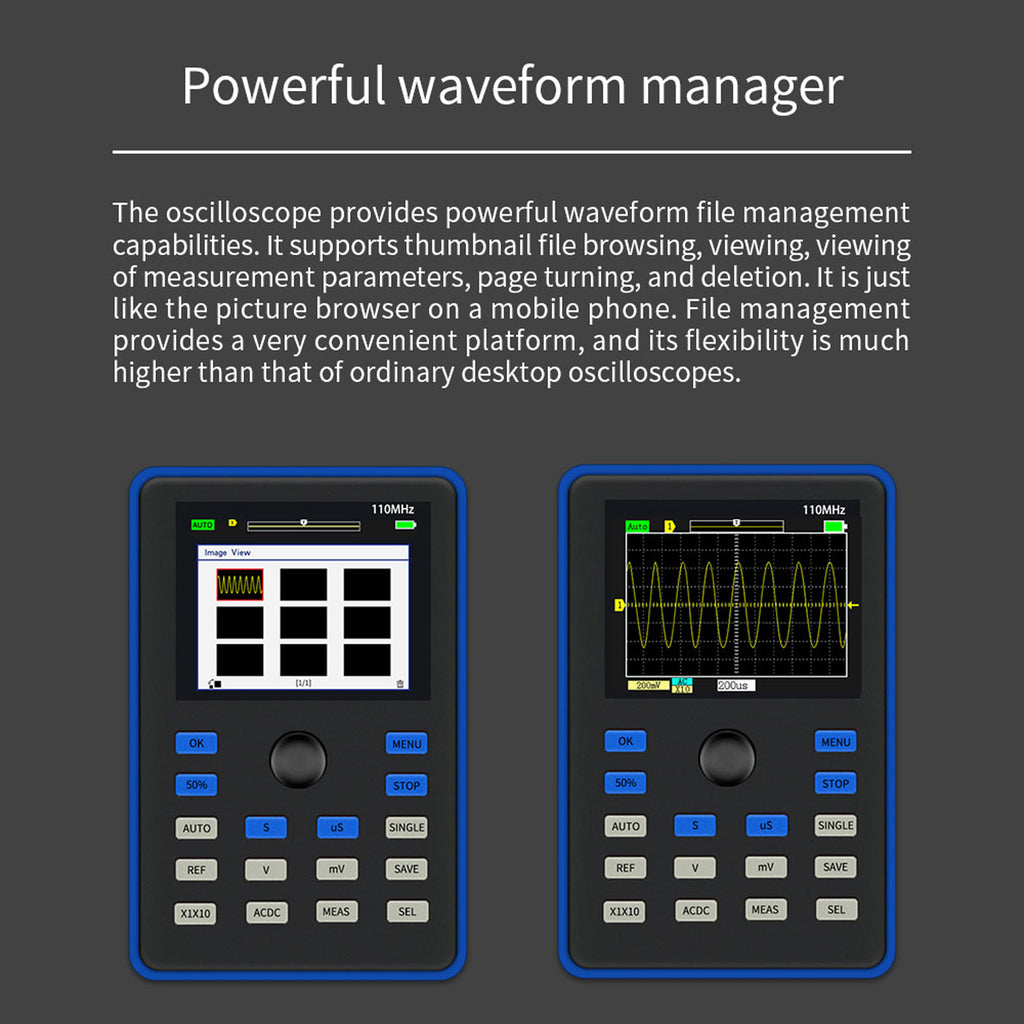

 The oscilloscope provides powerful waveform file management capabilities. It supports thumbnail file browsing, viewing, viewing of measurement parameters, page turning, and deletion. It is just like the picture browser on a mobile phone. File management provides a very convenient platform, and its flexibility is much higher than that of ordinary desktop oscilloscopes.

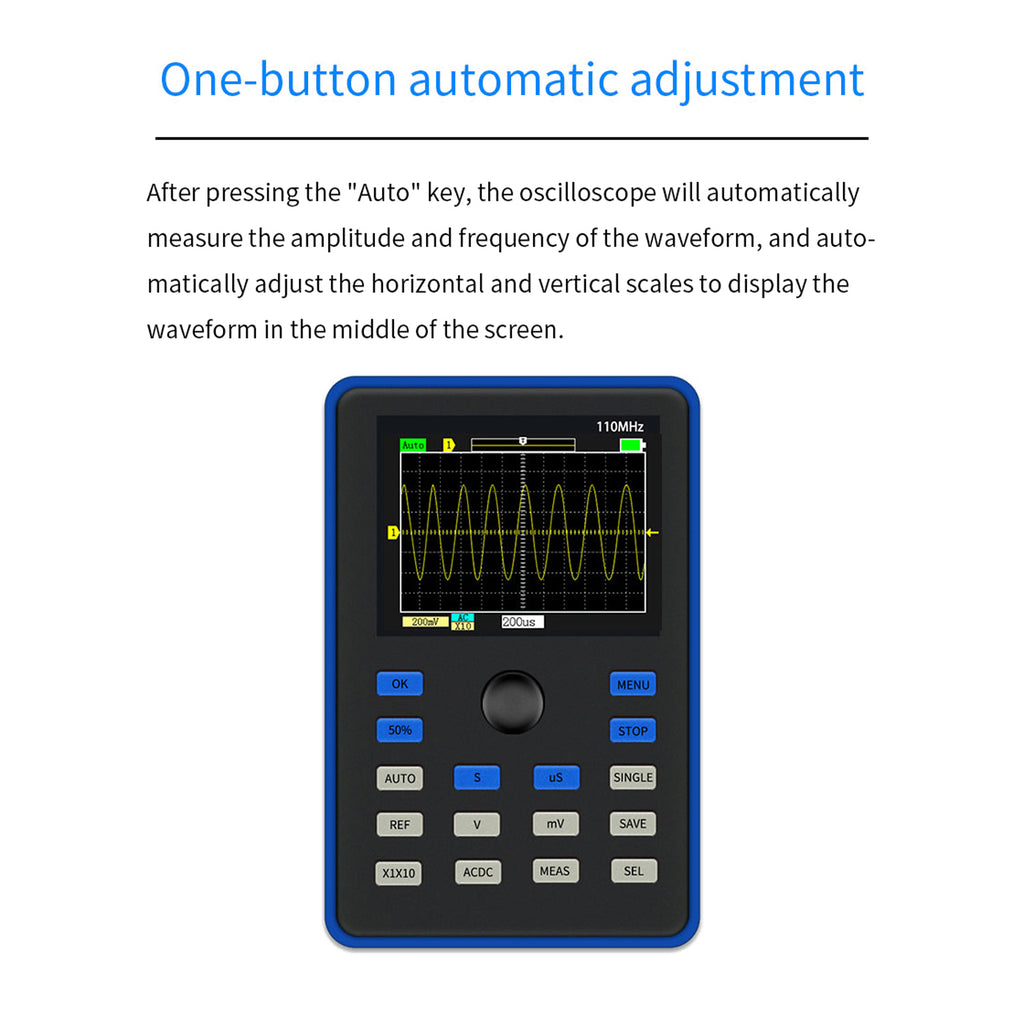

 After pressing the "Auto" key, the oscilloscope will automatically measure the amplitude and frequency of the waveform, and automatically adjust the horizontal and vertical scales to display the waveform in the middle of the screen.

 Measurement options: frequency, peak-to-peak, positive duty cycle, amplitude, positive amplitude, negative amplitude, maximum, minimum, period, root mean square, average, positive pulse width, negative pulse width, negative duty cycle.

 Specifications:

 Main material: ABS

 Color: black+blue

 Battery: 1 * lithium battery, 3000mAh (included)

 Number of channels: 1

 Screen size: 2.4 inches

 Screen resolution: 320*240

 Analog bandwidth: 110M

 Sampling rate: 500M

 Rise time: <3ns

 Storage depth: 240KB

 Time base range: 5ns-10s

 Vertical sensitivity: 10mv/div-10v/div

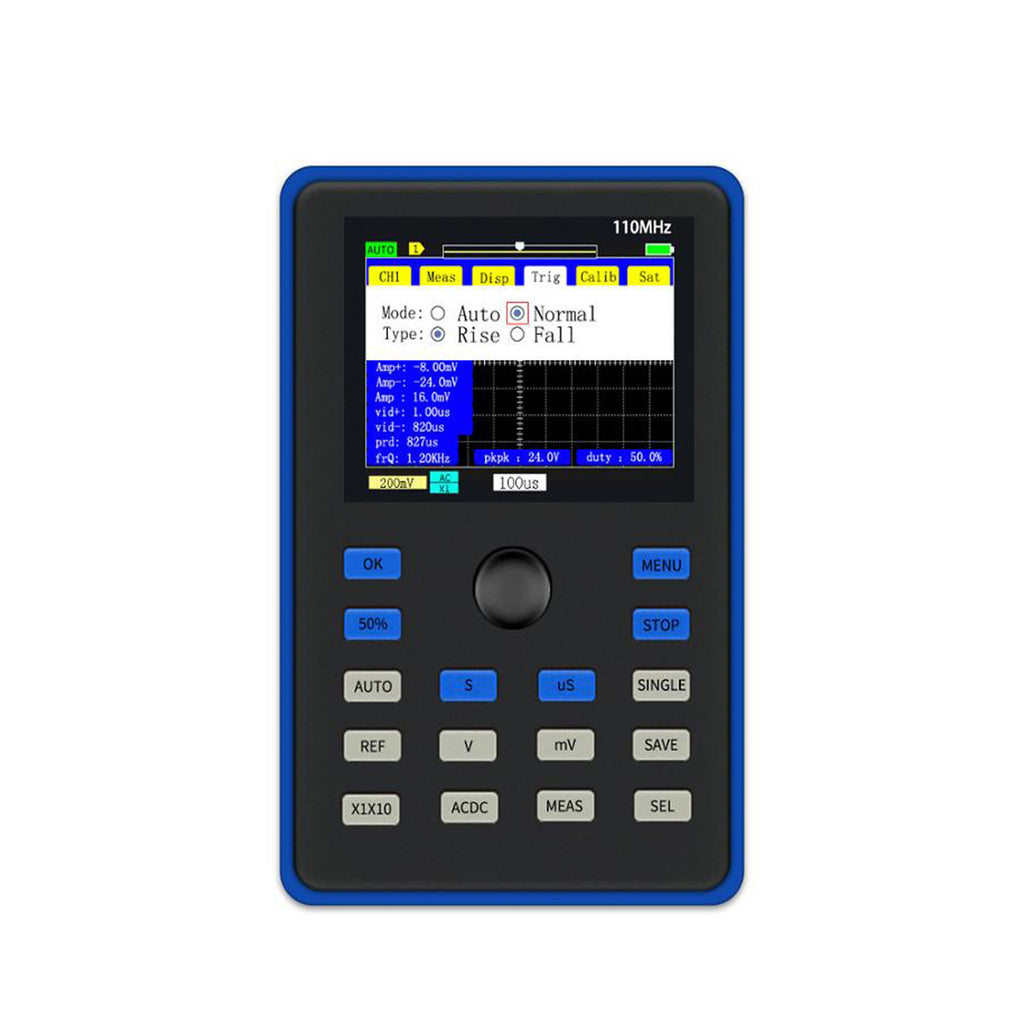

 Trigger mode: auto / normal

 Trigger type: rising / falling

 Display mode: YT / scroll

 Afterglow time: none / 1s / ∞

 Charging method: 5V / 800mA

 Voltage measurement range: ±40V (x1 file);±400V (x10 file)

 Channel coupling: AC / DC

 One-button automatic: stand by

 Waveform measurement: 14 types

 Measurement accuracy: ±2%

 Reference waveform: stand by

 Waveform save: stand by

 Frequency accuracy: ±0.01%

 Input resistance: 1MΩ

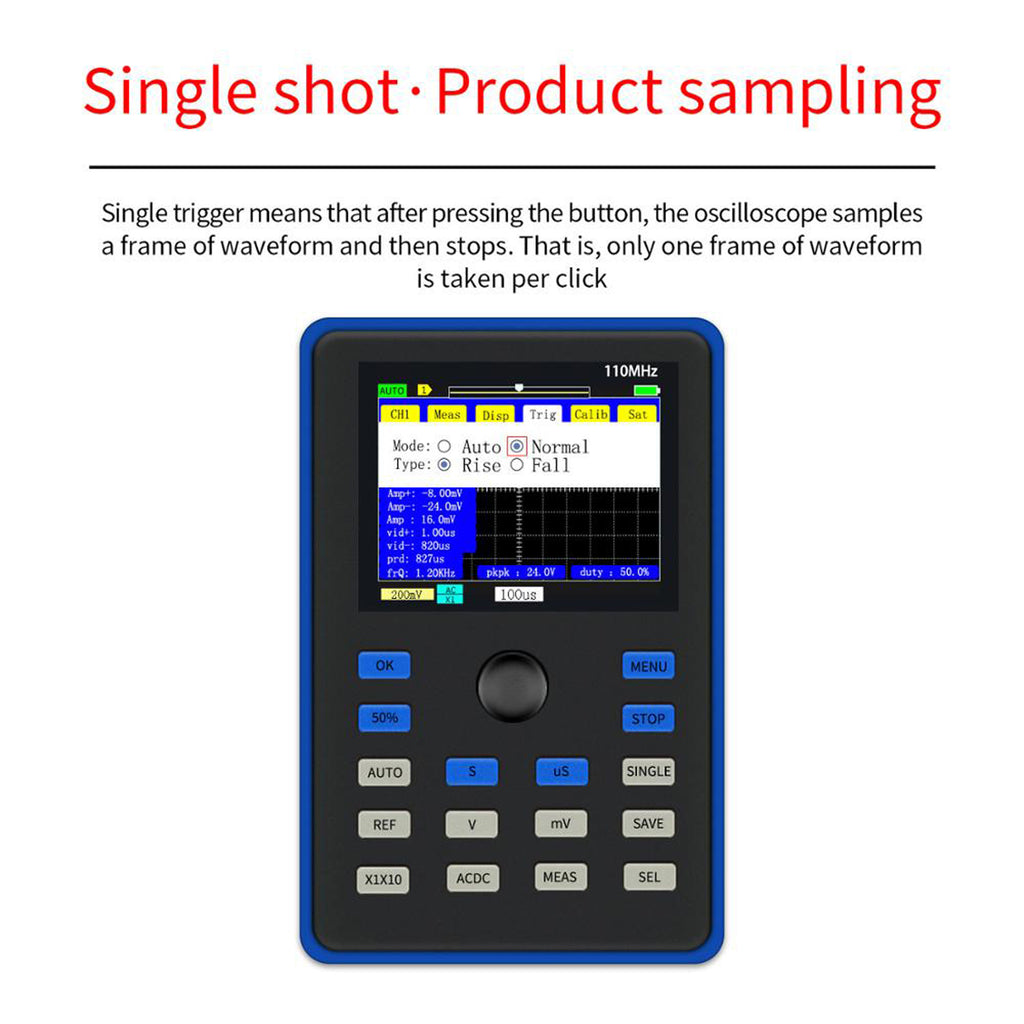

 Single trigger: stand by

 50% (back to middle): stand by

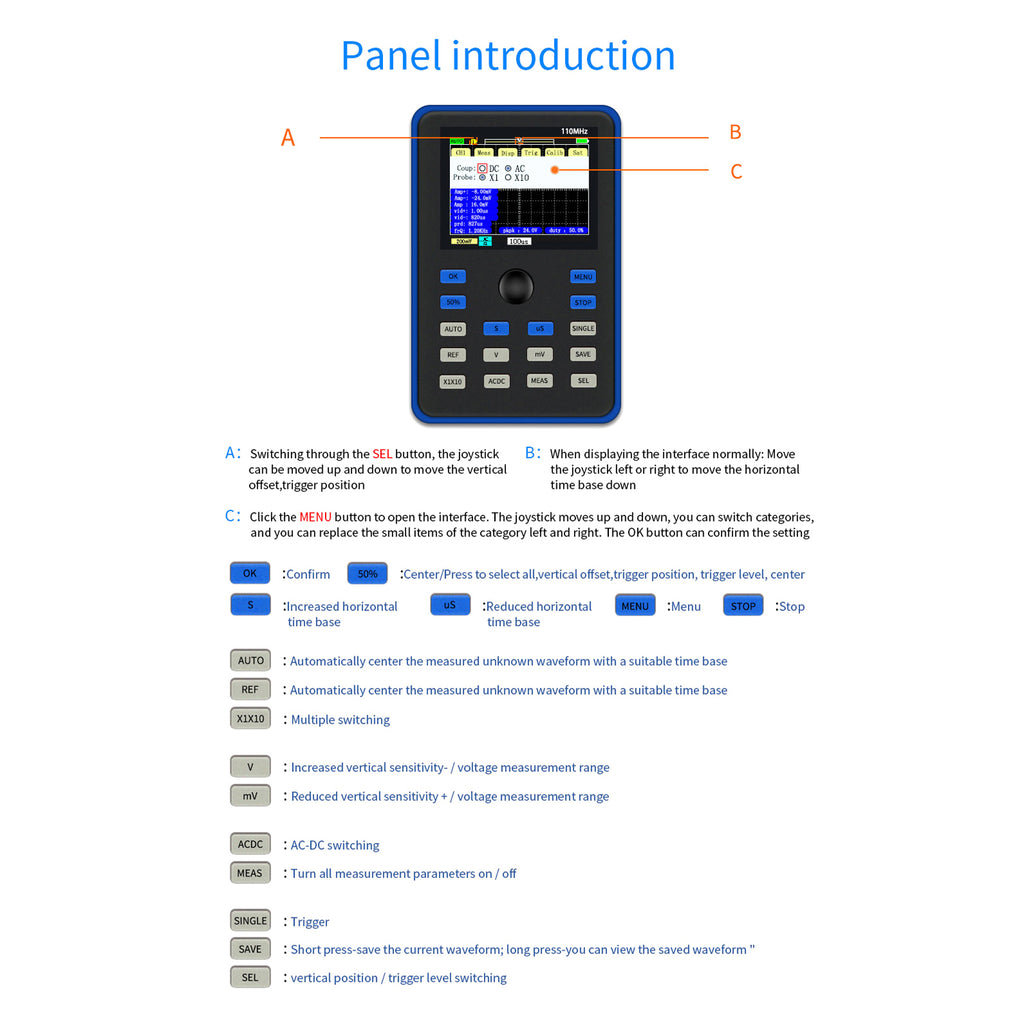

 Operation method: button + joystick

 Waveform analysis: support drag / expand after stopping

 Item size: 114 * 74 * 33mm / 4.5 * 2.9 * 1.3in

 Item weight: 300g / 10.6ounce

 Package size: 134 * 94 * 56mm / 5.3 * 3.7 * 2.2in

 Package weight: 400g / 0.9lb

 Packing List:

 1 * Oscilloscope Host

 1 * Matching 100MHz Probe (1X and 10X)

 1 * Micro USB Data Line

 1 * User Manual
