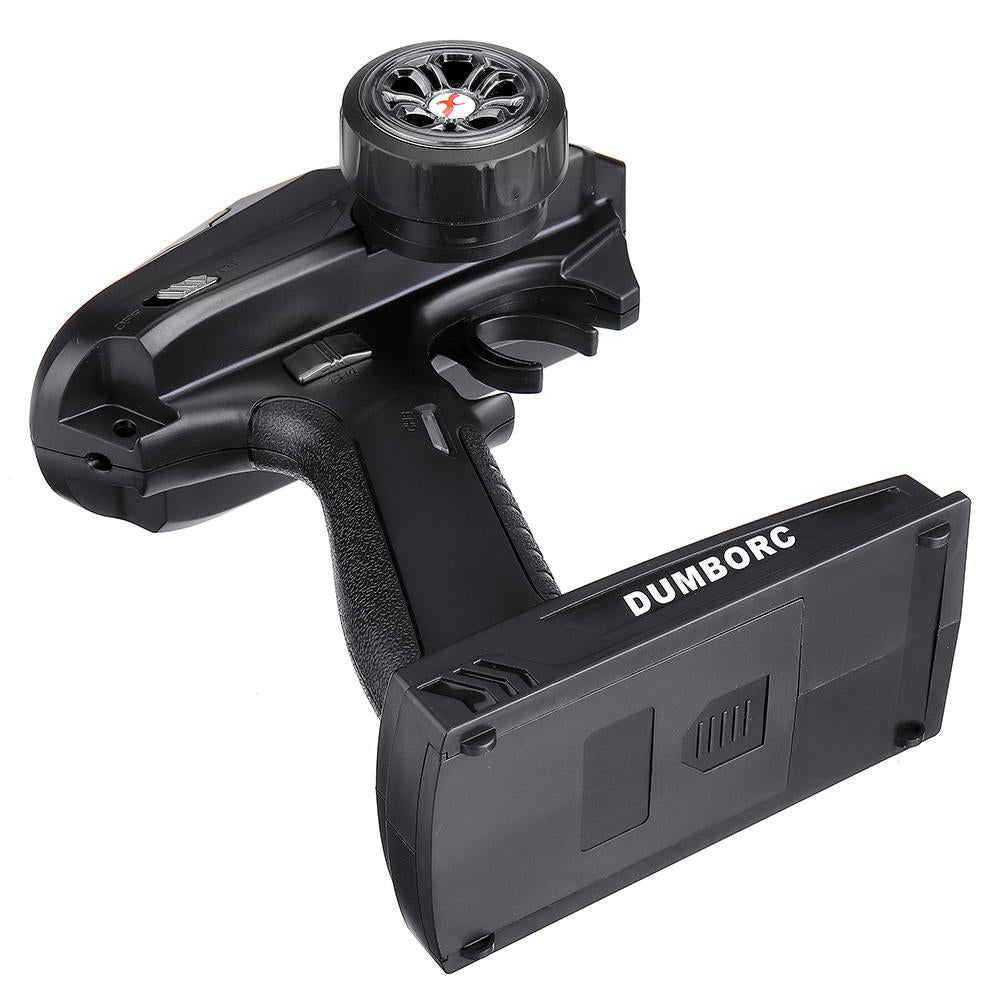

This remote control is different from our 4CH and 6CH. Its CH5 and CH6 are push-button. When you press CH5, the rudder will turn to the left. When you press it again, it will return to the center. At the same time, an LED light will tell you if it has been activated by pressing. When pressing CH6 in the same way, the other rudder will turn right, and there is also an LED indicator.
This remote control is used on the climbing car to lock the front and rear differential. Of course, our CH3 can also be used to lock high and low speeds.

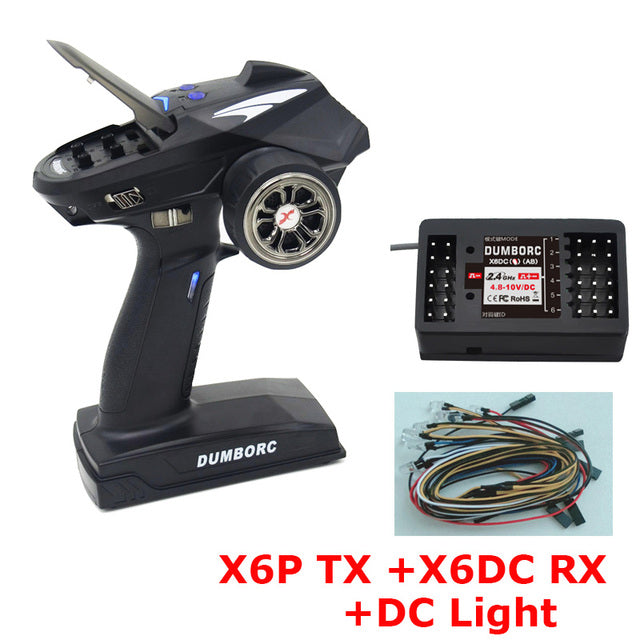

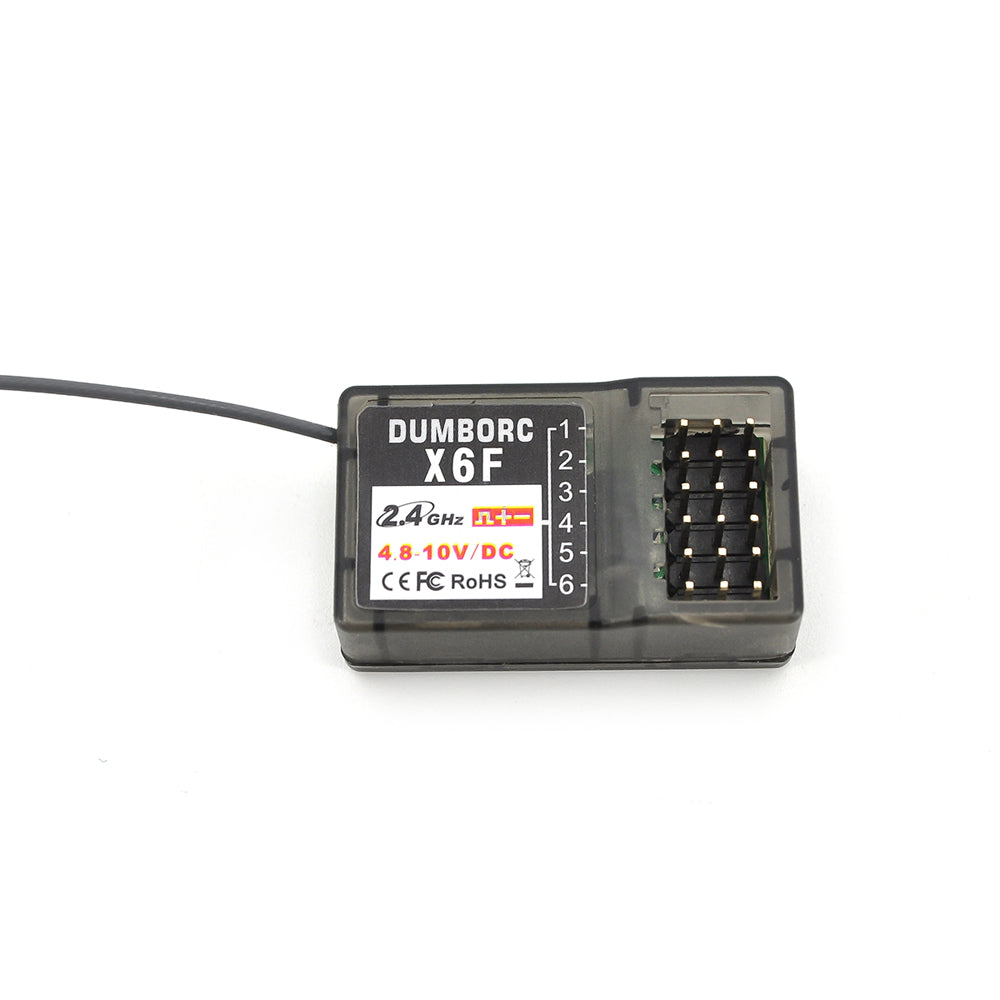

This receiver integrates the lamp group, which is equivalent to making the lamp group and the receiver together, so the wiring is very simple, and there is no need to use many Y wires to connect to the receiver.
This lamp group receiver is compatible with our X4, X5, X6 remote control. Of course, our lamp group receiver can also be used as a lamp group and connected to the remote control of other brands.
Features:
Item Brand:DumboRC
Item Number:X6(transmitter),X6F/X6FG(receiver)
Item Name:Transmitter
Material:Plastic and metal
Color:Blue and gold
Product Size:160*100*205mm
Receiver Size:35*20*13mm

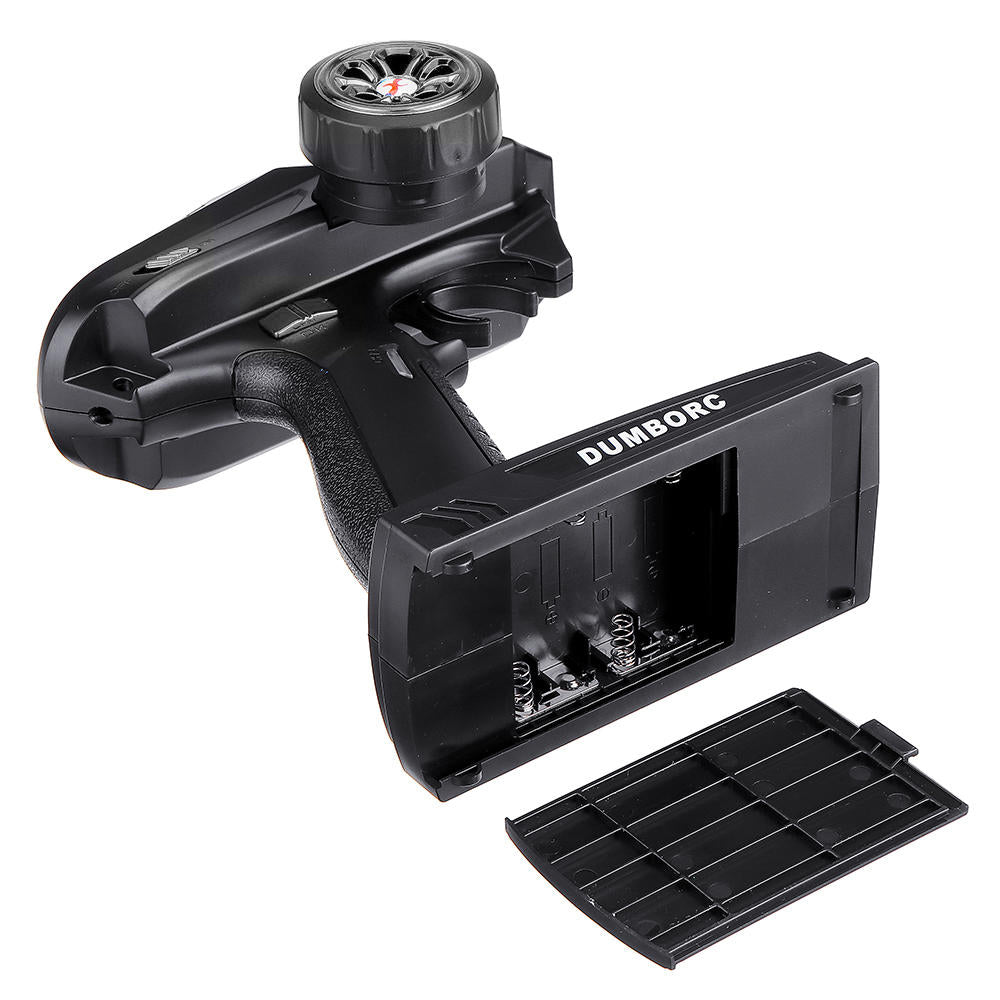

Battery:4X AA(not included)
Specification:
Channel:6CH
Fit For:Rc Car Boat Tank Model,such as JJRC Q65
Modulation Mode: GFSK
Spreading Mode: FHSS 67 channel pseudo-random frequency hopping
Control Distance: 400-500 meters
Remote Control Voltage Range: 4.8-12v
Remote Control Working Current: 80-120mA
Receiver Voltage Range: 3.3-10V
Receiver Operating Current: 30mA
RF Power: <20dbm
Data Resolution: 4096 levels, 0.5us per level
Voltage Alarm: 7.4v 4.8v
Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)

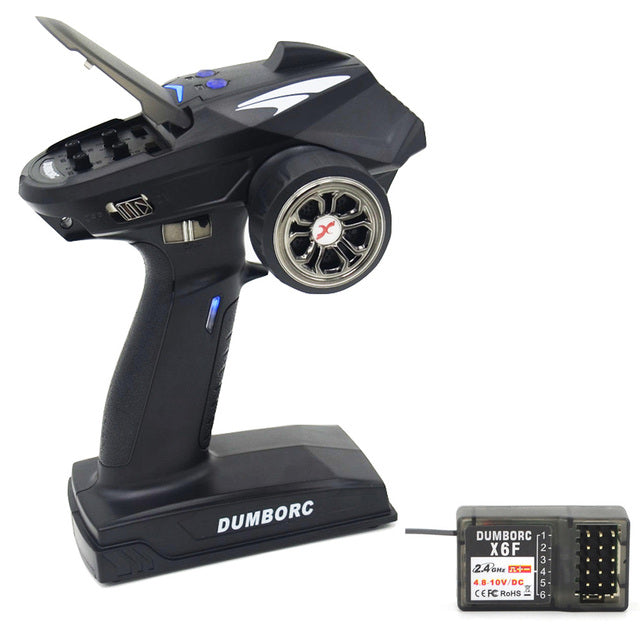

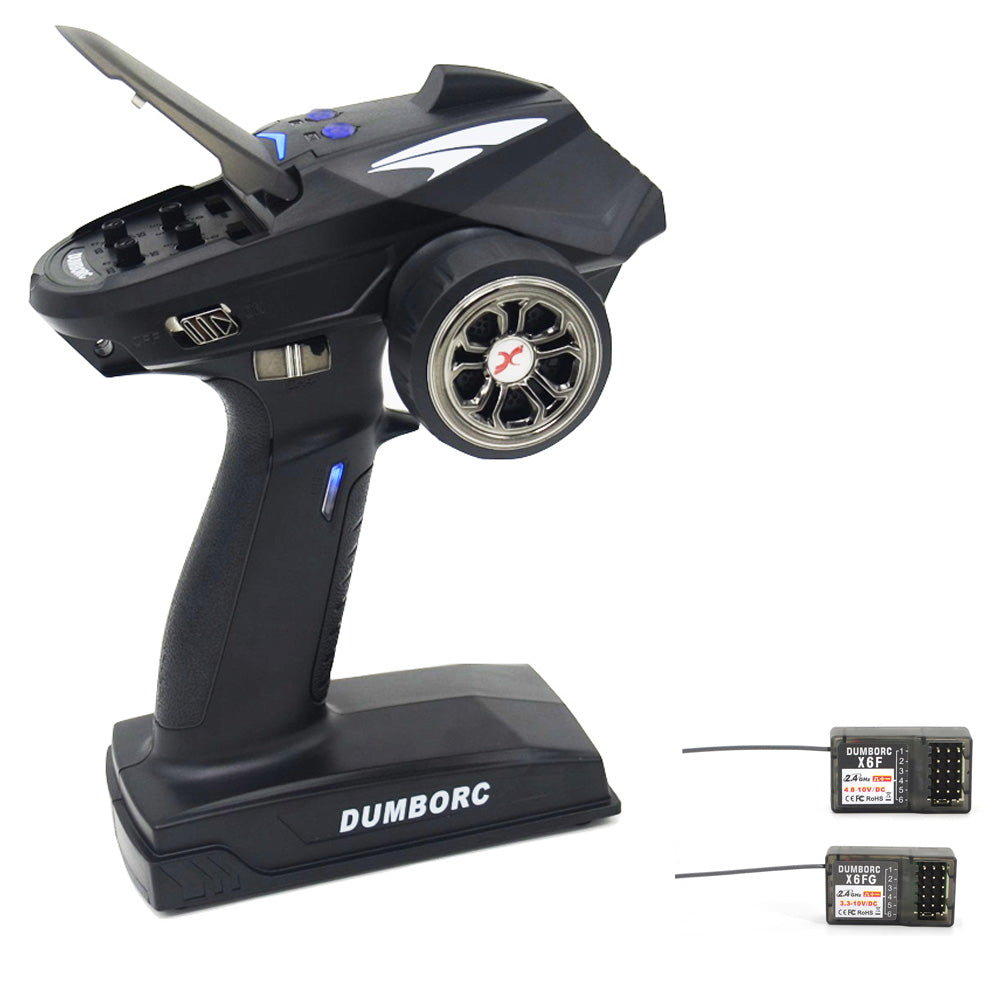

Support Receiver: X6F/X6FG
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
