1. Safety: Car 5 way camera can get real surround vision of driving, eliminate most of the blind spots, make your driving easy and safe.

2. Function: Car surround view system helps a lot in various driving situations, such as parking, eliminating blind spots and turning at narrow roadnarrow road.

3. Flameout Collision Video: After flameout, parking monitoring will start up automatically in 2 seconds when encountering collision, and record video for 30 seconds.

4. High Accuracy: Rear view camera system provides you an excellent driving experience, original algorithms enable perfect accuracy of the bird view.

5. Simple Installation: The installation is simple, you can install at left and right rear view mirrors and front windshield, convenient for usinng.

    Specification:

Item Type: Car Surround View System

Material: ABS+Metal

Video System: PAL/NTSC(automatic identification, note: the camera needs to be connected before powering on)

Each Channel Video Parameters: Resolution 1920×1080, refresh rate 30 frames/second, peak value: 1Vp-p, impedance: 75Ω

Video Input: 5 way inputs (support CVBS or AHD720P or AHD1080P)

Video Output: 1 way output (support CVBS or AHD720P)

Video Recording: Memory card (less than or equal to 128GB) (not included), video format AVI

Audio: Microphone input

Operation Screen Mode: Wire control: high level trigger/wireless handle/push rod button /infrared remote control

Positive/Mirror Selection: Select OFF/ON from the menu

Host Protection Mode: Power loss protection (when the voltage is lower than the set value automatically shut down), camera short circuit protection

Power Off Memory Function: Dial switch can be set: power off memory screen for the boot screen mode

Default Startup Screen: The default startup mode is "田 type" or "H type" four screen mode, can be selected from the menu

Recording Mode: Each channel is recorded independently

Flameout Collision Video: After flameout, it will start up automatically in 2 seconds when encountering collision, and record video for 30 seconds

Screen Mode: "田 type" four screen mode, "H type" four screen mode; Picture in picture and single screen full screen screen mode

Power Consumption: Host operation: 3W;

Output Power: 5V/1A (camera power) or 12V power supply can be customized

Rated Voltage: DC 12V/24V

Operating Temperature: 0℃-+65℃

Fitment: Universal car modification

Remote Control Battery: Button battery CR2025 80mah with built-in battery delivered

Wireless Control: Button battery CR2025 80mah with built-in battery delivered

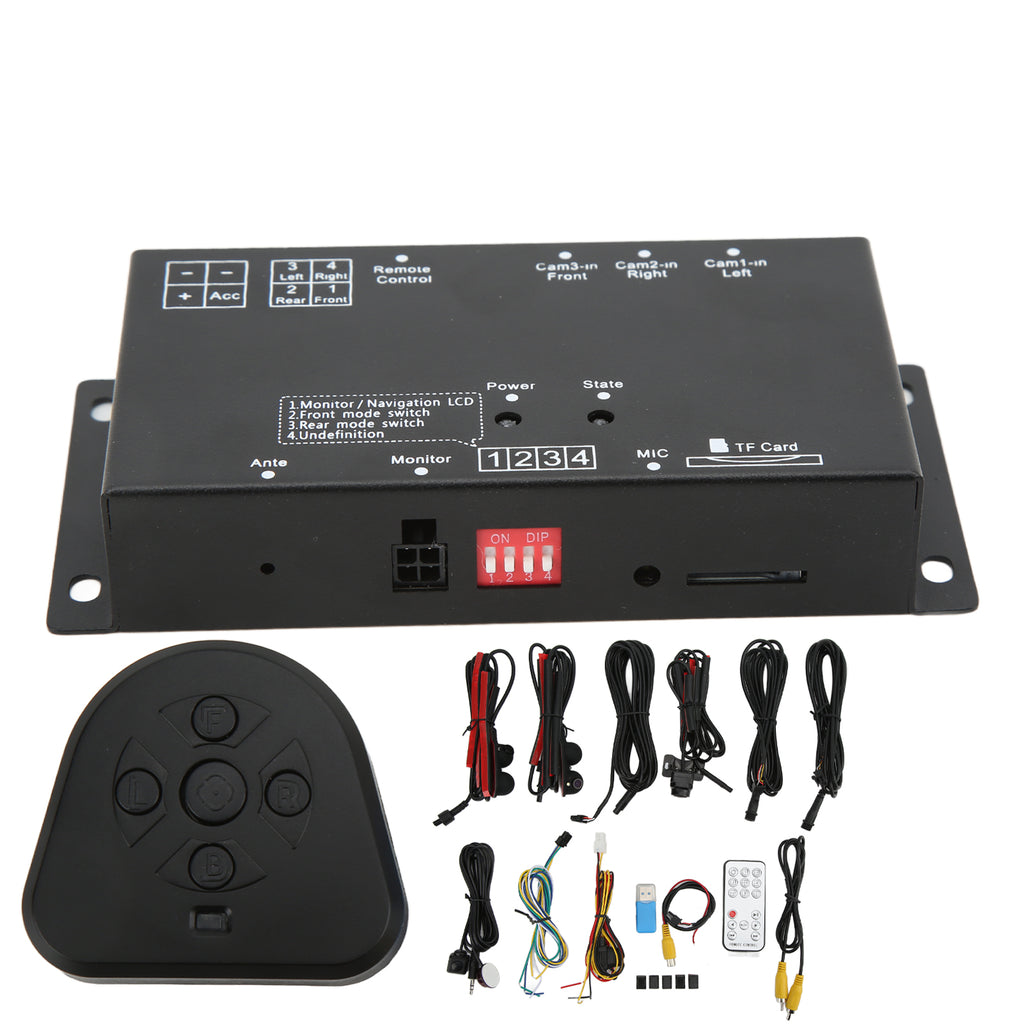

    Package List:

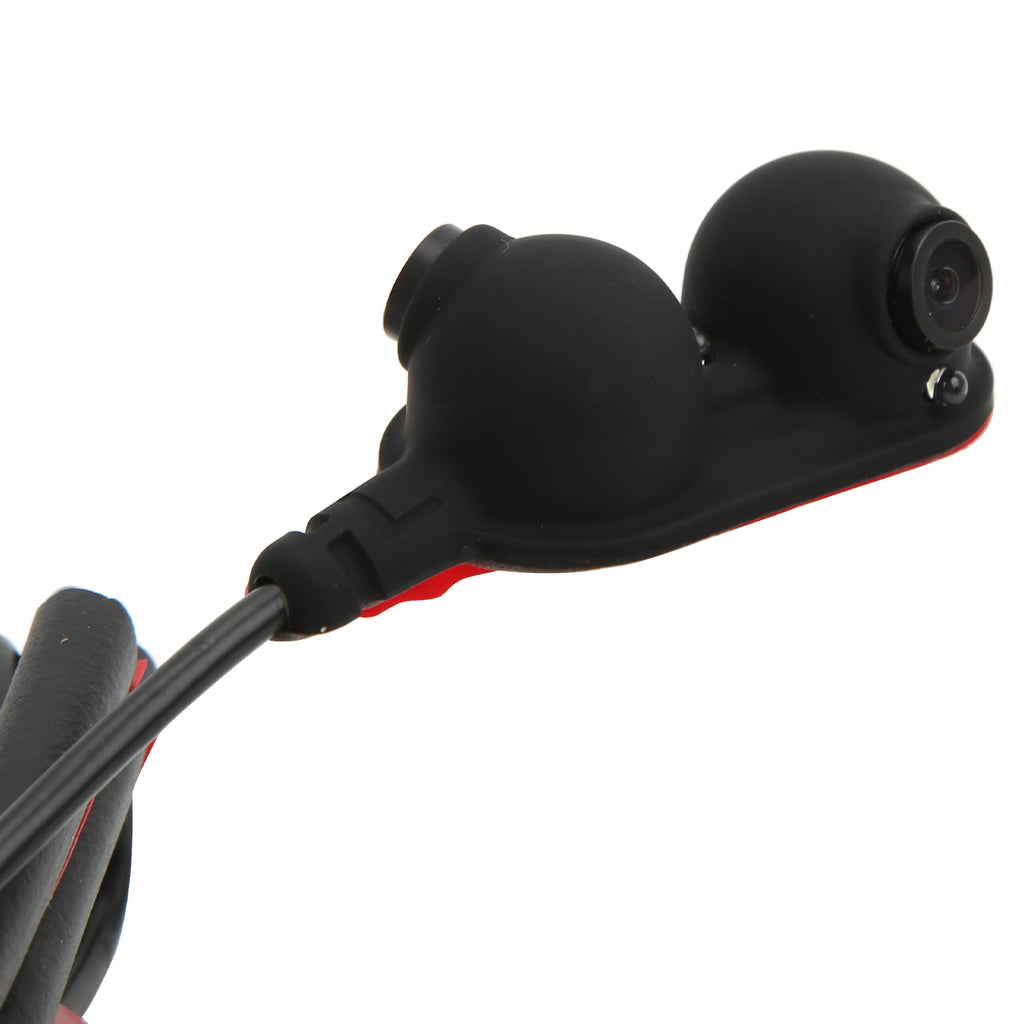

1 x Host    2 x Dual Core Camera

    1 x 5th Way Camera

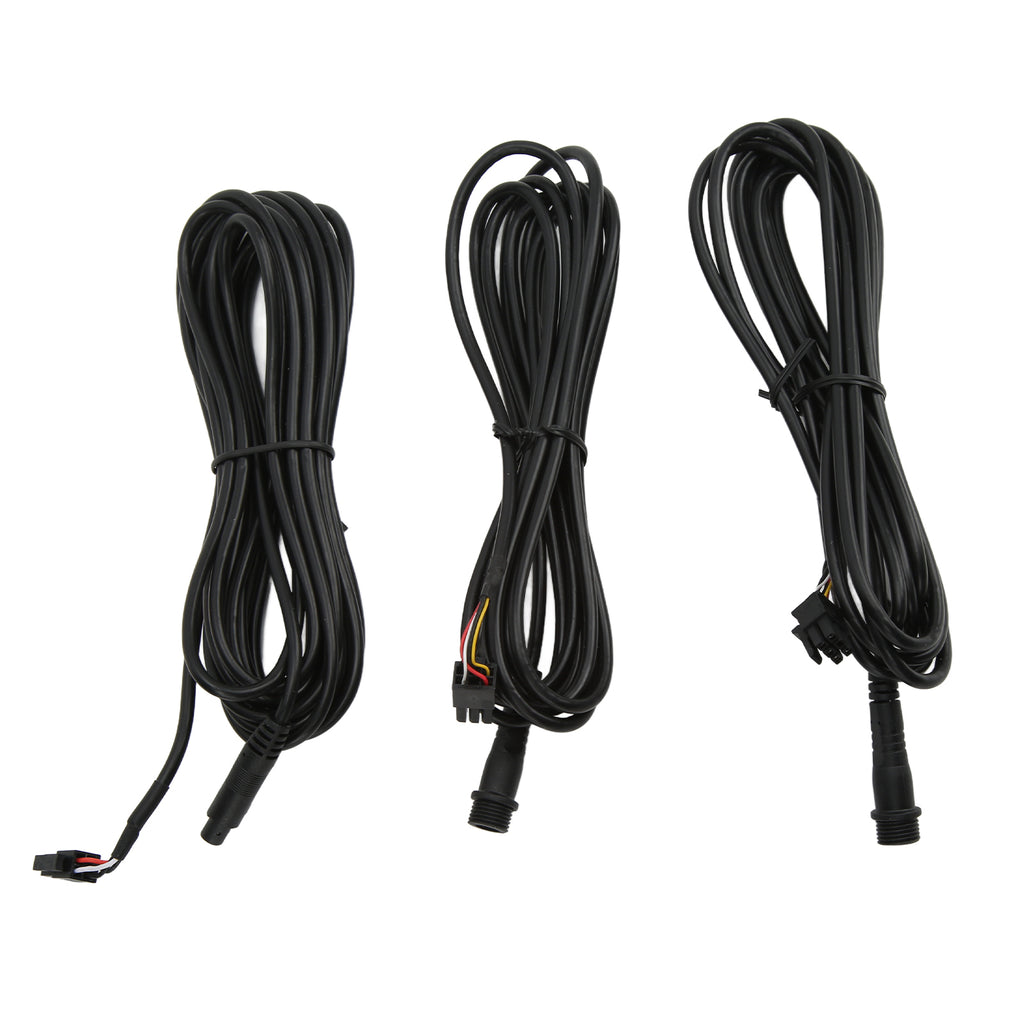

    1 x Dual Core Camera Extension Cord

    1 x Push Rod Button + Infrared Receiver

    1 x 5th Way Camera Extension Cord

    1 x Dual Core Extension Cord

    1 x Host Power Cable

    1 x Trigger Line

    1 x Video Output Line

    1 x Video Output Butted Line

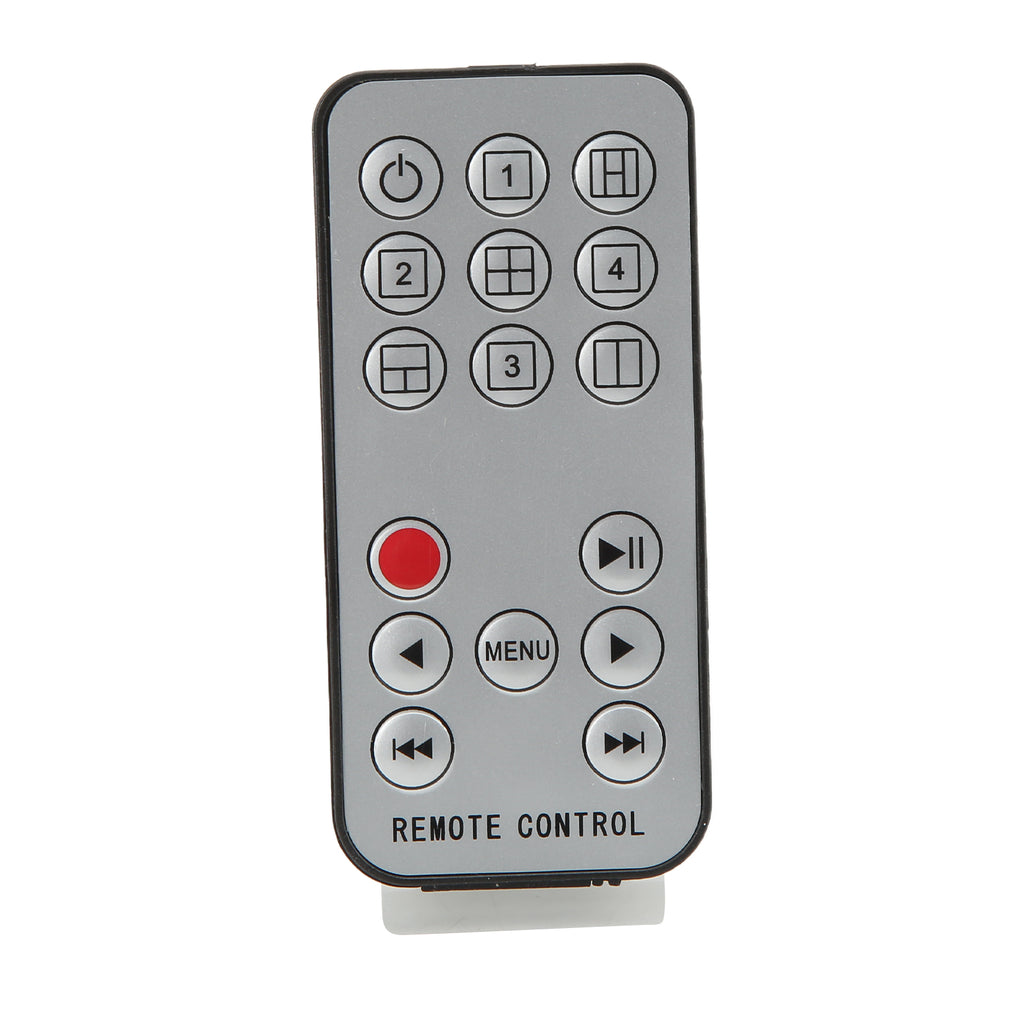

    1 x Infrared Remote Control

    1 x Wireless Control

    1 x Card Reader

    1 x User Manual

    5 x Sticker
