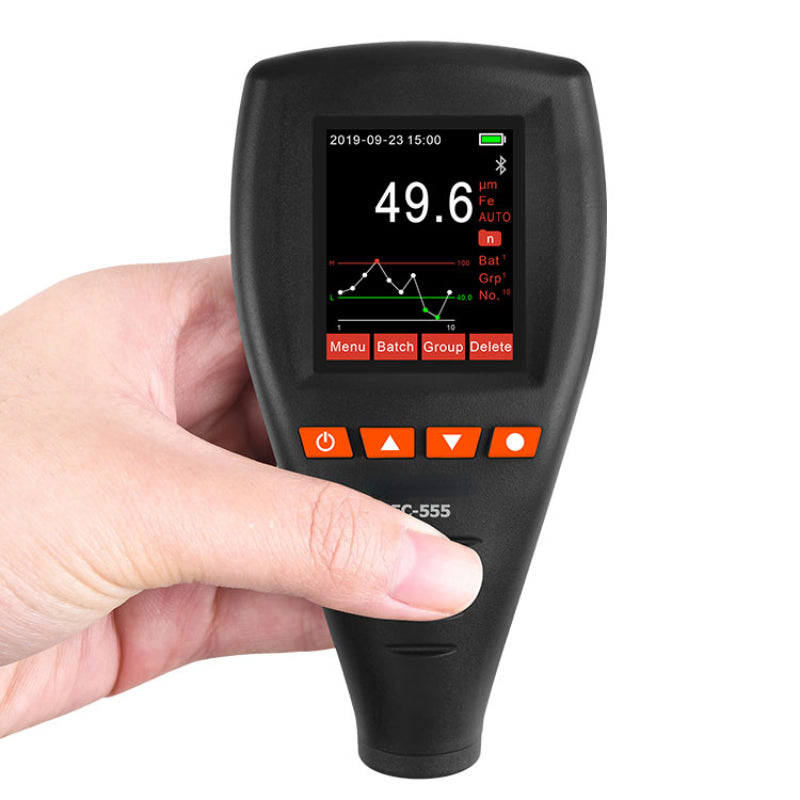

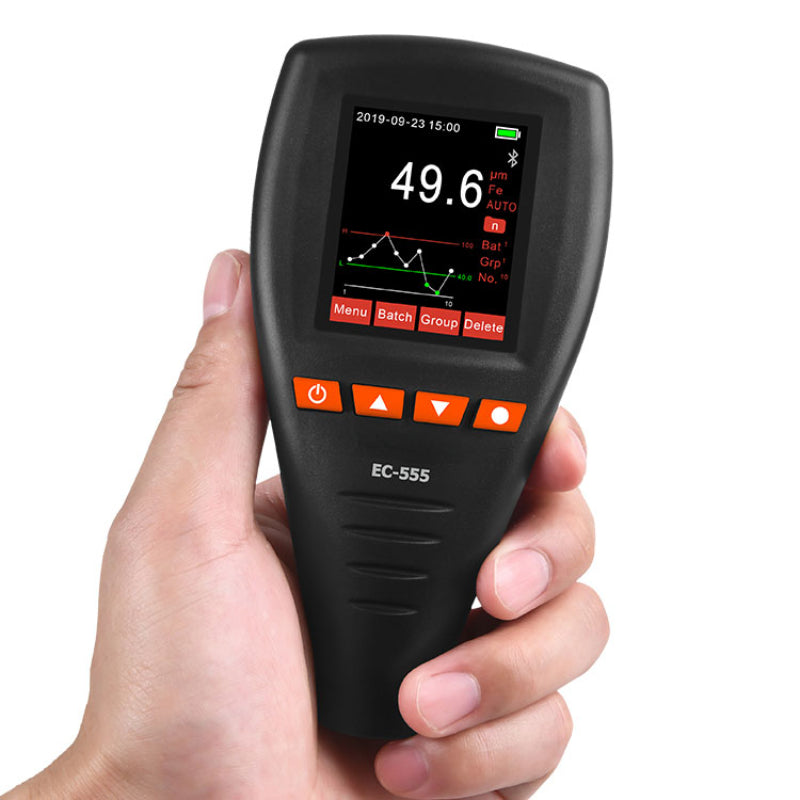

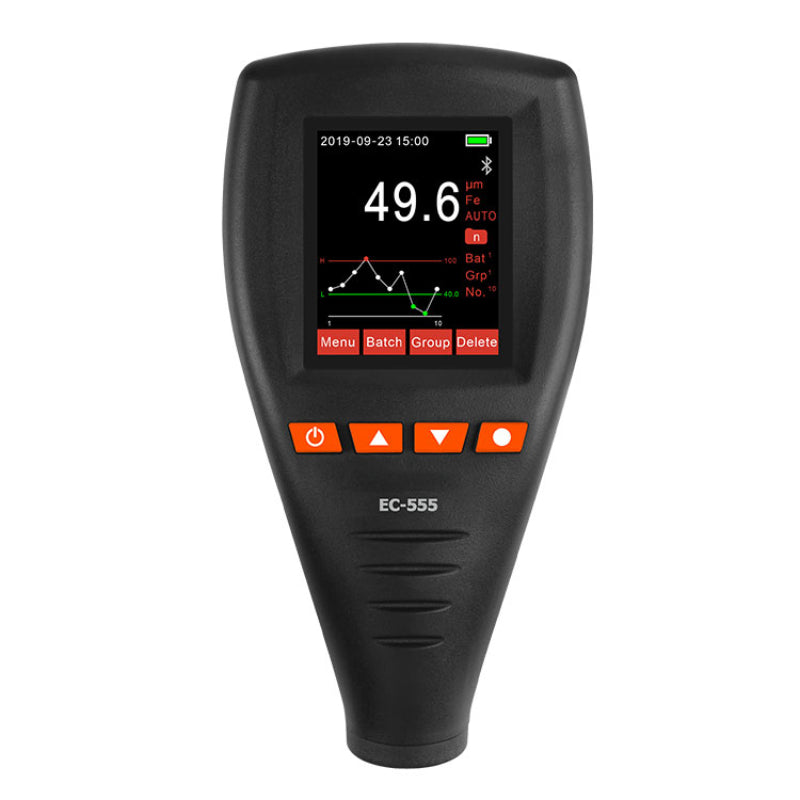

EC-555 Colorful Screen Surface Paint Meter Coating Thickness Gauge

     Product Description

     Specifications

     DESCRIPTION:

   The EC-555 series thickness gauge is applied to measure the thickness of non-conductive coatings on metal surfaces non-destructively, as well as the thickness of non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel and cobalt). Specific applications are including the measuring of the thickness of iron, stainless steel surface paint or galvanized coating, aluminum, copper surface paint or plastic film, etc.

                   FEATURES:

 Double principle in one, ruby probe

 2 inch colour screen

 With Bluetooth and mobile APP function

 Car or general mode

 Resolution is up to 0.1μm

 Measurement range is 0~2000μm

 Statistical analysis of data

 Standardized menu interface

 Display a curve, bar chart or trend chart

 Record data and transfer to PC

 Support zero calibration and multi-point calibration

 Max measurement speed, 2 times/s

 Auto rotation

 Backlight adjustable

 Volume adjustable

 Auto shut-down

 Low battery protection

        APPLICATION:

 Measurement for car paint coating

 Shipbuilding

 Electroplated

 Metal anti-rusting

 Measurement for plastic foils

 Hardware parts process

                  Model      EC-555      EC-555S       EC-555SE                Probe type      Internal probe      External separated probe                Measuring principle      Fe: Magnetic induction ; NFe: Eddy currents                Measuring range      0~2000μm                Accuracy      ±(3%+1μm)       ±(2%+1μm)      ±(2%+1μm)                Resolution      0.1μm(0~100μm) ; 1μm(>100μm)                Unit      μm, mm, mils, inch                Calibration      Zero calibration ; Multi-point calibration                Statistic      Number of data, maximum, minimum, mean, sample standard deviation, coefficient of variation, number below limit, number above limit                Chart      Curve, bar chart or trend chart                Readings memory      10X13X10 measurement data                Probe trigger mode      Mechanical trigger, trigger force: 0.4~0.8N                Minimum curvature radius      Convex 5mm ; Concave 25mm                Minimum measuring area      Diameter 15mm                Minimum thickness of substrate      Fe: 0.30mm      Fe: 0.20mm      Fe: 0.20mm                NFe: 0.05mm      NFe: 0.03mm      NFe: 0.03mm                Maximum measuring rate      2 readings / s                Display      2 inch color screen                Bluetooth & APP      Support                Operation environment      Temperature: -10~50°C; Humidity: 20~90%RH (Non-condensing)                Storage environment      Temperature: -20~60°C ; Humidity: 20~90%RH (Non-condensing)                Power supply      3 pcs 1.5V AAA alkaline batteries ; 3 pcs 1.2V AAA rechargeable batteries                Protection class      IP40                Size      133X68X30mm      Housing: 133X68X30mm ; Cable: Φ3.5X1000mm                Probe: Φ17X67mm                Case material      ABS      Housing: ABS ; Probe: stainless steel                Weight      About 90g (No battery)      About 145g (No battery)                Standards / Certificates      CE, ROHS, ISO 2178, 2360, GB / T 4956-2003, 4957-2003, JJG-818-2005
