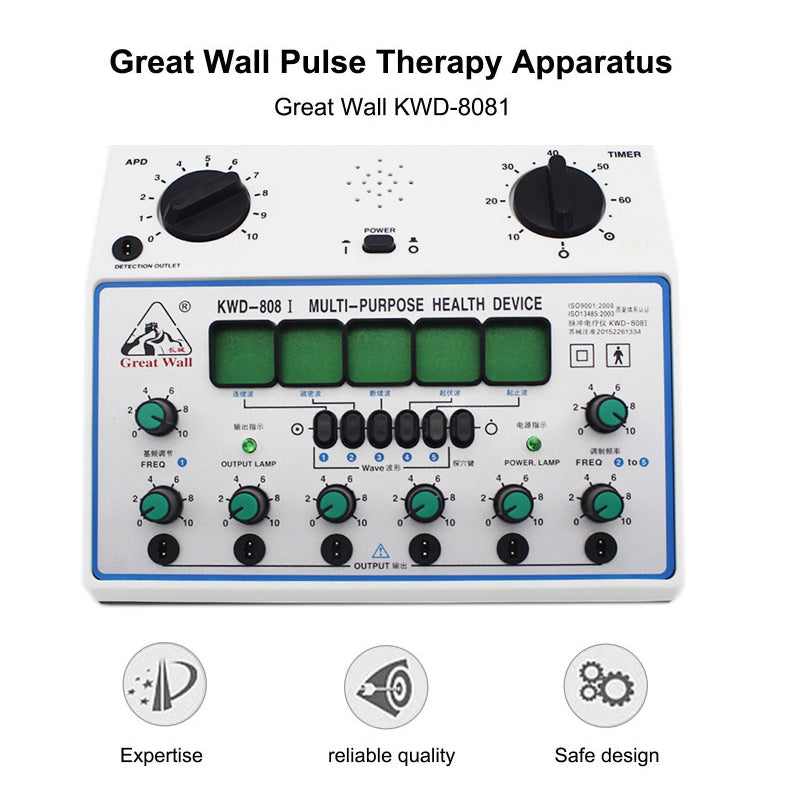

Electric Acupuncture Stimulator Machine Electrical Nerve Muscle Stimulator 6 Channels Output Patch Massager Body Care KWD808-I

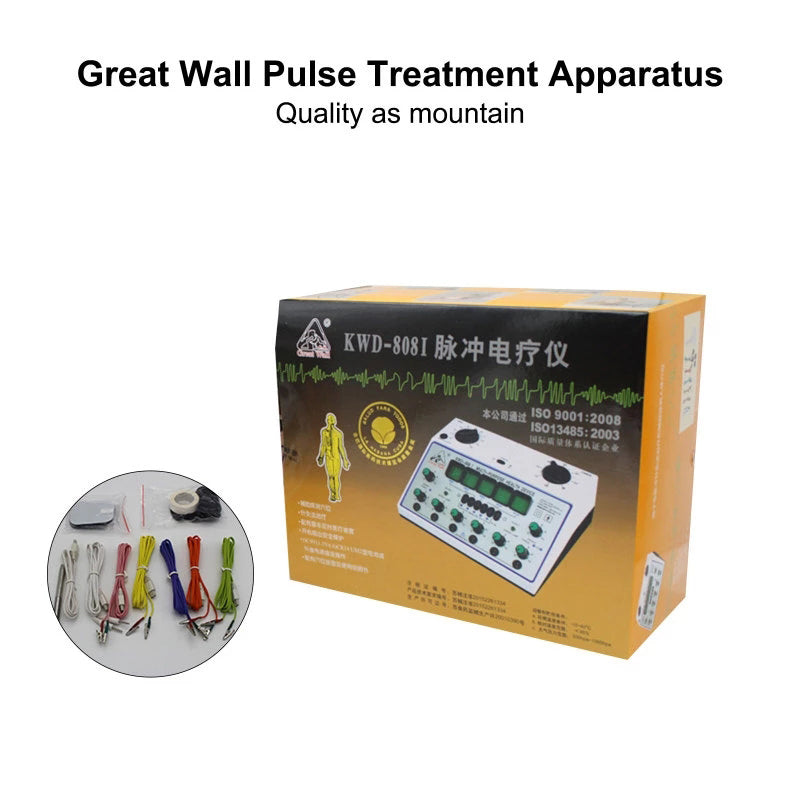

   Package included:

     - 1x Main Unit

     - 1x Acupoint Detecting Pen

     - 5x Output Electrode Wires

     - 1x Inserting Output Electrode Wires

     - 10x Small Electrode sticker

     - 2x Big Electrode sticker

     - 1x Fixed tape

     - 1x English Instruction manual

     - 1x Acupoint figure

     - 1x Warranty Card

     - 1x AC adaptor (110V-220V)

     Description:

     - KWD 808 I Acupuncture machine multipurpose health device is a new product that has been incorporated merits of kind both at home and abroad. This brings a new image to traditional acupuncture, the concept of no puncture, no needle with guaranteed therapeutic results.

     - KWD-808 I electronic acupuncture treatment multipurpose health device with 6 channels. It can be used as a substitute for acupuncture and/or hand massage. It improves blood circulation in general, eliminate pain and spasm and strengthen the body's resistance to disease. It is also helpful on treating chronic arthritis, strain, stiff neck, lumbago headache, toothache impotence, insomnia, shoulder pain numbness of extremities trigeminal neuralgia, sciatica intercostal neuralgia, tiredness of eye and general tiredness.

     Functions:

     - Being an aid to detect acupoint.

     - Having needle-less acupuncture pulse electric therapy.

     - Having electro needle therapy.

     - Replacing of hand massage.

     - Music timer switch for Medical Treatment

     - Operating output protection device

     Features:

     - The device is very safe and efficient in treatment because of its output pulse. Waves featuring low voltage, low frequency and having the same frequency range as the body.

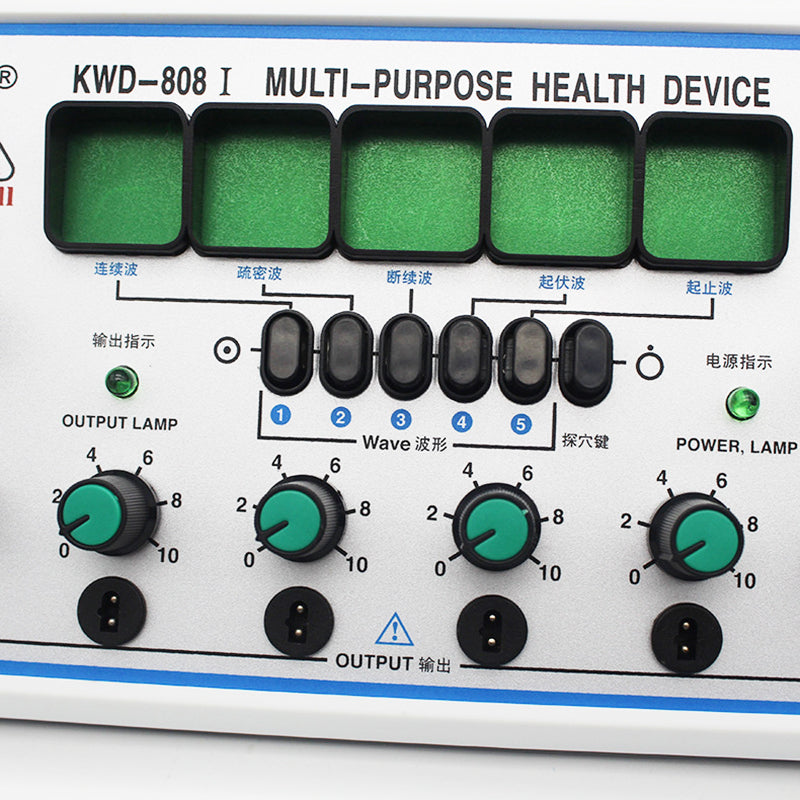

     - There are 5 types of pulse waves to be selected: Continuous wave, Dense-disperse wave, Intermittent wave, Ripple wave, Respiration wave.

     - Four kinds of wave combinations can be used at the same time or separately. And the output of each one can be regulated independently. In order to strengthen the effect, please get the two outputs or more crossed to use.

     Main Functions:

     Replacement of hand massage

     Acupuncture therapy

     Six route output

     Multi-pulse wave frequency LCD

     Auto-timing Switch

     Battery for operation

     Main Specifications:

     Specifications

     500 ohm test load

     Output channels

     6 channels

     Pulse shape

     asymmetric biphasic triangular pulse wave

     Pulse width

     0.175 ms ± 30%

     Voltage, max

     less than 80 volts

     Pulse Frequency

     Continuous

     1 to 100 Hz

     Intermittent

     1 to 100 Hz, interval time between groups is 5 sec

     Dense

     5 to 100 Hz

     Distant-dense

     One-fifth of the Dense Wave frequency, duration of distant

     Duration of wave

     Distant-dense

     5 seconds

     Dense

     10 seconds

     Continuous

     15 seconds

     Power source

     6 standard 1.5 volt C batteries, AC adapter

     Size, color, weight

     10.25" x 7" x 2.5", beige, 1.9 lbs.

     Main Features:

     Six (6) output channels

     New IC circuitry, no cross over, no interference.

     Continuous, intermittent, and dense-disperse (modulated) wave forms

     Adjustable frequency : 1 ~ 100 Hz

     Durable alligator clip wires

     Timer 0 ~ 60 minutes

     Output safety alert - all outputs must be turned off before power on the unit.

     Technical Specifications:

     Output Pulse Road:6 Channels outputs

     Output Pulse Wave:un-symmetry two-direction pulse wave

     Output Pulse frequency: 1 ~ 100 Hz continuously adjustable

     Output Current: 50 mA(Load 500)

     Output Pulse width:0.20ms

     Input Power:5.0VA(including AC Adapter)

     Power Source : DC 9V (CR14, UM2), or AC adaptor

     Intermittent wave : continuous wave

     Frequency adjustable in 1~100 Hz, break-wave time is 5 seconds, continuous

     machine Dimensions :260 x 190 x 110 (mm)

     One pc Weight :1 kg.
