1. Multi Protection: Sine wave controller has low noise, stable start, high safety, heat and over current protection. The controller with a groove design, which protects the internal circuit from thermal overload due to its good heat dissipation.

2. Convenient: A horizontal screen color display panel provides you with a variety of digital display functions, which can display riding time, riding speed, riding mileage, power gear, power indication, fault code prompt, headlight display, motor running power, 6Km/H power assist implementation functions, etc., convenient for reading data during riding and help you grasp the riding dynamics at any time.

3. Main Uses: Suitable for 36V 48V 1000W motor, which can be used for the modification and replacement of damaged parts of electric power bicycle, electric bicycle, electric scooter, etc. You can modify and use it according to your own situation, so as to improve the fun of riding.

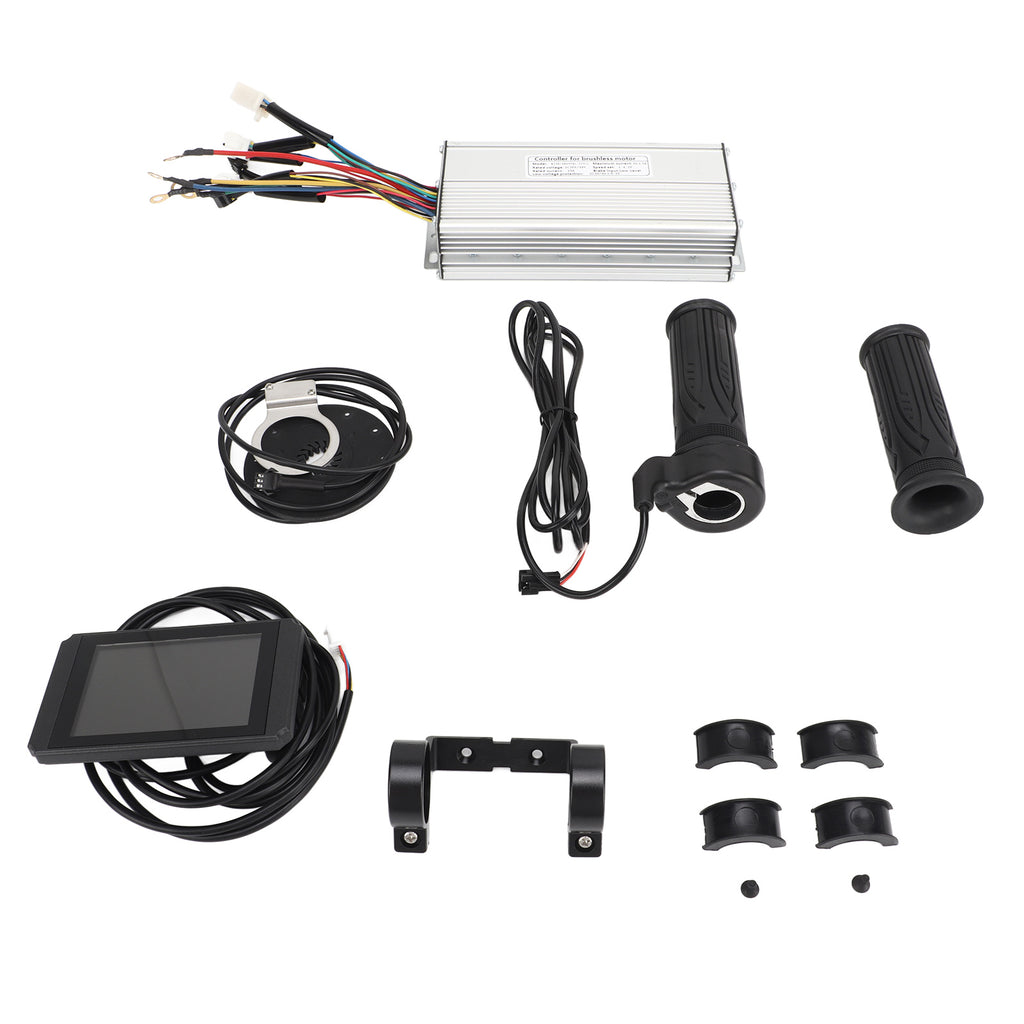

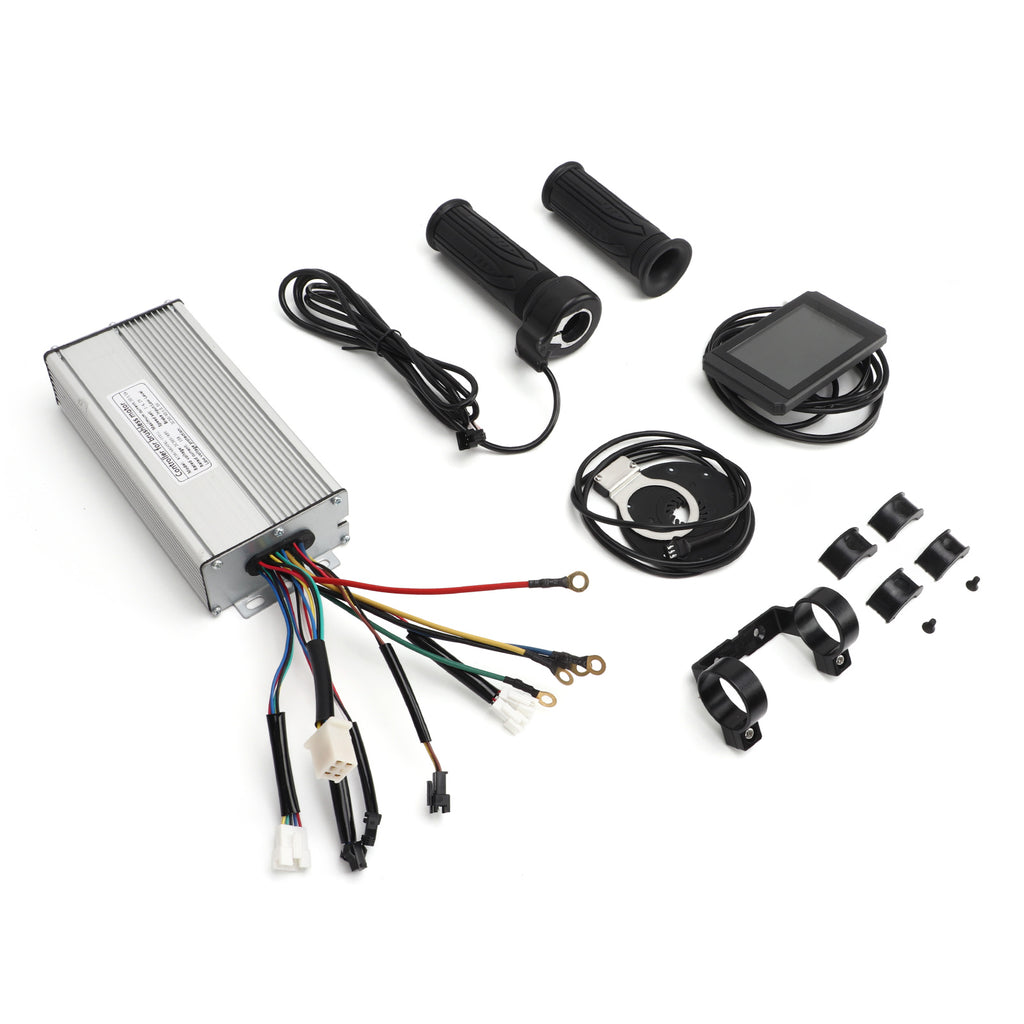

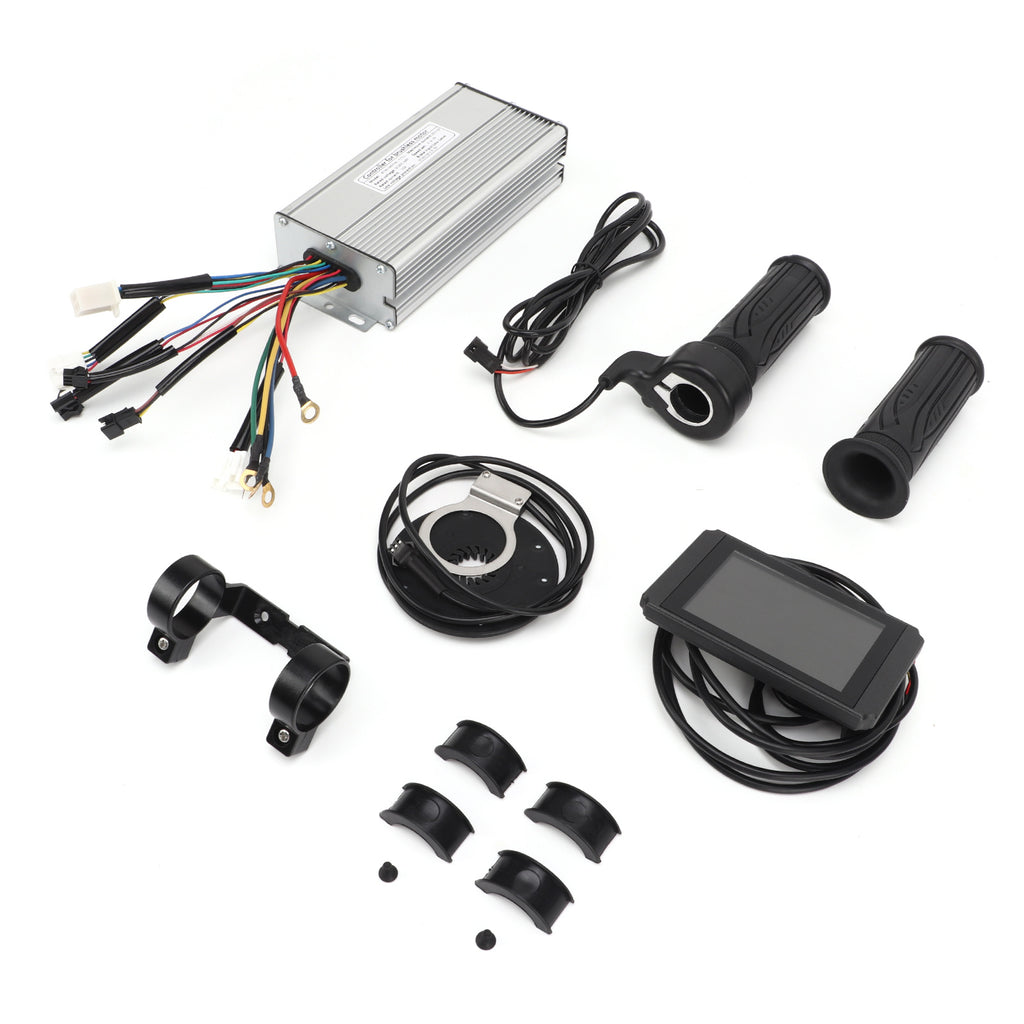

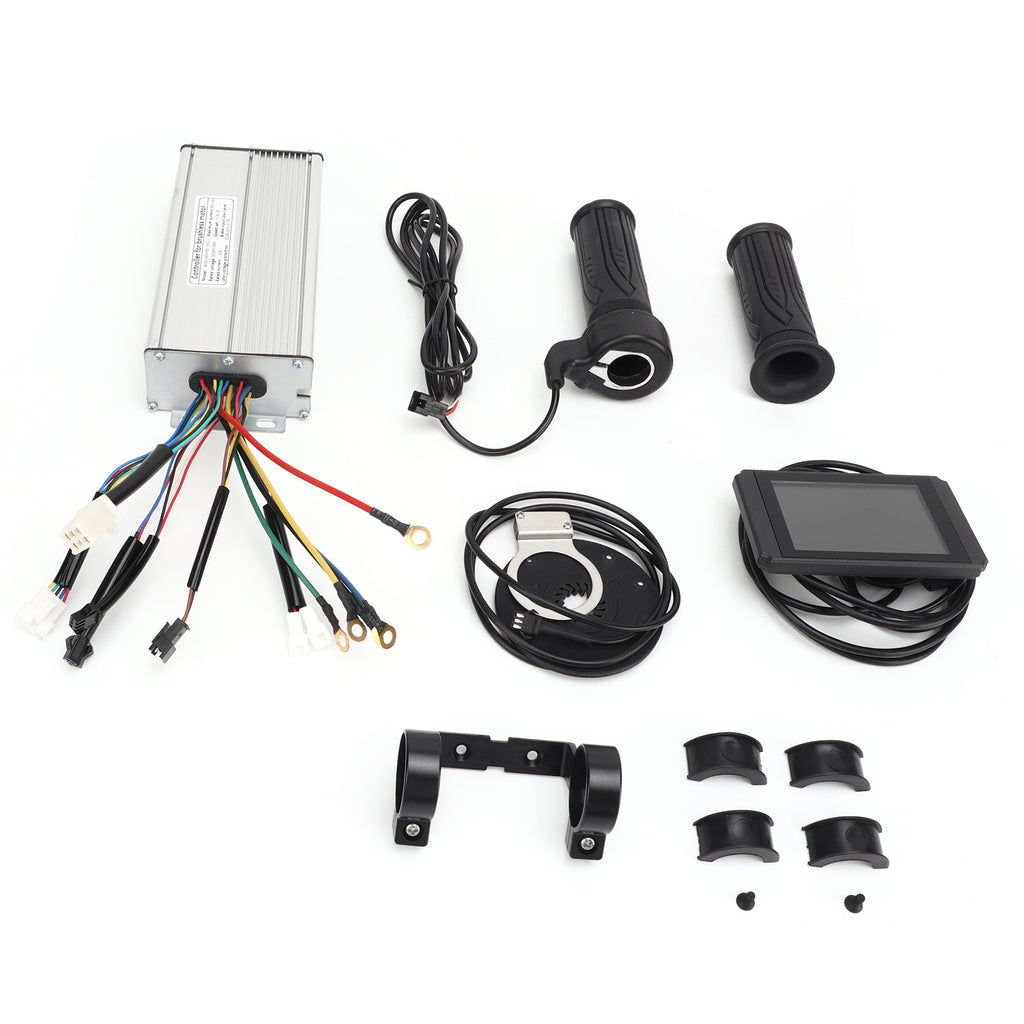

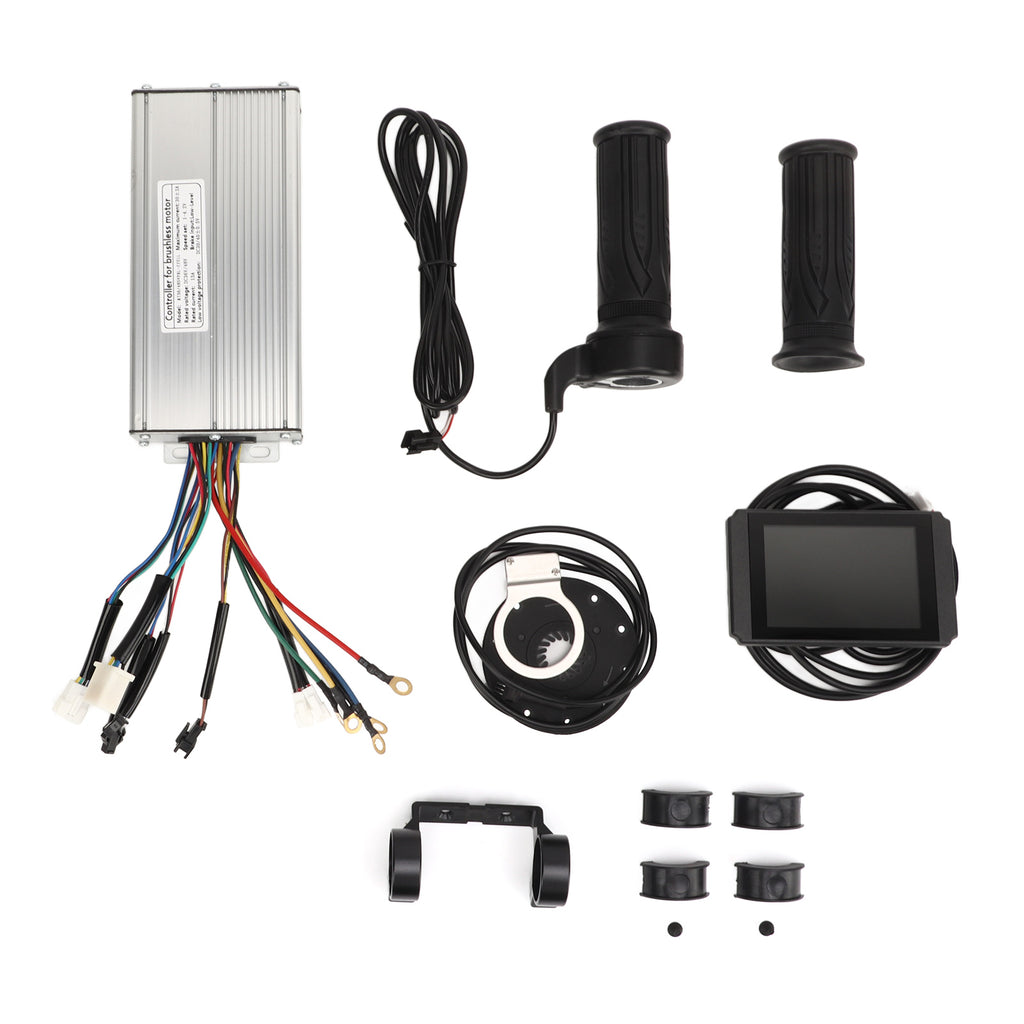

4. Package: The kit includes a 30A sine wave controller, for KT LCD8H panel, 10B power sensor, and 20X full throttle grip, which can be used alone or in combination.

5. Wide Application: This electric bicycle motor controller kit is easy to install and use, comes with panel and 20X full throttle grip suitable for 22.2mm handlebar.

    Specification:

Item Type: Electric Bike Controller Kit

Material: Aluminum alloy, PC, Plastic, Magnet, Rubber

Weight: Approx. 1198g / 42.3oz

Controller Parameters:

Controller Material: Aluminum Alloy

Maximum Current: 30±2A

Rated Current: 15A

Voltage: DC 36V 48V

Speed Setting: 1-4.2V

Brake Input: Low Level

Low Voltage Protection: DC30/40±0.5V

Applicable Motor: 1000W

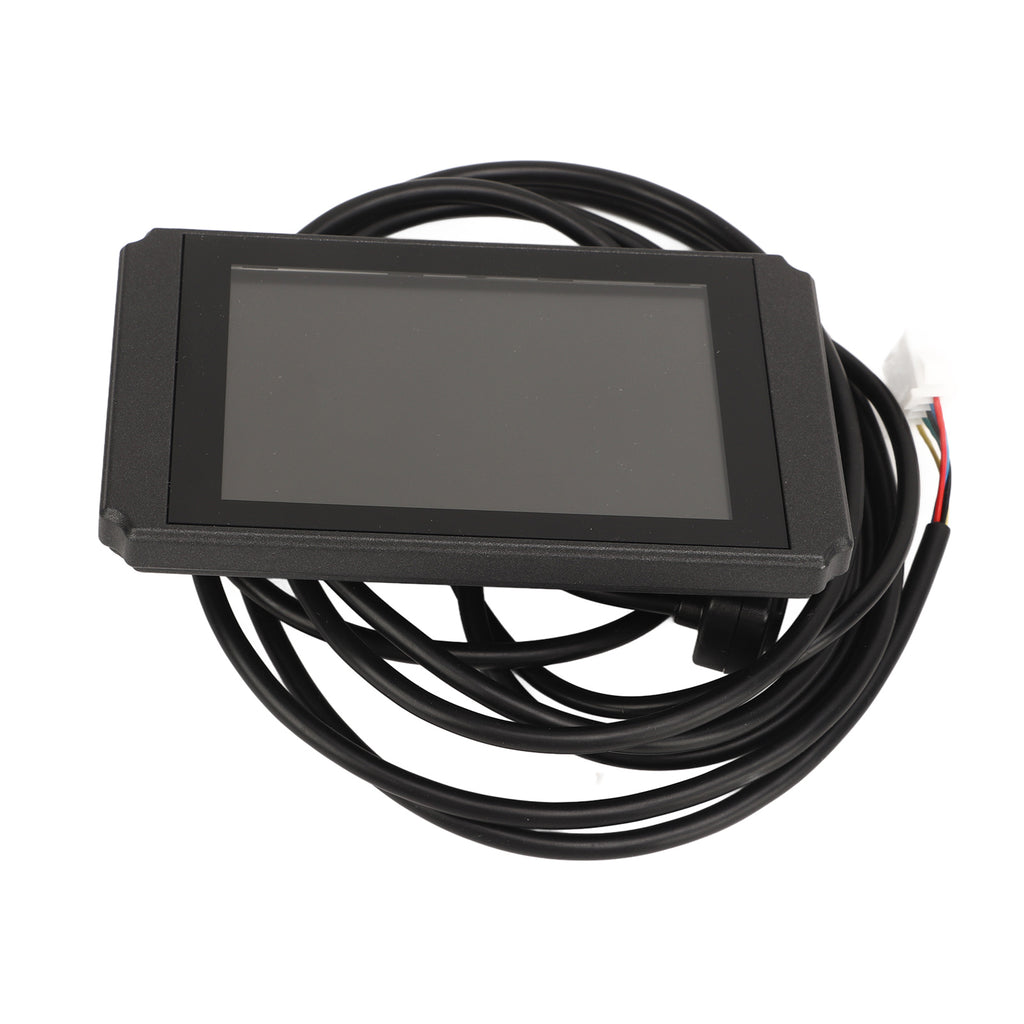

Panel Parameters:

Panel Material: PC

Model: For KT LCD8H

Suitable: For 22.2mm Diameter Handlebar Installation

Voltage: 24V 36V 48V

Interface: 5pin

Panel Display Function Description: Riding Time Display, Riding Speed Display, Riding Distance Display, Power Tap Display, Power Indicator, Fault Code Prompt, Headlamp Display, Motor Running Power, 6km/H Power Promotion Function, Etc

Assisted Magnetic Point Parameters:

Material: Plastic, Magnet

Voltage: DC 36V 48V

Line Length: 100cm / 39.4in

Connector: 3 Pin SM Connector

Installation Position: Left Side

20X Full Throttle Grip Parameters:

Material: Rubber

Voltage: DC 24V 36V 48V 60V 72V

Line Length: 180cm / 70.9in

Connector: 3 Pin SM Connector

    How to Use:

         1. Connection Of The Controller: Please connect the corresponding device according to the interface on the controller wiring diagram. If you are not clear, please consult customer service.

         2. Panel Installation: Fix the panel and button box on the handlebars and adjust the angle of view. In the case of power failure, connect the panel connector to the corresponding connector of the controller. Turn on the power, the electric bike and the panel enter the normal operation state, and the panel installation is complete.

    Package List:

    1 x Motor Controller

    1 x Controller Wiring Diagram

    1 x Throttle Grip

    1 x Handlebar Grip

    1 x Panel

    1 x Panel Specification

    1 x Panel Mounting Bracket

    4 x Panel Mounting Gasket

    2 x Panel Mounting Screws

    1 x Power Sensor Magnetic Sheet

    1 x Power Sensor Connection Cable

    Note:

         1. The kit adopts controller and panel for KT. Do not change the controller and panel in the kit at will.

         2. Size due to manual measurement, please allow error.
