1. Applicable Type: This electric bike lithium conversion kit contains motor controller, LCD panel meter, which can be used for electric assist bike, electric bike, electric scooter, etc.

2. Motor Controller: The electric bike controller is suitable for 24V 36V 48V 1000 to 1500W with Hall without Hall brushless motor, 30A three mode sine wave with self learning function.

3. Display Contents: LCD panel meter can display riding speed, riding mileage, power assist gear, power indication, fault coding prompt, headlight display, motor running power, etc.

4. Aluminum Alloy Shell: The controller is made of aluminum alloy shell with slots design, which has good heat dissipation performance and can be protecting the internal circuit and avoid thermal overload. LCD panel meter is suitable for 22.2mm handlebar, easy to install and use.

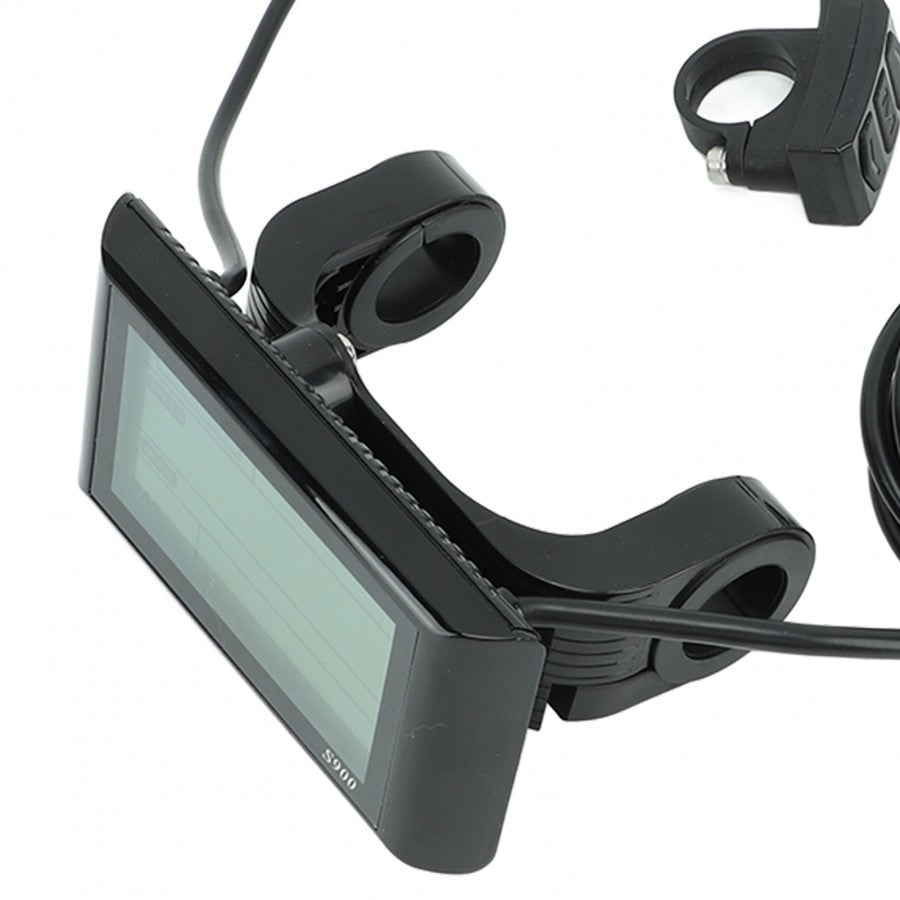

5. ABS Panel Meter Housing: LCD panel meter housing is made of ABS, the display interface is clear and easy to read data while riding, the buttons are quick to operate and easy to use.

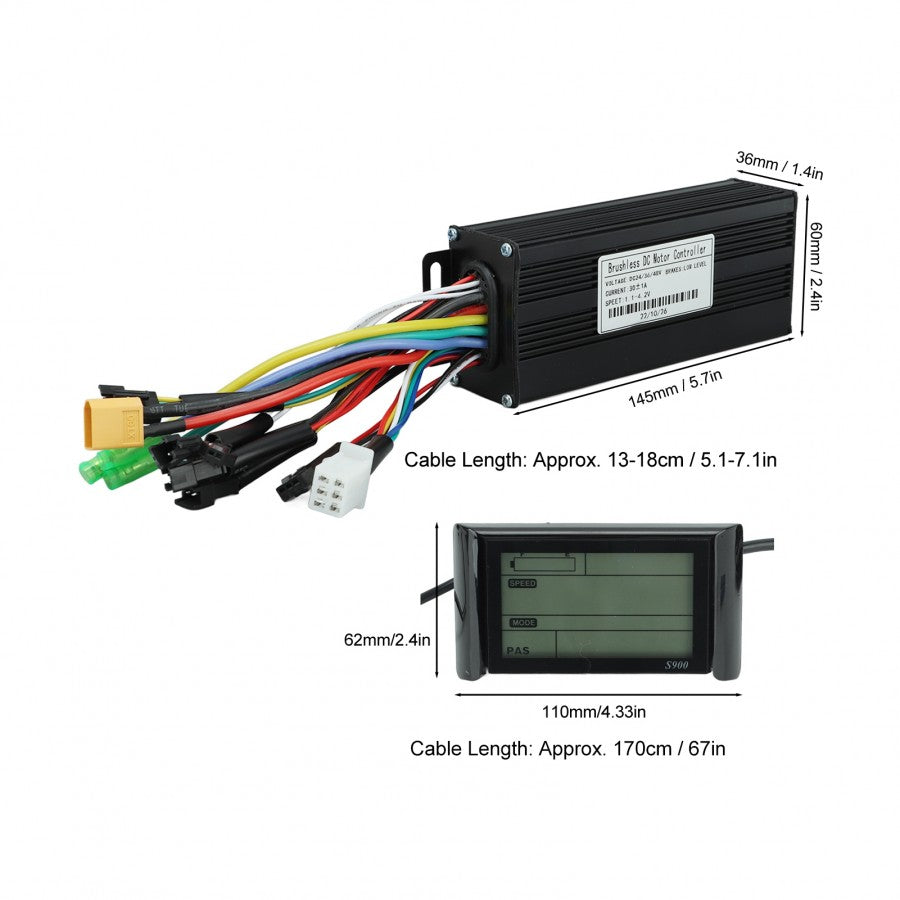

    Specification:

Item Type: Electric Bike Conversion Kit

Controller Parameters:

Controller Material: Aluminum Alloy

Current: 30±1A

Voltage: DC24V, 36V, 48V

Speed Setting: 1.1-4.2V

Brake Input: Low Level

Applicable Motor: 1000W-1500W

LCD Panel Meter Parameters:

Material: ABS, Acrylic

Applicable Handlebar Mount: 22.2mm Diameter Handlebar, Approx. 22.2mm / 0.87in

Voltage: 24V 36V 48V

Panel Meter Function Description: Display function, speed display, power gear display, power indication, fault indication, total mileage, single mileage, headlight display

    How to Use:

         1. Controller Connection: Please connect the corresponding equipment according to the interface above the controller wiring diagram.

         2. Panel Meter Installation: Fix the panel meter on the handlebar and adjust the viewing angle. With the bike disconnected, connect the panel meter connector to the corresponding connector of the controller. Turn on the power, the electric vehicle and the panel meter enter into normal operation, and the installation of the meter is completed.

    Package List:

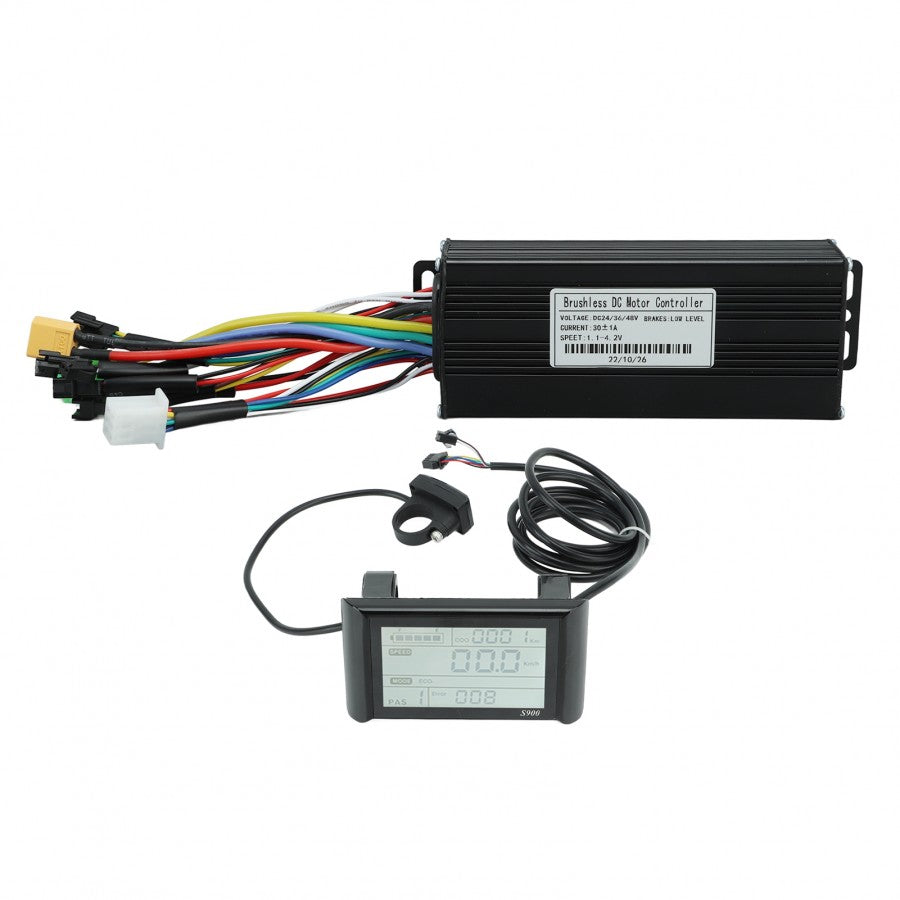

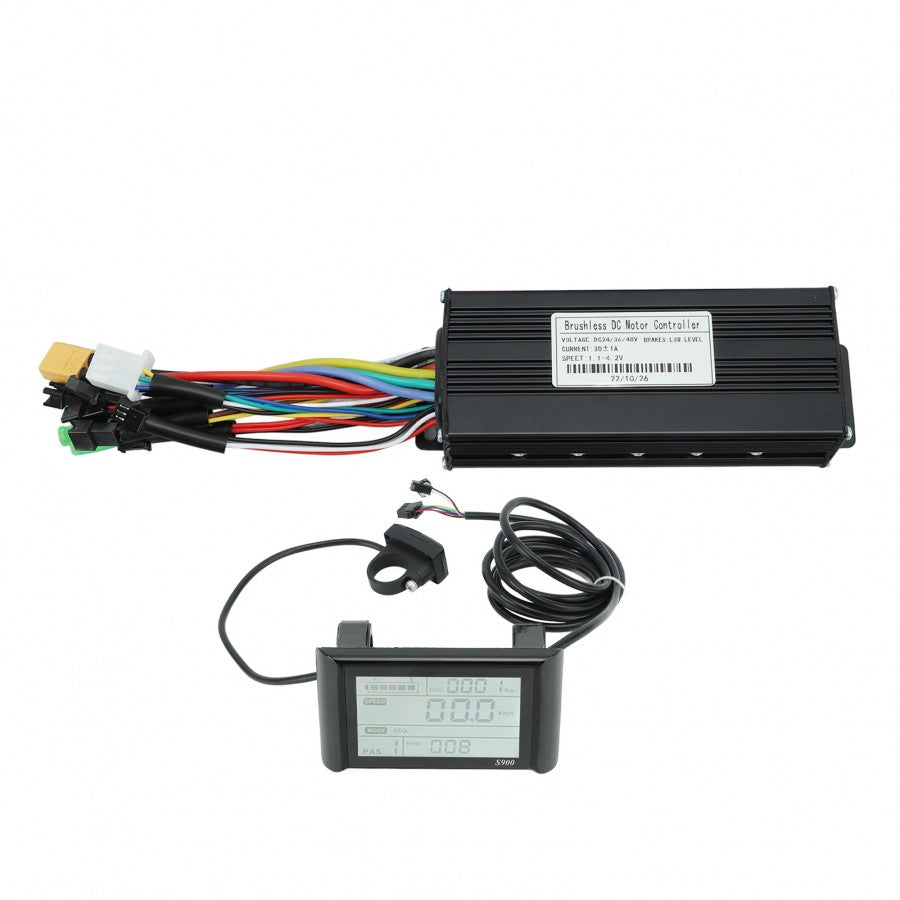

1 x Controller     1 x LCD Display Panel Meter

    1 x Controller Wiring Diagram

1 x Display Panel Meter Instruction

    Note:

The NO.2 communication protocol used by controllers and LCD display meter.
