Features:
Original IR power tube, customized double NMB ball bearing high-speed fan, with temperature control stepless speed change function
With industrial big tooth radiator, not afraid of dust
Long-term operation stability, power redundancy not less than 50% (25 ℃)
Classic digital tube display, intuitive and durable (more resistant to high temperature than liquid crystal, almost not bad)
All 100% power will be shipped out after aging
Ideal for assembling a fully automatic aging cabinet for power adapters
Specifications:
Power supply voltage: DC12V (±5%)
Constant current discharge current adjustment range: 0-10A
Working mode: single mode constant current (CC)
Maximum error of discharge current: 0.7%-0.01A
Maximum error of capacity test: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%
Maximum power: 100W
Instructions:
1. Turn on the 12V power supply and turn it on to enter the electronic load mode. Make sure that it is in the stopped state (the knob is counterclockwise to the smallest) and connect the power supply under test to the test input power port. Be careful not to connect the wrong polarity.
2. Set the constant current through the knob
Note:
Because it is open work, there is no voltage limit and power limit inside, but normal work should be below 100V and below 100W

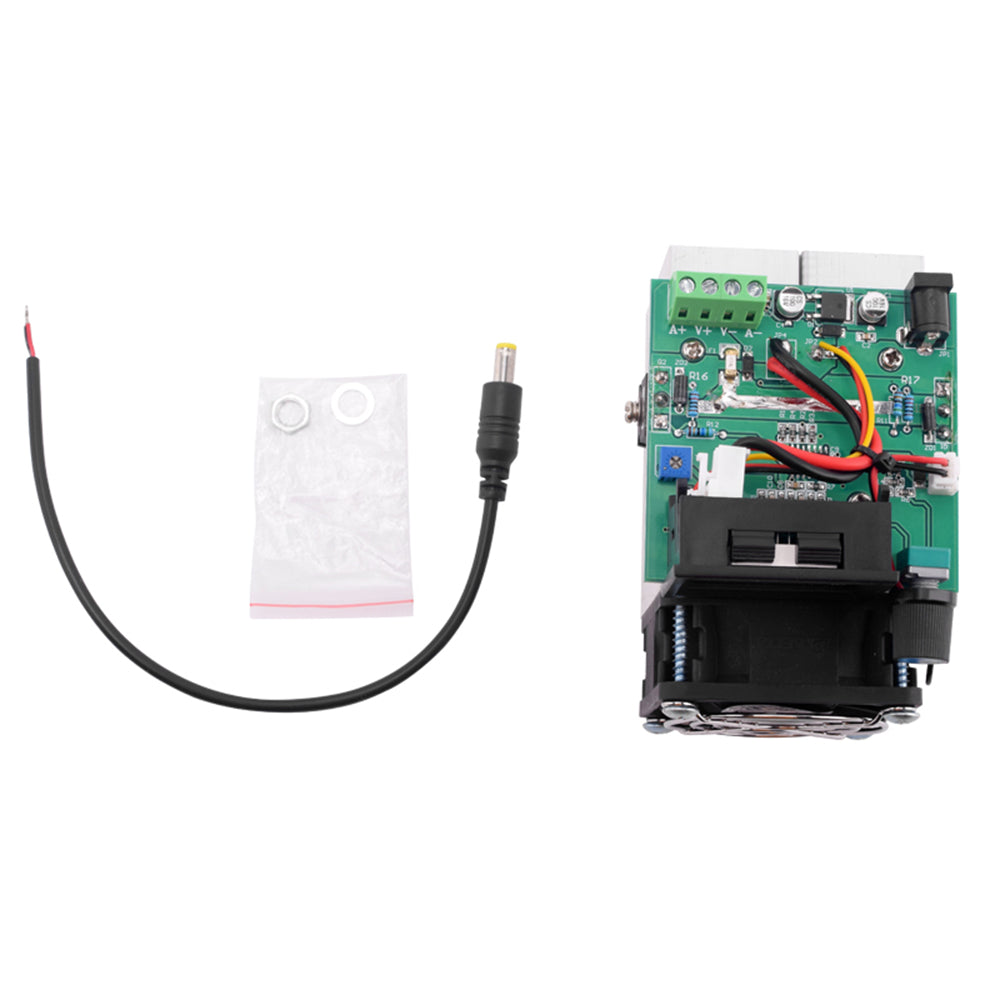

Package Included:
Electronic load X1
DC head cable X1
